CMPRO-U4H4CVPL EOL
Replacement Model >CMSI-4H4CV

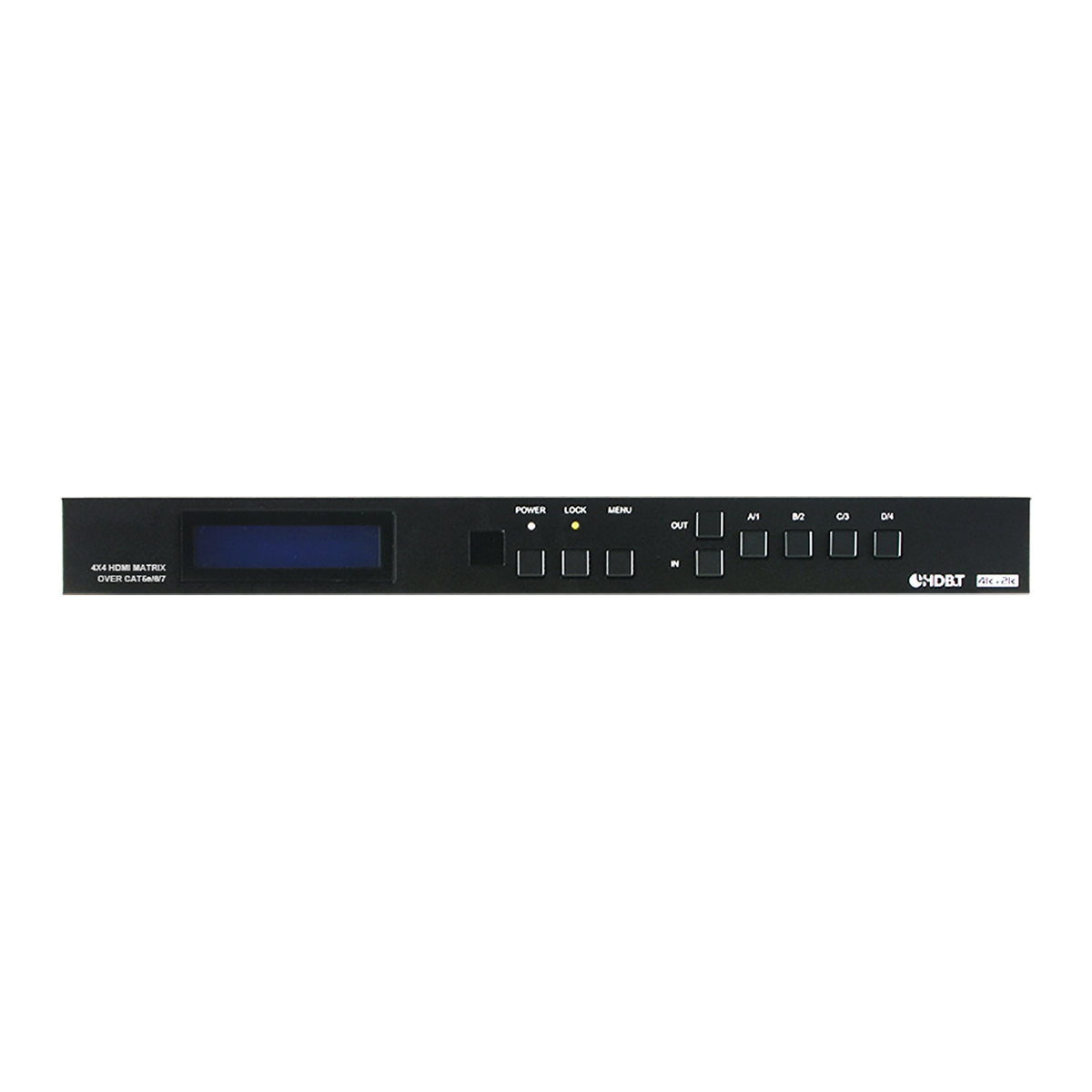

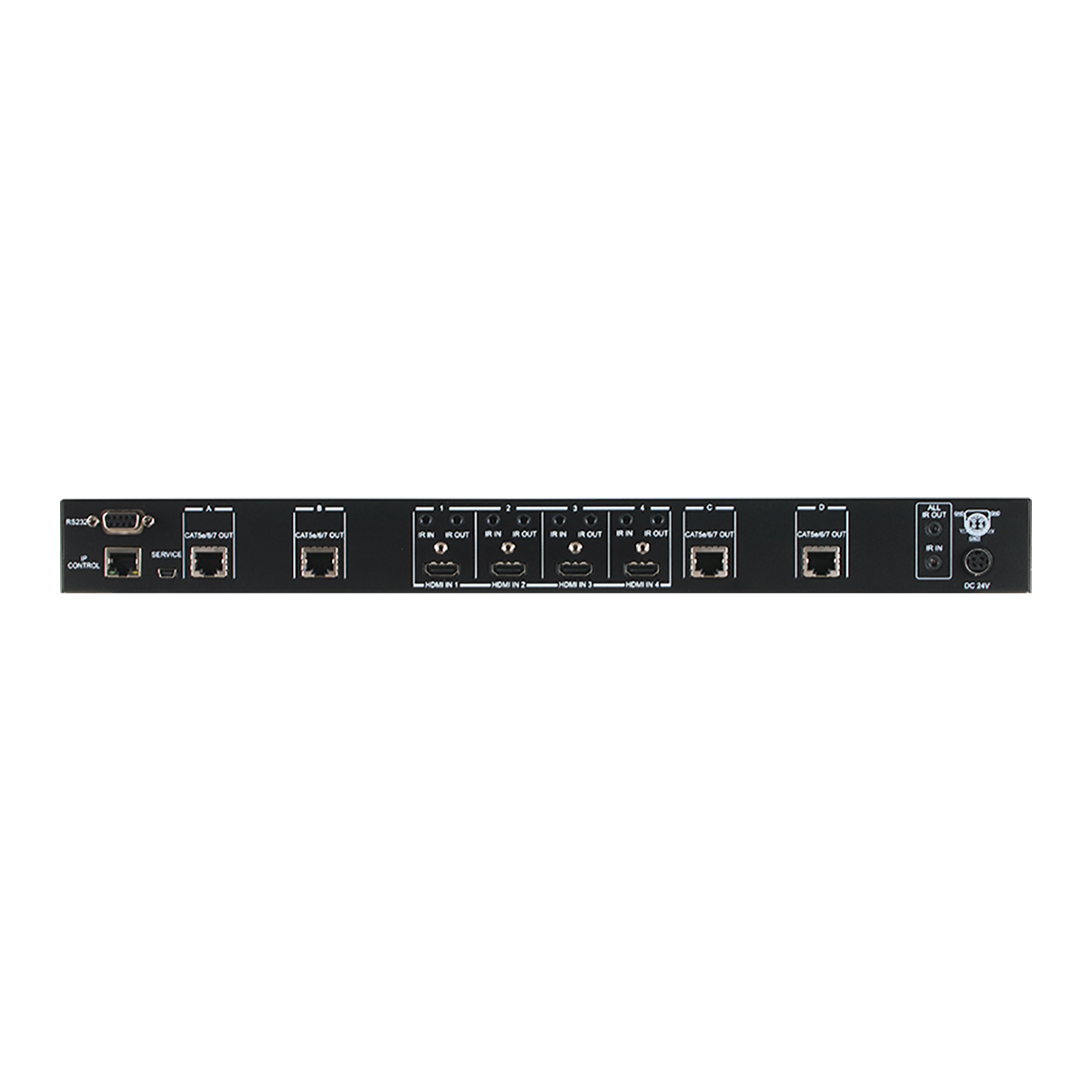

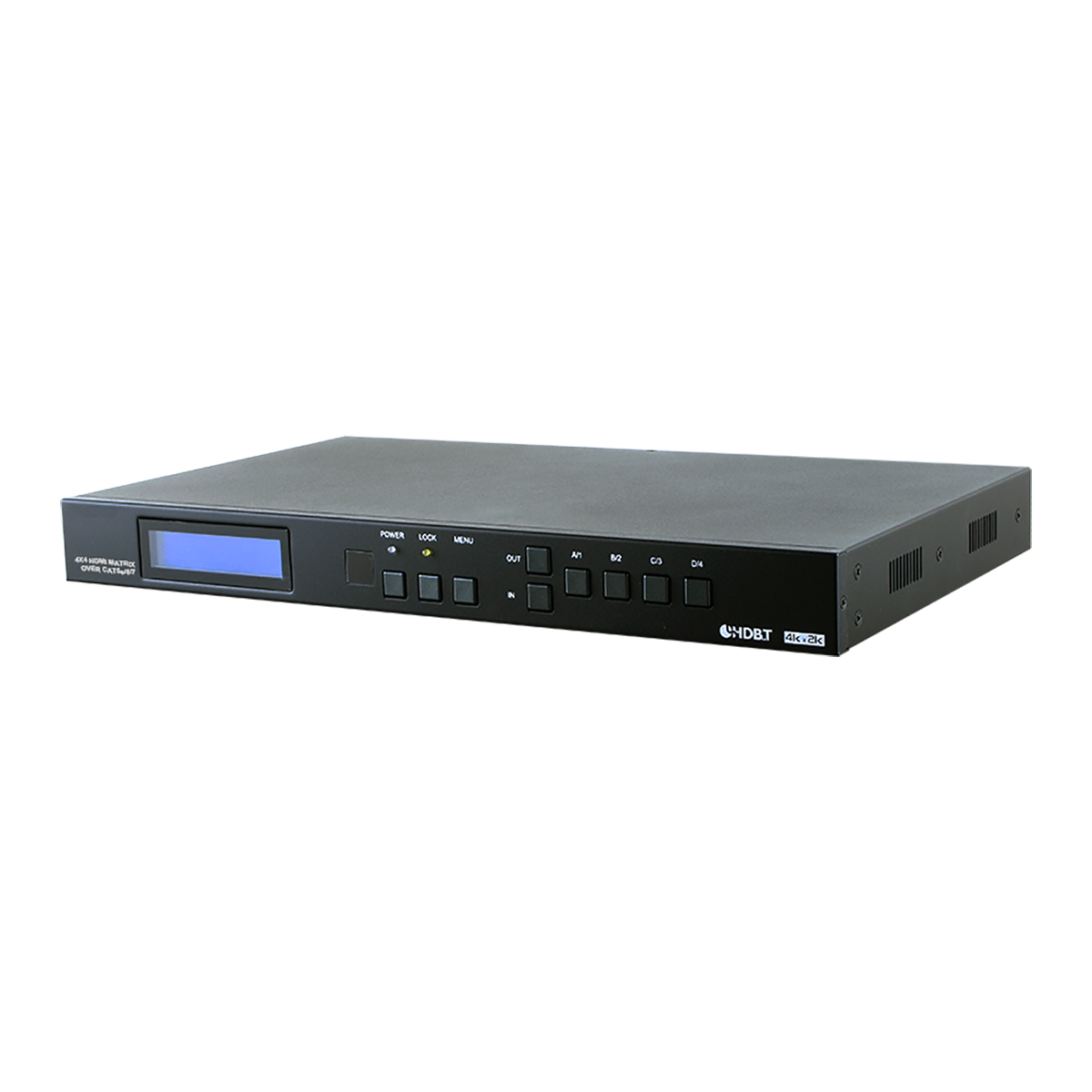

4K2K 4×4 HDMI Matrix over CAT5e/6/7
- HDMI, HDCP1.1 and DVI compliant
- Supports HDMI 3D features
- Supports resolutions VGA~WUXGA and 4K2K @50/60(YUV_420) dependent upon the output display’s EDID settings
- Supports distances up to 60 meters through CAT5e/6/7 cables
- Supports 3D signal display dependent upon the output display EDID settings
- Supports HDMI input/output up to 10 meters at 8-bit/12-bit resolution or 5 meters at 4K2K resolution
- Supports bi-directional IR from input and output locations or 5 meters at 4K2K resolution
- Supports RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)
- 1U size design
- Supports external and internal EDID settings
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
Note:
Do not connect the LAN/CONTROL port to CAT outputs of this
device, doing so may tigger the device to shoot down.
