This 3 by 2 matrix switch is designed for use in environments needing a wide
range of flexibility when it comes to inputs, outputs, and control. The two most
common video input interfaces (HDMI, USB-C) are included along with a pair
of HDMI outputs, providing the ultimate in source compatibility and flexibility.
This unit is HDCP 2.2 compliant and supports resolutions up to a maximum of
4K@60Hz (4:4:4, 8-bit). The included USB-C input runs on the USB3.0 specs
and supports AV, device charging as well as network connection.
This matrix also includes a USB 3.0 hub with two host ports (Type-B and
Type-C), plus two device ports (Type-A) for a flexible KVM configuration. It is
ideal for use in meeting rooms, classrooms, and audio integration with USB

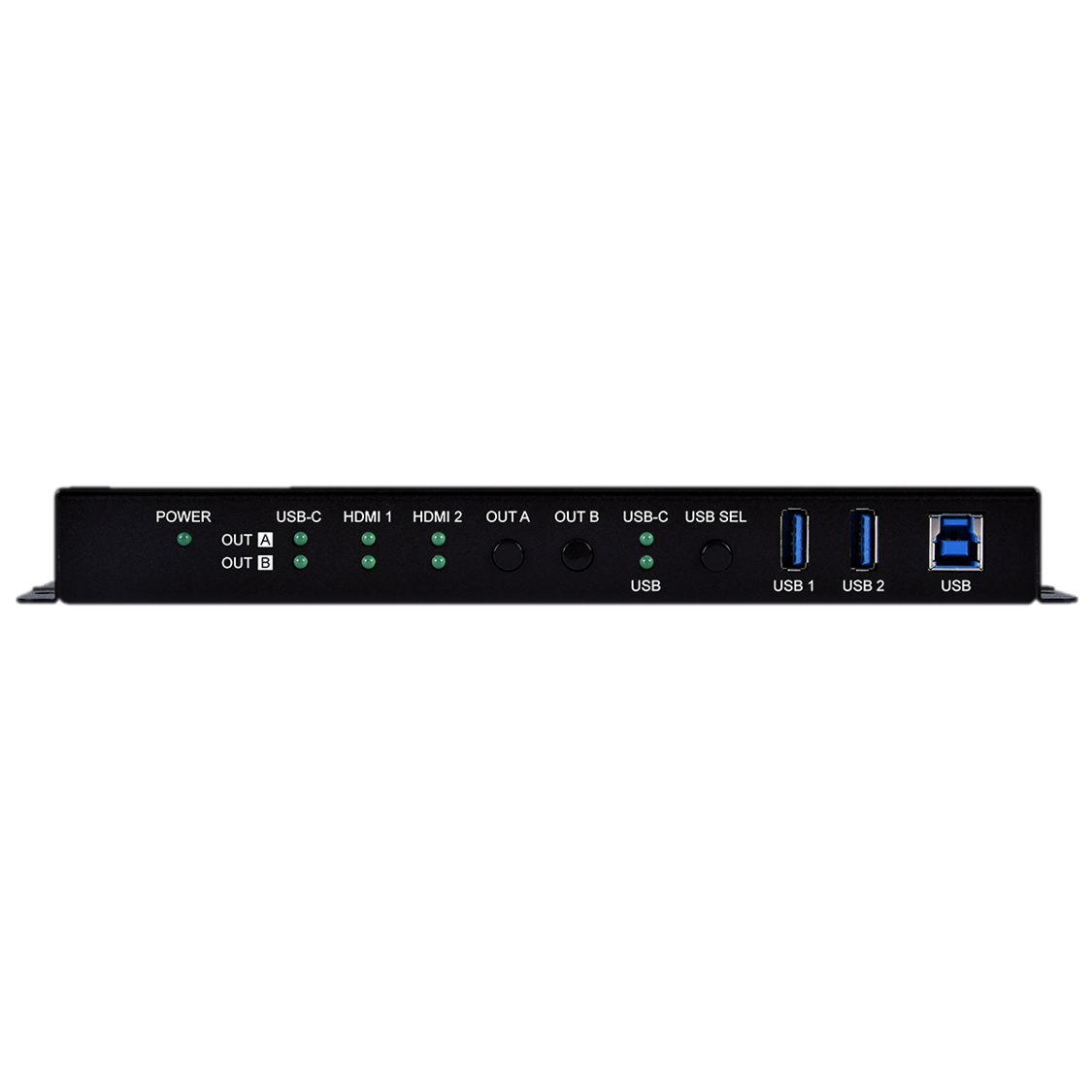

expansion. This unit is controllable via front panel controls, WebGUI, Telnet and
RS-232

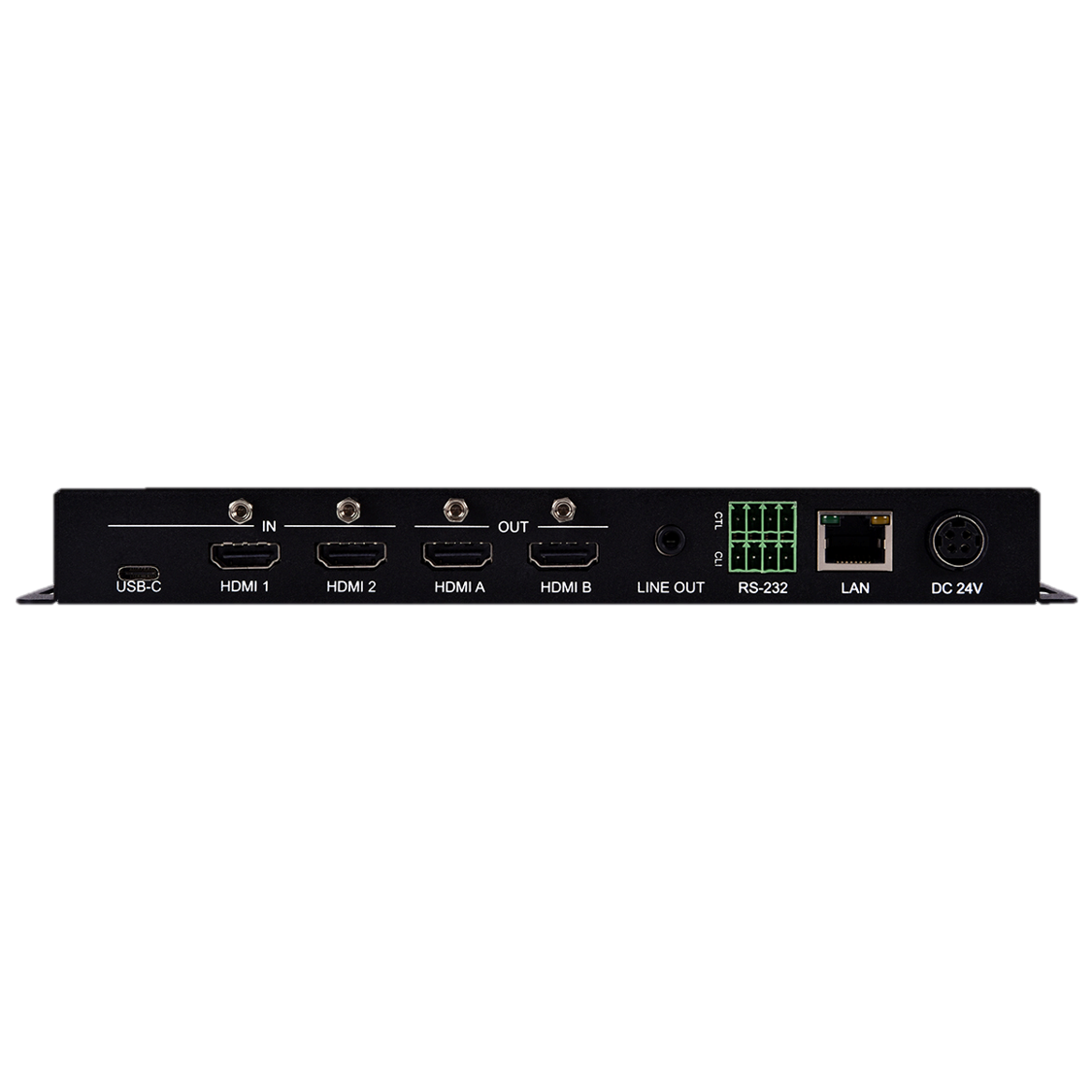

Interfaces |
|
Input Port |
- 2 x HDMI (Type-A)
- 1 x USB (Type-C)
|
Output Port |
- 2 x HDMI (Type-A)
- 1 x Stereo Audio (3.5mm)
|
Bi-directional Port |
- 2 x RS-232 (4-pin Terminal Block)
- 1 x LAN (RJ-45)
|
Control I/O |
- 2 x USB 3.0 (Type A) with Service function (USB 1 only)
- 1 x USB 3.0 (Type B)
|
Video |
|
HDMI Compliance |
|
HDCP Compliance |
|
Input Signal Types |
|
Output Signal Type |
|
Resolutions |
|
|
Maximum Input |
HDMI |
|
|
USB-C |
|
Maximum Output |
HDMI |
|
Audio |
|
|
|
HDMI |
- LPCM 2.0 / 5.1 / 7.1 High-Definition Bitstream
|
|
Line Out |
- LPCM 8 channel Bitstream High-Definition Bitstream
|
Power |
|
Power Supply |
|
Power Consumption |
|
Enclosure |
|
Chassis Material |
|
Chassis Color |
|
Dimensions (W×H×D) |
- 213.5mm×25mm×108mm [Case Only]
- 213.5mm×25mm×112.5mm [All Inclusive]
|
Weight |
|
Field Firmware Update |
|
Interface |
|
Ordering Information |
|
Model No. |
Product Description |
CPLUS-V32USBC |
- UHD+ 3x2 Matrix Switcher with USB Ethernet Hub
|
