SDM-E201T

HDBaseT Transmitter Module (4K@60 420 up to 40M)

Signal extension for compatible module slot
Supports point to point extension for audio and video
CAT.6A/7 cable can reach up to 40 meters

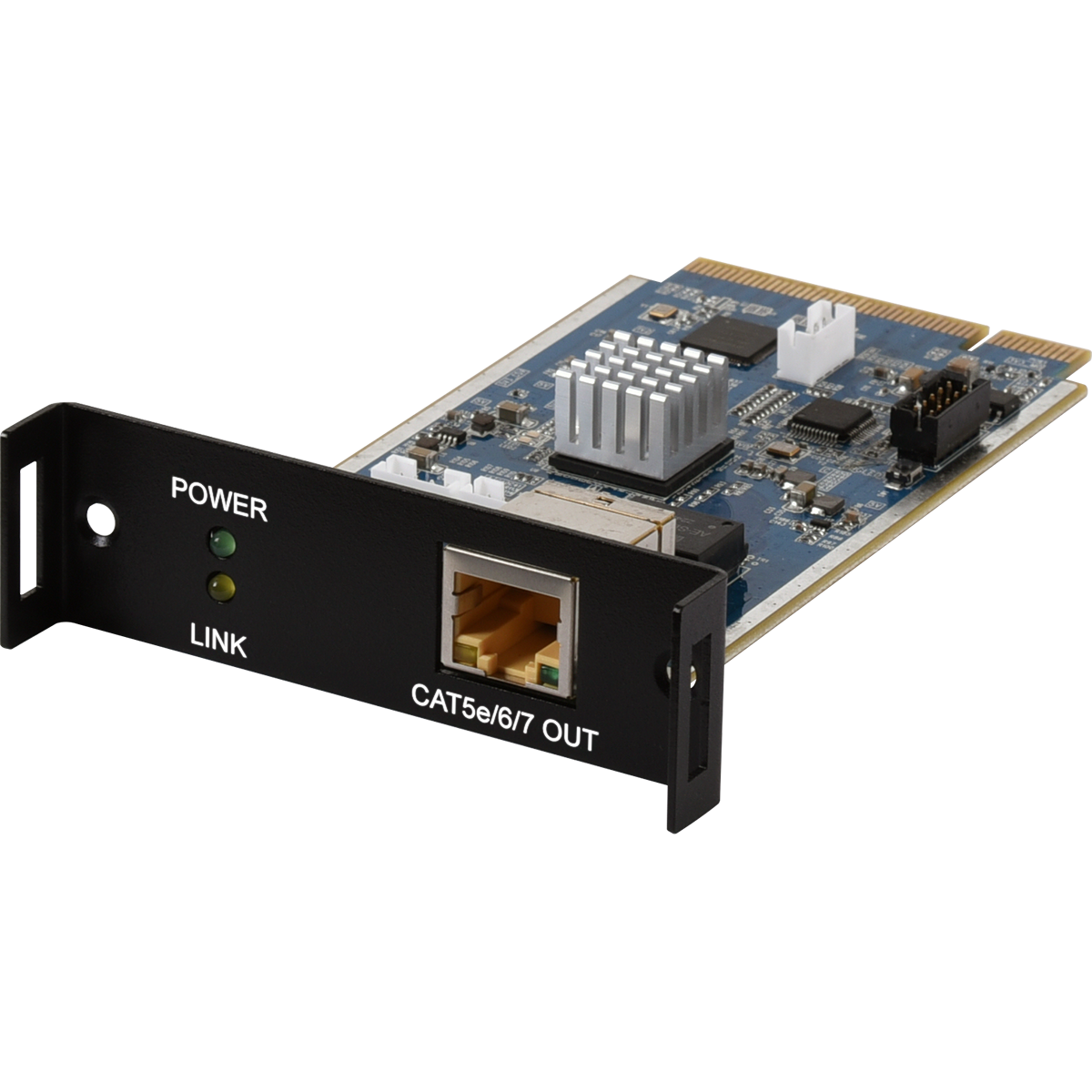

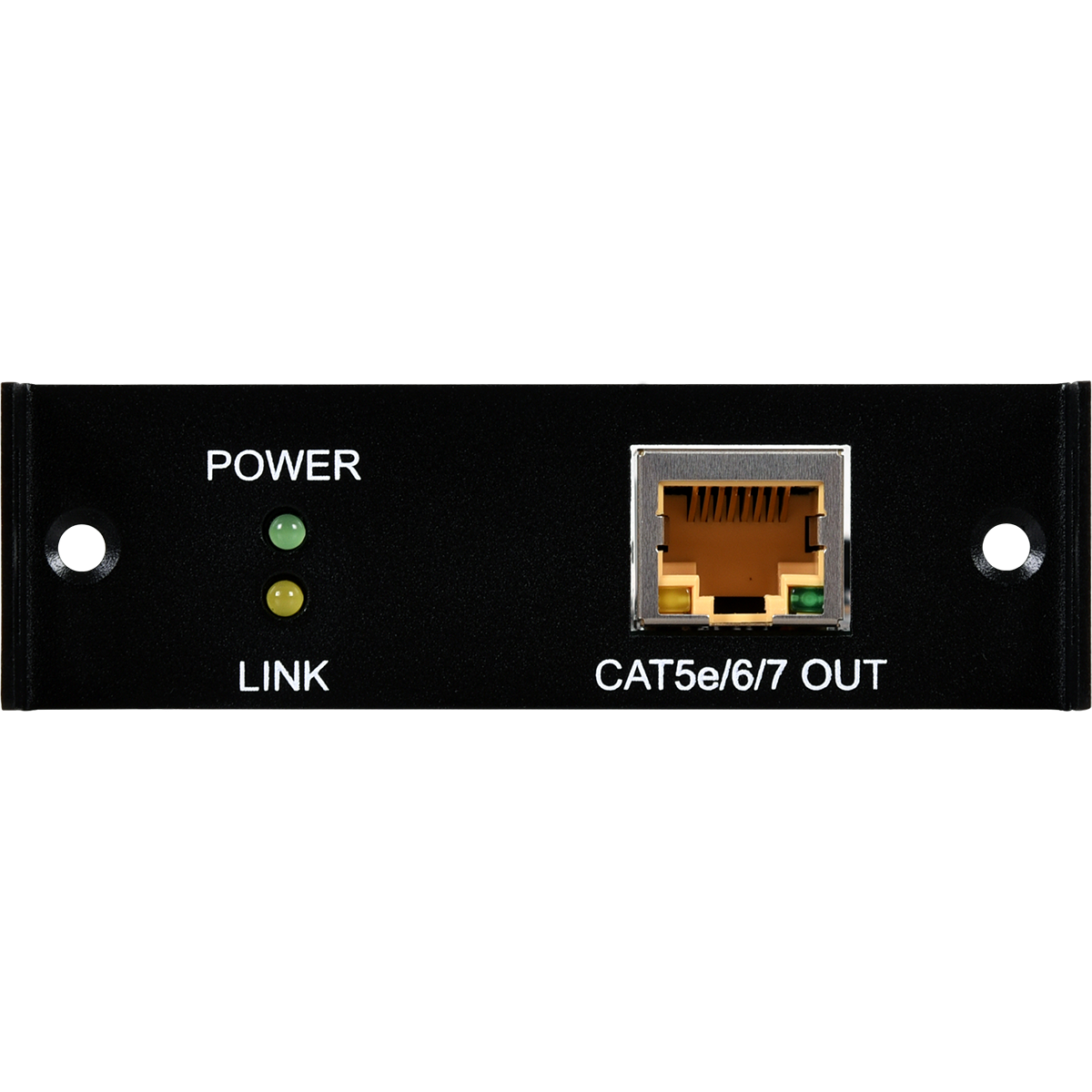

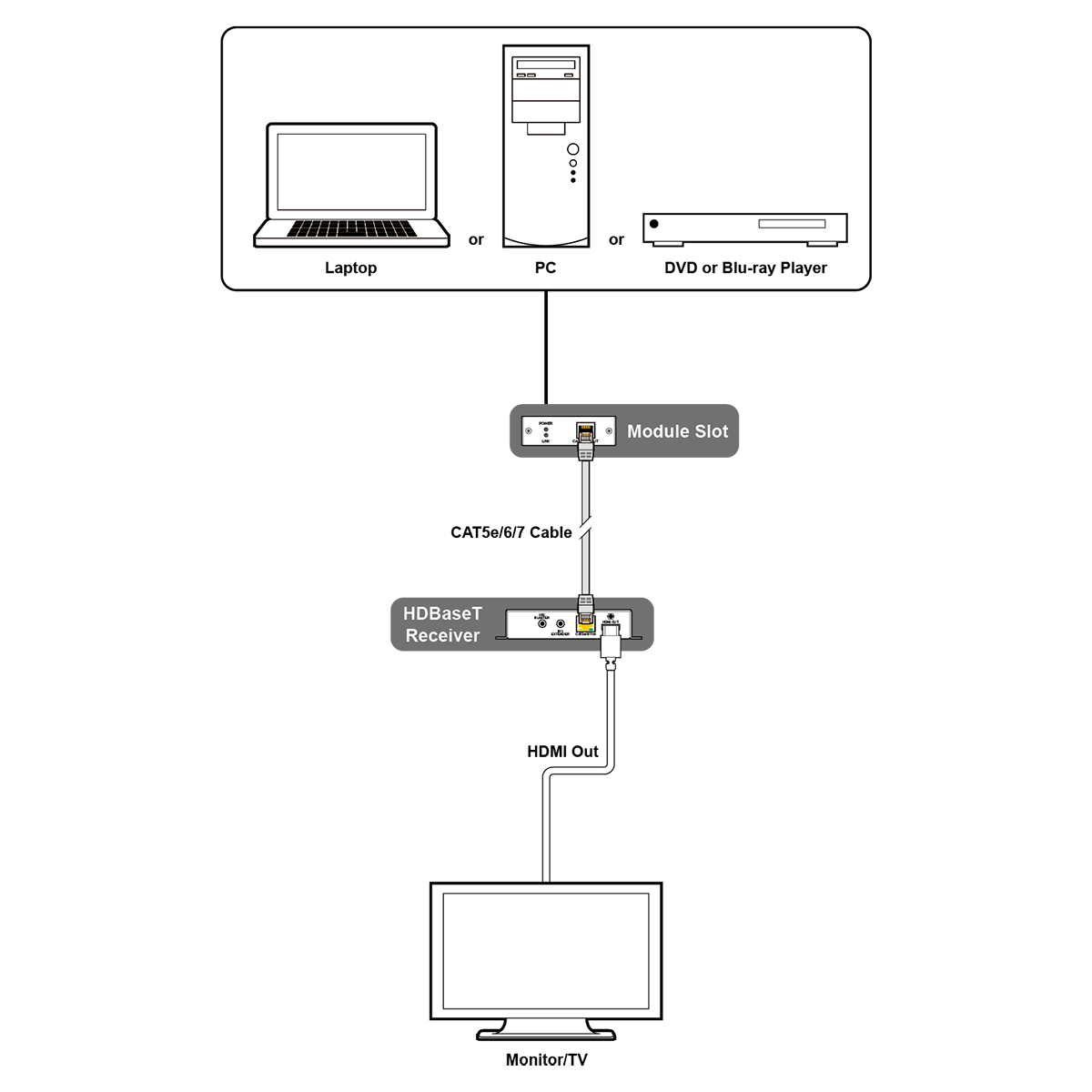

SDM-E201T is HDBaseT transmitter module card. It is able to transmit HDMI signals from host module device, such as PC, laptop, Blu-ray player and more. Extension distance is up to 40 meters, with resolutions up to 4K@60 via category cable. This module card is compatible with CYP output module platform, CSC-VPR-3421 and other platforms of SDM output module, offering customers great flexibility in different scenarios. Also, this module card can be used with SDM-E201R or other HDBaseT receivers with category interface for signal extension.

Interfaces
Input Port	1 CYP Module(Edge Connector)
Output Port	1 HDBaseT (RJ-45)

Video
HDMI Compliance	HDMI 2.0 (Edge Connector)
HDCP Compliance	2.2
Input Signal Type	4K@60 YUV 4:4:4
Output Signal Type	4K@60 YUV 4:2:0
Interface	Resolutions
Maximum Input	HDMI (Edge Connector)	4096×2160p@60 YUV 4:4:4
Maximum Output	HDBaseT	4096×2160p@60 YUV 4:2:0

Audio
HDMI	Bypass

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	122.2mm×25mm×82mm [Case Only] 122.2mm×25mm×82mm [All Inclusive]
Weight	58g

Field Firmware Update
CSC-VPR-3421

ORDERING INFORMATION

Model No.	Product Description
SDM-E201T	HDBaseT Transmitter Module
SDM-E201R	HDBaseT Receiver Module
CSC-VPR-3421	UHD+ HDMI Multiview Processor with Multi-Function Extension Slot
CPLUS-V32SDM	UHD+ Multi-format Matrix Switcher with USB Ethernet Hub

Product Support
Upload Date	File Name	Version	OS	Description	Download
2024/04/17	SDM-E201T-Manual-Ver1.00	Ver1.00	all	SDM-E201T-Manual-Ver1.00
