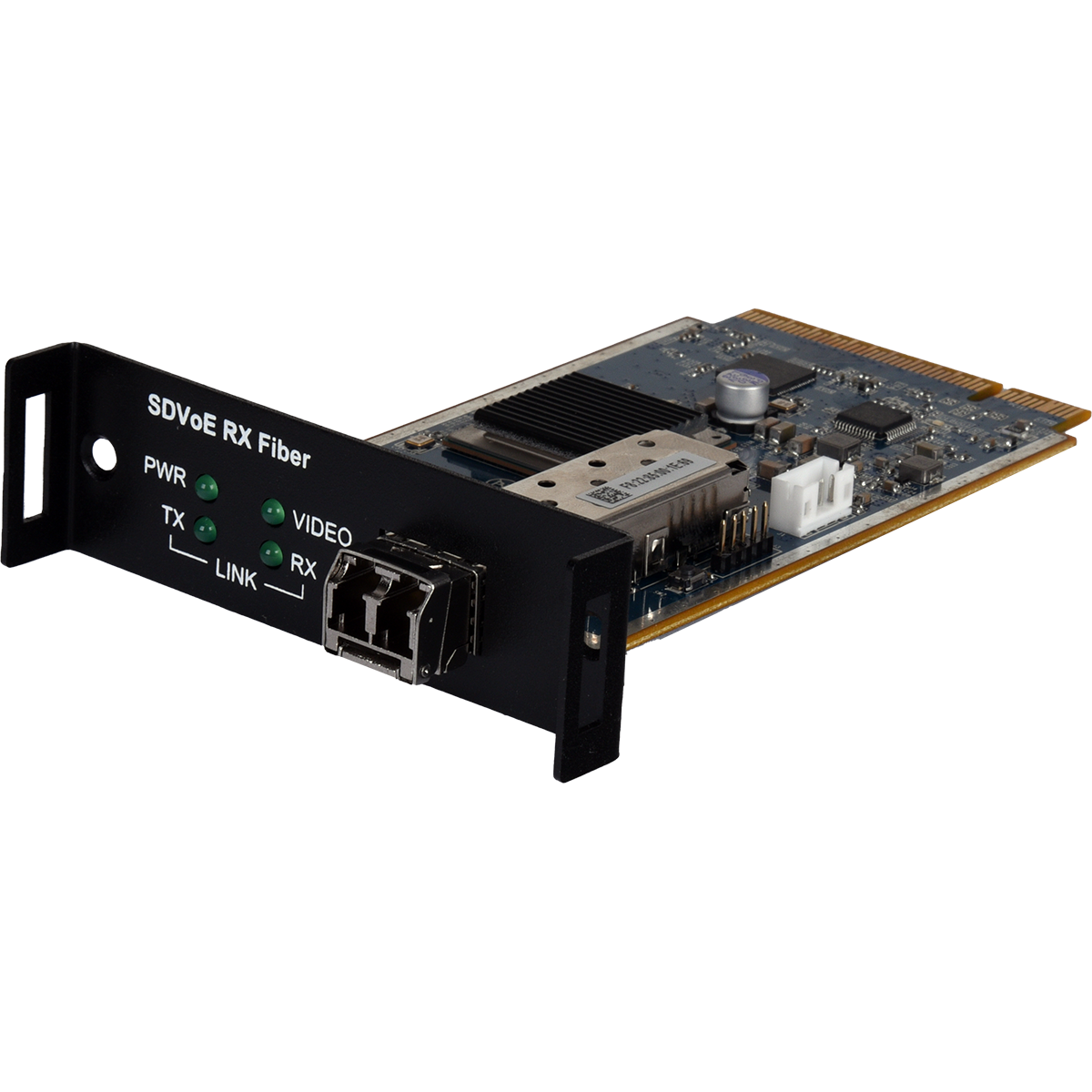

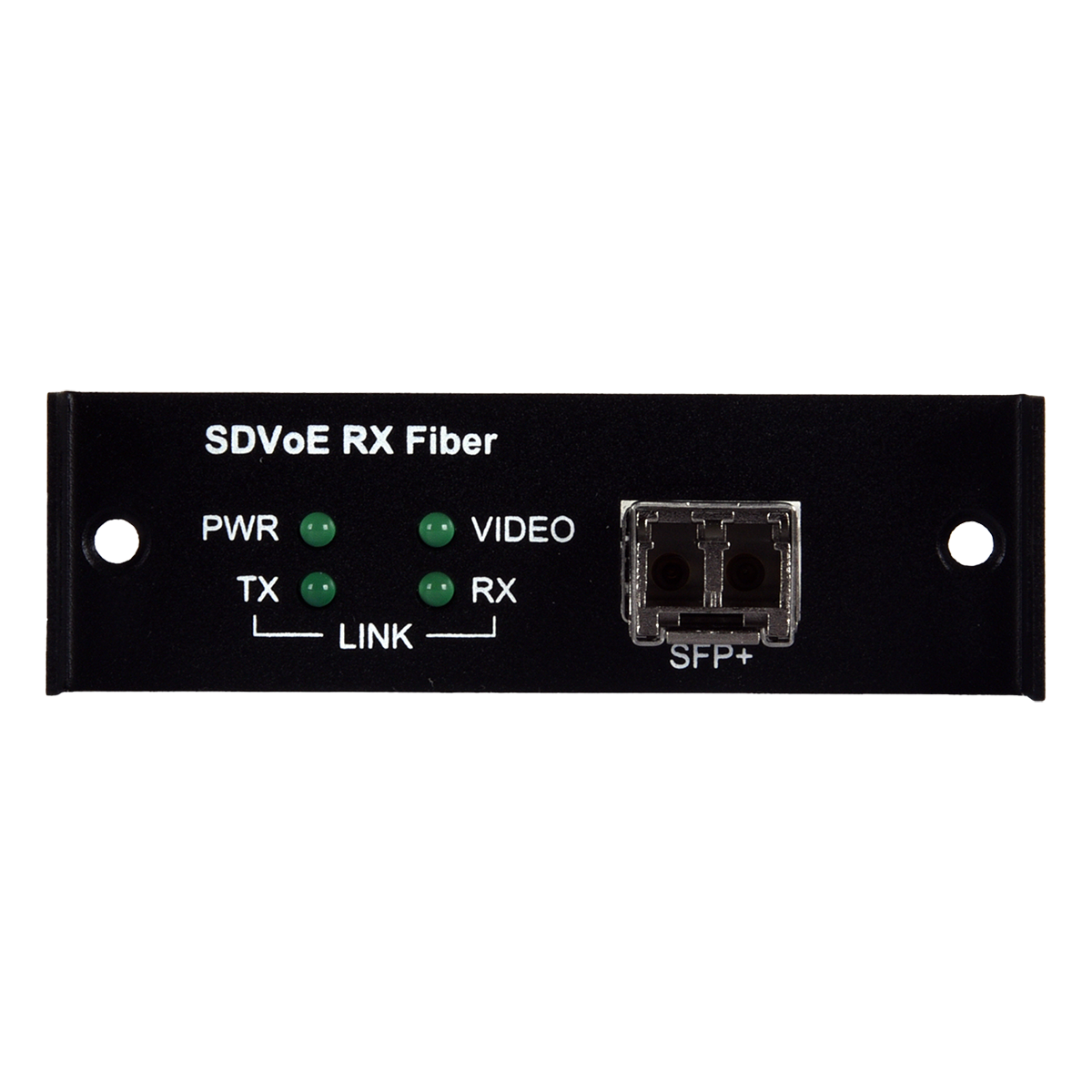

SDM-P301R-F

4K60 AV over IP Receiver Module

Signal transmission interfaces with 10-Gigabit Ethernet switches via XFI (IEEE 802.3ae) compatible SFP+ fiber modules
4K@60 signal extension up to 120km (maximum distance depends on the SFP+ module and type of fiber used)
Supports the use of an external control center (IP Master Controller) or control software to provide expanded functionality (Contact your authorized dealer for more information)
IP routable with minimum latency (requires optional IP Master Controller or control software)
Supports independent breakaway A/V matrix switching with minimum latency, video wall generation, and multi-view compositing (requires optional IP Master Controller/control software)
Supports pass-through of 10/12-bit HDR sources (Point-to-Point and Bypass modes only)
Supports pass-through of audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream
Ultra-light compression, lossless for most content

This AV over IP Receiver Module is designed for high-quality, IP-routable AV extension up to 4K@60 4:4:4 with minimum latency. The use of interchangeable, field replaceable, SFP+ modules allows for transmission distances of up to 120km (Maximum transmission distance depends on the SFP+ modules used). Advanced HDMI content such as HDR (High Dynamic Range), 12-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode. The module’s design is compatible with a variety of products that have a standard CYP Module Slot, offering increased flexibility to customers.

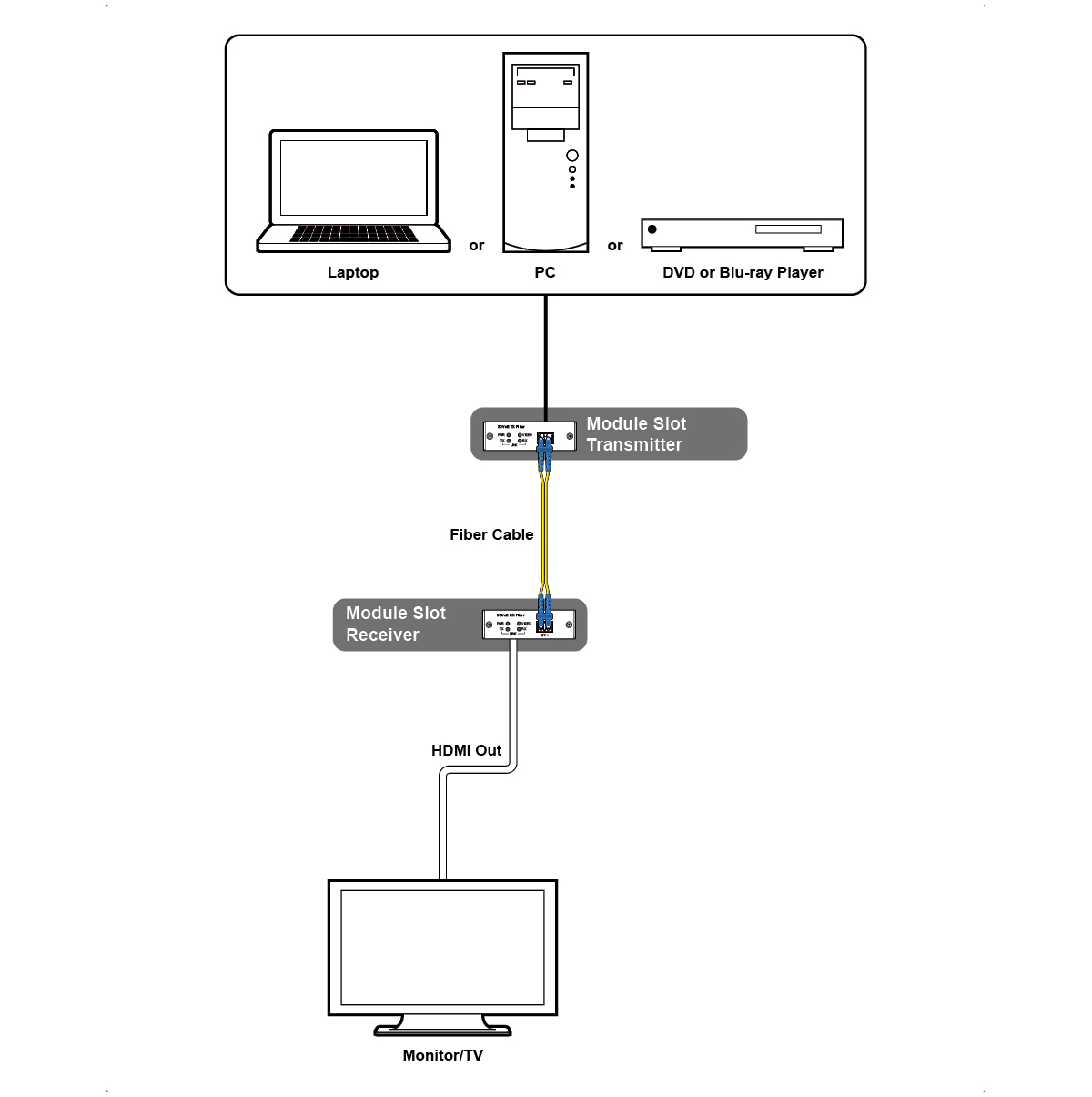

When combined with the optional IP Master Controller or control software, the functionality of the receiver expands exponentially. Multiple transmitters and receivers may be combined with one or more 10-Gigabit fiber Ethernet switches and the units can be used together to form a distributed video matrix, a multiviewer system, or a video wall system adding to their flexibility in large event installations. Advanced control such as firmware update can also be performed conveniently through the optional IP Master Controller or control software.

Interfaces
Input Port	1 ×10GbE LAN (SFP+)
Output Port	1 ×CYP Module (Edge Connector)

Video
HDMI Compliance	HDMI 2.0 (Edge Connector)
HDCP Compliance	2.2
Input Signal Type	4K@60 YUV 4:4:4
Output Signal Type	4K@60 YUV 4:4:4
	Interface	Resolutions
Maximum Input	SFP+ (Streaming)	4096x2160p@60 YUV 4:4:4
Maximum Output	HDMI (Edge Connector)	4096x2160p@60 YUV 4:4:4

Audio
10GbE LAN	LPCM (8 Channels), Bitstream, High Bit Rate Bitstream

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	80mm×25mm×122.2mm [Case Only / All Inclusive]
Weight	78g

Field Firmware Update
Platform USB to PC (CPLUS-V32SDM)
IP Master Controller

ORDERING INFORMATION

Model No.	Product Description
SDM-P301T-F	4K60 AV over IP Transmitter Module
SDM-P301R-F	4K60 AV over IP Receiver Module
CDPS-CS8-S	AV over IP Master Controller
CSC-VPR-3421	4K60 HDMI Multiview Processor with Multi-Function
CPLUS-V32SDM	4K60 Multi-format Matrix Switcher with USB Ethernet Hub

Product Support
Upload Date	File Name	Version	OS	Description	Download
2026/06/23	SDM-P301R-F_Manual-Ver1.00	Ver1.00	-	SDM-P301R-F_Manual-Ver1.00

PRODUCTS FEATURED

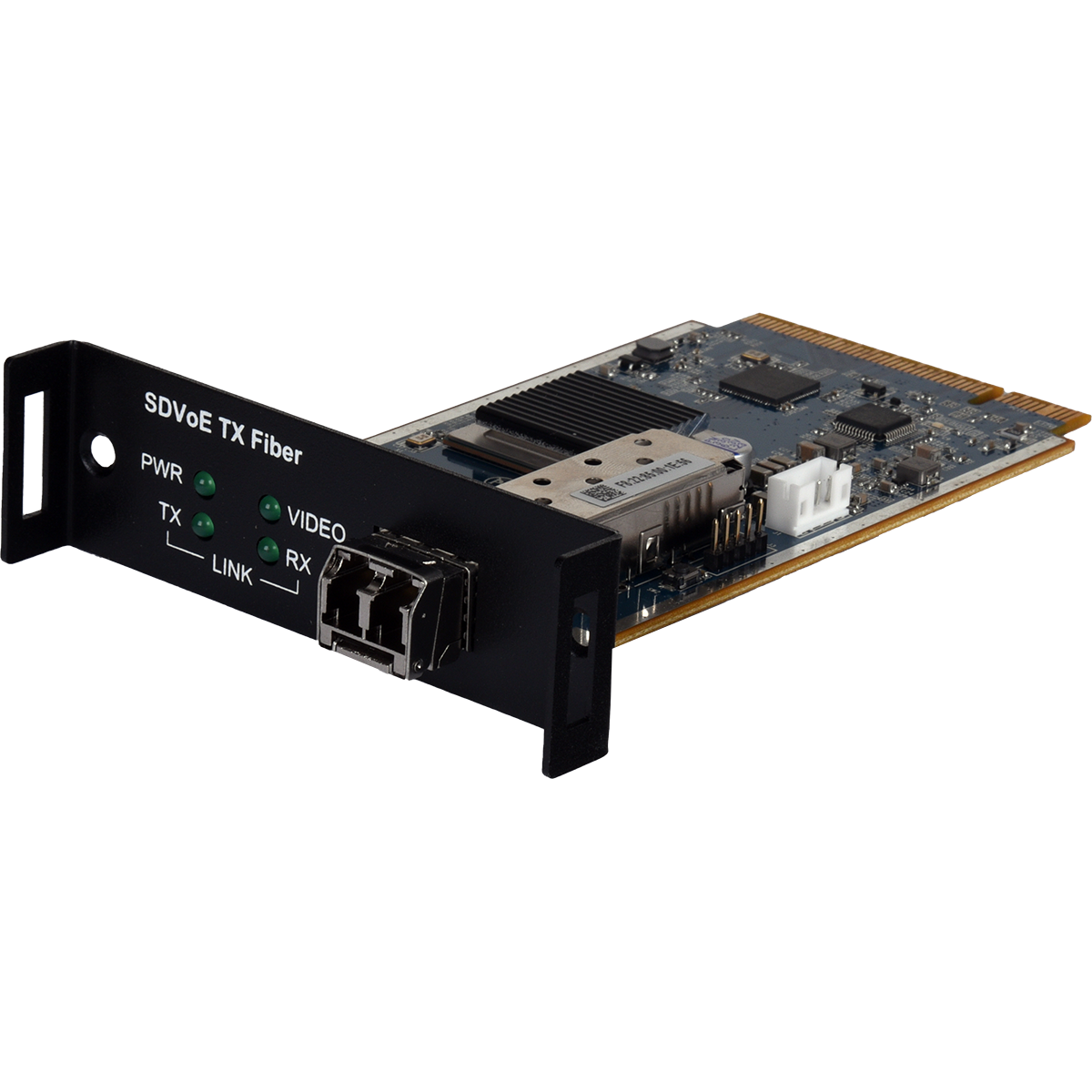

SDM-P301T-F
