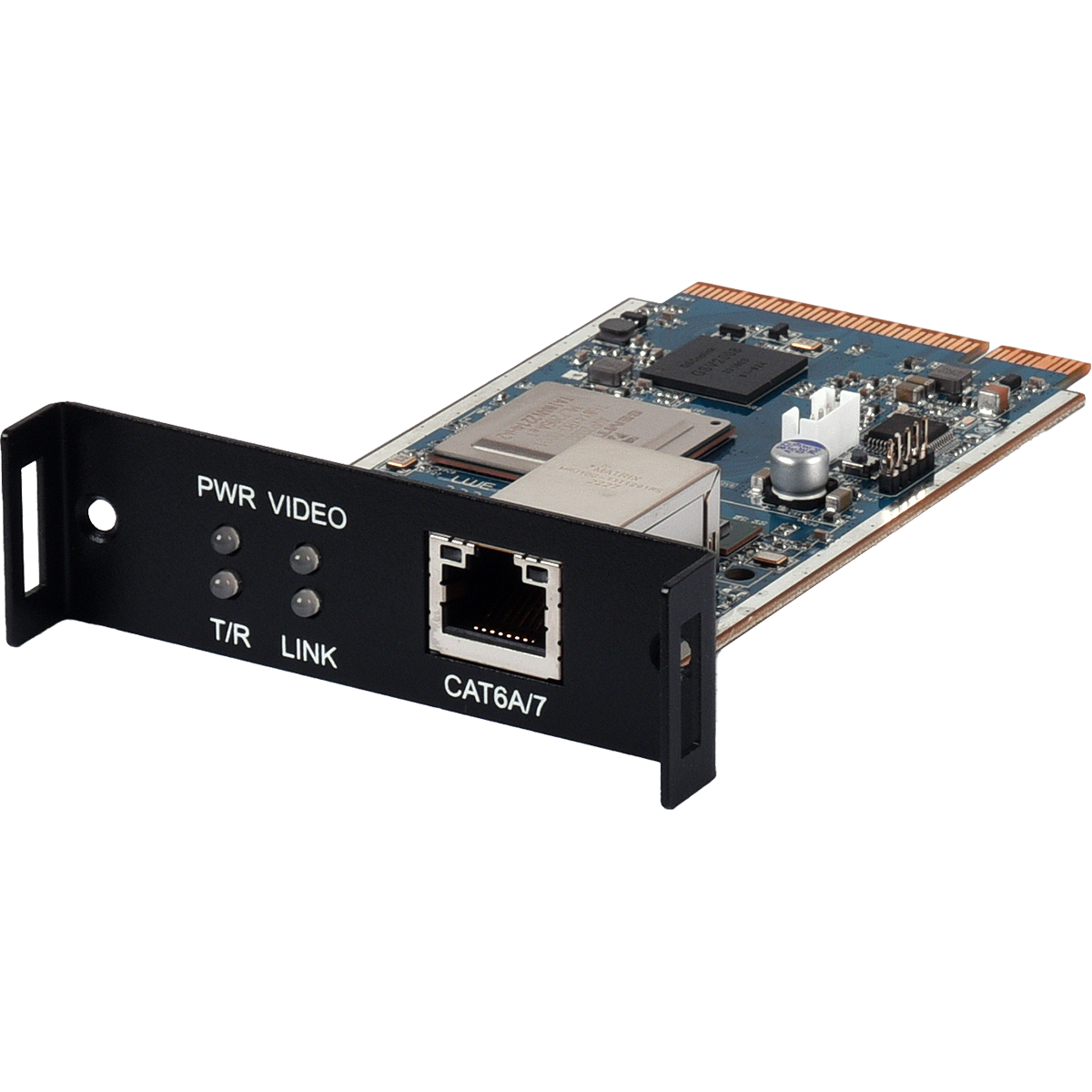

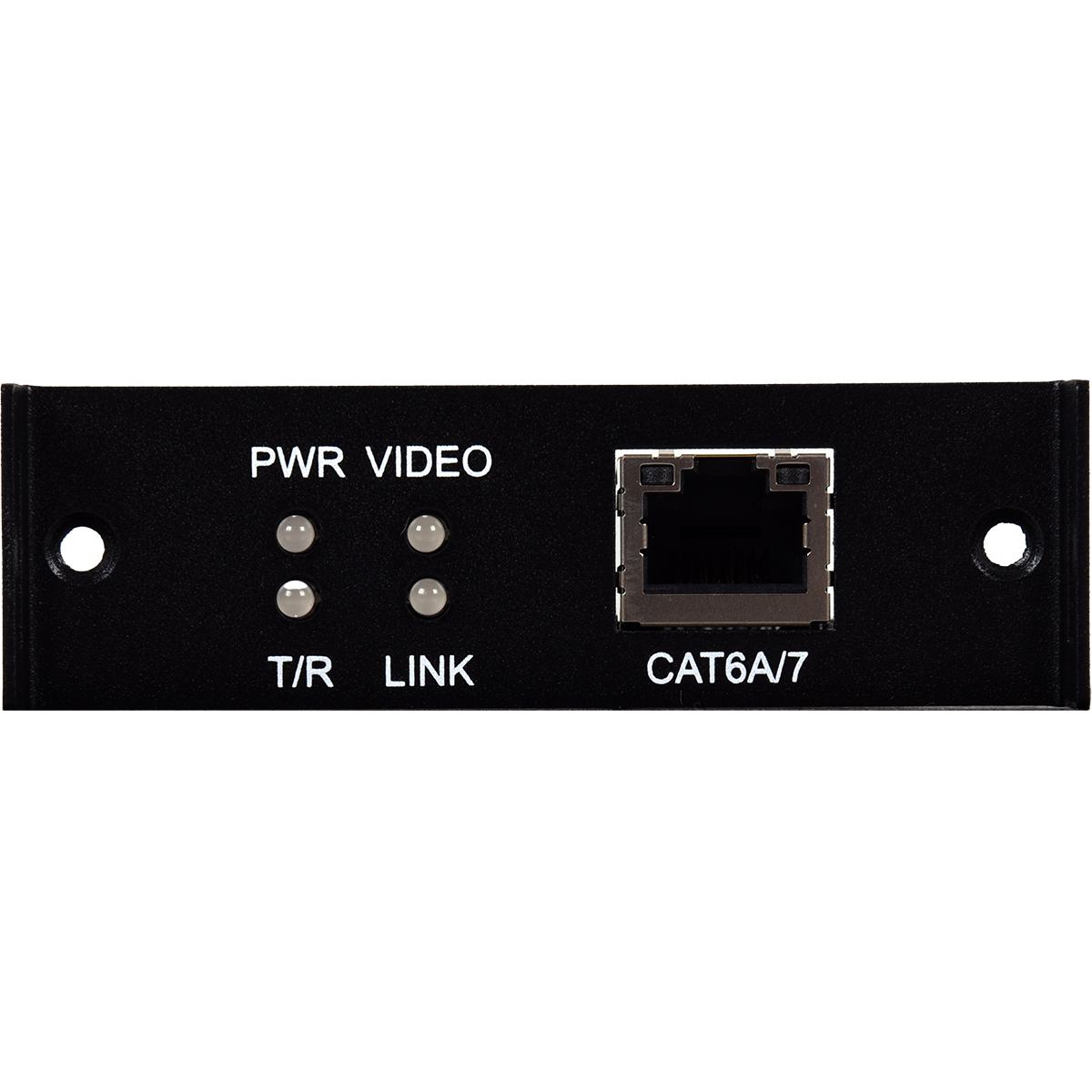

SDM-P301TR-C

4K60 AV over IP Transceiver Module

Transceiver supports simultaneous bi-directional AV signal extension
4K@60 Extension up to 100m (with Cat.6A cable)
Supports the use of an external control center (IP Master Controller) or control software to provide expanded functionality (Contact your authorized dealer for more information)
IP routable with minimum latency (requires optional IP Master Controller or control software)
Supports independent breakaway A/V matrix switching with minimum latency, video wall generation, and multi-view compositing (requires optional IP Master Controller/control software)
Supports pass-through of 10/12-bit HDR sources (Point-to-Point and Bypass modes only)
Supports pass-through of audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream
Ultra-light compression, lossless for most content

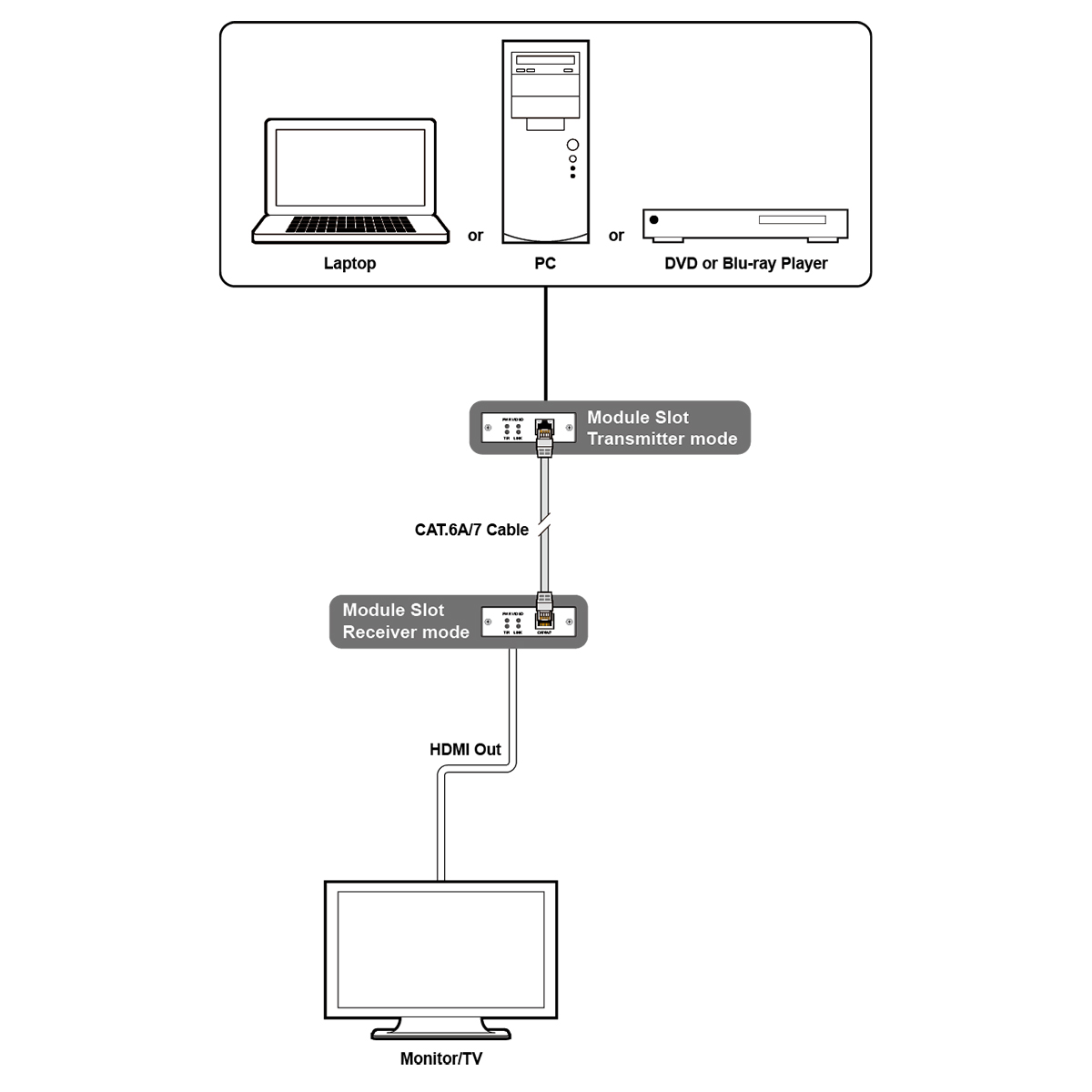

This AV over IP Transceiver Module is designed for high-quality, IP routable, AV extension up to 4K@60 4:4:4 with minimum latency. The use of 10-Gigabit Ethernet ports, and Cat.6A cable allows transmission of the video signal up to 100m. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode.

When combined with the optional IP Master Controller or control software, the functionality of the transceiver expands exponentially. Multiple transmitters and receivers may be combined with one or more 10-Gigabit Ethernet switches and the units can be used together to form a distributed video matrix, a multiviewer system, or a video wall system adding to their flexibility in large event installations. Advanced control such as firmware update can also be performed conveniently through the optional IP Master Controller or control software. The module’s design is compatible with a variety of products that have a standard CYP Module Slot, offering increased flexibility to customers.

Interfaces
Bi-directional Port	1×10GbE LAN (RJ-45)

Video
HDMI Compliance	HDMI 2.0 (Edge Connector)
HDCP Compliance	2.2
Input Signal Type	4K@60 YUV 4:4:4
Output Signal Type	4K@60 YUV 4:4:4
	Interface	Resolutions
Maximum Input	HDMI (Edge Connector)	4096×2160p@60Hz YUV 4:4:4
	10G LAN	4096×2160p@60Hz YUV 4:4:4
Maximum Output	HDMI (Edge Connector)	4096×2160p@60Hz YUV 4:4:4
	10G LAN	4096×2160p@60Hz YUV 4:4:4

Audio
HDMI	Bypass

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	128mm×25mm×75mm [Case Only] 128mm×25mm×75mm [All Inclusive]
Weight	72g

Field Firmware Update
Platform USB to PC

ORDERING INFORMATION

Model No.	Product Description
SDM-P301TR-C	4K60 AV over IP Transceiver Module
CDPS-CS7-S	SDVoE AV over IP Master Controller
CSC-VPR-3421	4K60 HDMI Multiview Processor with Multi-Function Extension Slot
CPLUS-V32SDM	4K60 Multiformat Switcher with USB Ethernet Hub

PRODUCTS FEATURED

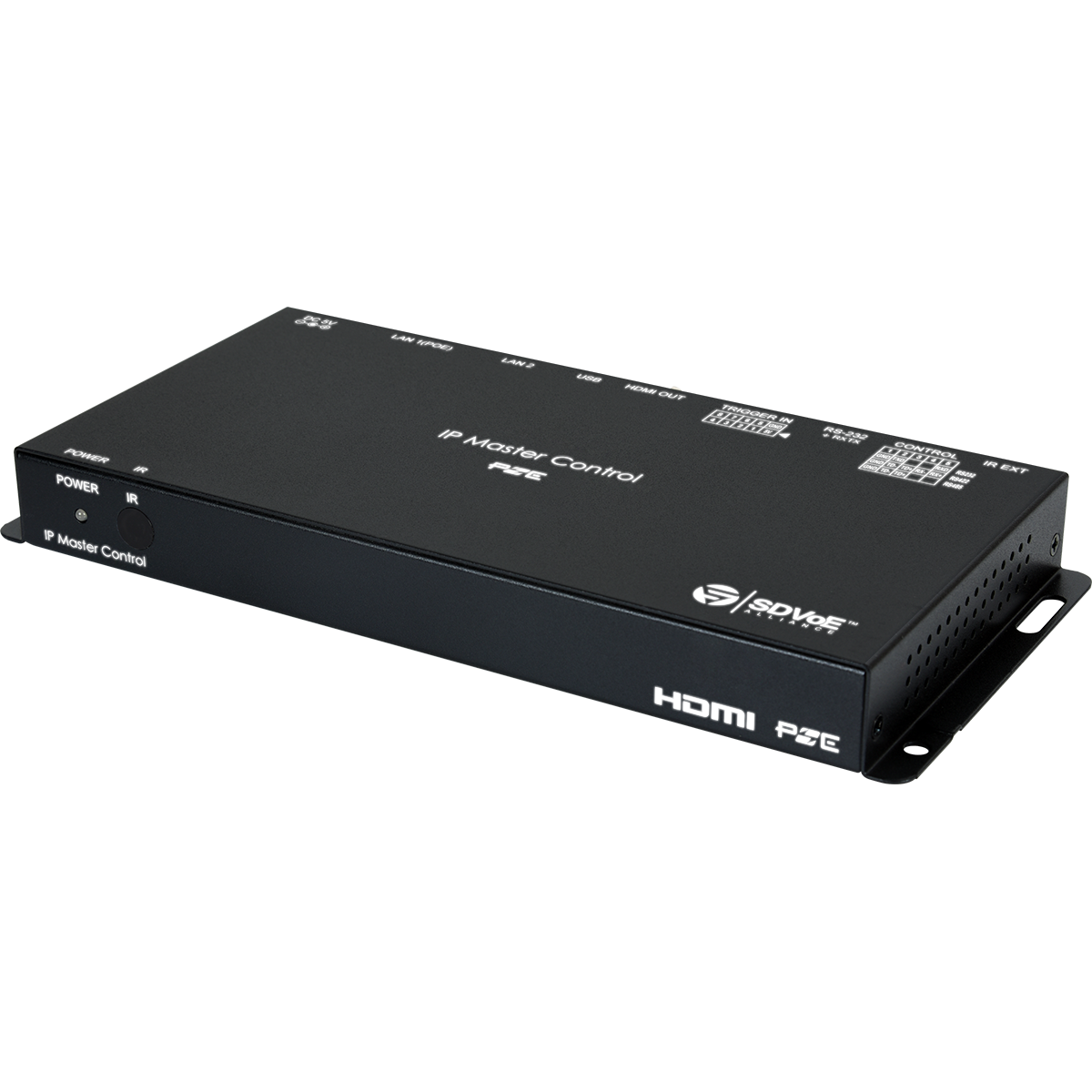

CDPS-CS7-S

AV over IP Master Controller

This controller is a powerful and flexible solution for controlling multiple VoIP (Video over IP) extenders within same network. The user only needs to install this unit into the same local network as the extenders (Transmitter and Receiver) to easily define and configure channel routing selections using the WebGUI. It is also possible to define and switch routes using customized groups or presets allowing for easy control over multiple video zones. Without the use of this controller, each individual Transmitter and Receiver pair could only be configured in a basic point-to-point operational mode.

CSC-VPR-3421

Multiview Modular Processor

CSC-VPR-3421 is a wonderful solution for streaming, because it offers more than streaming and recording functionality but also offers rich video processing functions. It makes online broadcasting of live video an easy and simple process. Video content up to 4K UHD+ is supported and is automatically scaled to a resolution that is more appropriate for efficient streaming. Both HDMI and VGA inputs are supported. An HDMI output is provided for local monitoring. An audio mixer function is included, allowing an external audio source to be mixed with the embedded audio of your HDMI source (LPCM 2.0 only) for your video stream. Comprehensive EDID management, intuitive WebGUI, and adjustable Audio functions make this unit a terrific tool for video streaming and recording. Besides high performance HDMI switch with integrated scaling, multi-windowing technology, multi-view and streaming are also supported. Any of 4 different HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of multi-window modes including quad mode PiP, and PoP mode, which becomes splendid source for streaming.

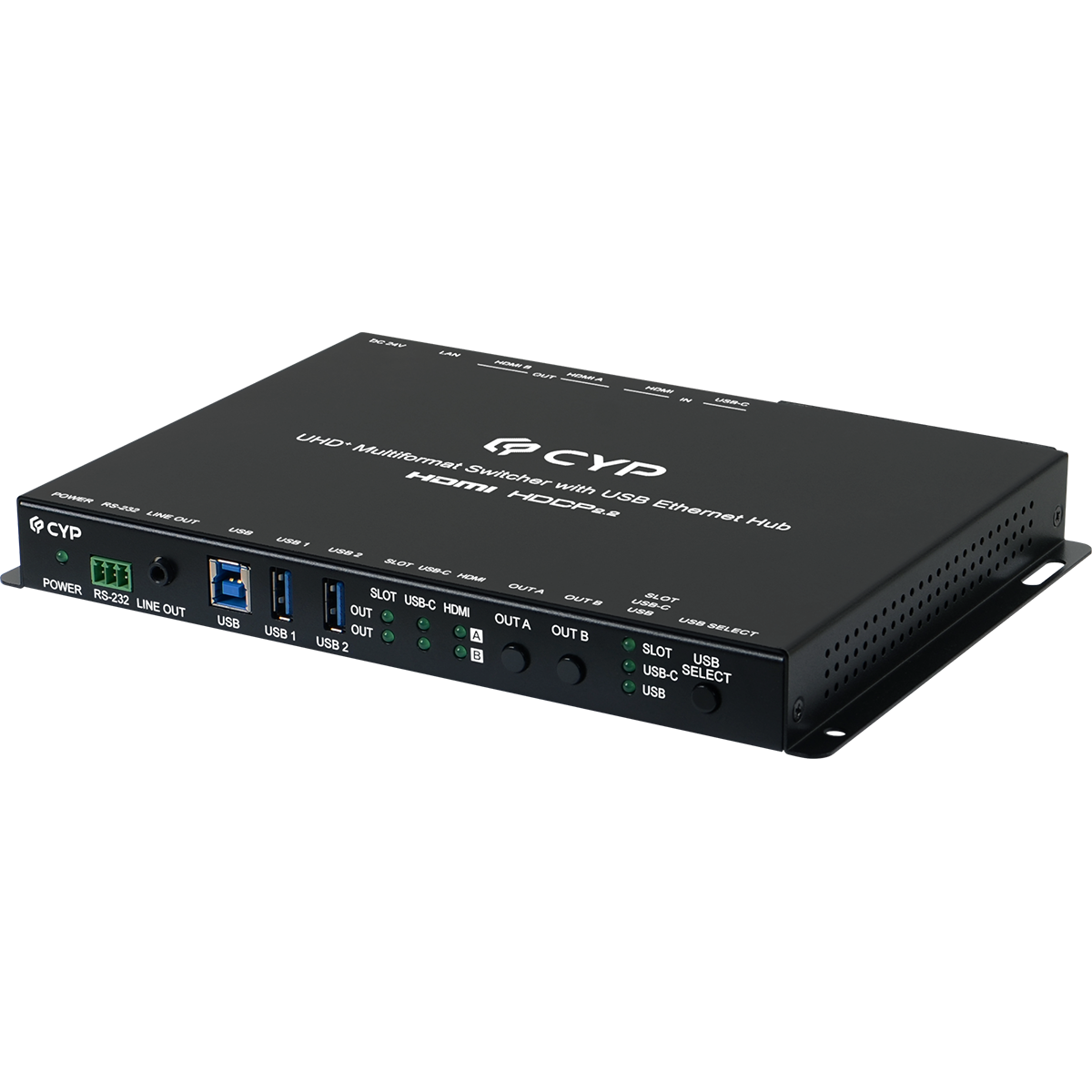

CPLUS-V32SDM

UHD+ Multi-format Matrix Switcher with USB Ethernet Hub

CPLUS-V32SDM is a 3x2 matrix switch for use in a wide range of multi-format signals and can be equipped with SDM module cards to widen usages. With the commonly used HDMI outputs, this unit can switch video signals between HDMI and USB-C. This product has a module card slot to let users equip additional function cards and fulfill different scenarios. This matrix switcher supports HDCP2.2, resolutions up to 4k@60Hz (4:4:4, 8-bit), and can be controlled via WebGUI, Telnet and RS-232. It also includes USB3.0 hub with two host-ports and two device-ports for flexible KVM configuration. With the USB extension, this product is ideal for conference, remote meeting, and education scenarios.
