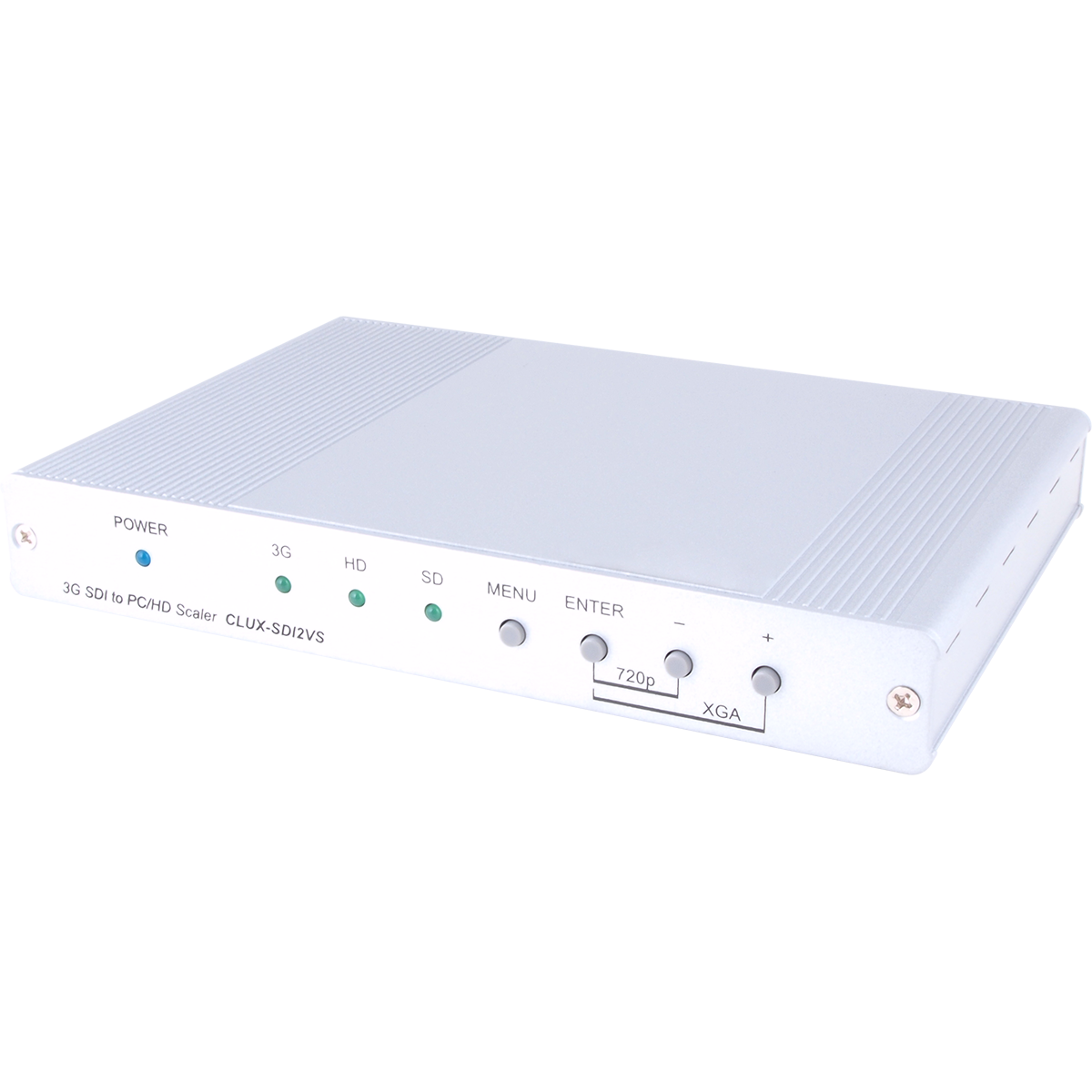

CLUX-SDI2VS
SDI to PC/HD Scaler with Audio
- Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection

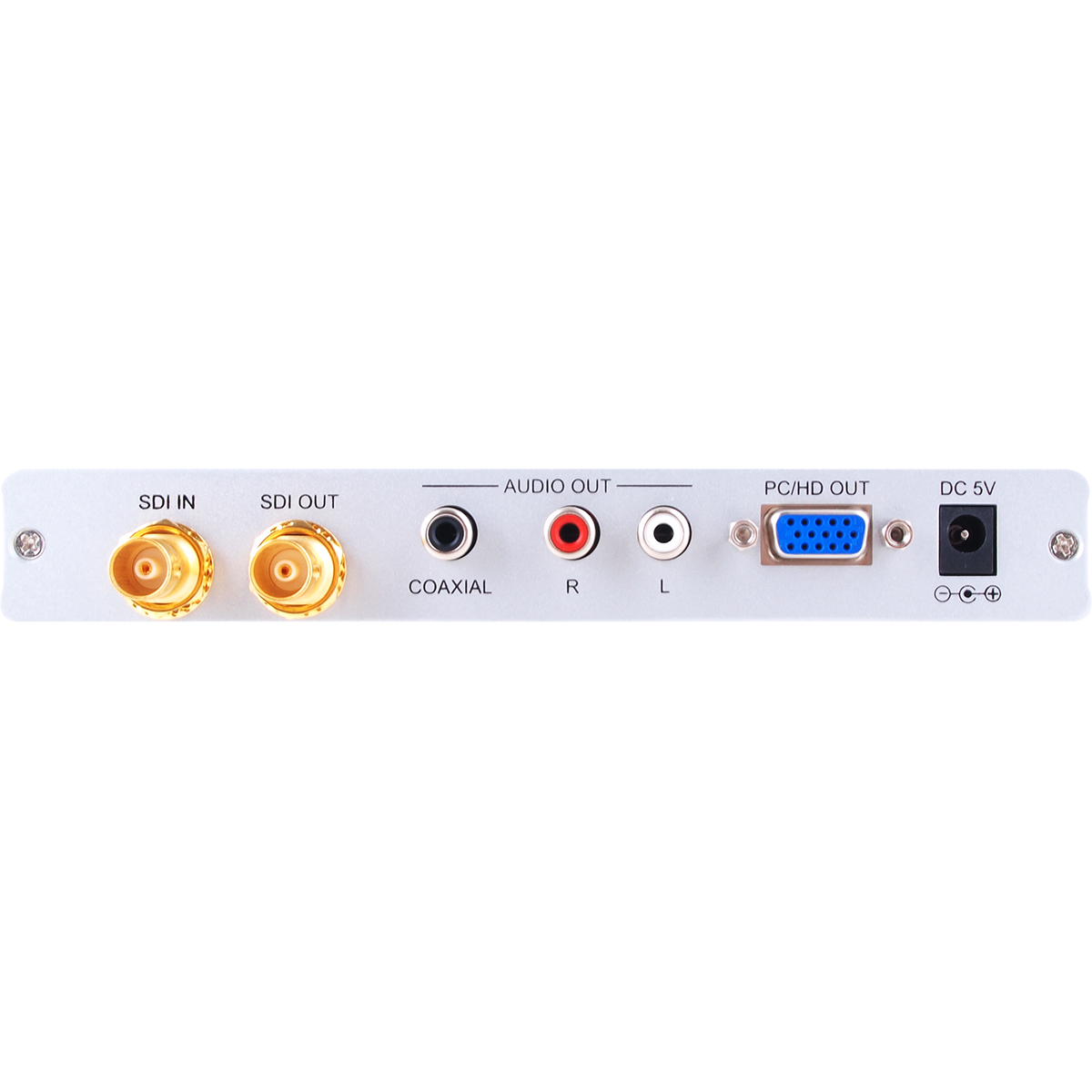

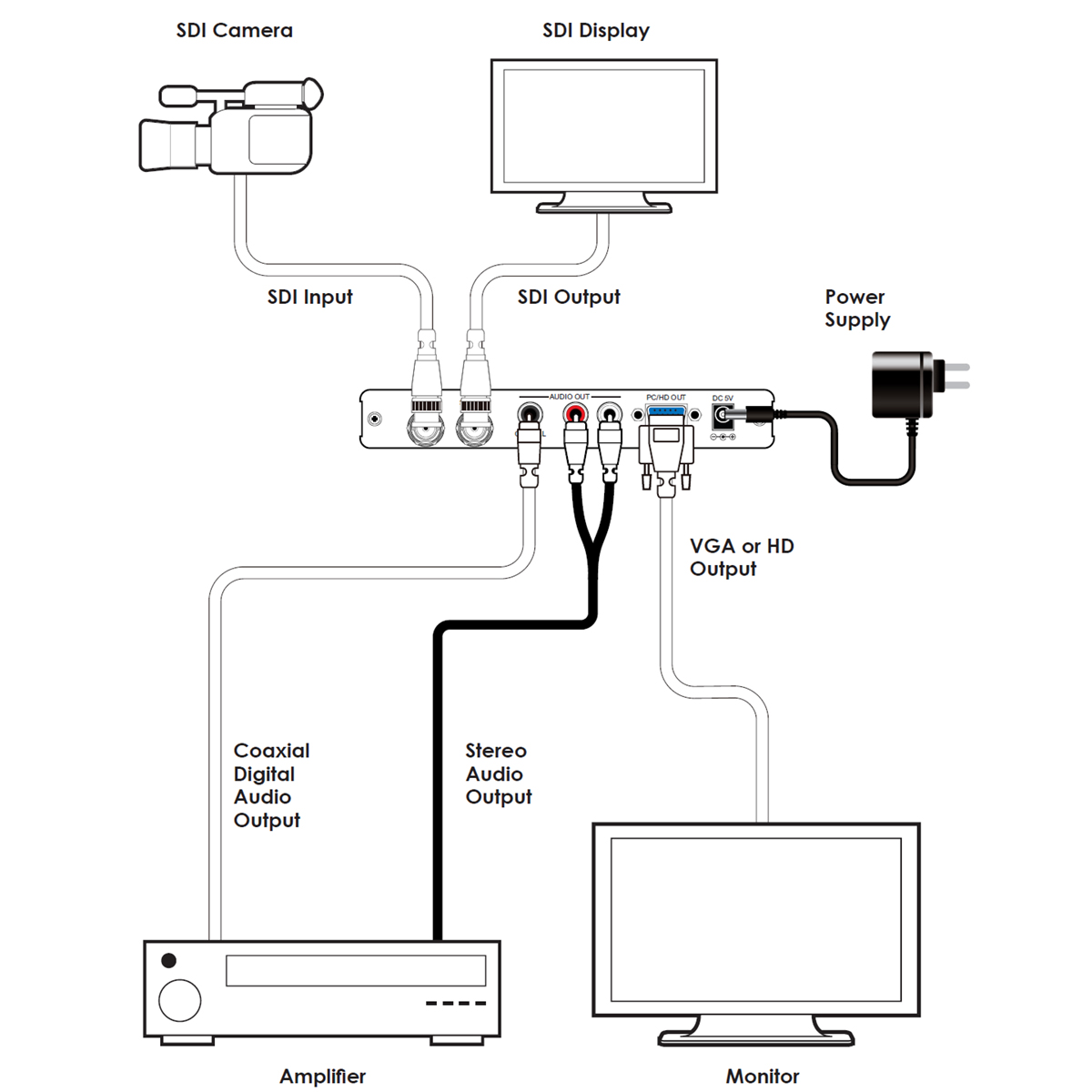

- Supports PC/HD and SDI (bypass) output simultaneously
- SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
- Supports SDI input/output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
- Scale any SDI signal to PC/HD:
1. PC timings: VGA@60 Hz ~ WUXGA@60 Hz (RB)
2. HDTV timings: 480i/576i ~ 1080p@50/60 Hz
- Supports SDI input modes:
1. SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
2. HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s)
3. 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
- Equalized and re-clocked loop output
- Alternative audio output to coaxial and analog 2CH
