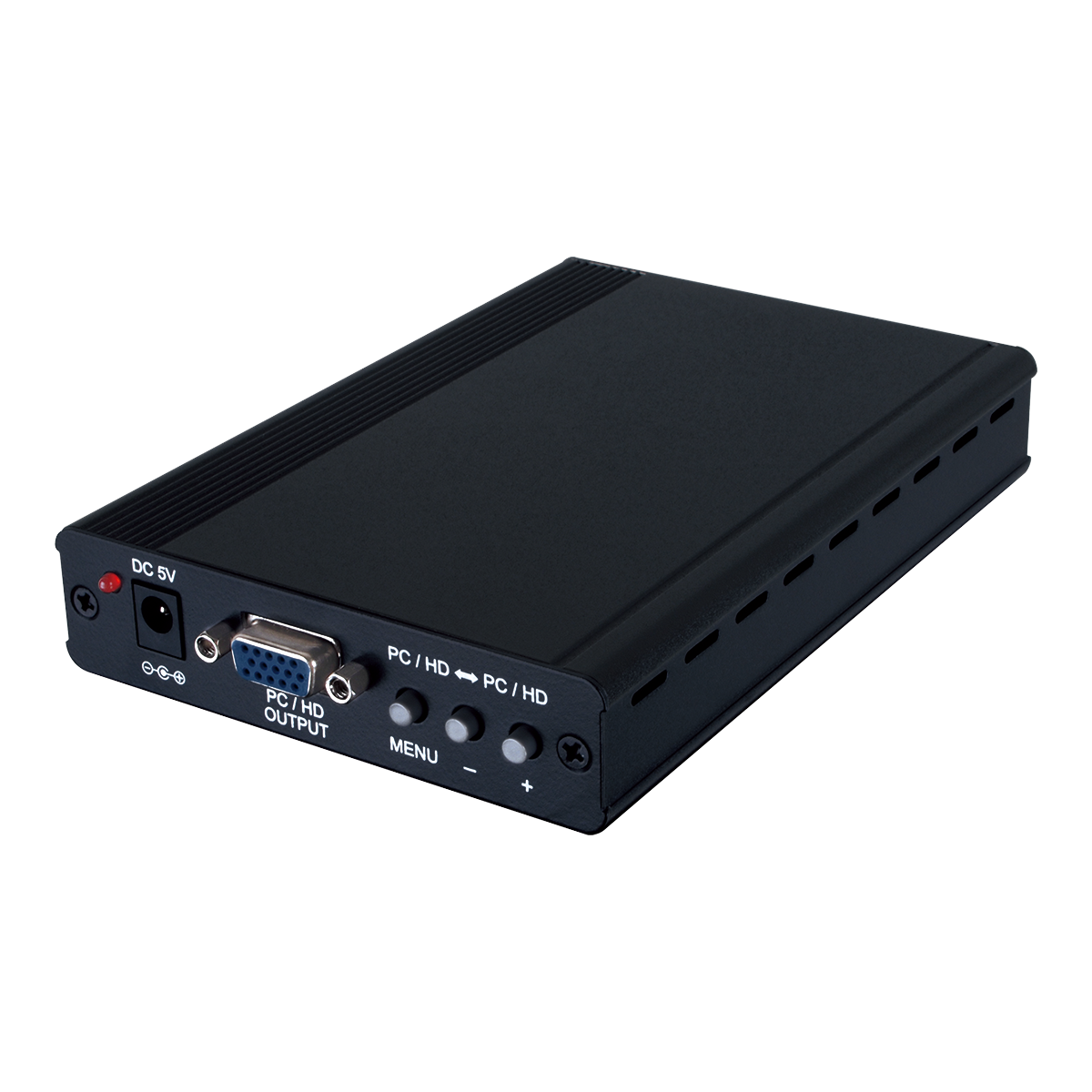

CP-291N

PC/HD to PC/HD Scaler

Supports a wide range of PC (15-pin VGA) resolutions from VGA ~WUXGA
(RB) and HD (Component YUV) resolutions from 480i~1080p over both input and output
Component YUV input and output is supported with the use of a 15-pin to 3-RCA adapter

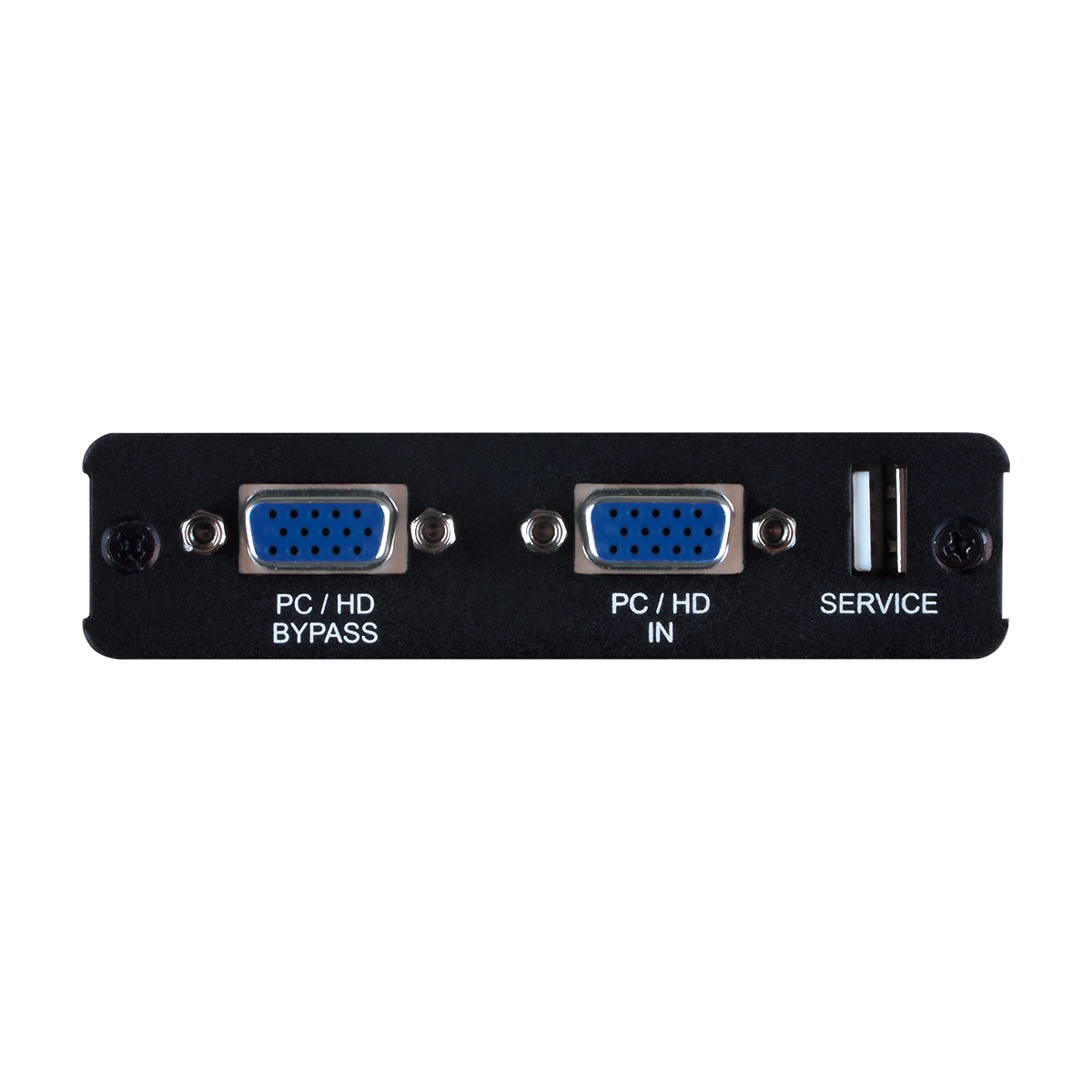

Included bypass output port allows viewing the original unscaled source
Output picture adjustments include: contrast, brightness, hue, saturation, sharpness, RGB (color tone) level and aspect ratio

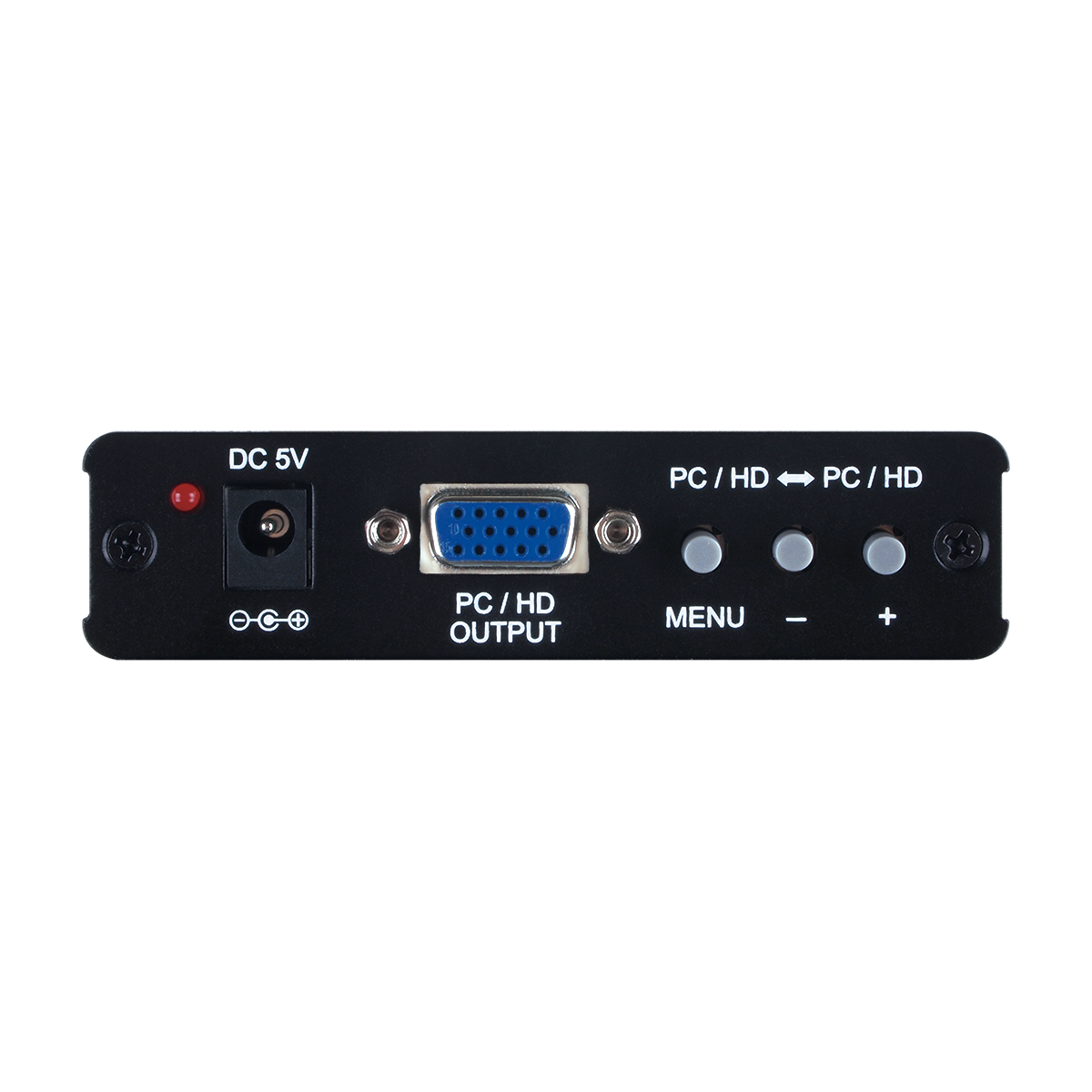

Controllable via front-panel buttons with OSD

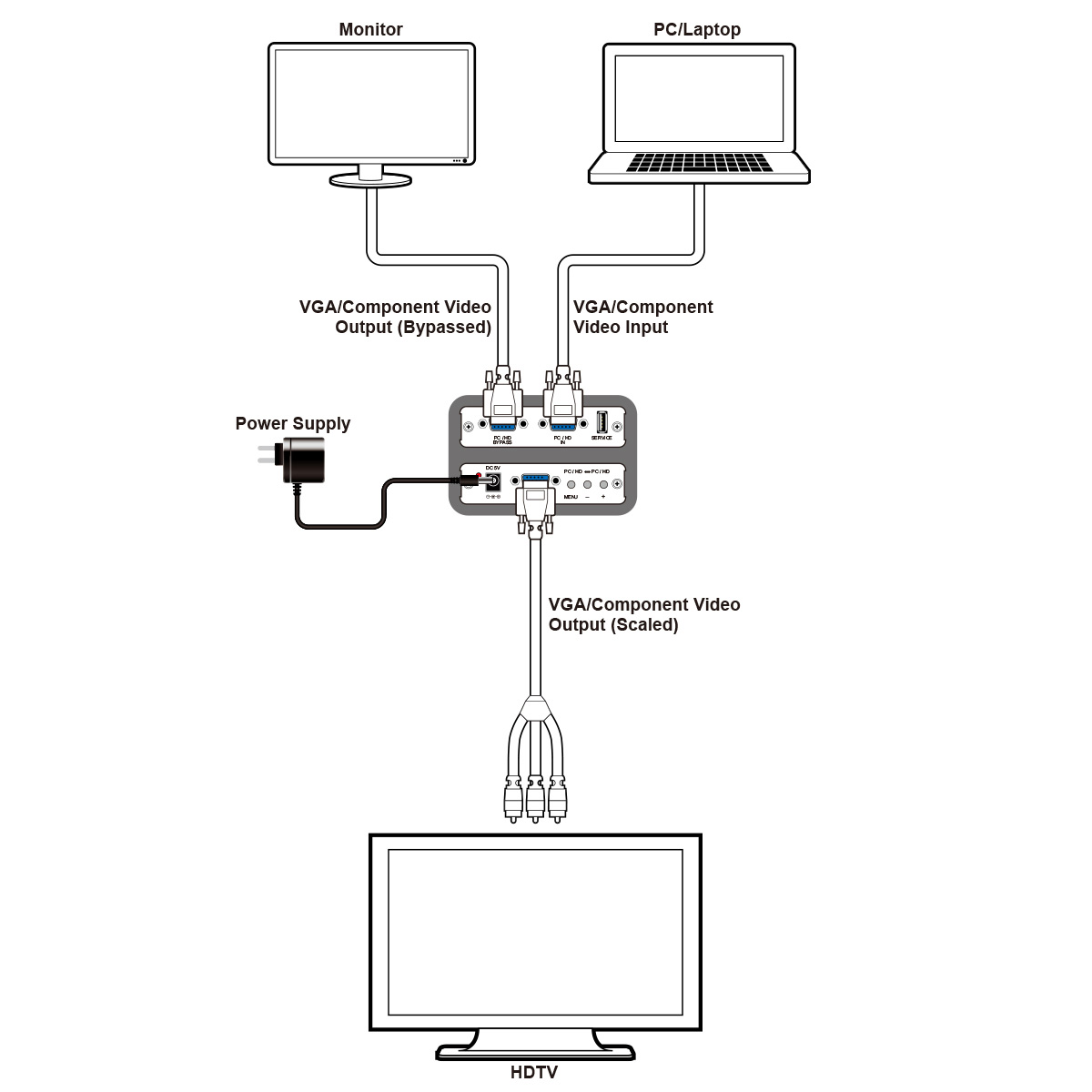

This scaler is designed to cross-convert between a wide range of analog PC (15-pin VGA) and HD (Component YUV) resolutions from VGA/480i up to WUXGA (RB)/1080p. The original signal can be output, unprocessed and unscaled, by using the included bypass output port. This unit has a comprehensive OSD menu which allows the user to select from a variety of output resolutions as well as to adjust the video settings to provide the best picture quality. An ideal example of usage is to place the unit between a standard PC source and an HDTV while changing the output resolution and format to match the native requirements of the display.

Interfaces
Input Port	1 VGA (HD-15)
Output Port	2 VGA (HD-15)

Video
Input Signal Type	WUXGA & 1920x1200@60RB
Output Signal Types	WUXGA & 1920x1200@60RB

Resolutions
Maximum Input	VGA	1920x1200@60RB
Maximum Output	VGA	1920x1200@60RB

Enclosure
Chassis Material	Metal (Aluminum)
Chassis Color	Black
Dimensions (W×H×D)	102mm×147mm×25mm [Case Only] 102mm×158.5mm×25mm [All Inclusive]
Weight	342g

Power
Power Supply	5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	5.3W

Field Firmware Update
Interface	USB

Ordering Information
Model No.	Product Description
CP-291N	PC/HD to PC/HD Scaler
