Scaler

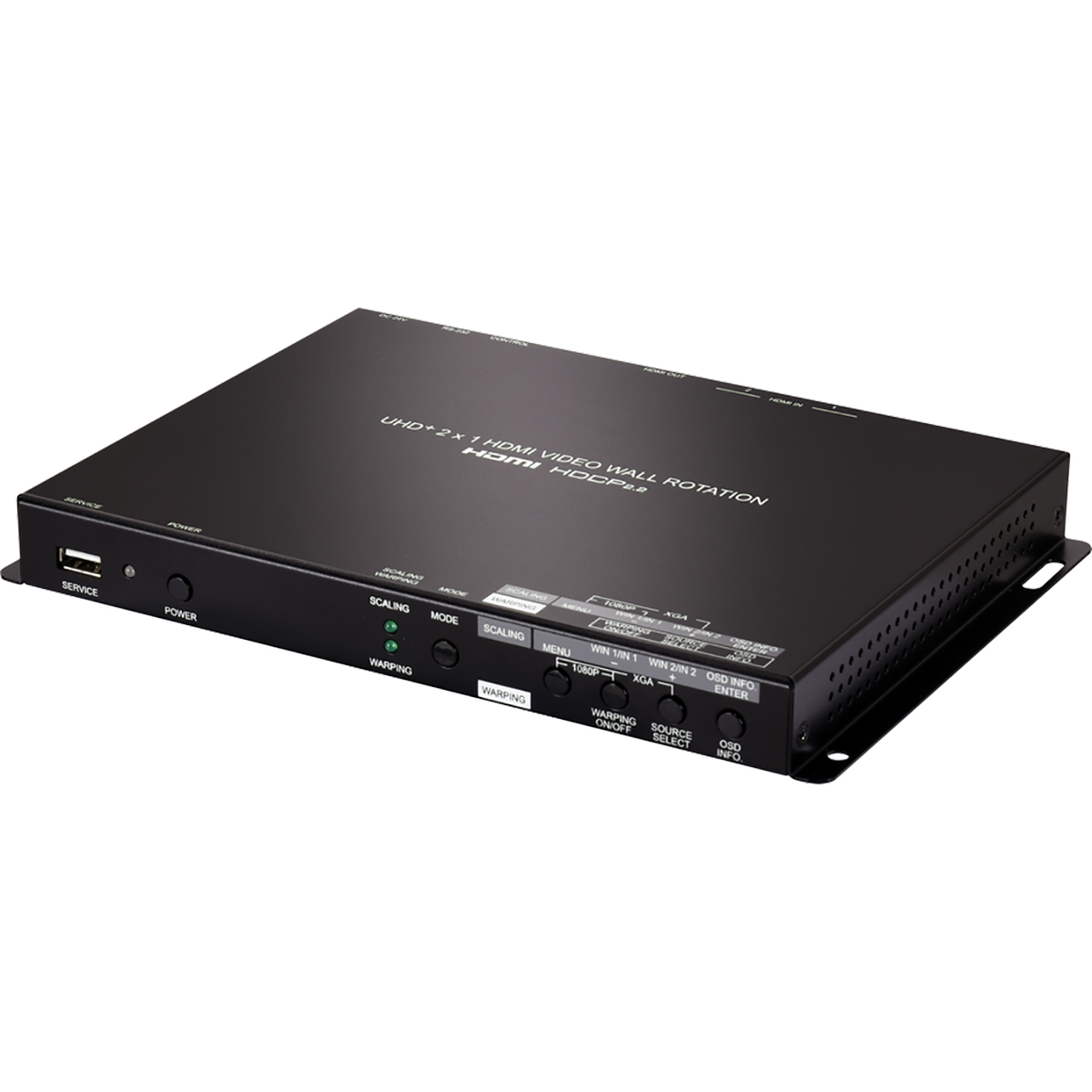

This HDMI Video Wall Rotation Processor is capable of scaling and rotating the input source to nearly any angle and size desired. It’s the ideal solution for presenting sources across the unique video display arrangements often found in commercial displays, control rooms, or classrooms. HDMI Input and output resolutions up to 4K@60Hz with LPCM 2ch audio. In Rotation Mode the unit is capable of scaling and rotating the source, with an accuracy of 1°, as required. In Scaling Mode, the unit can scale to a selection of output resolutions, up to 4k@60Hz as well as apply video mirror, flip freeze effects and multi-view to the output.

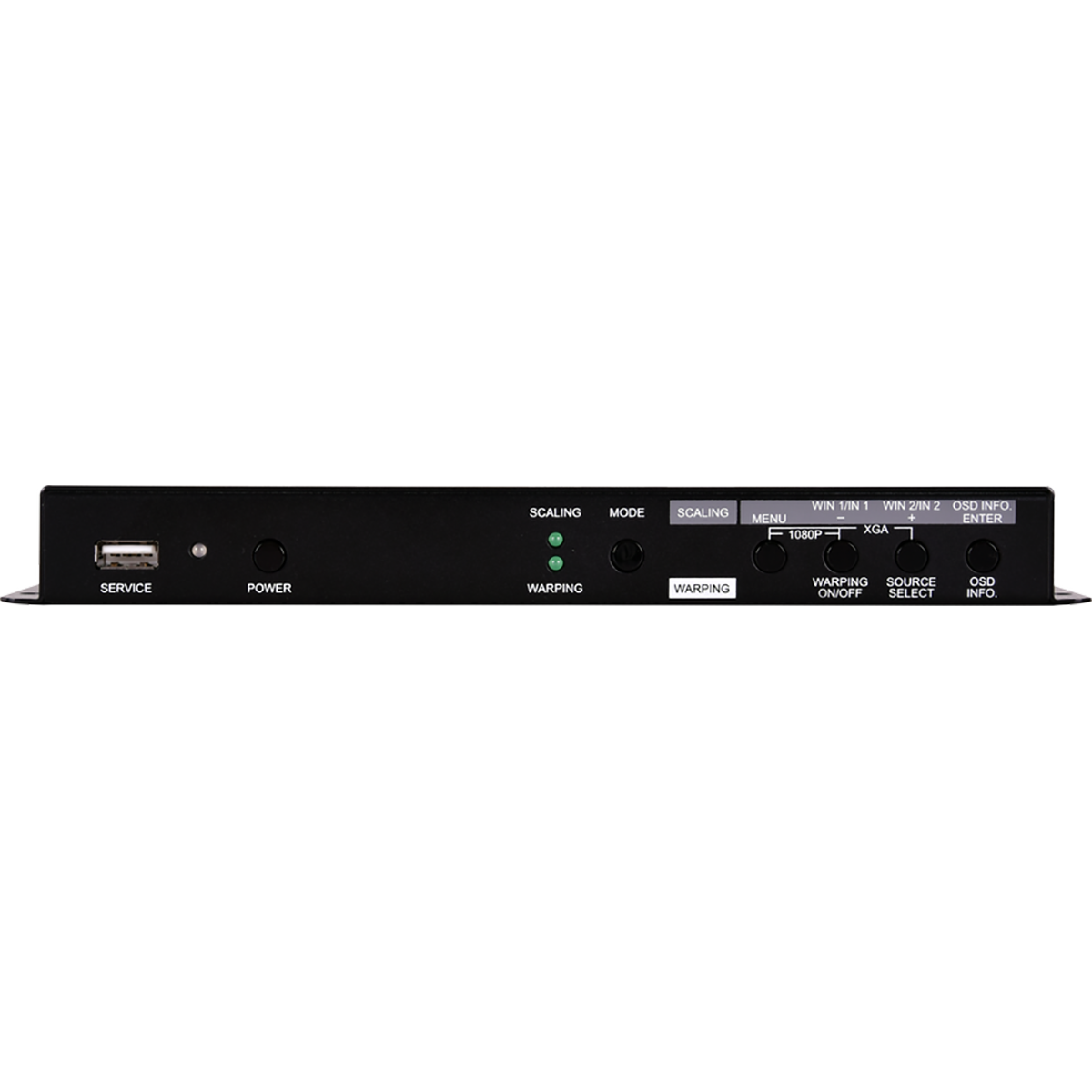

By combining multiple units with an HDMI splitter or matrix it is possible to create fantastically varied arrangements of rotated displays for large video wall applications. This is perfect for creating distinct and eye-catching advertising or promotional displays limited only by your imagination. Configuring these large video walls is made simple by use of our Video Wall PC application, allowing the user to visually lay out and configure the entire video wall at one time in a graphical WYSIWYG (what you see is what you get) user interface. A number of common video wall arrangement presets are included with the software by default to make it possible to get started quickly. Basic control of the unit is provided by front panel controls with an informational OSD. Complete control of the unit is accomplished by use of Telnet, RS-232 or the Video Wall PC software.
