CPLUS-V2PE
UHD+ HDMI to Dual HDMI Scaler with Audio De-Embedding & Test Patterns

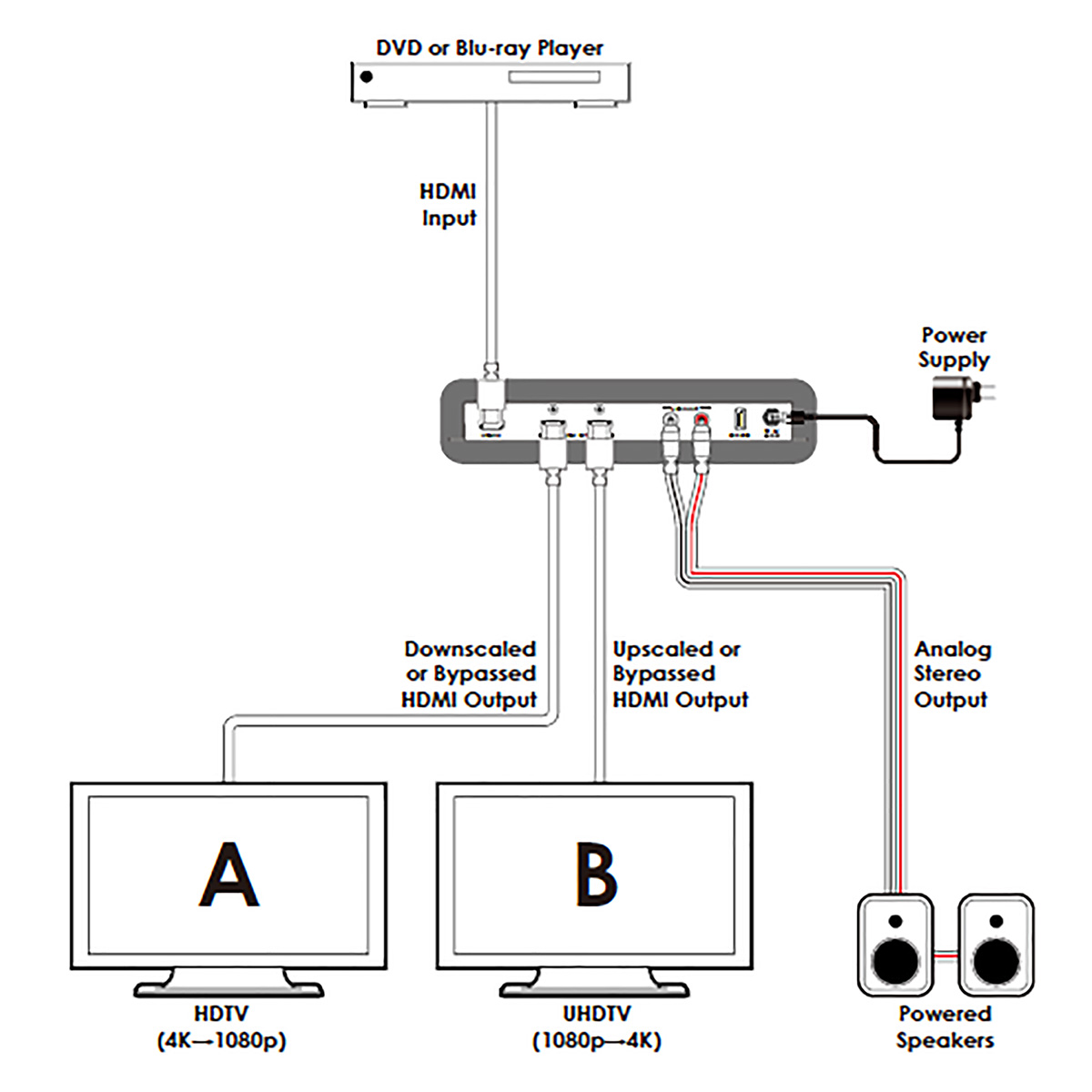

- HDMI signal bypass on both outputs or upscales 1080p signals to 4K on output B and downscales 4K signals to 1080p on output A
- 4K UHD (4:4:4) to 4K UHD (4:2:0) conversion
- Integrated EDID management
- Test pattern generation at selected resolutions for on-site display testing
- Supports High-Dynamic-Range (HDR) sources
- Supports data rates up to 18Gbps (600MHz) and Deep Color up to 1080p/16-bit
- Supports pass-through of HD audio formats including LPCM2.0/5.1/7.1, Bitstream, and HD Bitstream
- OSD with instant I/O resolution display
- Supports the Apple source compatibility mode option
