CPRO-12ES

CPRO-12ES EOL

CPRO-12ES

• One HDMI input (up to 4K@50/60Hz, YUV 4:2:0) and two HDMI outputs (1×Scaled, 1×Bypassed) with HDCP 1.1 compliance

• Two simultaneous HDMI outputs (Scaled and Bypassed)

• Bypassed HDMI output up to 4K@50/60Hz (YUV 4:2:0)

• Scaled HDMI output up to 1080p@60Hz/WUXGA@60Hz (RB)

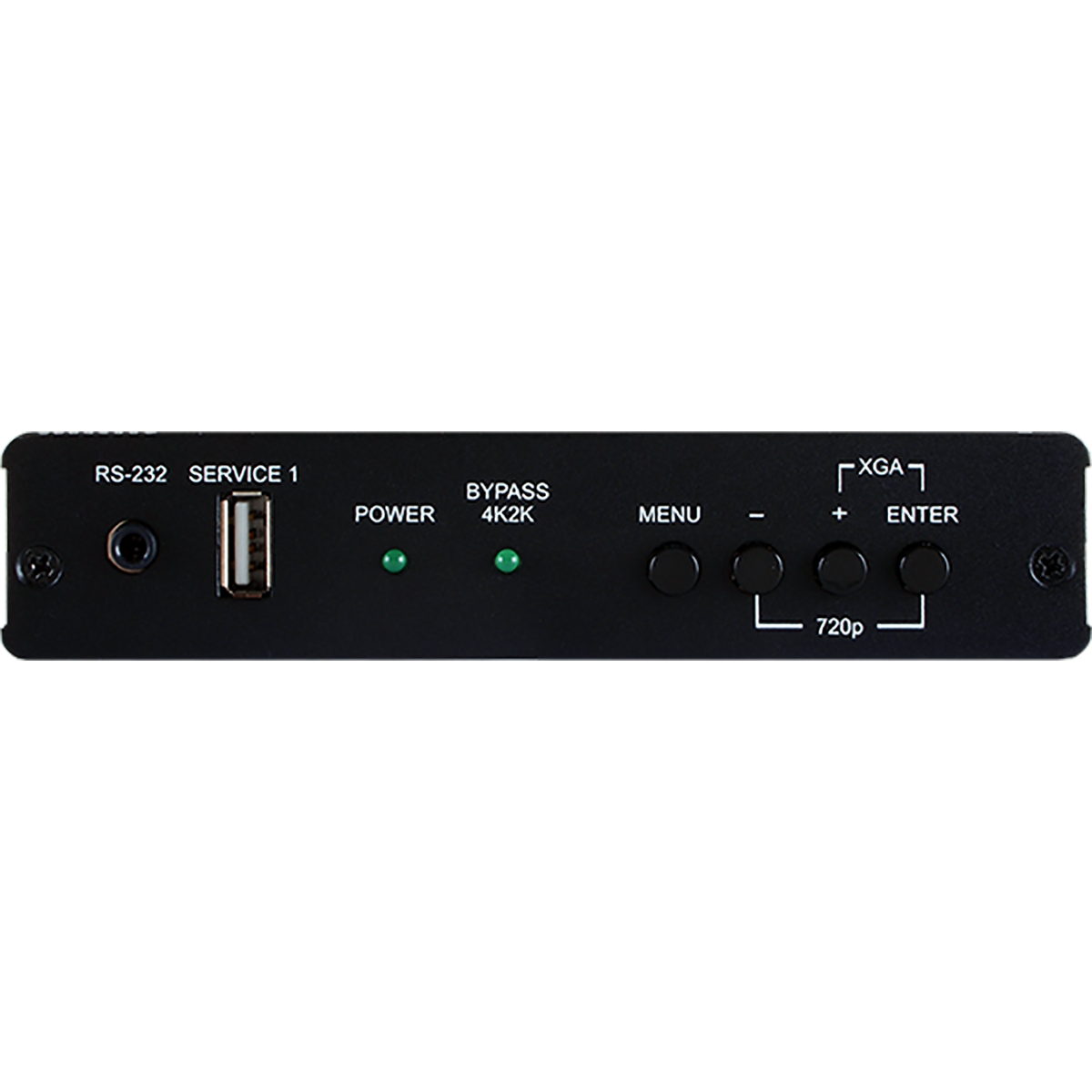

This HDMI Scaler is designed to scale 4K (and non-4K) HDMI signals to resolutions of 1080p/WUXGA or lower while also simultaneously bypassing the 4K signal to a 4K native display. With its friendly and simple OSD (On Screen Display) interface design this unit allows the user to easily change output resolutions and related video settings directly from the front panel. This scaler is the ideal product for expanding the capabilities of your 4K UHD media environment.

Video Bandwidth	340MHz/10.2Gbps

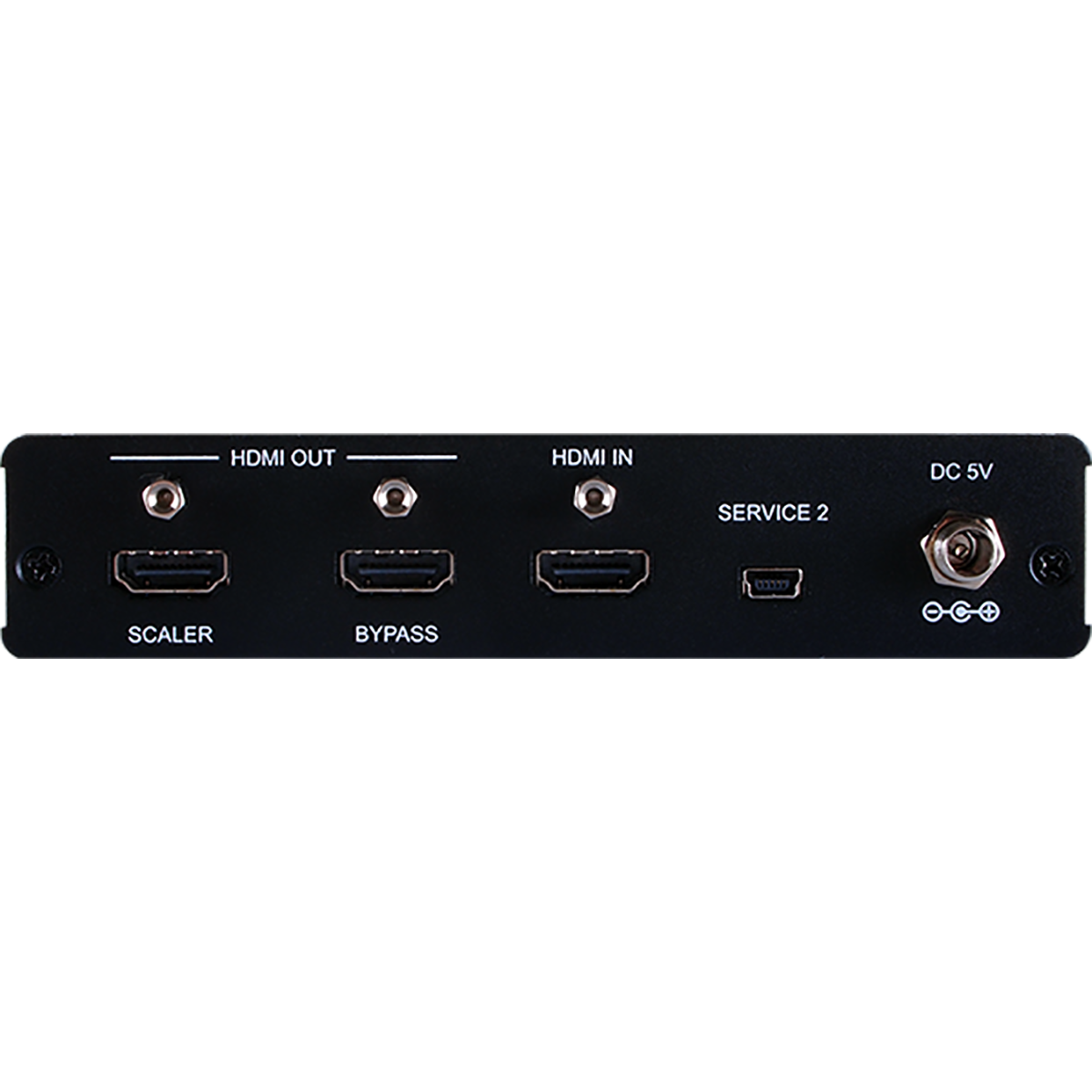

Input Ports	1×HDMI
Output Ports	2×HDMI
Control Interface	1×RS-232 (3.5mm)
HDMI Cable Length	10m (1080p@60Hz, 12-bit) 5m (4K@60Hz, 4:4:4, 8-bit)
Power Supply	5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
ESD Protection	Human Body Model: ±12kV (Air Discharge) ±8kV (Contact Discharge)
Dimensions	145mm×30mm×160.5mm (W×H×D) [Case Only] 145mm×30mm×167mm (W×H×D) [All Inclusive]
Weight	488g
Chassis Material	Aluminum
Color	Black
Operating Temperature	0˚C - 40˚C/32˚F - 104˚F
Storage Temperature	−20˚C - 60˚C/−4˚F - 140˚F
Relative Humidity	20 - 90% RH (Non-condensing)
Power Consumption	7.7W
