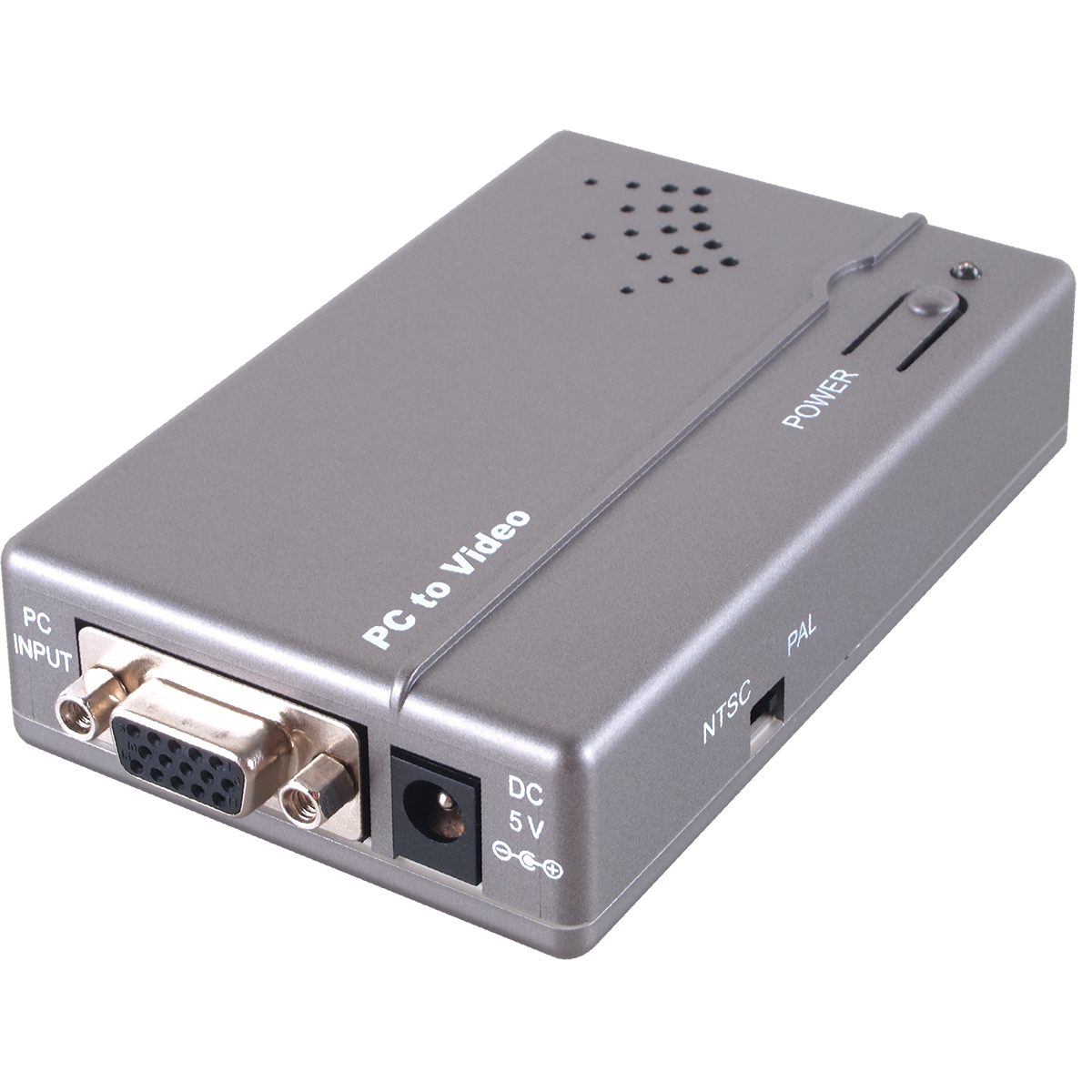

CPT-385AMN

PC to Video

Automatically detects and down converts the incoming VGA signal to NTSC or PAL
Supports high resolution PC input timings from VGA to WUXGA (RB)
Scaled video is output simultaneously as Composite and S-Video signals
Output format is switchable between NTSC/PAL
Manual Overscan/Underscan selection

This VGA to CV/SV scaler is designed to convert and scale a variety of analog computer resolutions, from VGA to WUXGA (RB), into interlaced NTSC or PAL video. With frame rate conversion and Overscan/Underscan features that allow users to view a PC source on a Composite or S-Video monitor without the image extending beyond the edge of the screen and being cut off.

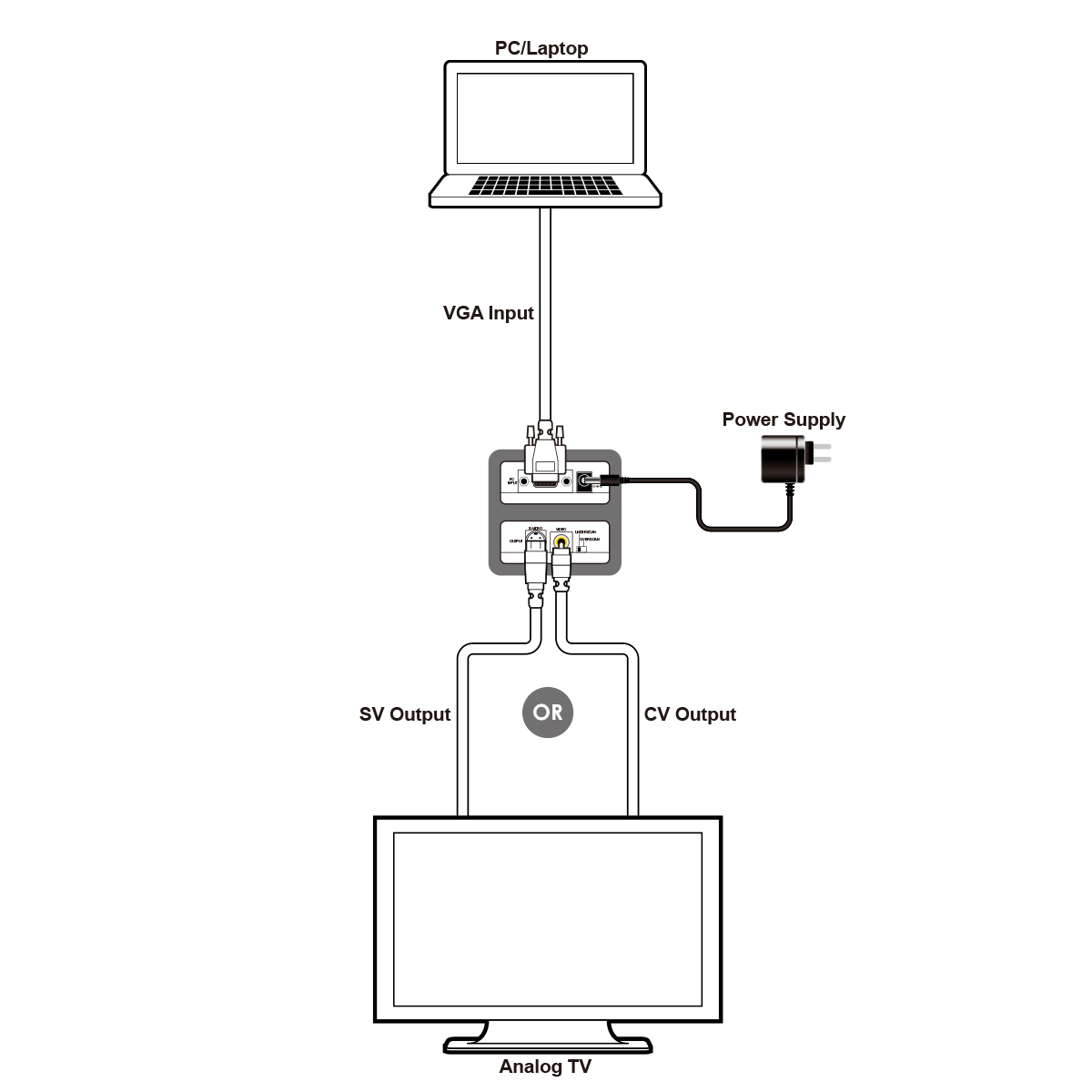

Interfaces

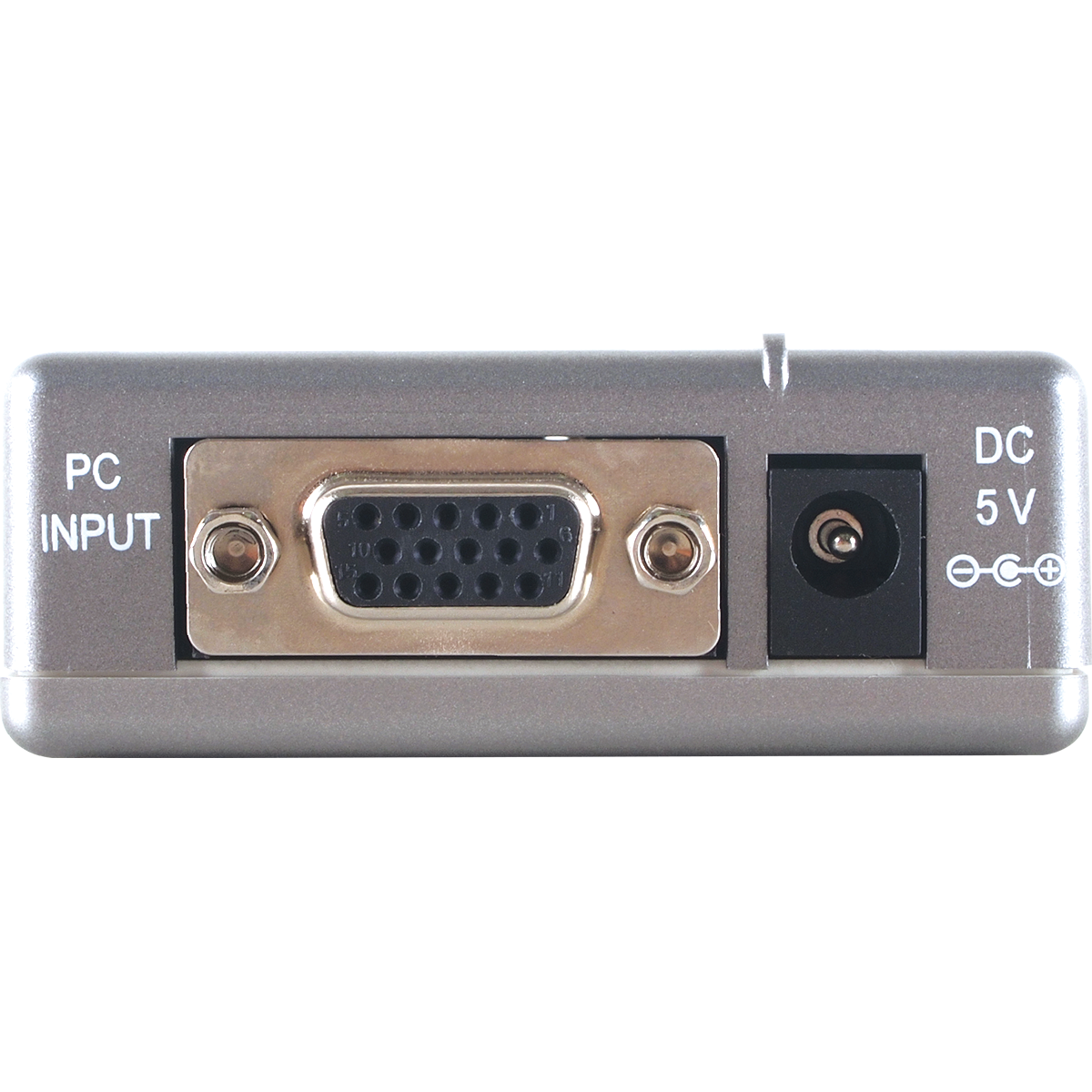

Input Port	1×VGA (HD-15)

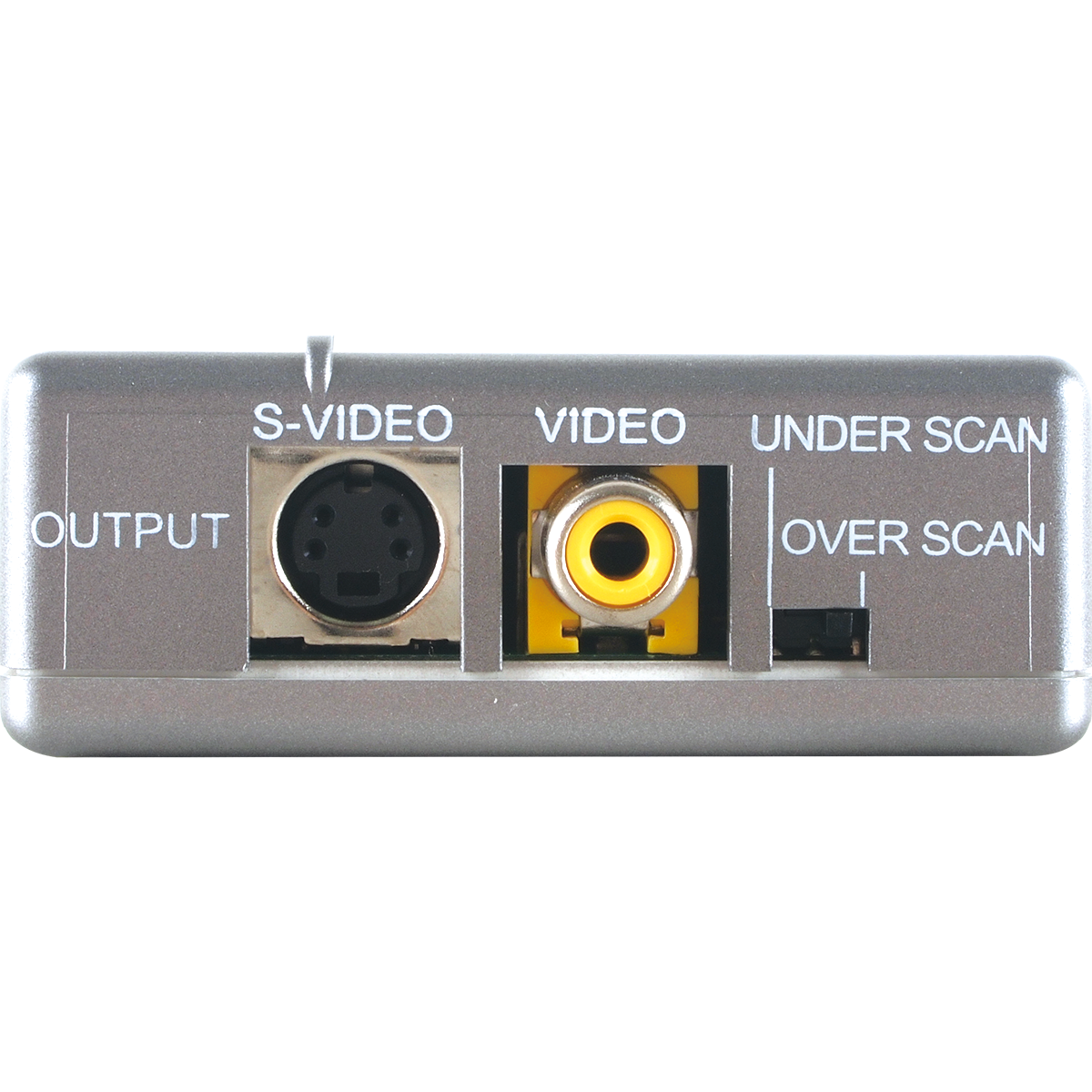

Output Port	1×S-Video (4-pin mini-DIN) 1×Composite Video (RCA)

Interfaces

Input Port

1×VGA (HD-15)

Output Port

1×S-Video (4-pin mini-DIN)

1×Composite Video (RCA)

Video
Input Signal Type	WUXGA
Output Signal Type	CV/SV: NTSC, NTSC4, PAL, PAL-M, PAL-N & SECAM
		Resolutions
Maximum Input	VGA	1920×1200@60 (RB)
Maximum Output	SV	480i@60/576i@50
	CV	480i@60/576i@50

Power
Power Supply	5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	5W

Enclosure
Chassis Material	Plastic
Chassis Color	Gray
Dimensions (W×H×D)	100mm×18.5mm×64mm [Case Only] 113mm×26mm×64mm [All Inclusive]
Weight	90g

Field Firmware Update
PCB on board, uses RS232

ORDERING INFORMATION
Model No.	Product Description
CPT-385AMN	PC to Video
