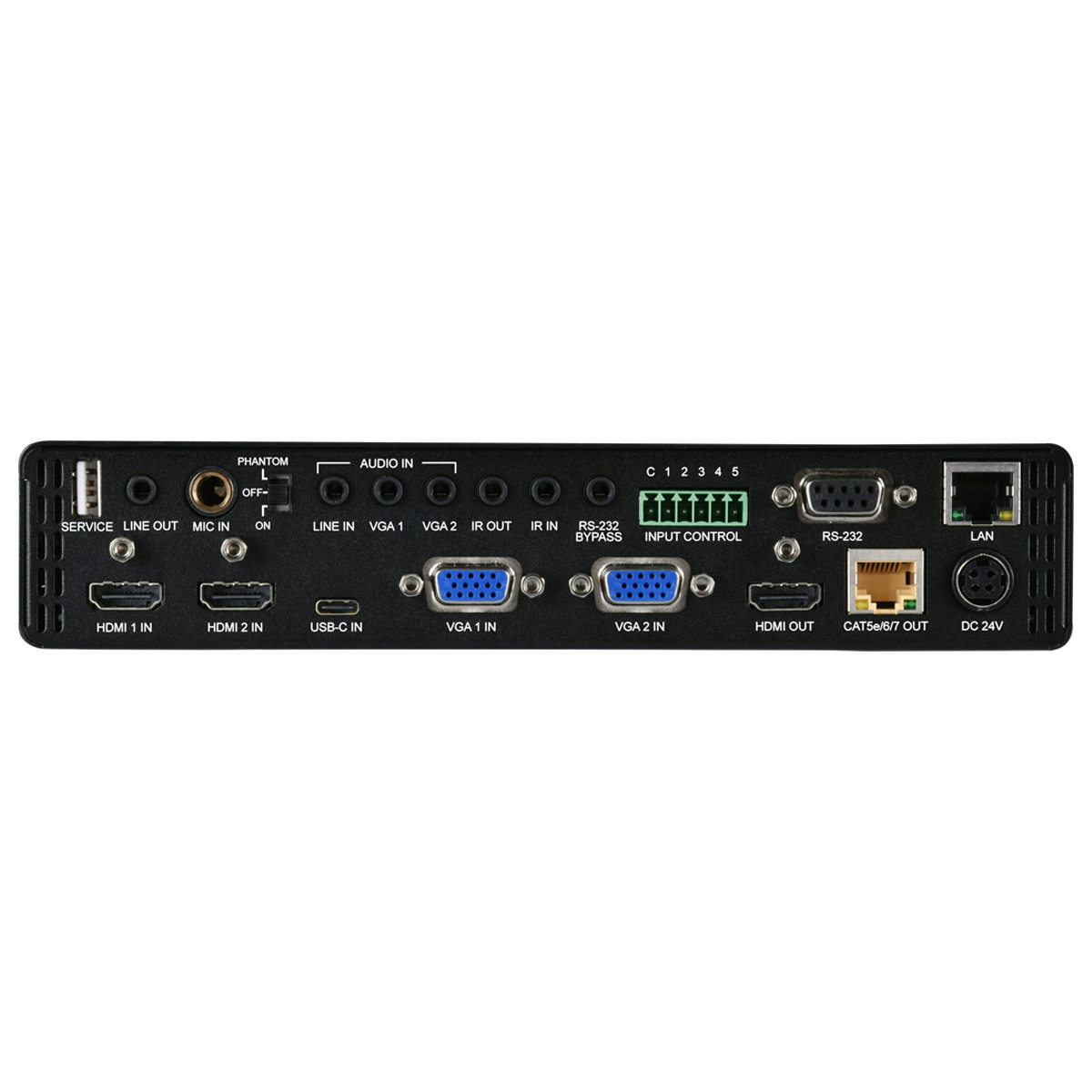

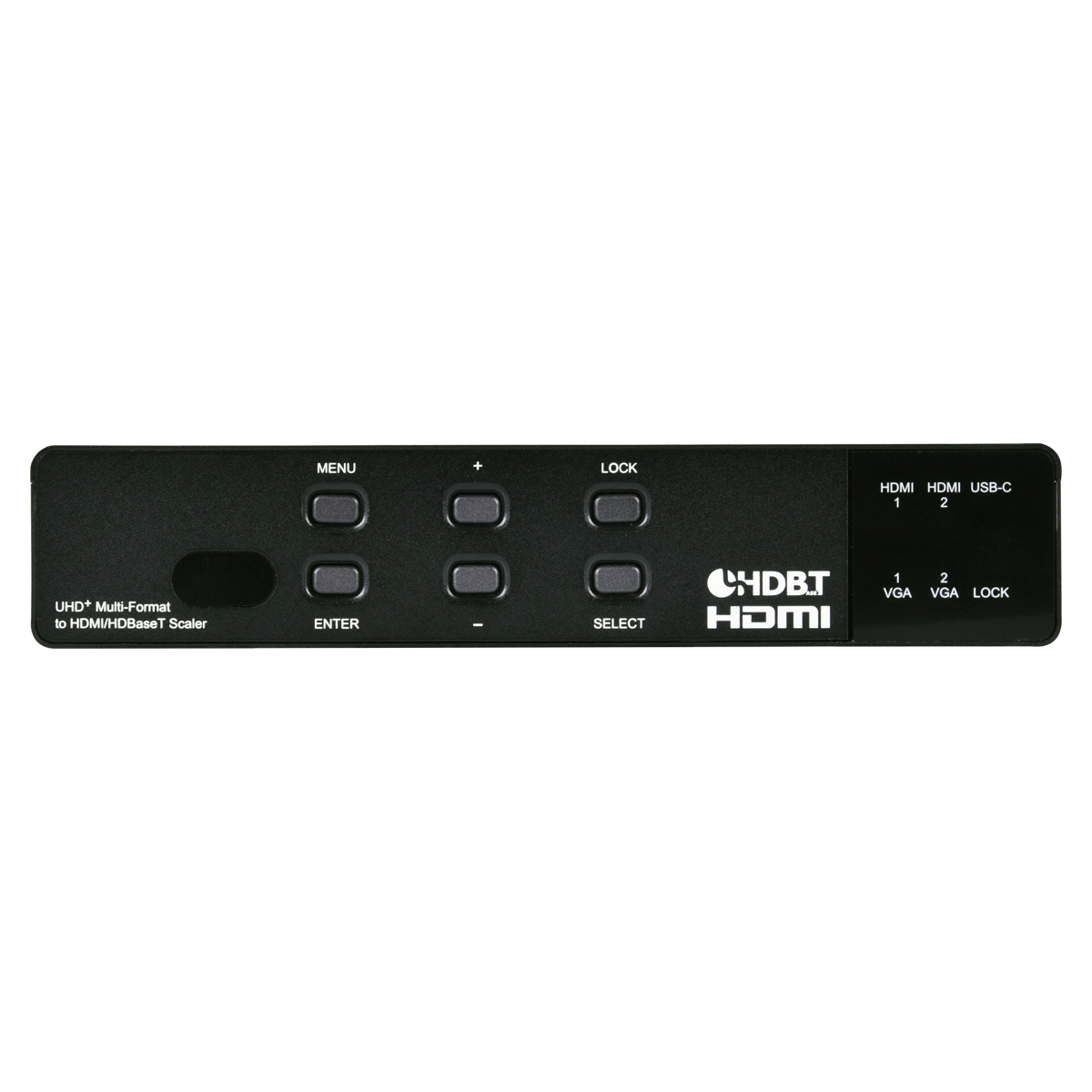

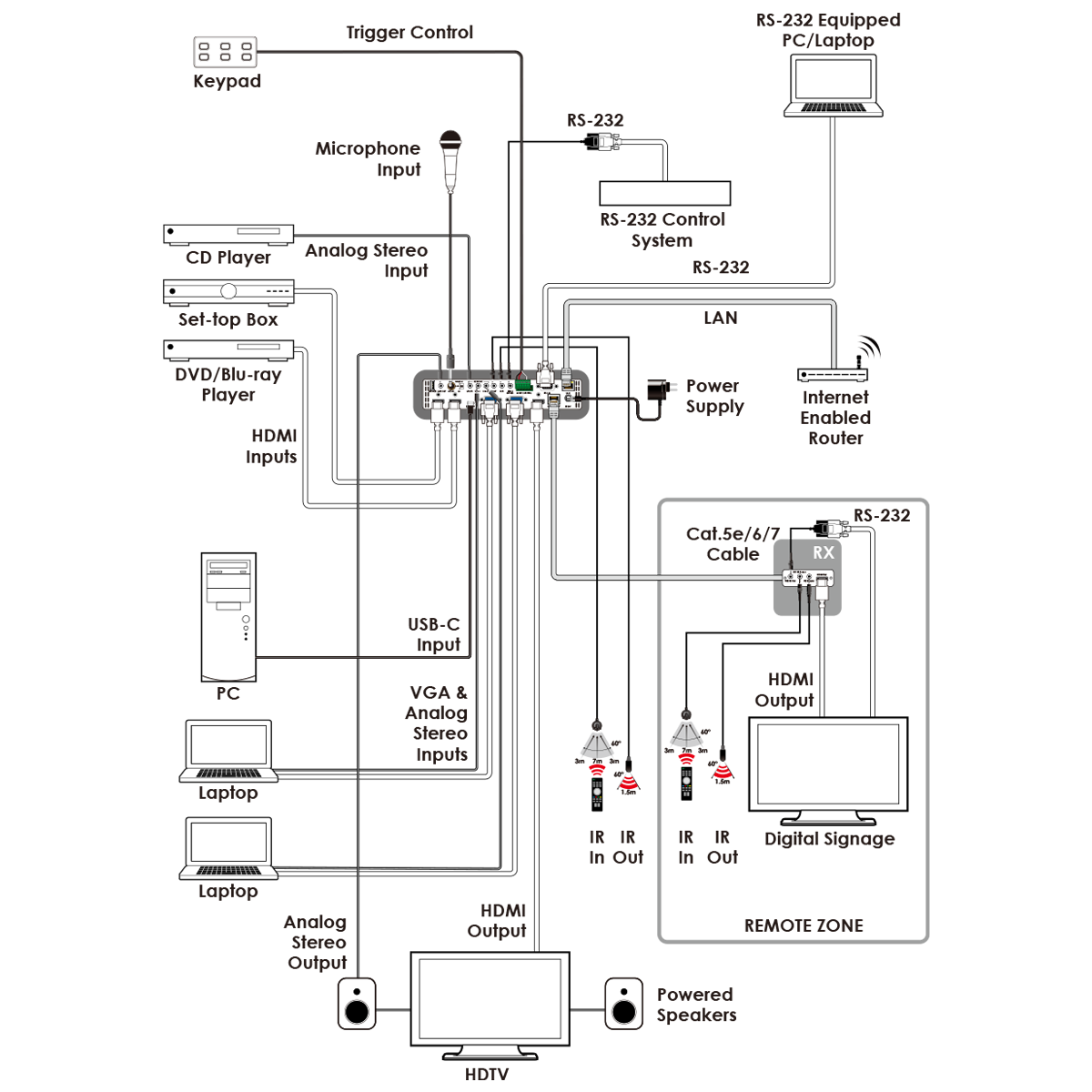

CSC-109TX
UHD Multi-Format to HDMI/HDBaseT Scaler
- HDBaseT can reach distances up to 100m/328ft at 4K@60 4:2:0 when using Cat.6a/7
- Supports pass-through of LPCM 2.0 digital audio
- Supports audio embedding, de-embedding Microphone input supports 48V phantom power (optional)
- Supports HDCP and EDID management

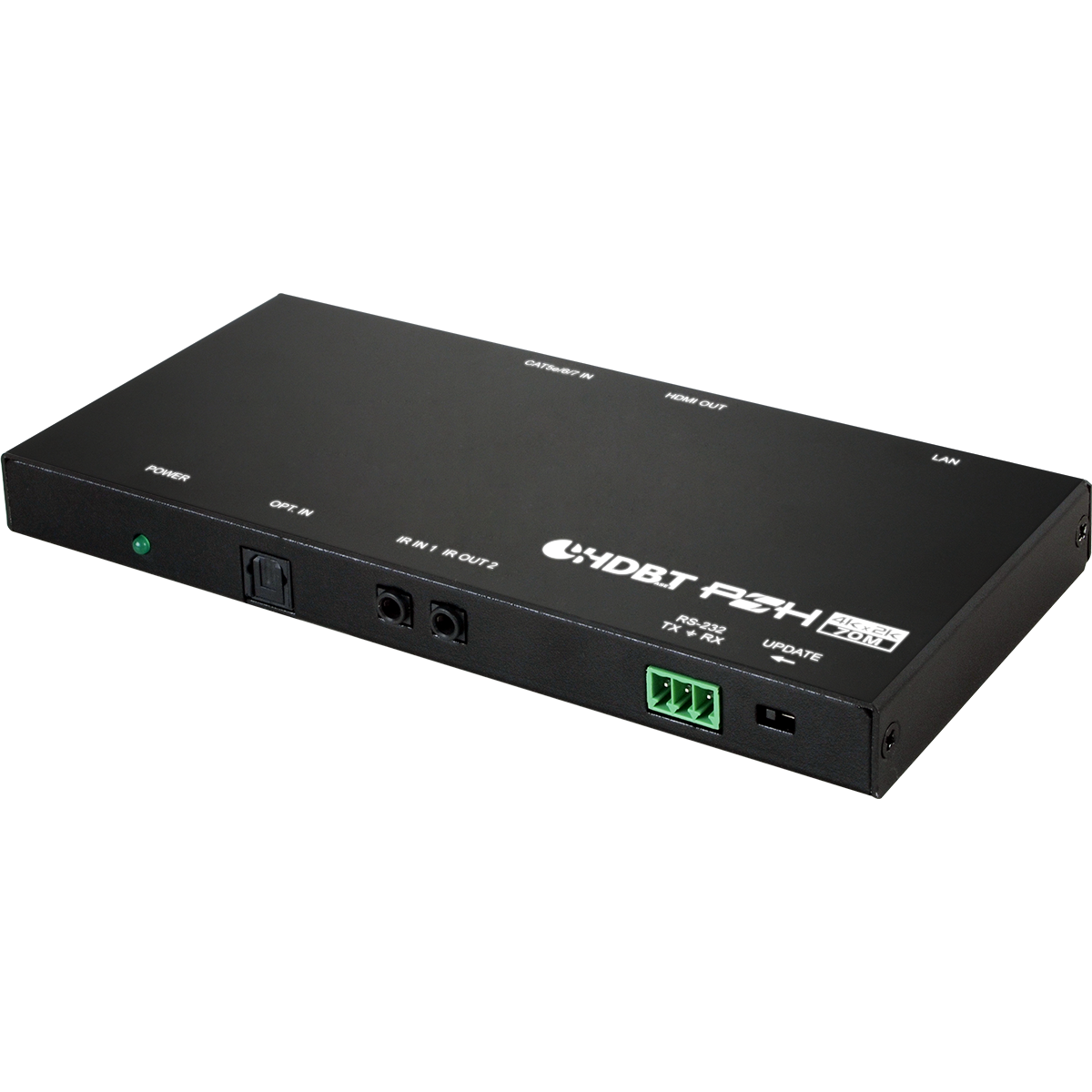

CH-1529RX
HDCP 2.2 & HDMI2.0 Extender with OAR / Audio Insertion (4K@60 420 up to 70M)
The HDMI over single CAT5e/6/7 Transmitter and Receiver set is a great solution to extend uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 100 meter. Multi-control interfaces are available which includes IR, RS-232, USB and LAN connection. This new extender set complies with advanced protocols of HDCP2.2 and HDMI 2.0, the HDCP1.4 also supported. The 6G HDMI video is able to be processed. Except extend 4K2K data, it features useful audio functions. The “optical audio return” supports audio transmit back from Receiver to Transmitter. Besides, the “audio insertion” allows external audio insert to HDMI video such as background music insertion. The HDBT clock stretch and TMDS reclocking are considered. The Receiver (PD) can be powered by the PoE 48V function of the Transmitter (PSE), allowing for greater flexibility to fit different installation scenarios.
CH-1527RX
UHD HDMI over HDBaseT Receiver with PoH (4K@60 420 up to 70M)
The HDMI over single CAT5e/6/7 Receiver can receive uncompressed audio/ video and IP data over a single run of CAT5e/6/7 cable at a distance up to 100 meter. It has the added benefit of control through the built-in RS-232 and IR ports and a bi-directional LAN serving connection. The Receiver (PD) can be powered by the PoE 48V function of the Transmitter (PSE), allowing greater flexibility in installations.
