CSDI-12SR EOL

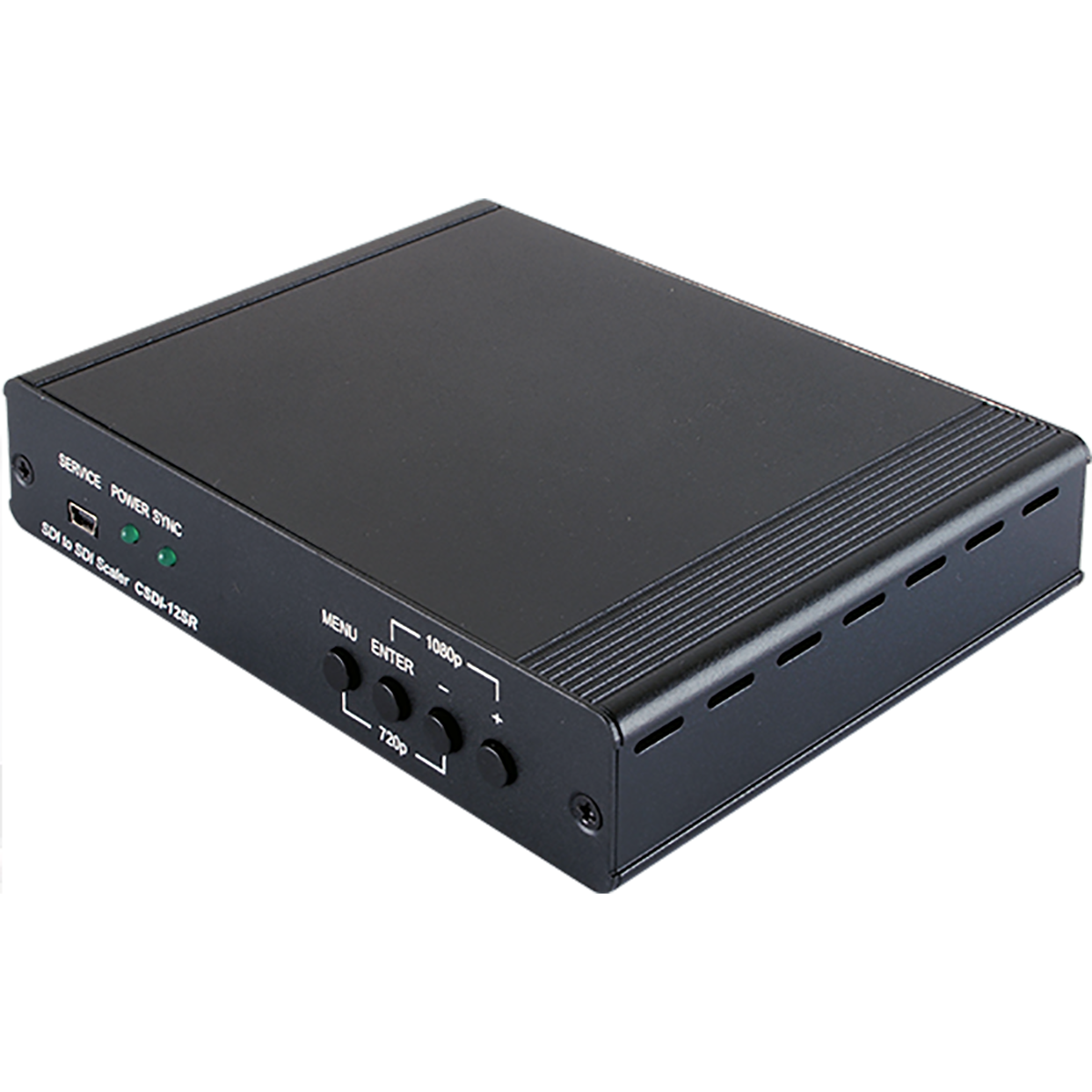

1 by 2 SDI to SDI Scaler
- Splits an SDI input to two SDI outputs with scaler function
- Supports scaling of any SDI input to any SDI output to SDI standards
- Supports SD-SDI, HD-SDI and 3G-SDI input/output signals with autodetection
- Supports SDI bitrates of 2.970Gbps & 2.970/1.001Gbps, 1.485Gbps & 1.485/1.001Gbps, and 270Mbps
- Supports SDI input/output modes/standards:
- SD-SDI: SMPTE 259M-C@270Mbps
- HD-SDI: SMPTE 292M@1.485Gbps & 1.485/1.001Gbps
- 3G-SDI: SMPTE 424M/425M-A@2.970Gbps & 2.970/1.001Gbps - Supports up to 8 audio channels at 48 kHz
- Supports SDI input/output distances up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
