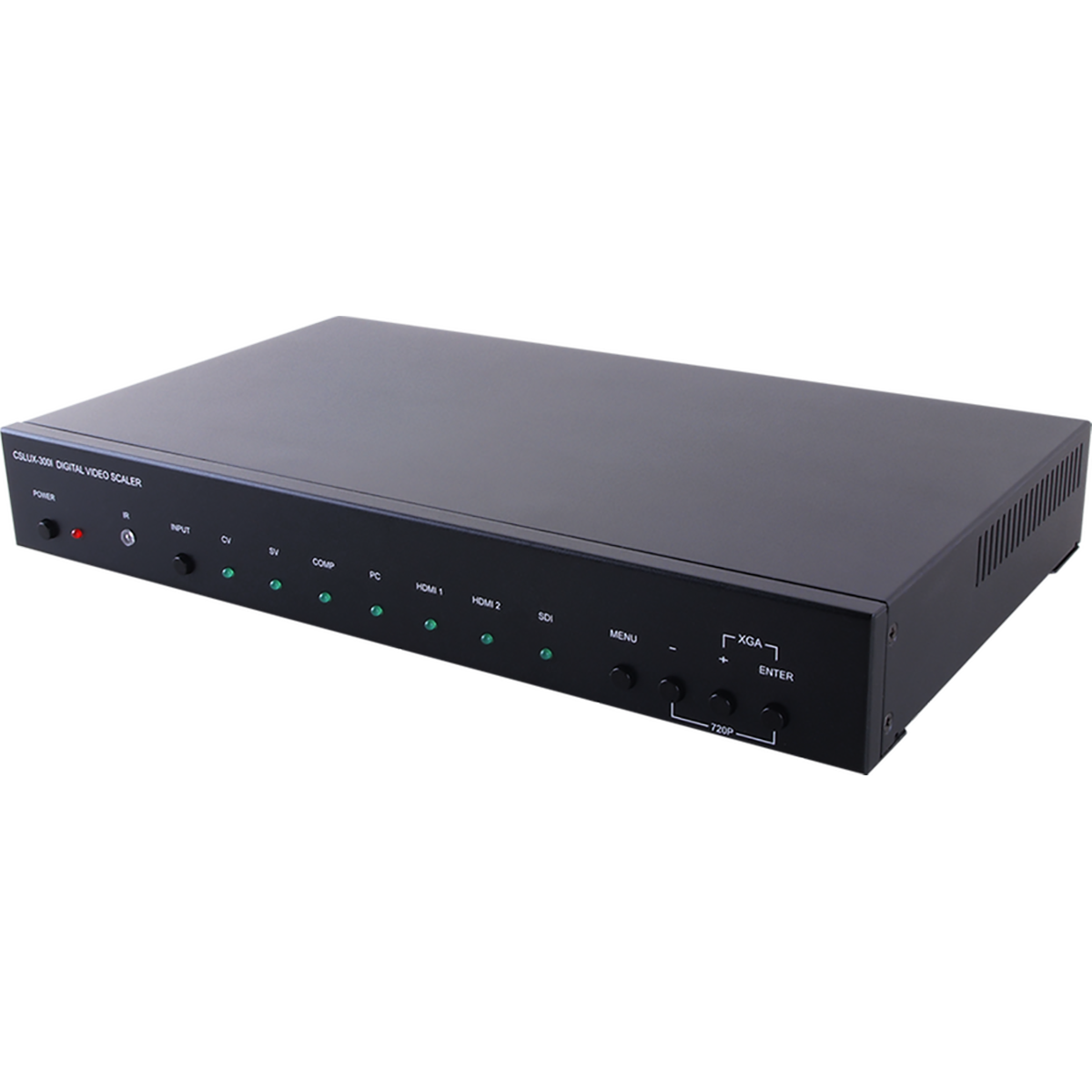

CSLUX-300I
Multi-Format to HDMI Scaler (with SDI Loop-through Output)
- Supports HDMI, Composite Video, S-Video, PC (VGA)/HD (Component) and SDI inputs
- Supports HDMI and VGA/Component (with adaptor) outputs
- Supports SDI loop through output
- Supports analog stereo, optical and coaxial digital inputs and optical digital output, analog stereo output or embedding to HDMI output
- Supports conversion of multiple video formats and audio input to HDMI or PC/HD and analog stereo outputs
- Supports EDID and HDCP
- Supports 3D de-interlacing, noise reduction and 3D comb filter
- Supports frame rate conversion
- Supports RS-232, remote handset, and front panel control
- Supports SDI Standards of SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- Supports SDI bit rates at 2.970 Gb/s, 2.970/1.001 Gb/s, 1.485 Gb/s,
- 1.485/1.001 Gb/s and 270 Mb/s
- Supports SDI signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals
