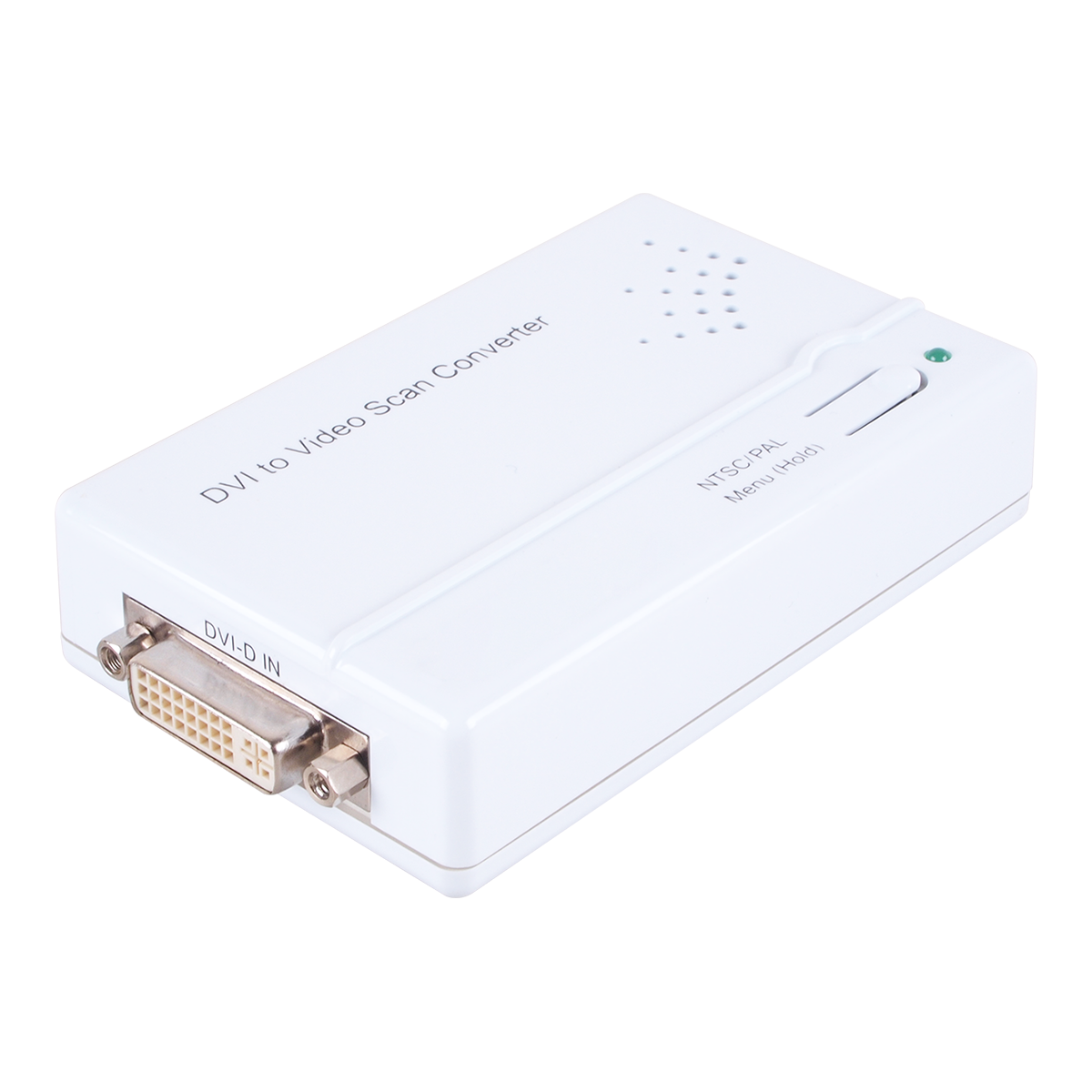

CV-401D

DVI to Video Scan Converter

Converts video signal from DVI-D source to NTSC/PAL composite (CVBS) signal
Accepts a wide range of input resolutions of 480p to 1080p@60 Hz (DVI-D) and VGA to WUXGA@60 Hz (PC)
3D noise reduction in both the temporal and spatial domain
Frame rate conversion
Adaptive contrast enhancement
OSD Display
Overscan and underscan adjustment
Phase and Aspect adjustment
Compact and elegant design
Note: The converter does NOT support HDCP. If any HDCP-encrypted content is played, there will no any video output.

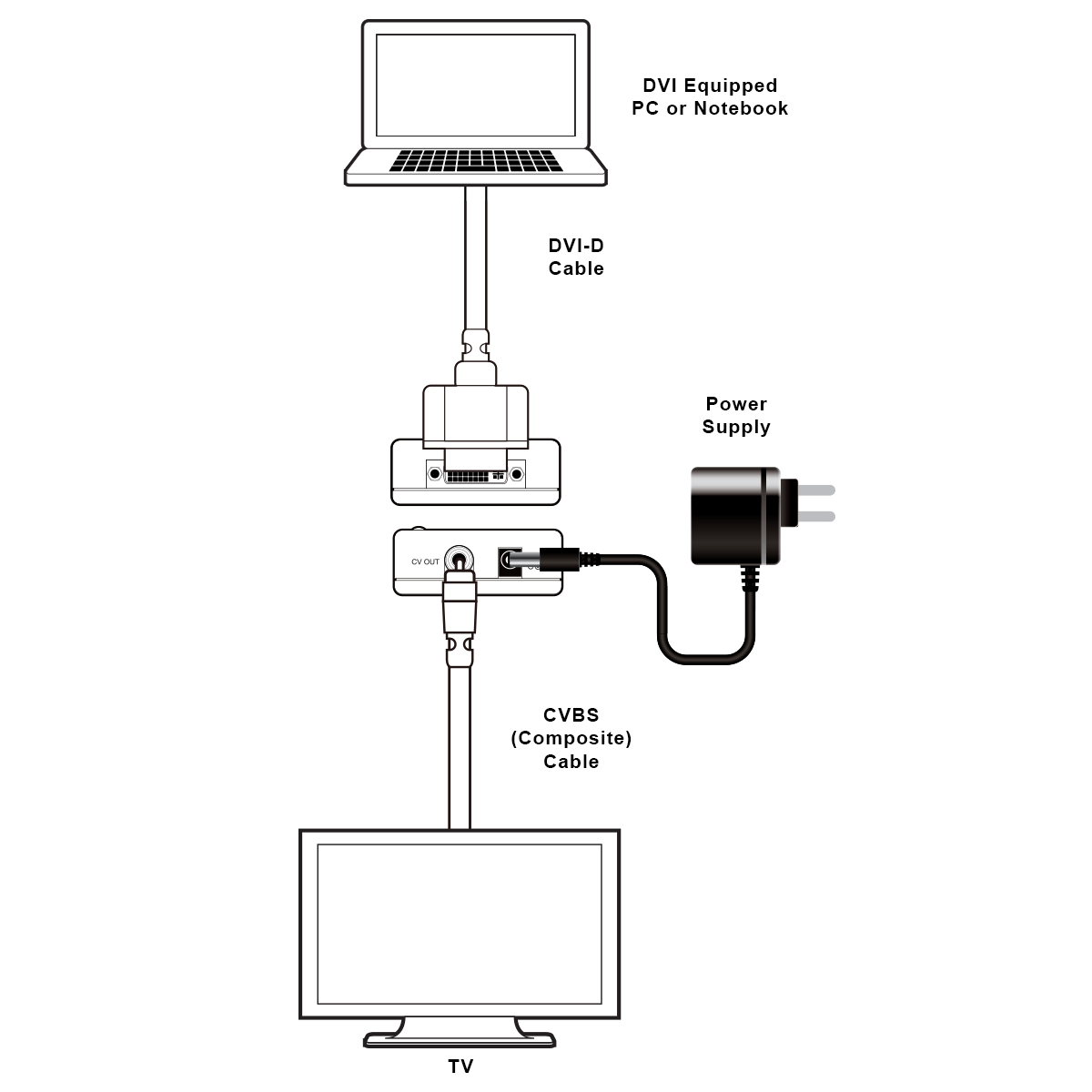

The DVI to Video Scan Converter is designed to convert the digital video signal from DVI-D sources to analog composite (CVBS) signal (NTSC or PAL). It is HDMI and DVI compliant and has many great features such like 3D noise reduction, frame rate conversion, adaptive contrast enhancement and many more. It also has a simple on-screen display (OSD) menu that allows the user to access the display status including input/output information.

Interfaces

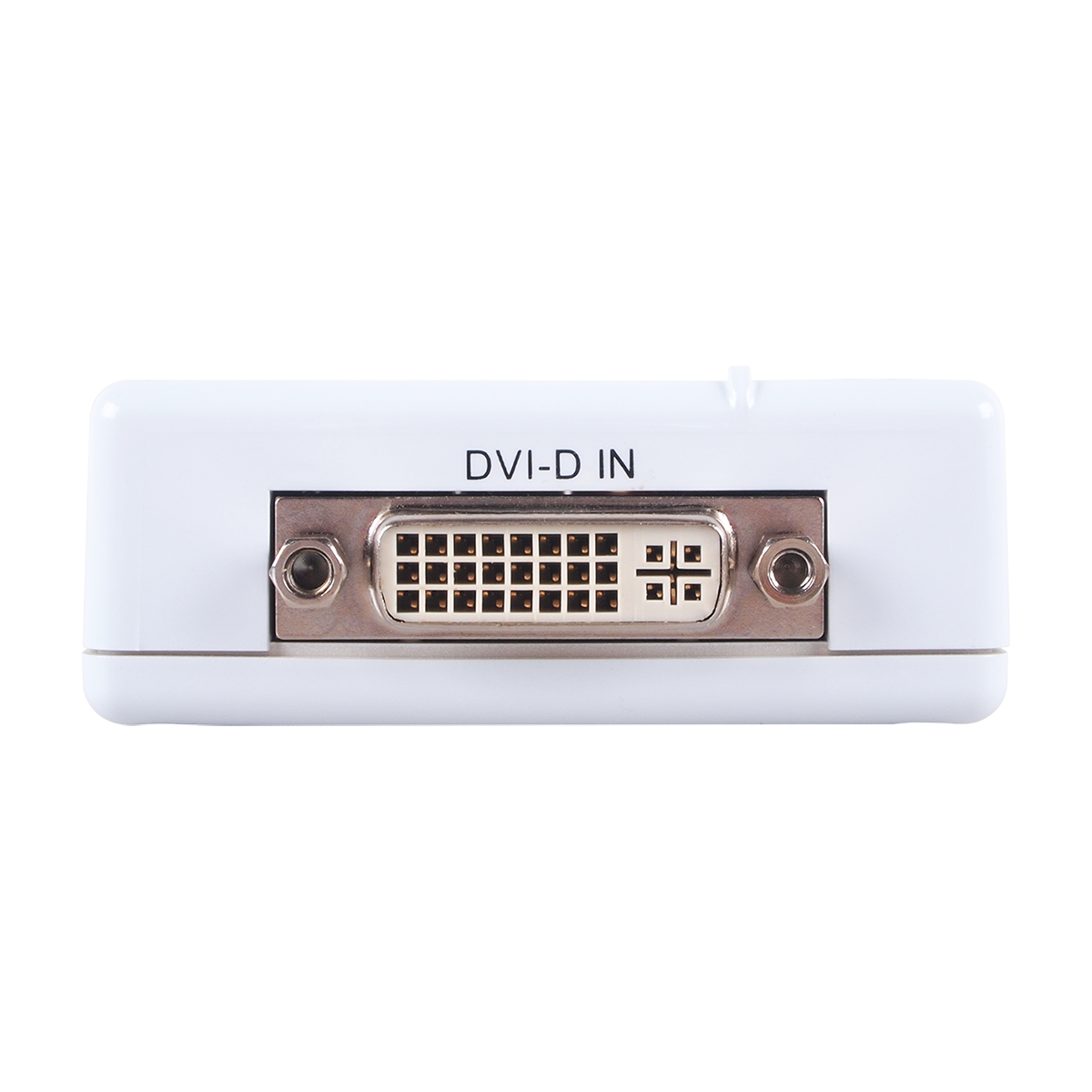

Input Port	1 DVI-D

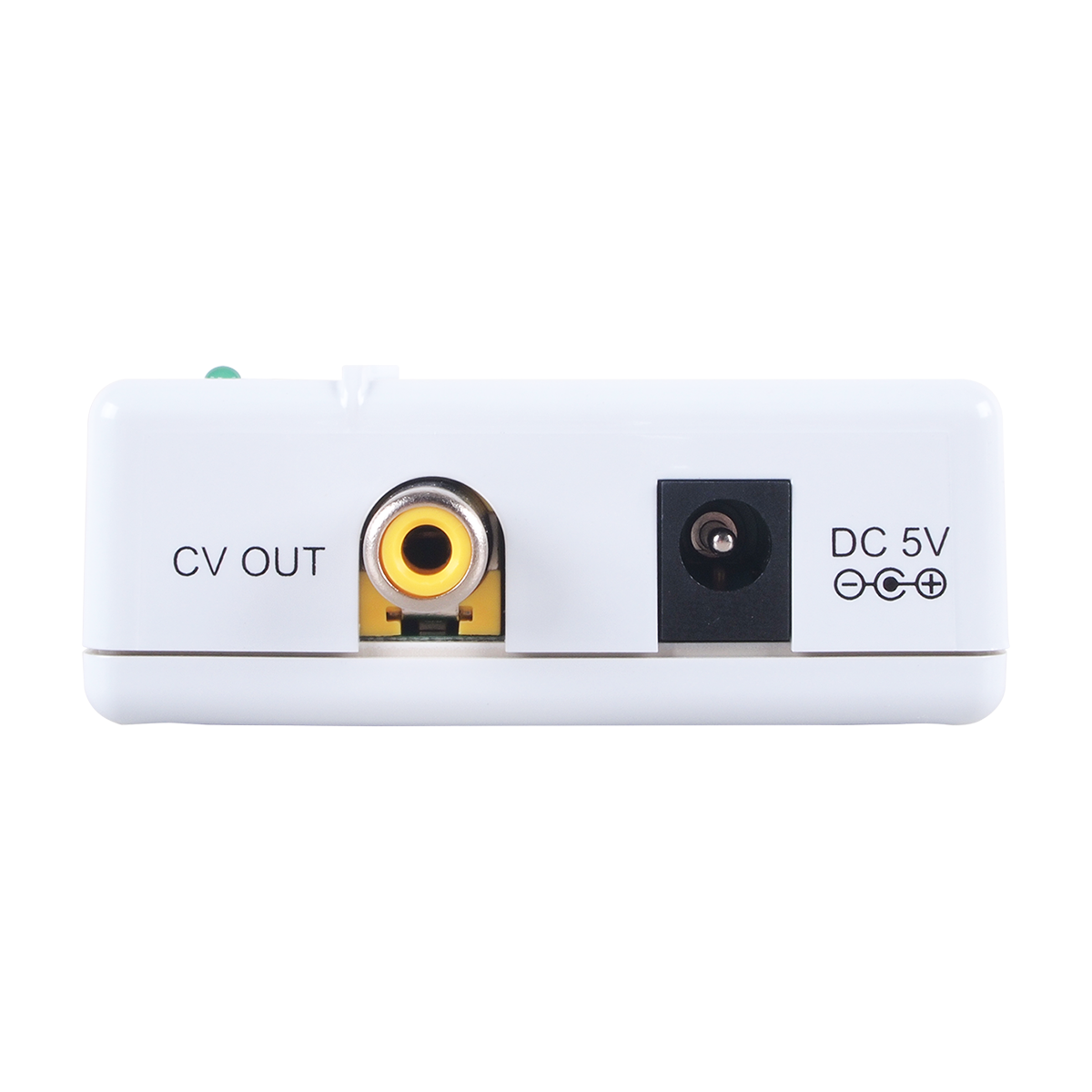

Output Port	1 CVBS

Video
DVI Compliance	DVI 1.0 (HDMI 1.3)
HDCP Compliance	N/A
Input Signal Type	1920x1200@60RB
Output Signal Types	NTSC: 720x480 PAL: 720x576

Resolutions
Maximum Input	DVI-D	1920x1200@60RB
Maximum Output	CVBS	NTSC: 720x480 PAL: 720x576

Enclosure
Chassis Material	Plastic
Chassis Color	White
Dimensions (W×H×D)	64 mm × 26 mm × 104 mm
Weight	120g

Power
Power Supply	5 V DC/1 A linear power adaptor (US/EU standards, CE/FCC/UL certified)
Power Consumption	3W

Field Firmware Update
Interface	N/A

Ordering Information
Model No.	Product Description
CV-401D	DVI to Video Scan Converter

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/02/17	CV-401D_Manual	1	all	CV-401D_Manual
