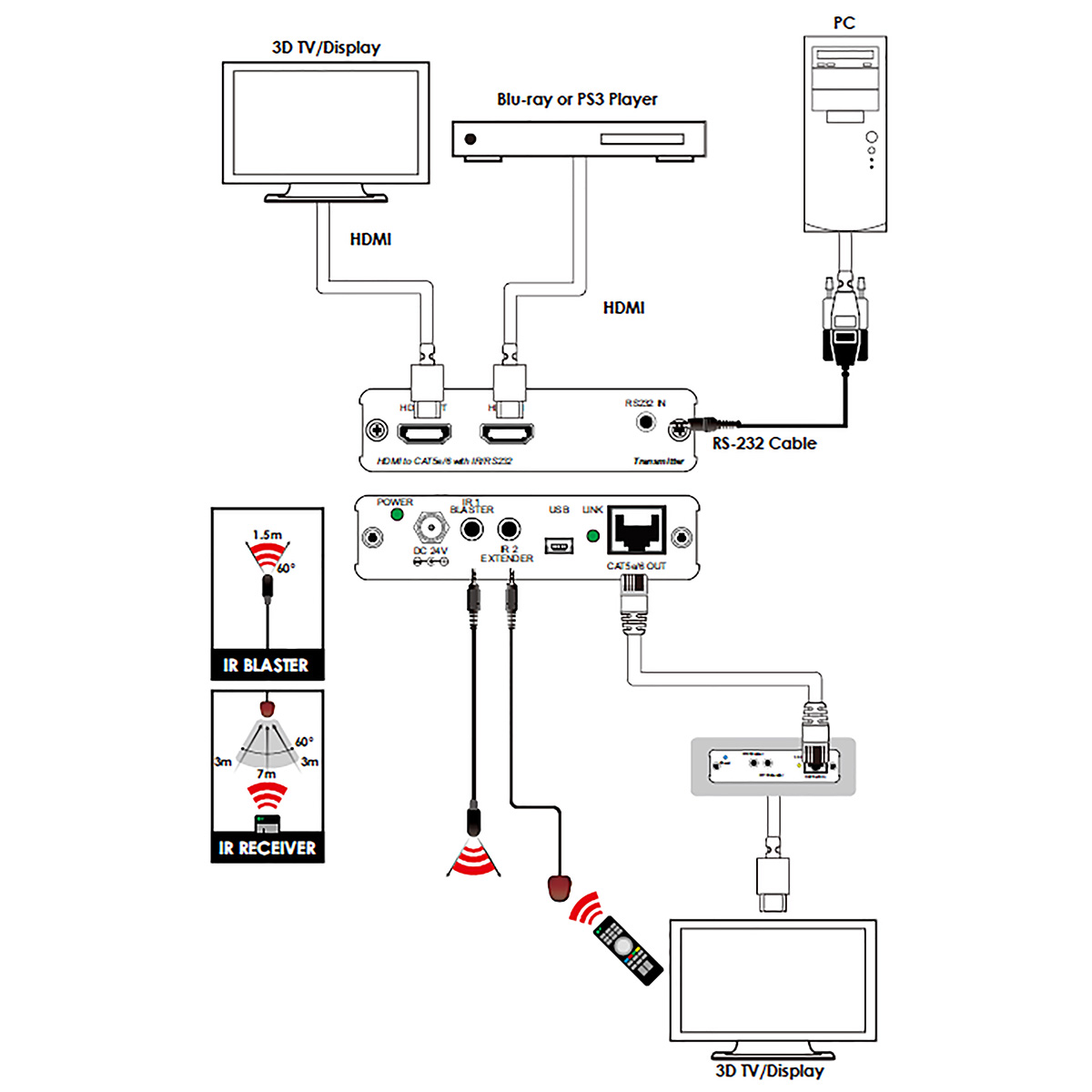

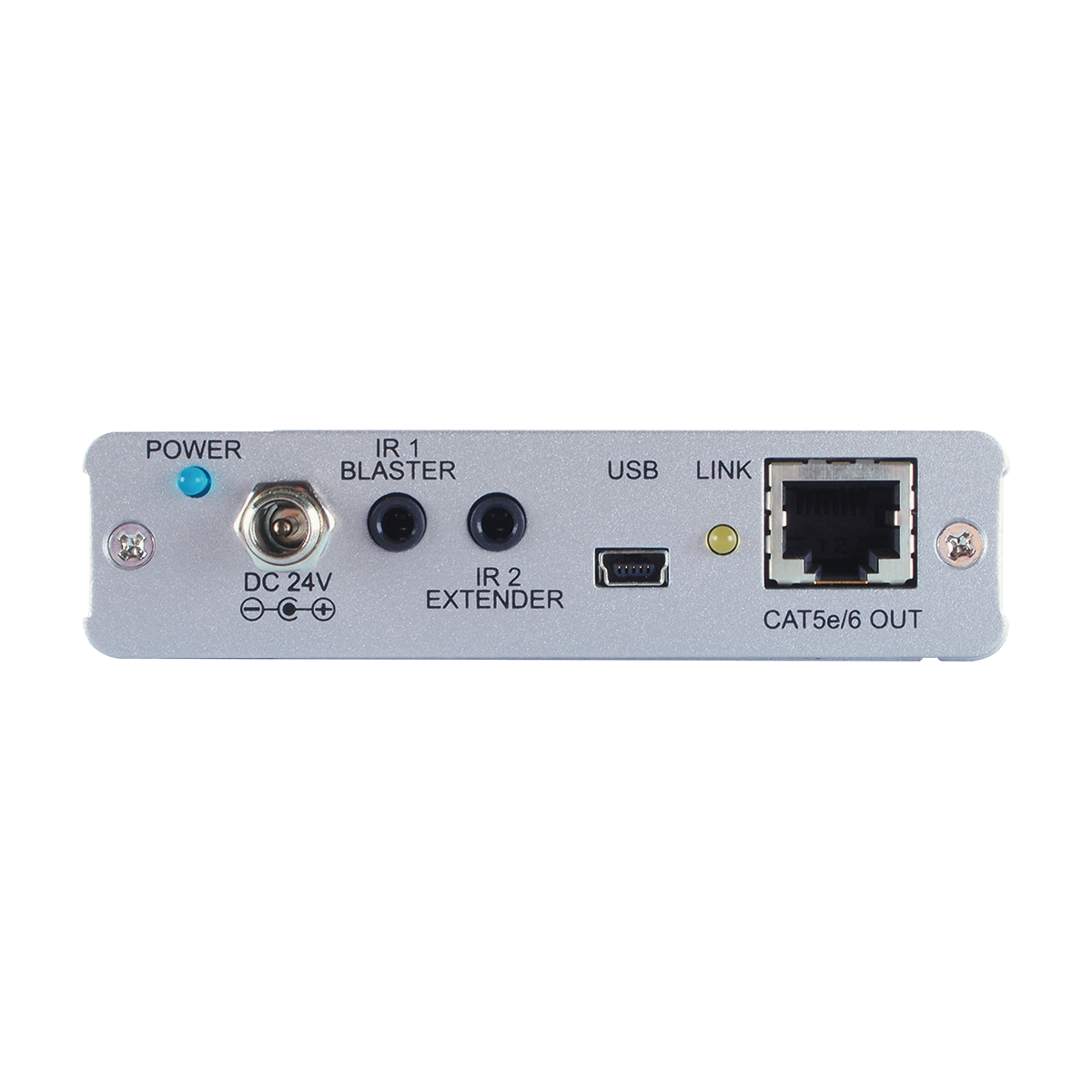

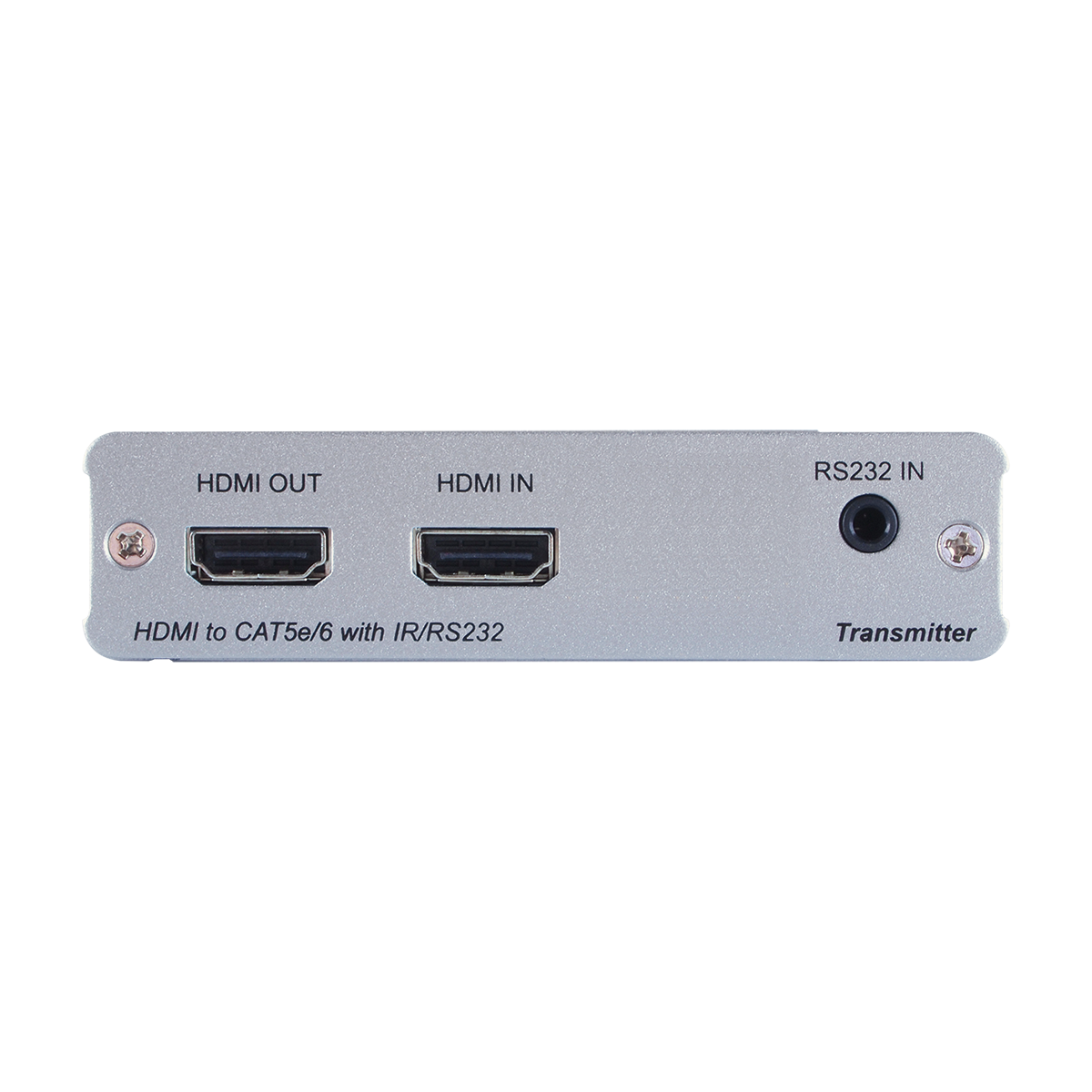

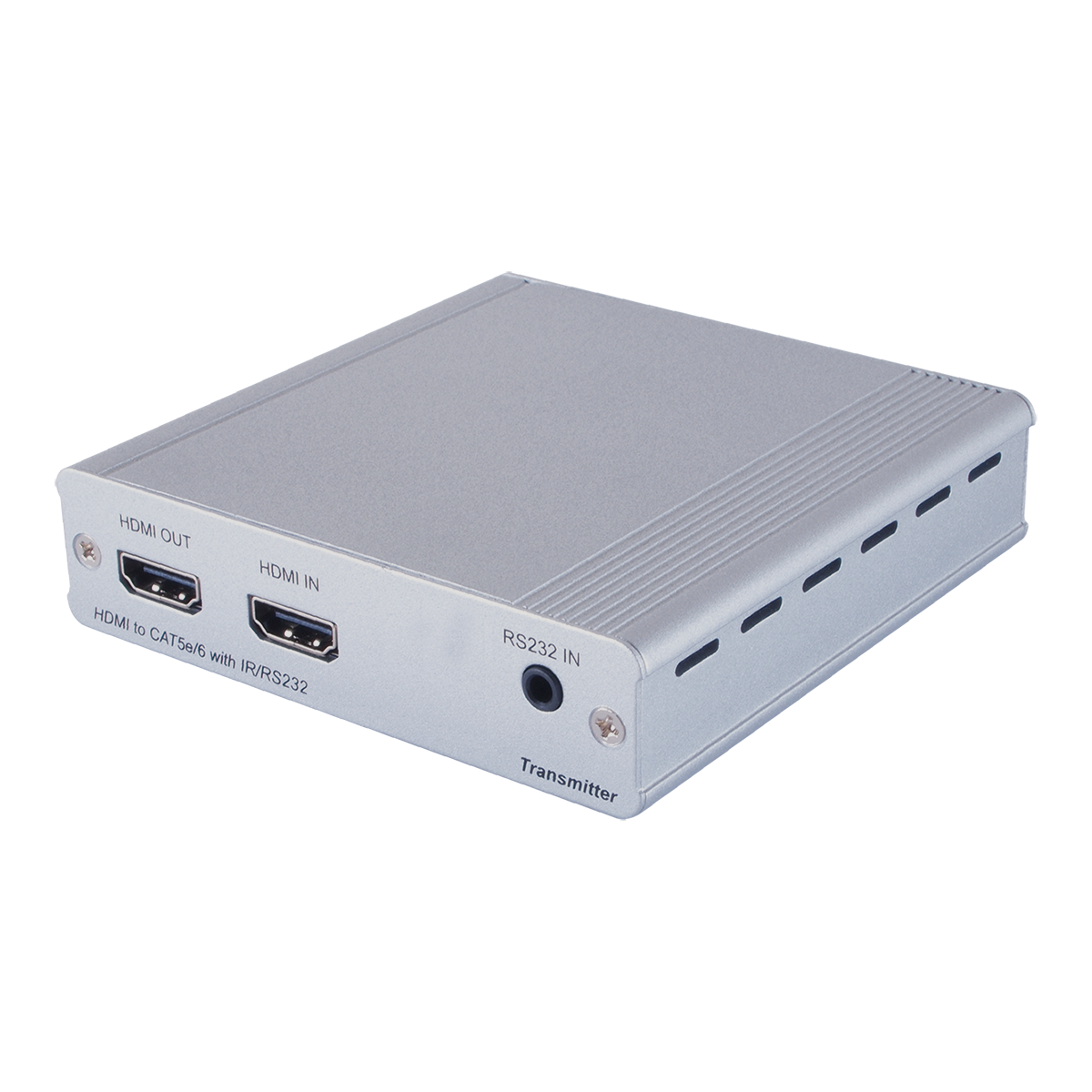

The HDMI over HDMI and CAT5e/6/7 Transmitter can convert a single HDMI input, 2-way IR and RS-232 control and LAN serving to a single CAT5e/6/7 output and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D and multi-channel digital audio formats (such as LPCM 7.1CH, Bitstream, HD Bitstream). The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The CAT5e/6/7 output can be connected to a CAT5e/6/7 to HDMI Receiver to extend the operating distance up to 100 meters. Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles. The Bidirectional Power over Cable (PoC) function provides greater flexibility in installations.
