Splitters

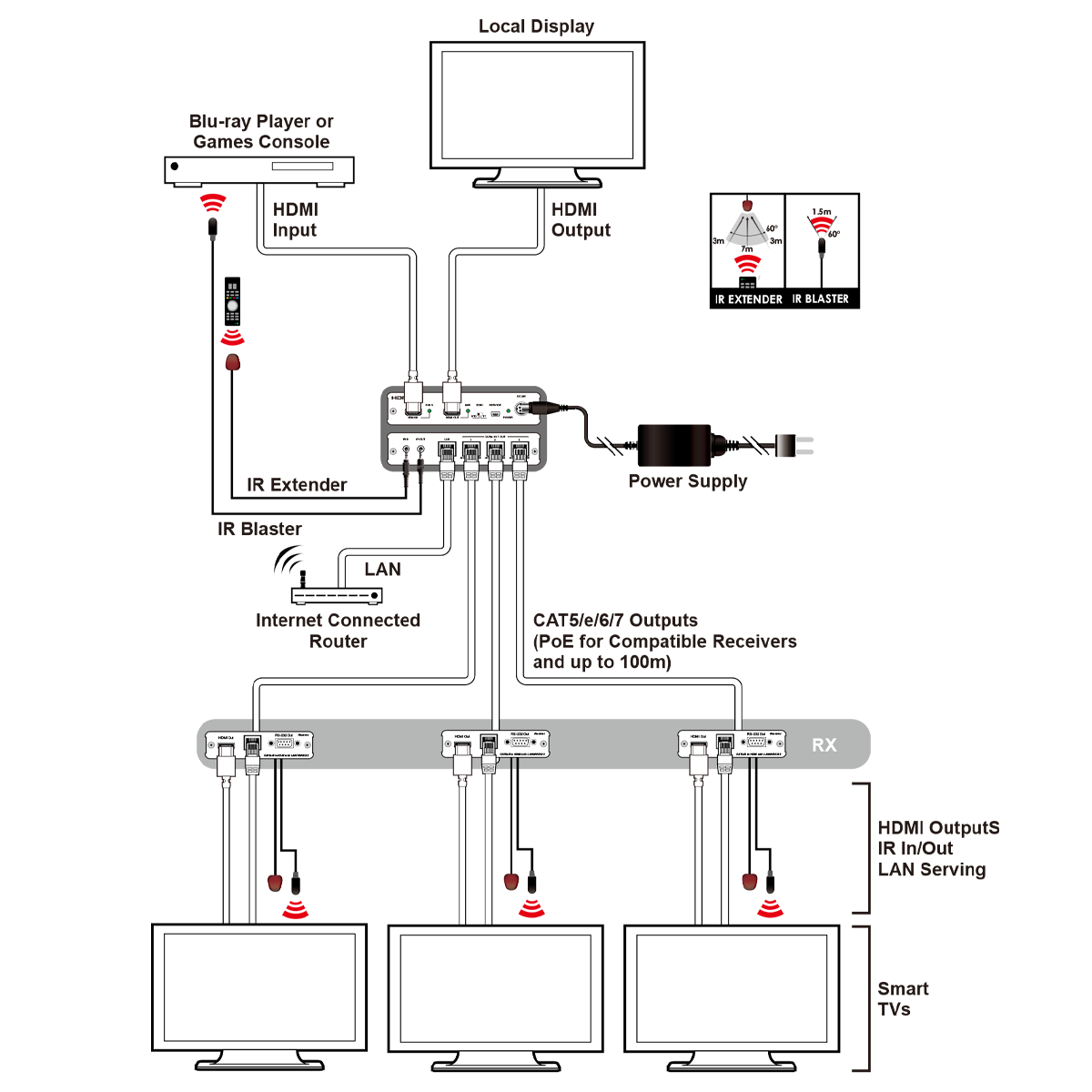

The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input, 2-way IR control and LAN serving to up to three HDBaseT outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 4K×2K timing, 3D and multichannel digital audio formats (such as LPCM 7.1CH, Bitstream, HD Bitstream). The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The three HDBaseT outputs can be connected to HDBaseT to HDMI receivers to extend the operating distance up to 100 meters.Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles. The Power over Cable (PoC) function can power compatible receivers, providing greater flexibility in installations.
