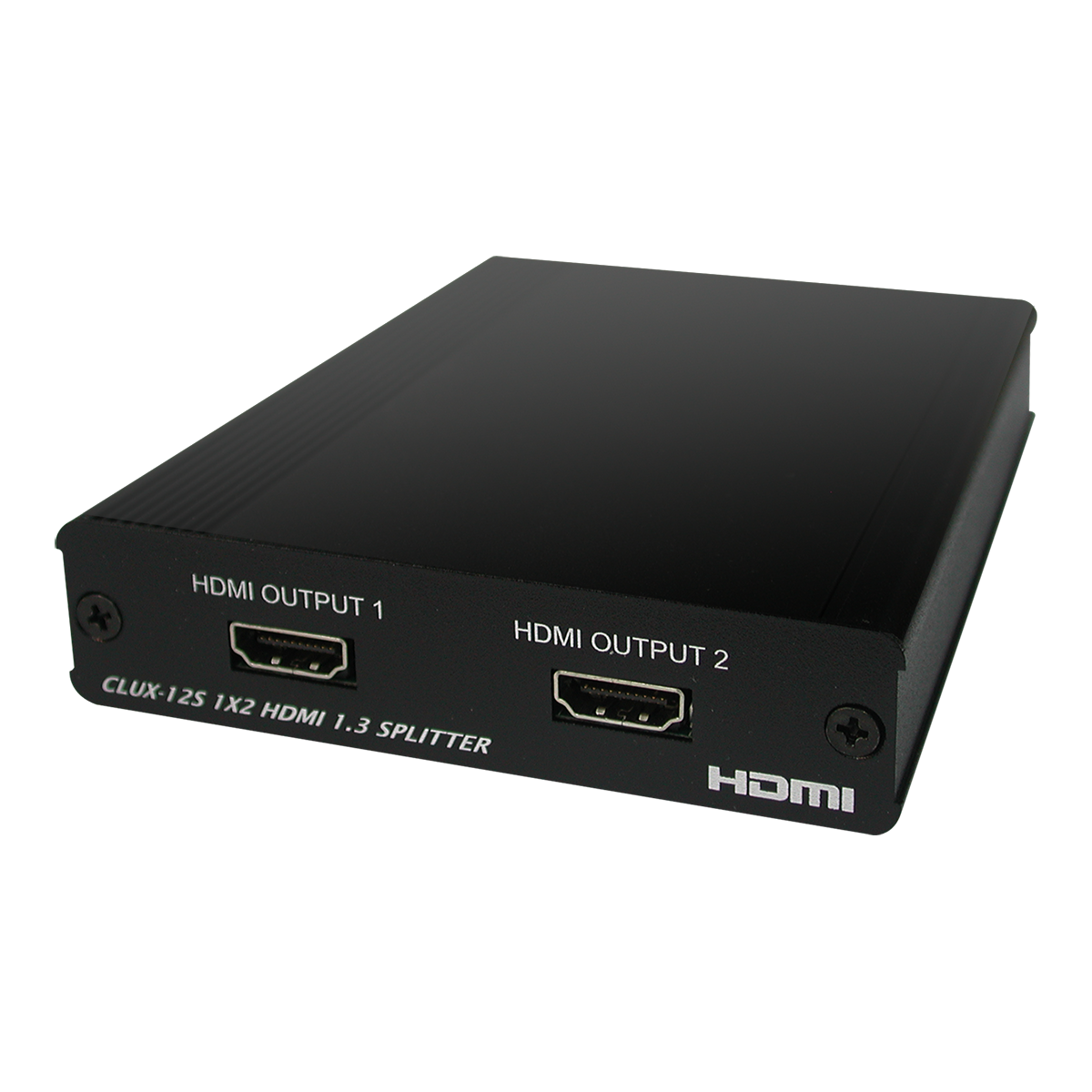

CLUX-12S
1×2 HDMI Splitter
- HDMI 1.3, HDCP1.1 and DVI1.0 compliant
- Deep Color video up to 12-bit, 1080p@24/60 Hz

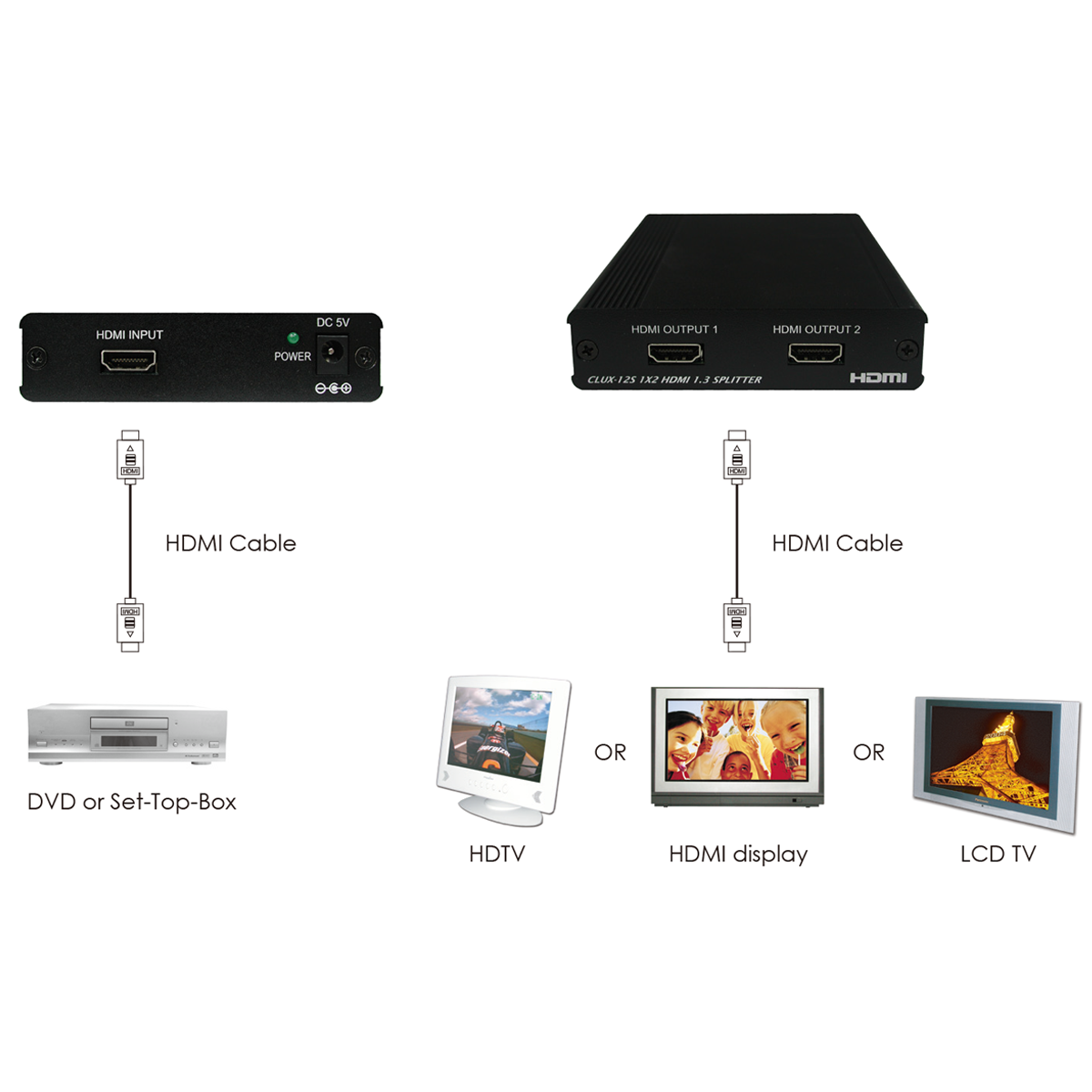

- One HDMI source to connect up to two HDMI displays simultaneously
- HDCP keysets allows each output to work independently when connecting to an HDMI display
- Splits a HDMI source up to two outputs without signal loss
- Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192 kHz Fs sample rate)
- Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480i to 1080p
- HDMI cable distance test with 1080p/8-bit resolution, the Input/Output source can run up to 20/15 meters
- HDMI cable distance test with 1080p/12-bit the Input/Output source can run up to 15/10 meters
- Supports EDID functionality
- Supports CEC bypass
