CLUX-1H4CAT EOL

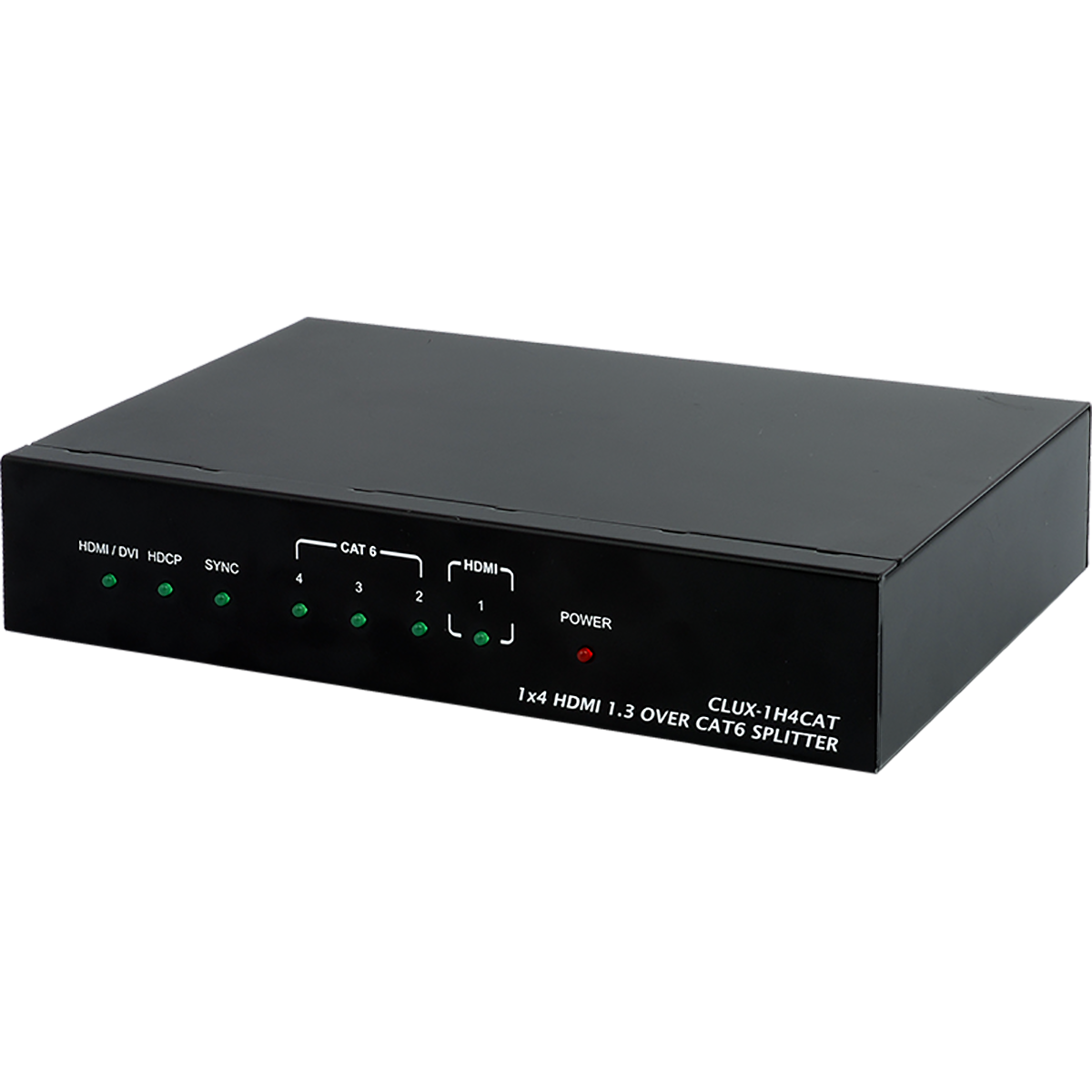

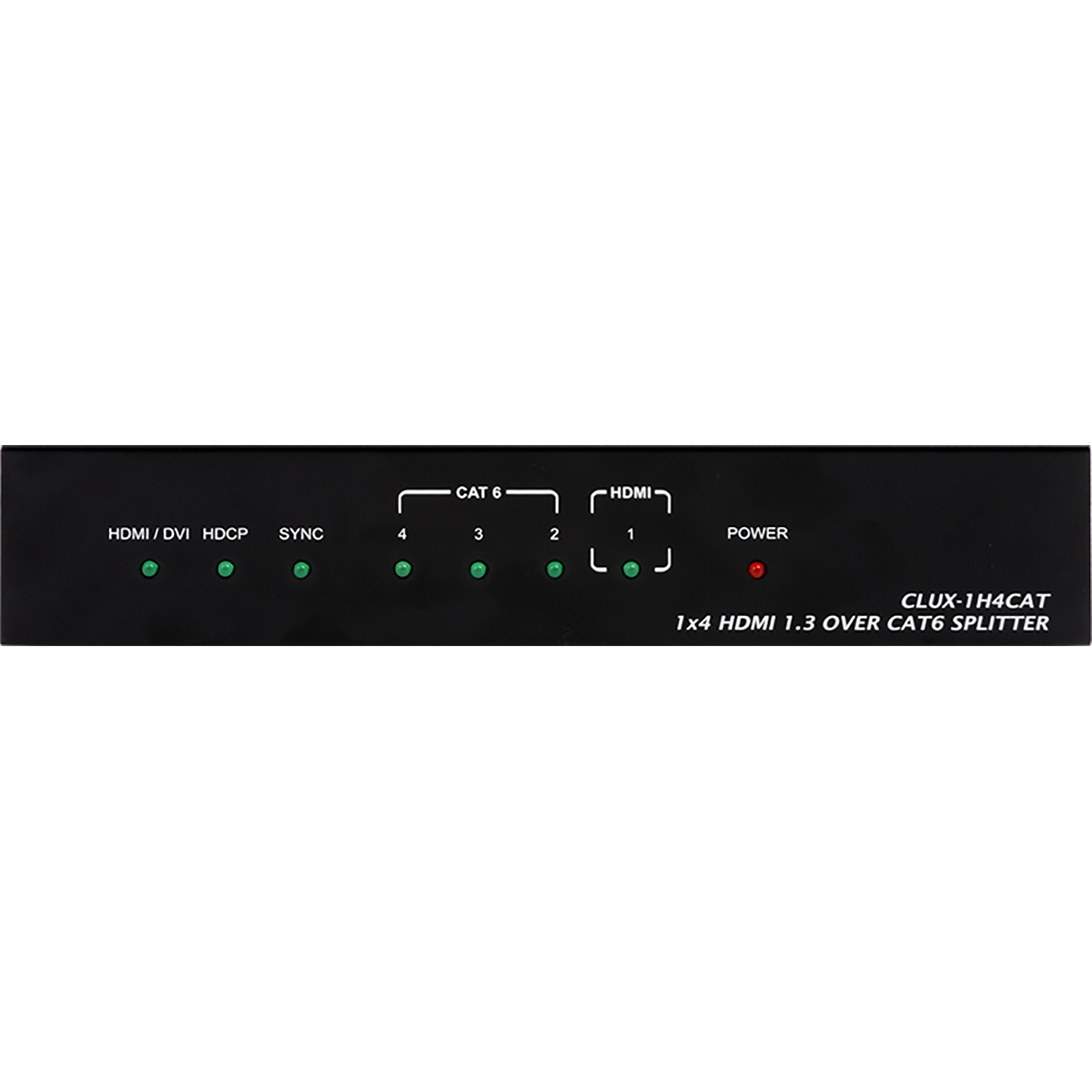

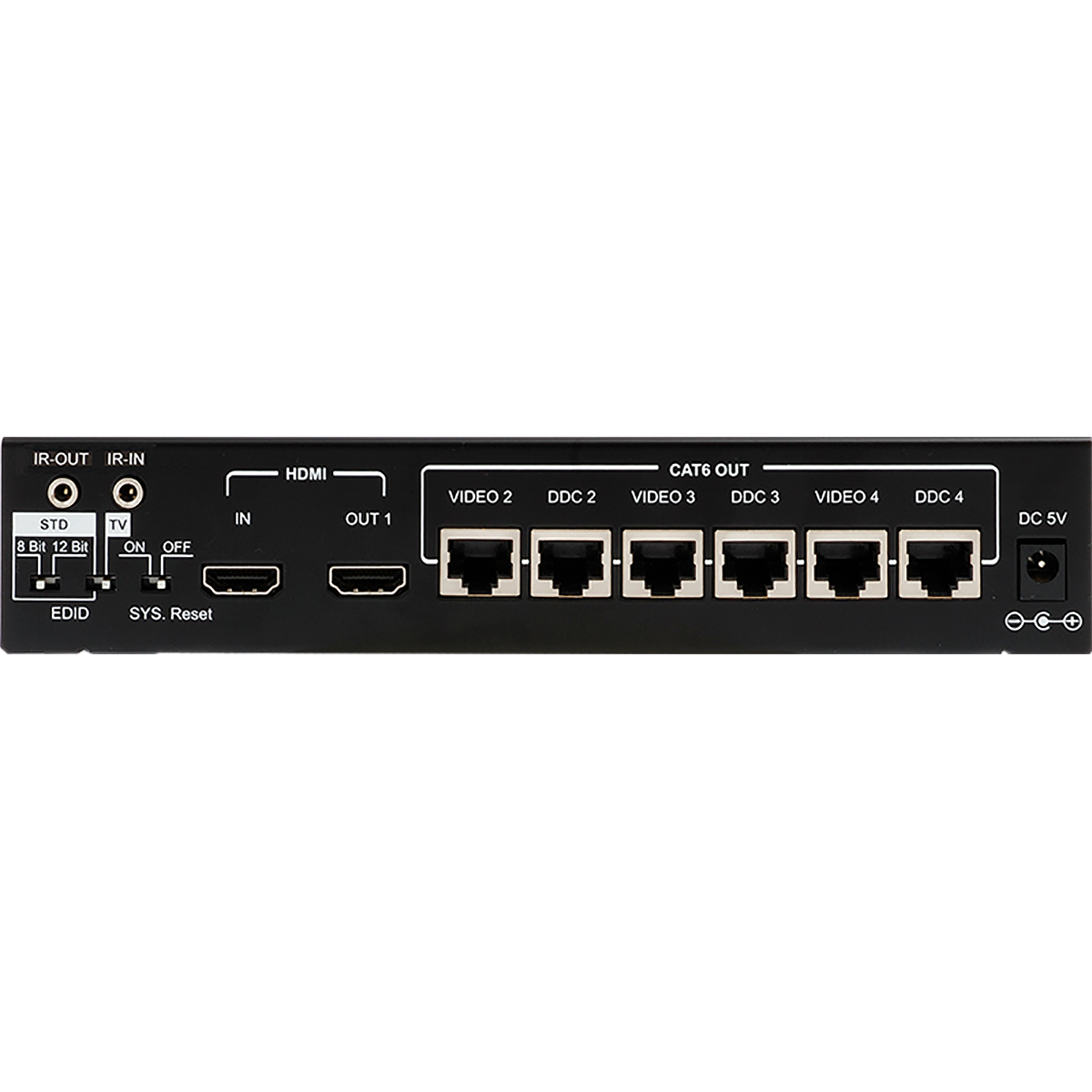

1×4 HDMI to Dual CAT6/7 Splitter
- HDMI, HDCP1.1 and DVI1.0 compliant
- Deep Color video up to 12-bit, 1080p@60Hz
- Allows users to link up to four displays
- HDCP keysets allows each output to work independently when connecting to a HDMI display
- Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192 kHz Fs sample rate)
- Supports a wide range of PC and HDTV resolutions from VGA to SXGA (1280x1024) and 480i to 1080p
- Selects EDID from TV mode or STD mode (this splitter)
- Deep color setting of 8-bit or 12-bit
- IR remote control
- System Reset function
- CEC Bypass
