CPRO-16E

1 by 16 HDMI Splitter

Supports HDTV resolutions up to 4K×2K/30 Hz
HDMI and DVI compatible
Supports 1080p@60Hz, Deep Color 12-bit
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
Supports 3D

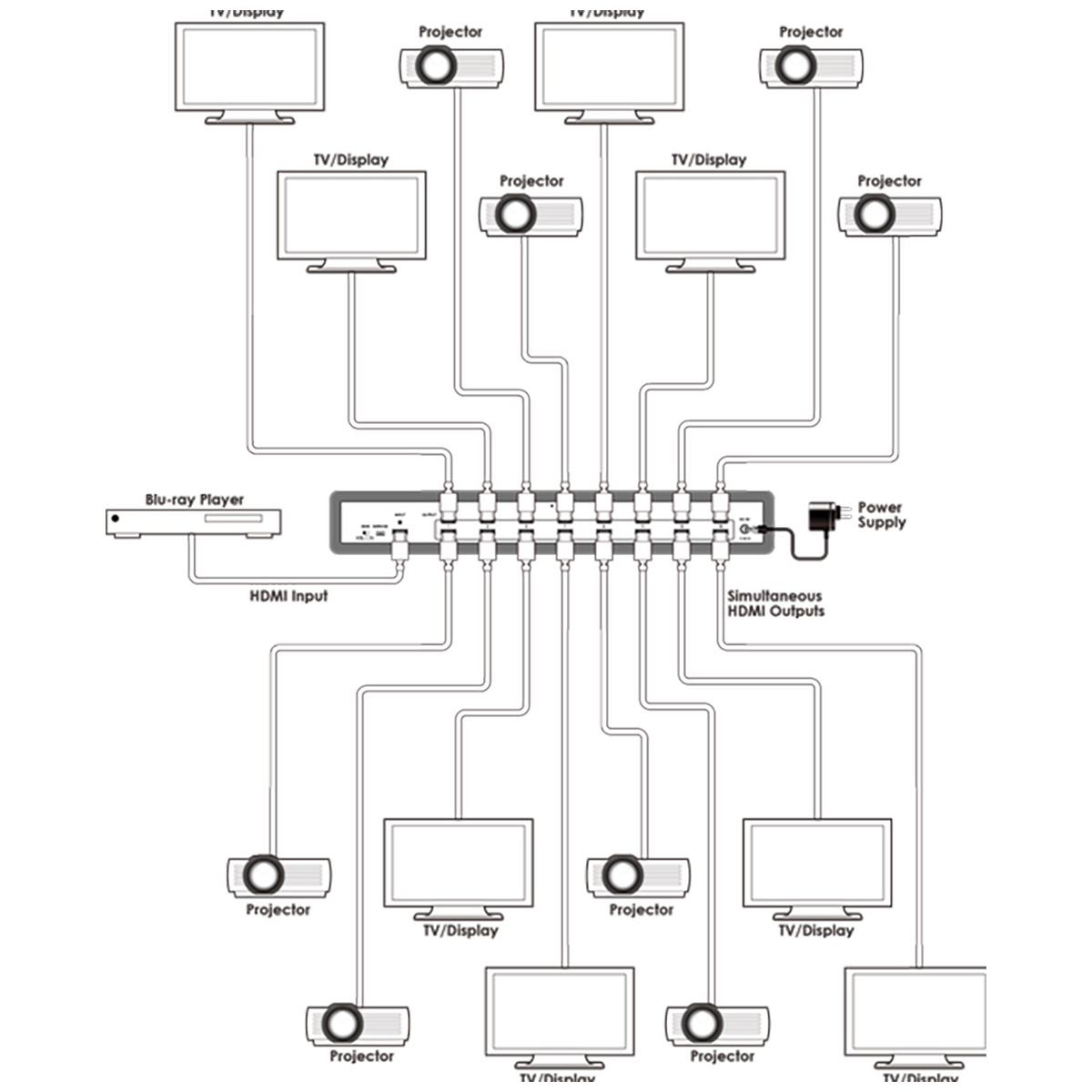

This range of high performance HDMI splitters provide one HDMI in to sixteen HDMI outputs and supports 4K×2K, 3D, 12-bit Deep Color as well as High Definition Lossless Audio. With its 9Gbps bandwidth and the addtional features of the latest HDMI standards you can be sure of great HDMI distribution.

Video Bandwidth	300 MHz/9 Gbps
Input Port	1×HDMI (Female connector) 1×USB (Manufacturer use only)
Output Ports	16×HDMI (Female connector)
Output Resolution	480i~1080p@50/60, 1080p@24/50/60, VGA~WUXGA, 4K×2K@30
ESD Protection	Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
Dimensions	436 mm (W)×26 mm (D)×48 mm (H)
Weight	1664 g
Chassis Material	Metal
Silkscreen Color	Black
Operating Temperature	0 ˚C~40 ˚C/32 ˚F~104 ˚F
Storage Temperature	−20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	15.8 W

Note: When displaying a 3D signal with a higher bandwidth than 225 MHz or a 4K×2K resolution source, a High Standard HDMI cable is quired.

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/07/12	CPRO-16E Manual	1	all	CPRO-16E Manual
