CPRO-4ER

4Kx2K 1 by 4 HDMI Splitter

Supports HDTV resolutions up to 4Kx2K/30Hz
HDMI and DVI compatible
Supports 1080p@60Hz, Deep Color 12-bit
Supports LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
Supports 3D
Supports System reset and EDID selection functions

Note: Displaying HDMI 4Kx2K resolution require the standard 4Kx2K HDMI cable and display in order for proper image displaying.

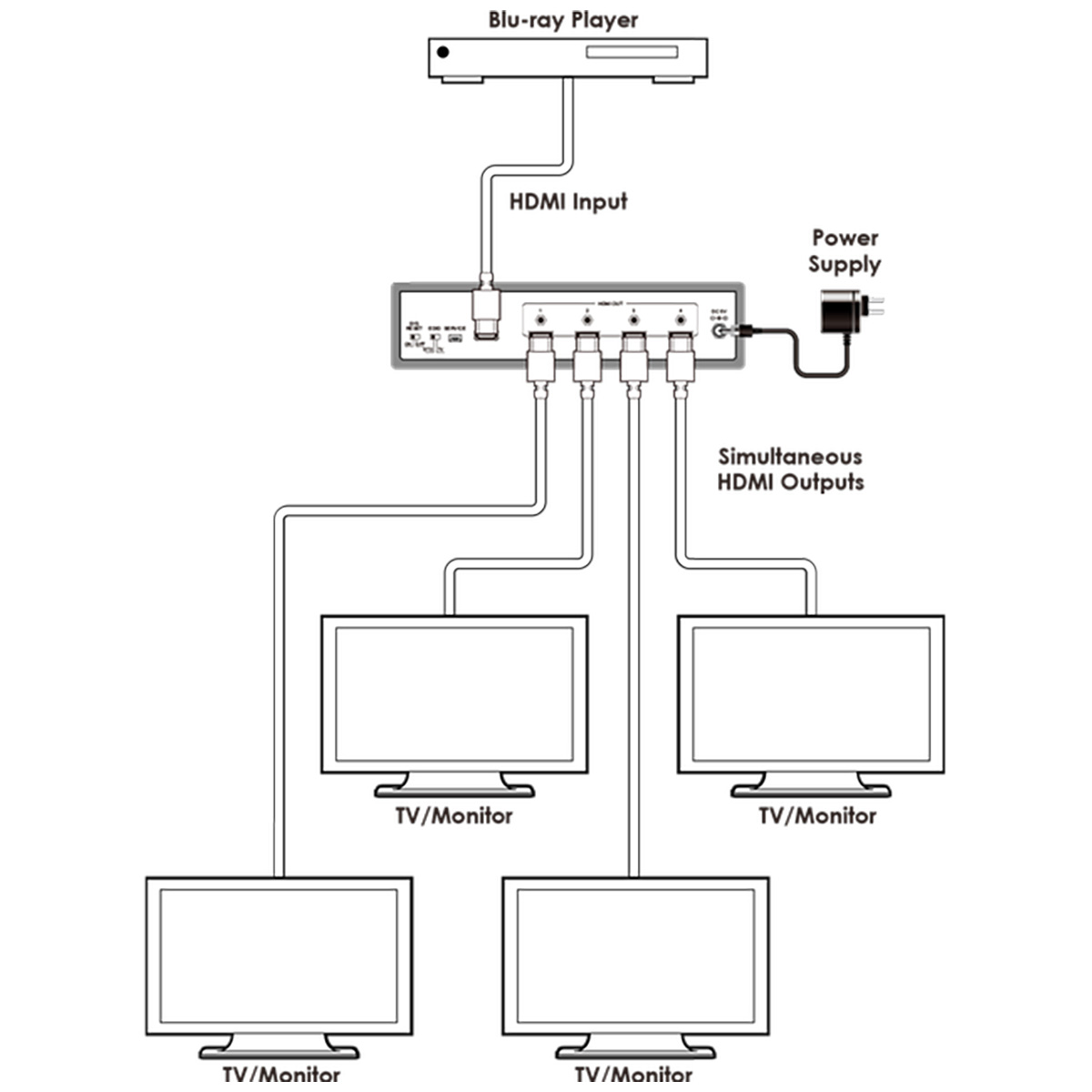

The HDMI splitter provides one HDMI in to four HDMI outputs and support 4Kx2K, 3D, 12-bit Deep Color as well as High definition Lossless Audio. With its 9Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMI distribution.

Video Bandwidth	300MHz/9Gbps
Input ports	1 x HDMI, 1 x USB (Service only)
Output ports	4 x HDMI
Resolution	Up to 4Kx2K (3840x2160@24/25/30Hz & 4096x2160@24Hz)
Power Supply	5V / 2.6 A DC (US/EU standards, CE/FCC/UL certified)
Dimensions	215mm(W) x 140mm(D) x 48mm(H)
Weight	858 g
Chassis Material	Metal
Silkscreen Color	Black
ESD Protection	Human Body Model:
	±8kV (air-gap discharge)
	±4kV (contact discharge)
Operating Temperature	0˚C ~ 40˚C / 32 ˚F ~ 104 ˚F
Storage Temperature	-20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
Relative Humidity	20~90% RH (non-condensing)
Power Consumption	4W

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/07/12	CPRO-4ER Manual	1	all	CPRO-4ER Manual
