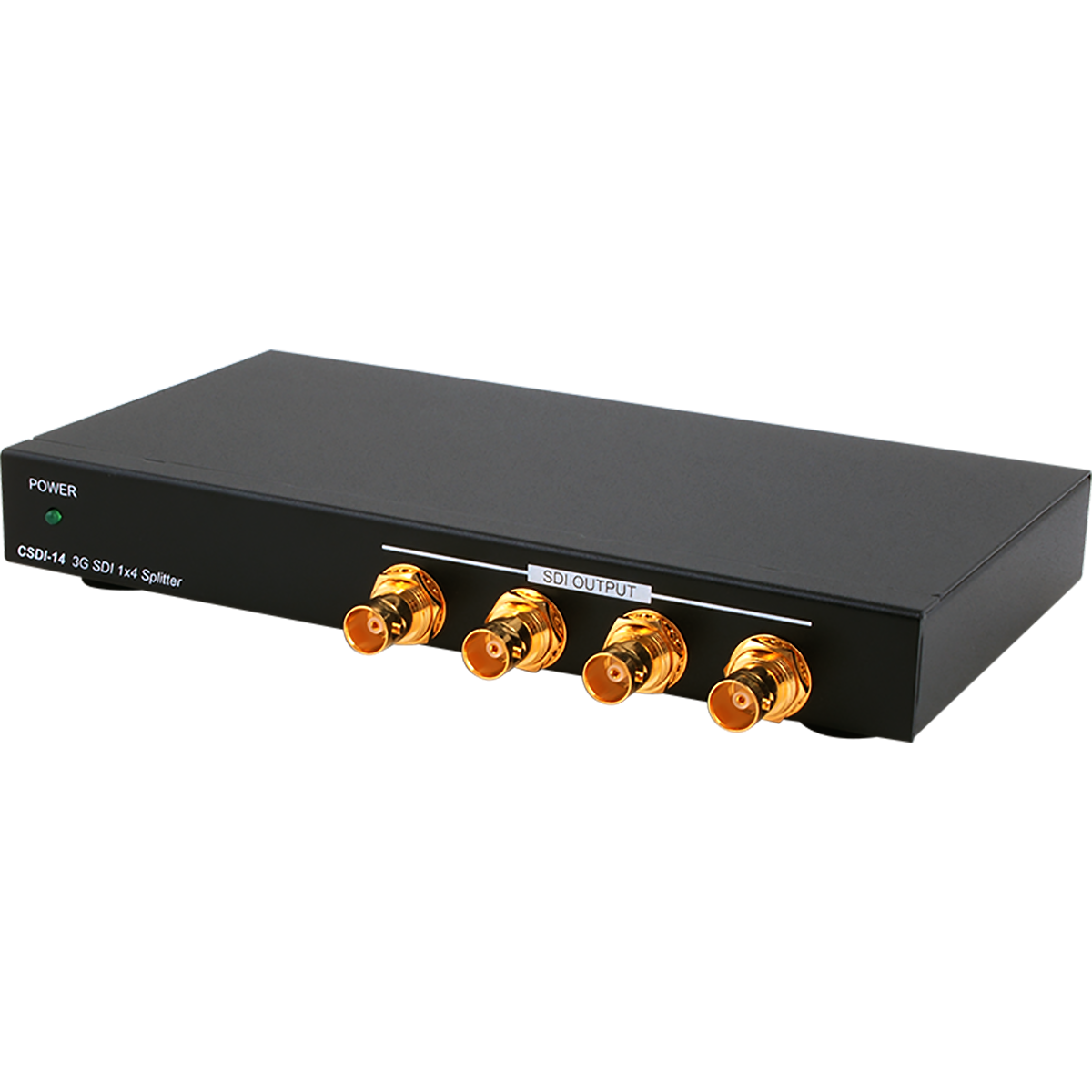

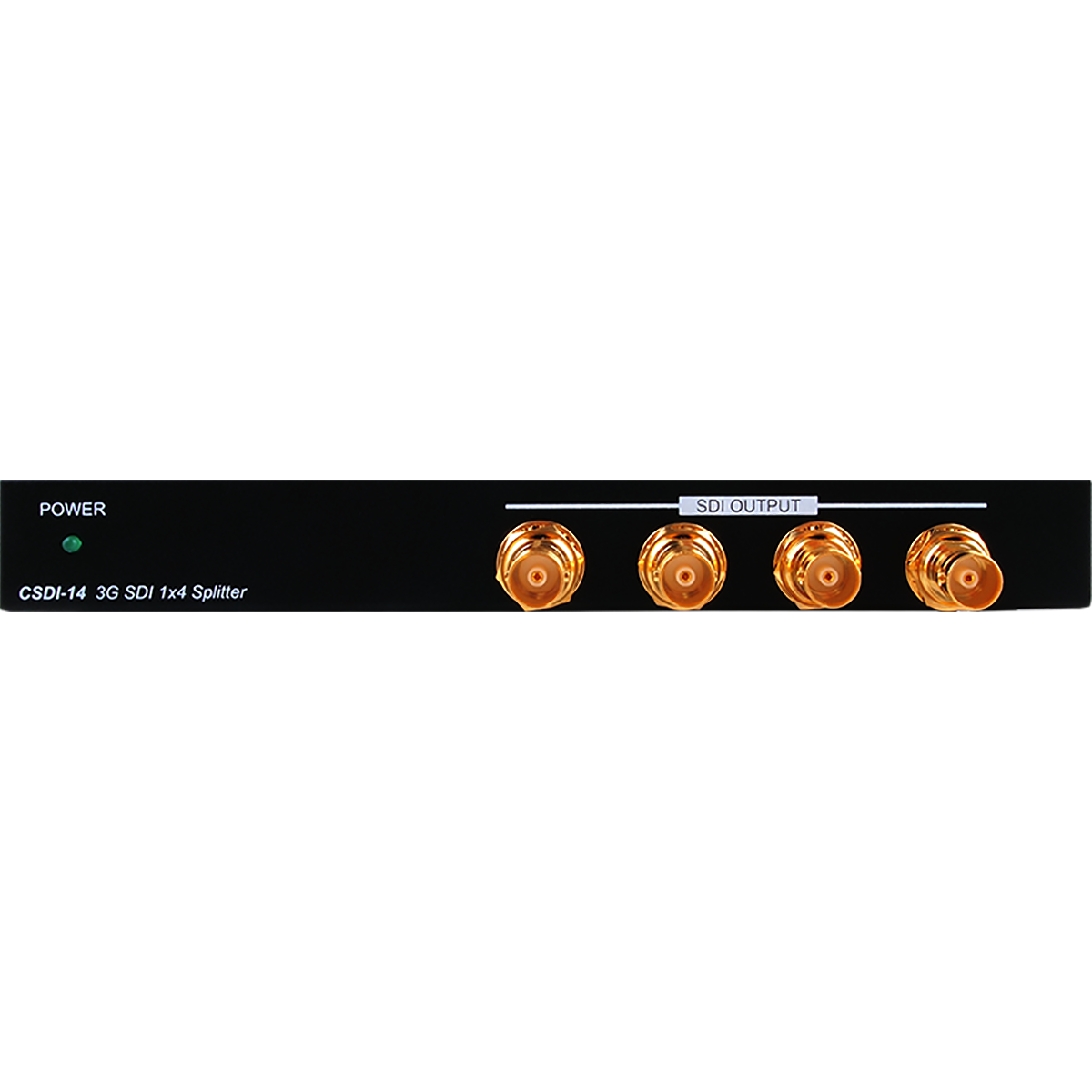

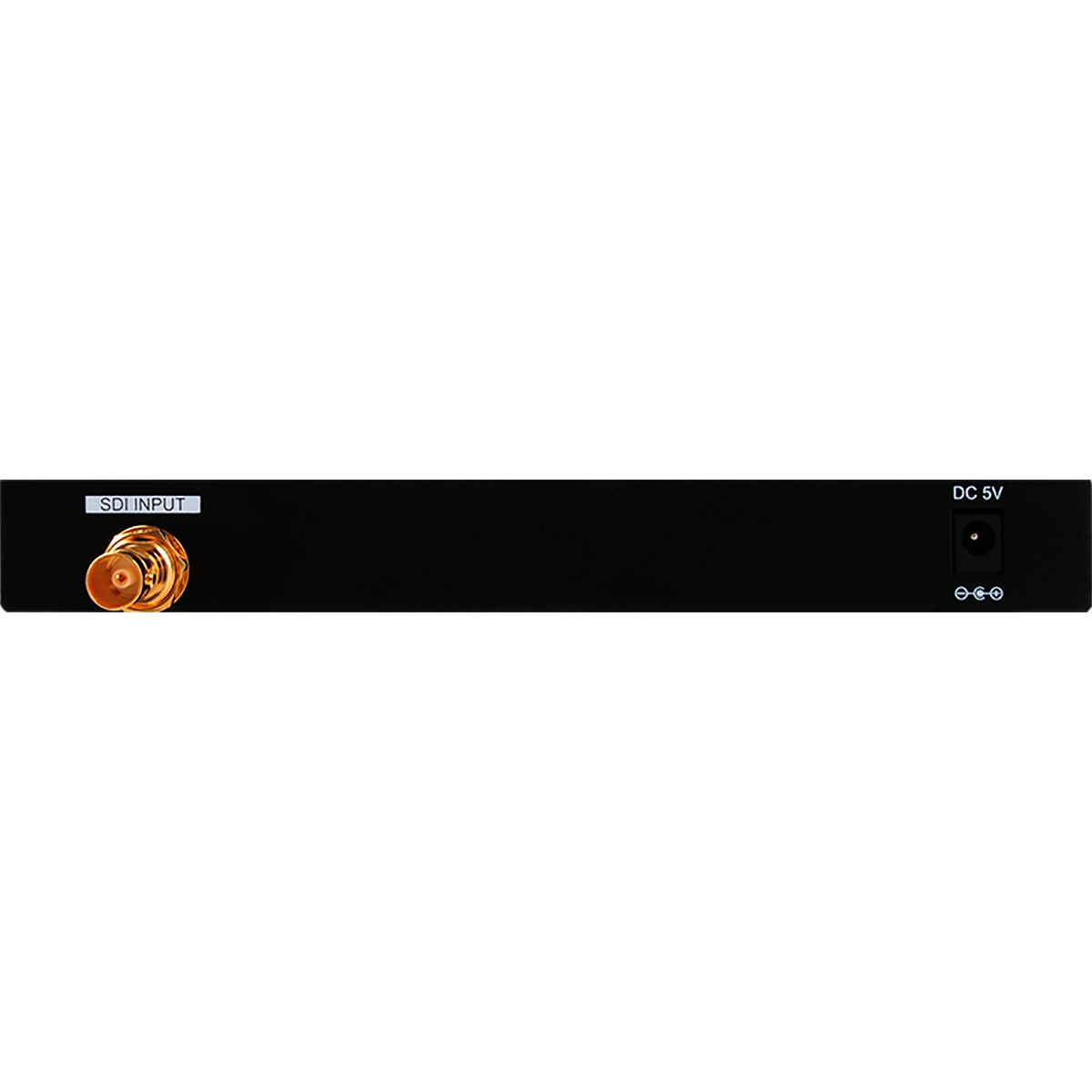

CSDI-14
3G-SDI 1 by 4 Splitter
- SplitS one 3G-SDI input source to four 3G-SDI displays simultaneously
- Operation at 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s
- Supports SMPTE 425M-A, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- Provides equalized and re-clocked transmission
- Supports signal input and output distances of up to 300m for SD-SDI signals, 200m for HD-SDI signals and 100m for 3G-SDI signals
