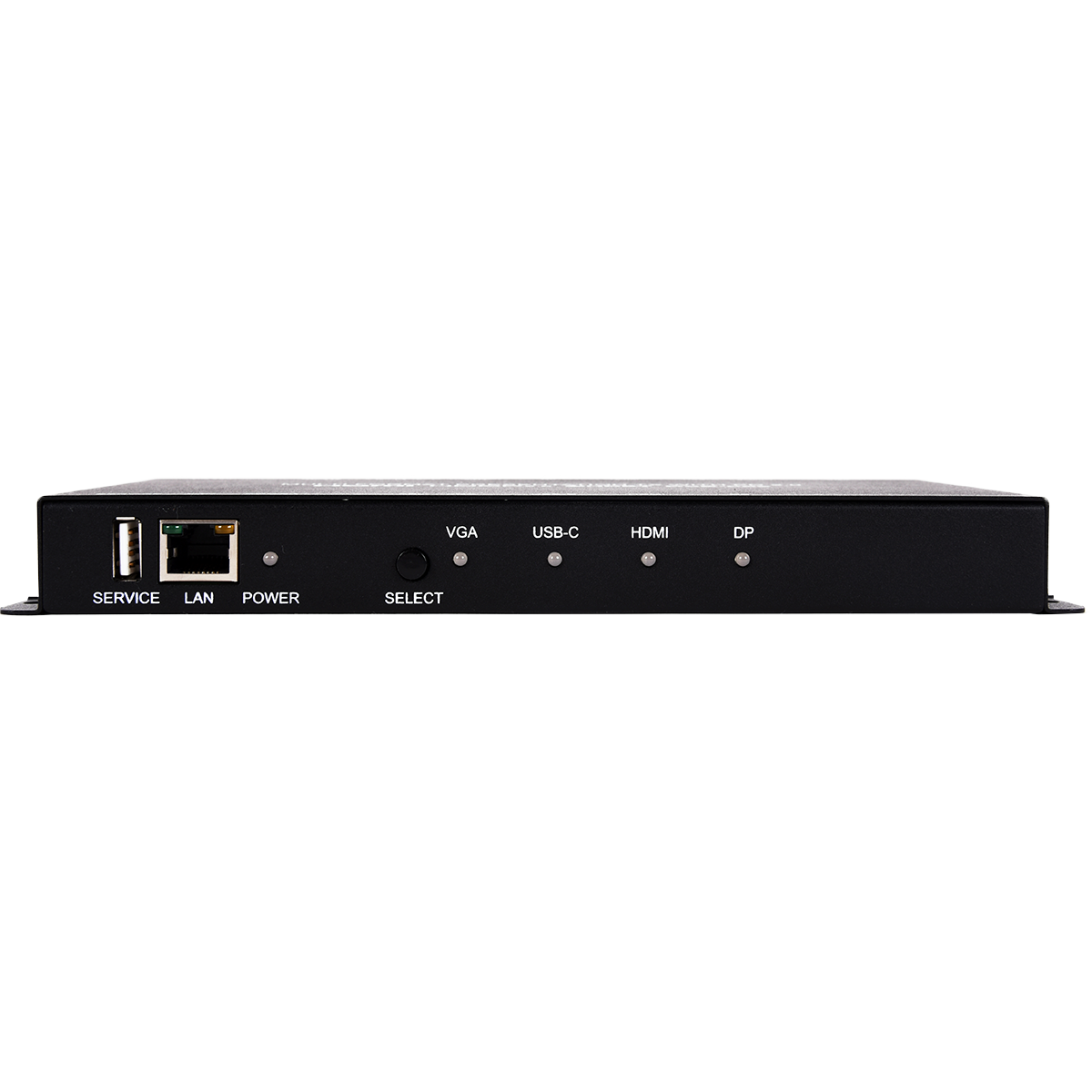

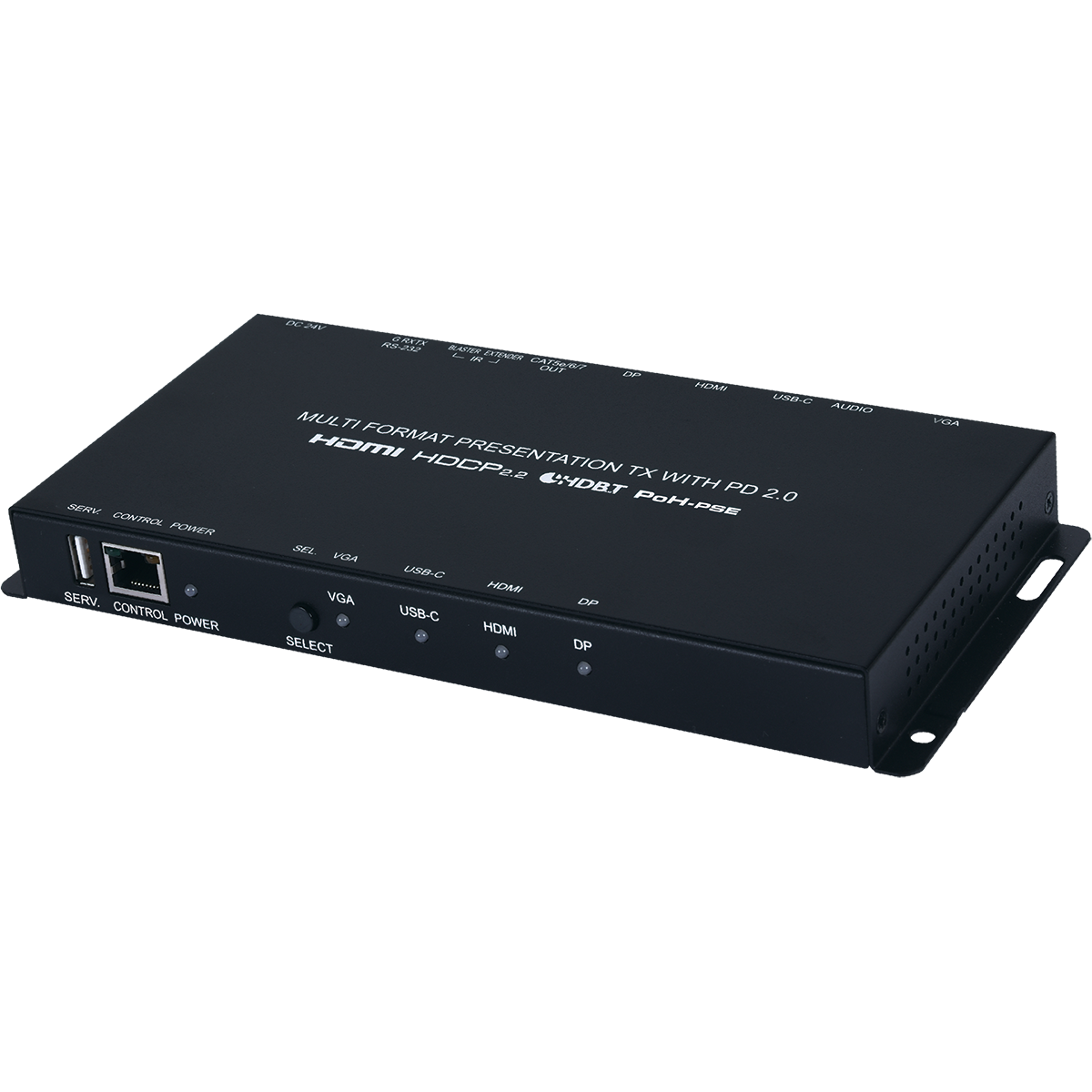

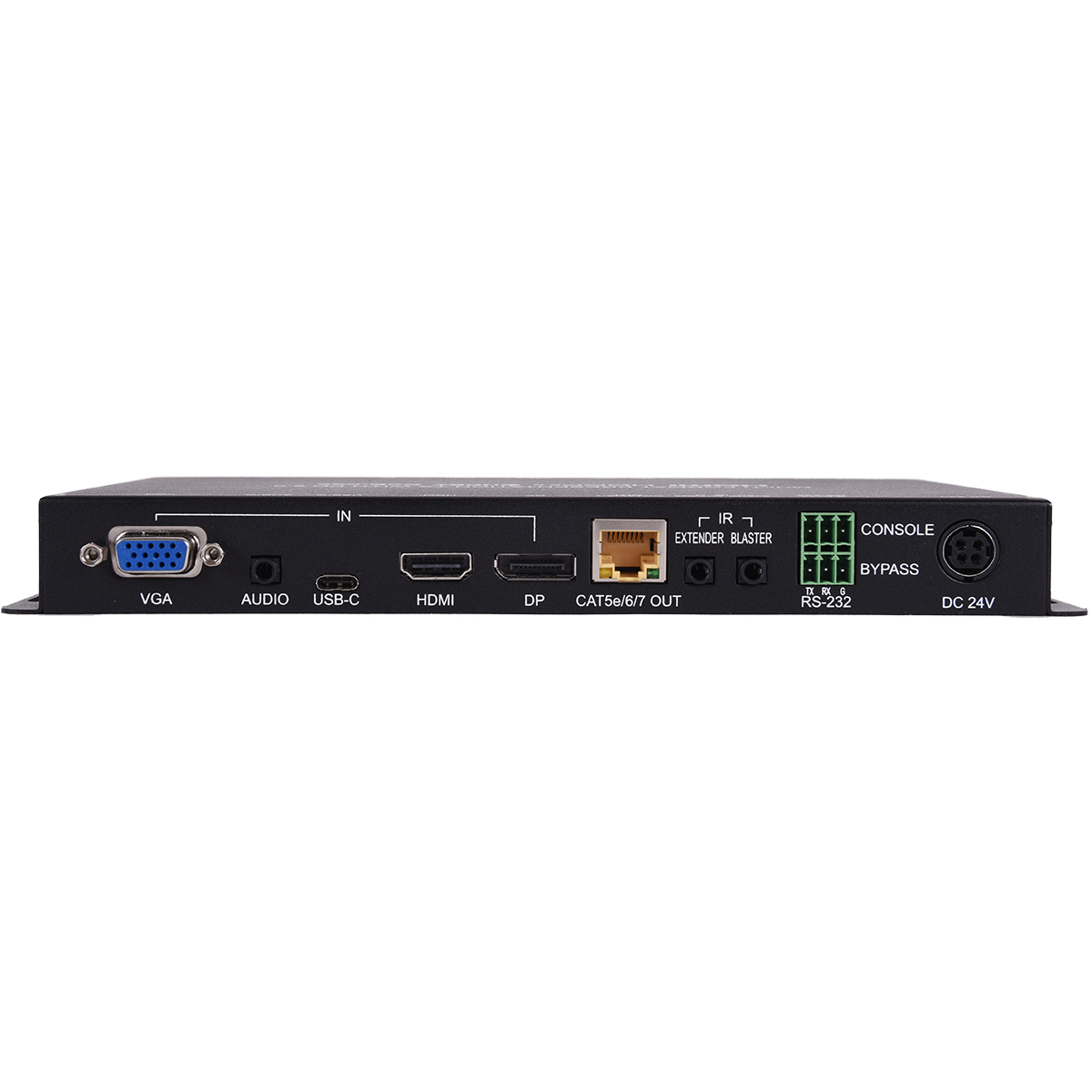

This 4x1 Multi-Format to HDBaseT Switch is a 4K@60Hz (4:4:4) switcher featuring HDMI, DisplayPort, USB Type-C, and VGA with stereo inputs which are automatically converted to the standard HDBaseT format for use with a compatible receiver. The HDMI, DisplayPort and USB-C inputs support resolutions up to 4K@60Hz (4:4:4, 8-bit) and the VGA input supports resolutions up to WUXGA (RB). With the use of the 3.5mm audio input, stereo audio can be embedded with the VGA source as well. Despite HDBaseT’s 10.2Gbps bandwidth limitation, high bandwidth 4K UHD HDMI video sources, up to and including 4K@60Hz (4:4:4, 8-bit), can be supported and will be automatically converted to 1080p when necessary. Signal management features such as automatic switching based on input signal and hot plug detection enable convenient hands-free operation. Additional functionality such as EDID management, HDCP management and basic signal event automation (which can send customized CEC commands to the display automatically) is also available. The USB Type-C input can provide power (up to 60W) to any connected device and the HDBaseT output provides PoH (Power over HDBaseT) to power compatible receivers, providing greater flexibility in installations. Control is provided via a front panel button, WebGUI, Telnet, and RS-232.
