CLUX-21N

CLUX-21N EOL

2x1 HDMI Switcher

Supports 24/30/36-bit color depth display
Supports Bitstream
Auto Signal Enhancement that improve signal quality after long distance transmission
Auto input detection with LED indicators
EDID bypass
Supports HDMI 3D signal
Supports up to 1920 x 1200p(RB)@60Hz

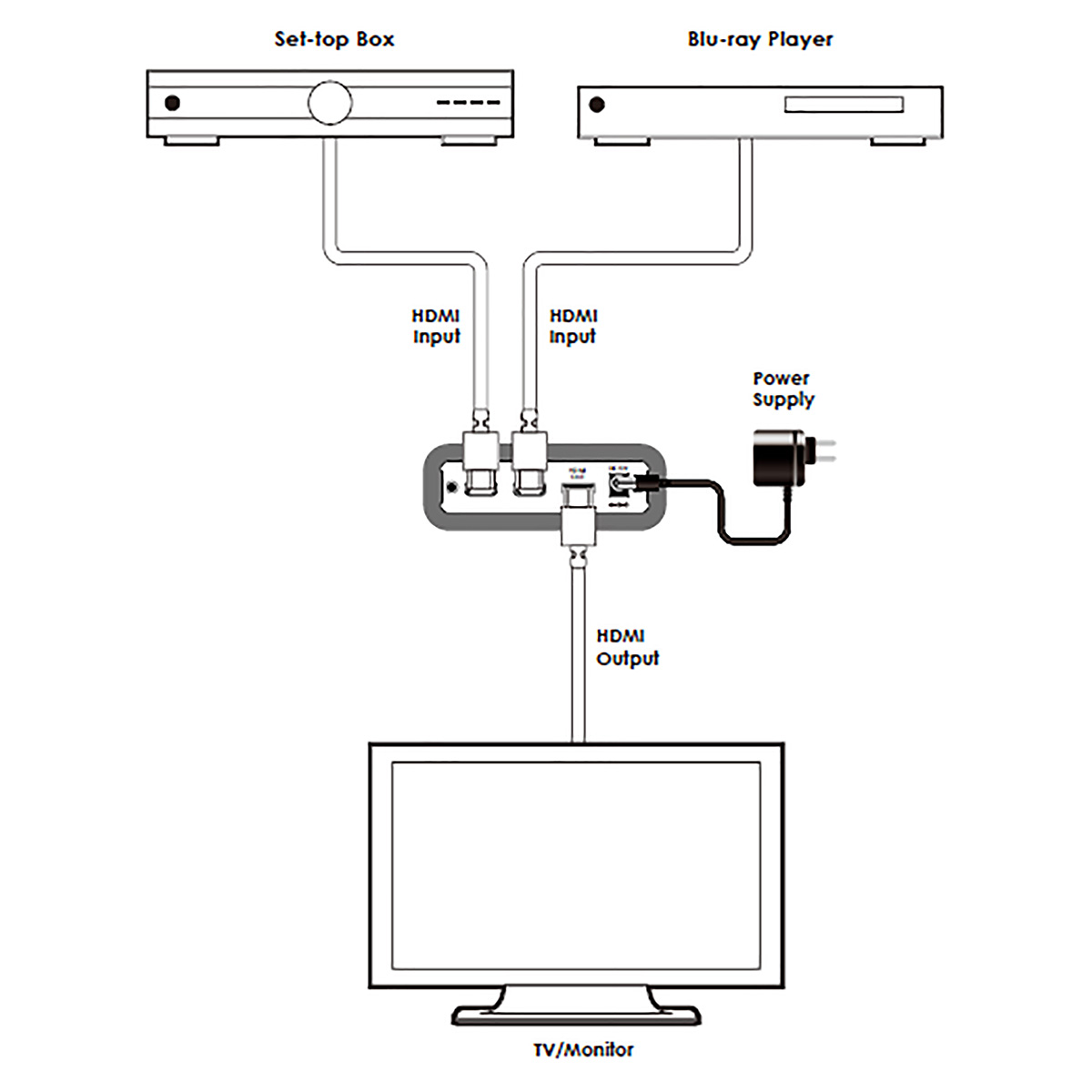

The HDMI 2 to 1 Switcher allows 2 HDMI sources to be connected to the same HDMI TV/Monitor input. It has both automatic and manual input selection and a ‘last memory’ function that remembers the last input selection used. The EDID bypass function ensures the best resolution. The switcher is also DVI compatible with the use of DVI to HDMI adaptor.

Interfaces
Input Port	2HDMI (Type-A)
Output Port	1HDMI (Type-A)

Video
HDMI Compliance	HDMI 1.4 (DVI 1.0)
HDCP Compliance	1.4
Input Signal Types	1080p60 12-bit
Output Signal Type	1080p60 12-bit

Resolutions
Maximum Input	HDMI	1920×1200p@60RB
Maximum Output	HDMI	1920×1200p@60RB

Power
Power Supply	5 V/1 A DC
Power Consumption	3.1W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	101 mm x 25 mm x 92 mm
Weight	196g

Field Firmware Update
Interface	RS232

Ordering Information
Model No.	Product Description
CLUX-21N	2x1 HDMI Switcher

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/02/18	CLUX-21N_Manual	1	all	CLUX-21N_Manual
