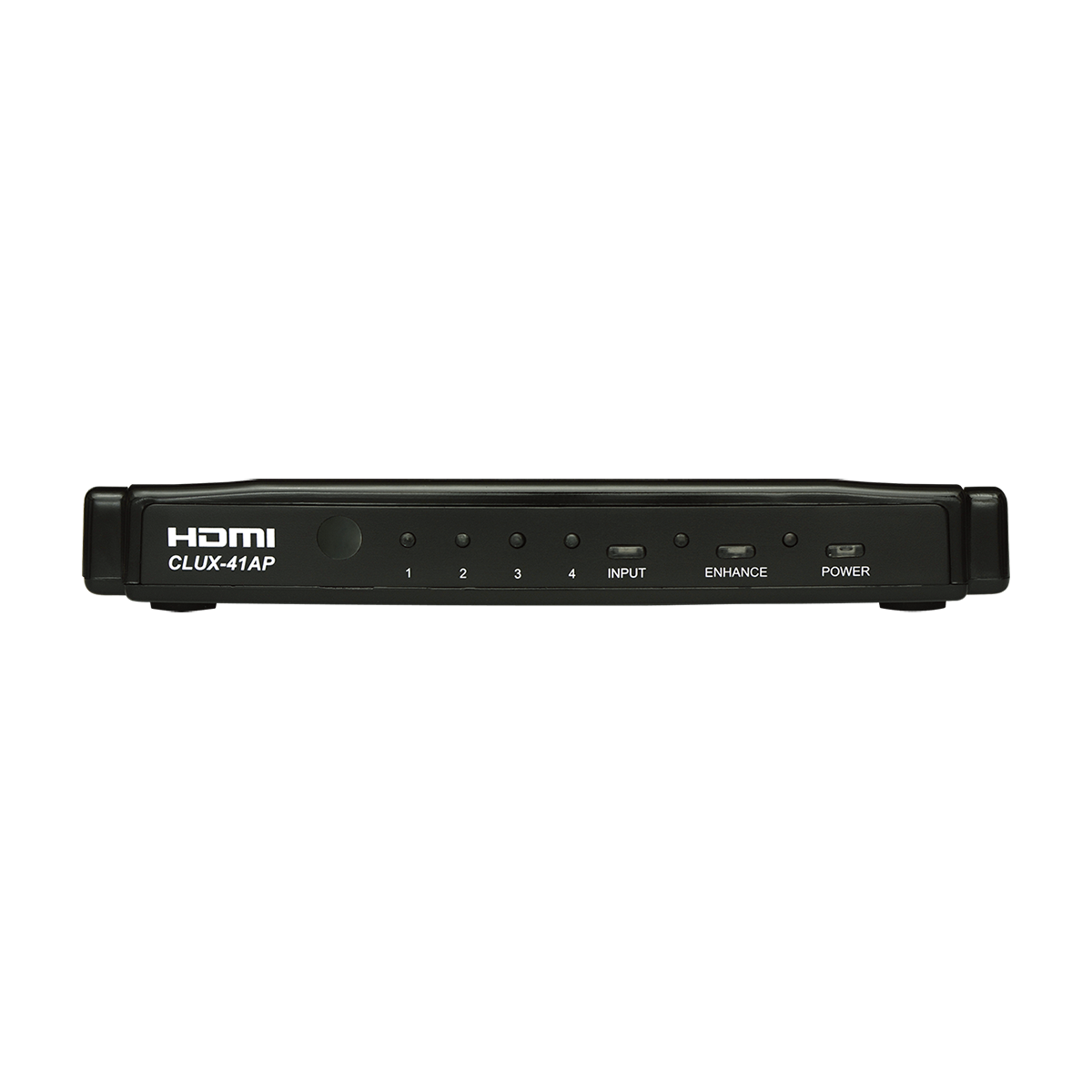

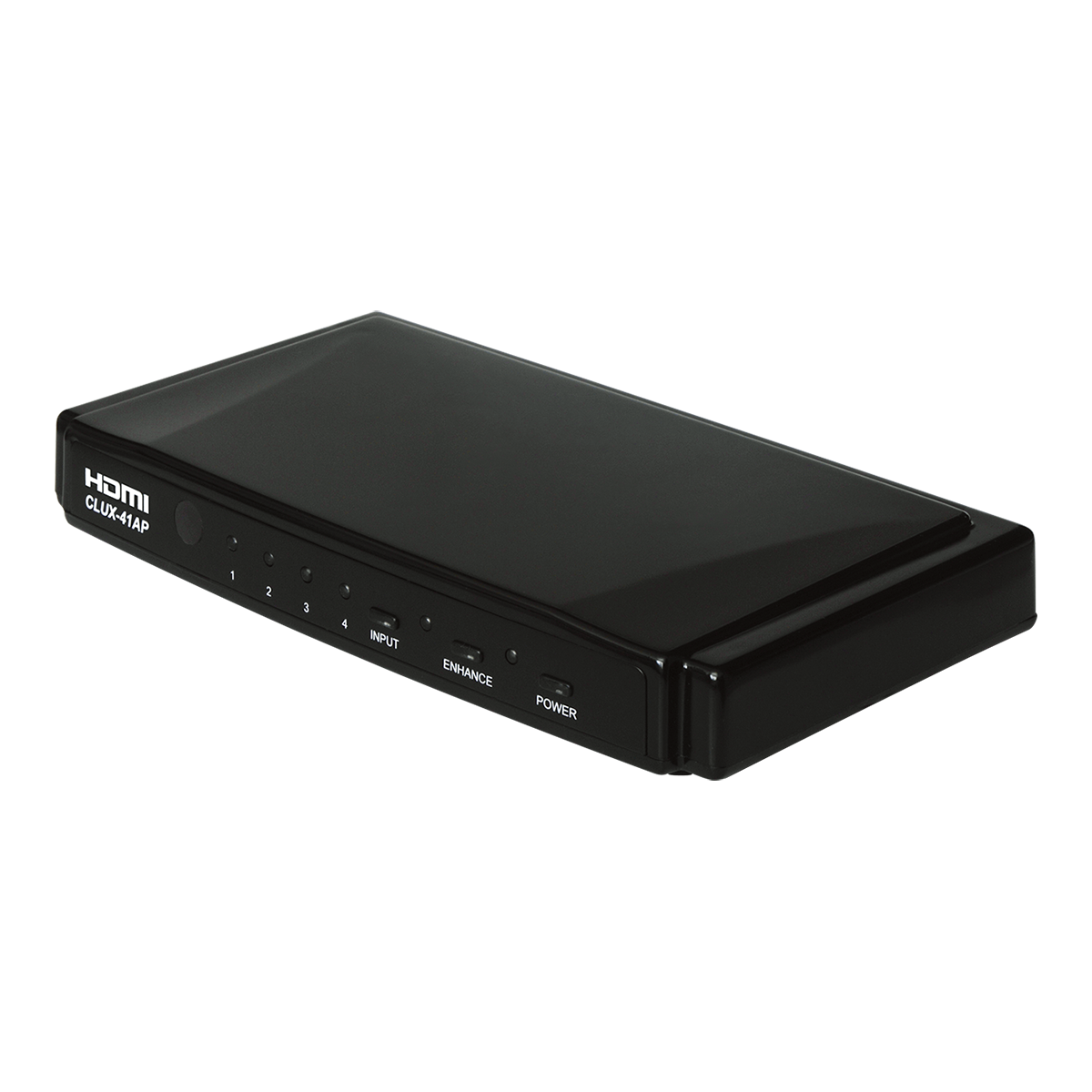

CLUX-41AP

CLUX-41AP EOL

Replacement Model >CPLUS-V4H1H

4x1 HDMI Switcher

Supports 30/36 bit color depth display
Supports Bitstream
Auto Signal Enhancement feature can improve signal quality after long distance transmission
Supports up to 1920 x 1200p(RB)@60Hz
Remote control

The is a high performance HDMI Switcher with remote control. It allows your various HDMI source to share one HDTV display. Simply pressing one button to select your desired HDMI source for display on the HDTV

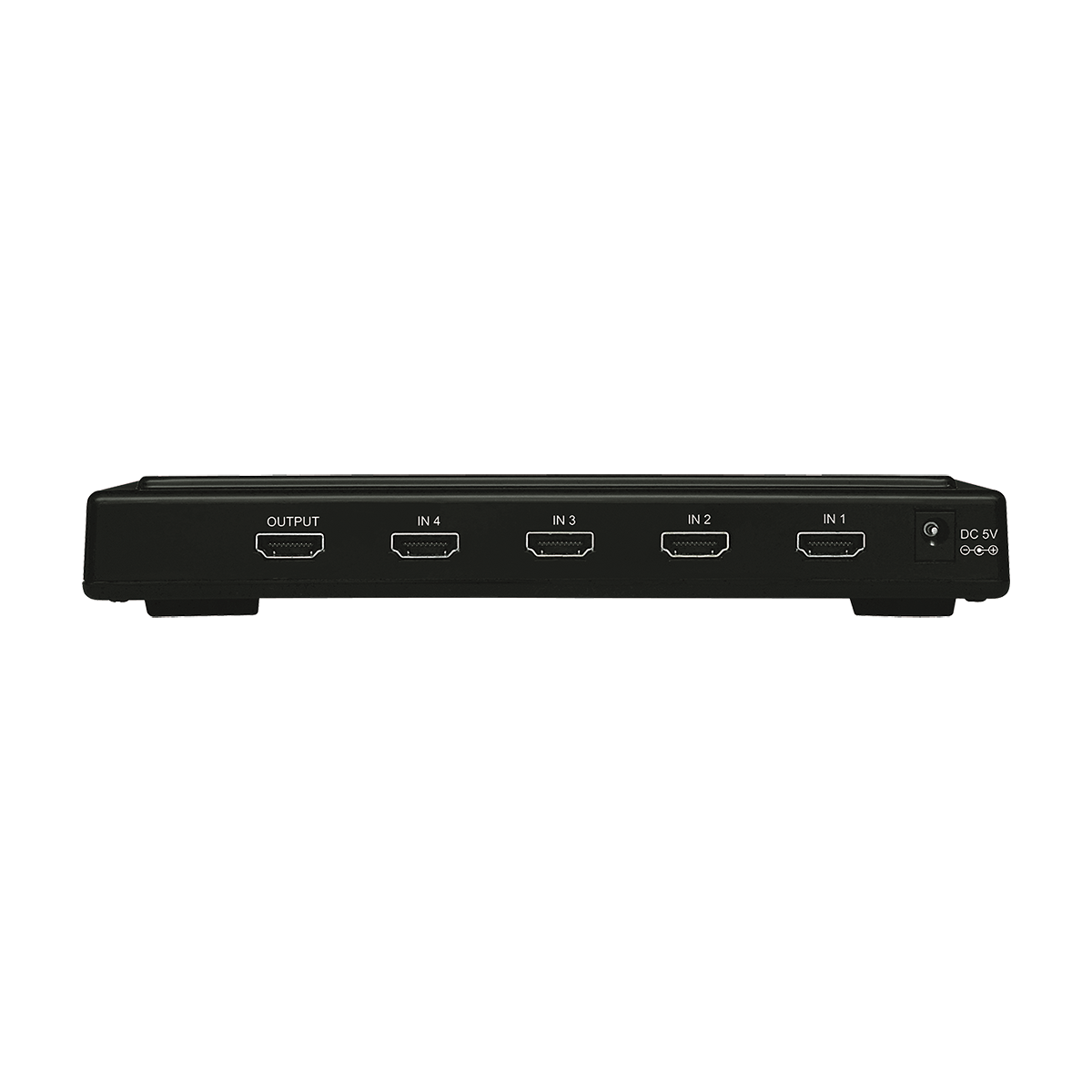

Interfaces
Input Port	4HDMI (Type-A)
Output Port	1HDMI (Type-A)

Video
HDMI Compliance	HDMI 1.4 (DVI 1.0)
HDCP Compliance	1.1
Input Signal Types
Output Signal Type	1080p60 12-bit

Resolutions
Maximum Input	HDMI
Maximum Output	HDMI	1920×1200p@60RB

Power
Power Supply	5 V/1.2A DC
Power Consumption	3.2W

Enclosure
Chassis Material	Aluminum
Chassis Color	Black
Dimensions (W×H×D)	206 mm x 32 mm x 111 mm
Weight	250g

Field Firmware Update
Interface	PCB on board

Ordering Information
Model No.	Product Description
CLUX-41AP	4x1 HDMI Switcher

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/02/18	CLUX-41AP_Manual	1	all	CLUX-41AP_Manual
