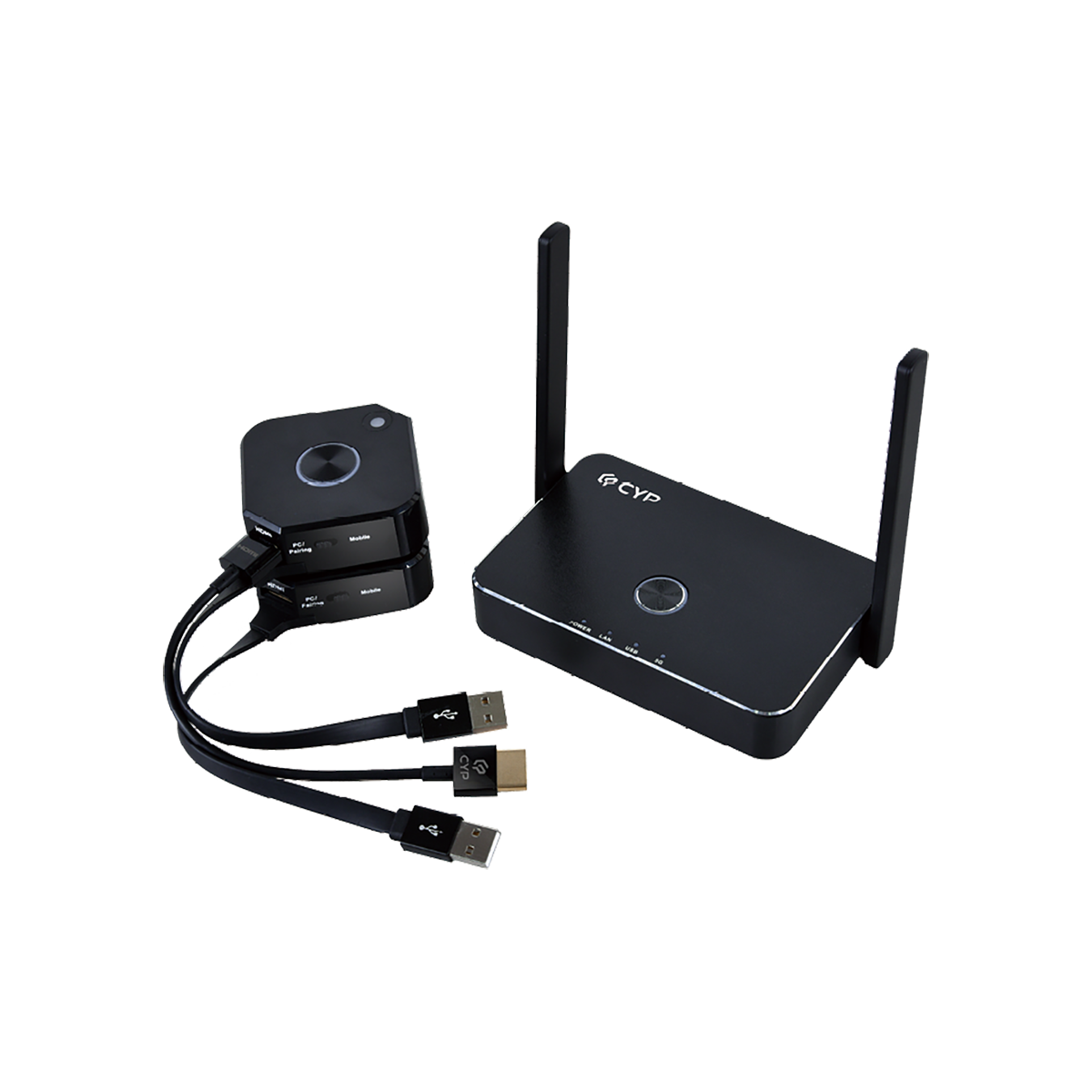

WPS-QPM01

Hyshare Wireless Presentation System (Support up to 4 Spilt Screens)

No App required, just press one key to work with the projector
High compatibility with iOS, Android, Windows, and macOS
Support 1080p input and 4K30 output
802.11ac 5GHz Wi-Fi transmission
Support touchback, Google Cast and AirPlay
Support up to 4 split screens
Allow up to 64 connections simultaneously
Support multi I/O: HDMI and USB

Hyshare is a high-performance Wireless Presentation System. It is the mainstream model of the Hyshare product family. Although it is tiny, it still comes with powerful dual-core SoC and advanced 802.11ac 5GHz Wi-Fi to provide you a smooth wireless display experience. By keeping the USB type A connection, it can support both iOS and Android platforms and mirror over USB without any apps needed. It also supports ‘’Split Screens Display”, “Host Control System”, touch reverse control over USB and USB HID to provide a more friendly and efficient environment for BYOD (Bring Your Own Devices) events you need!

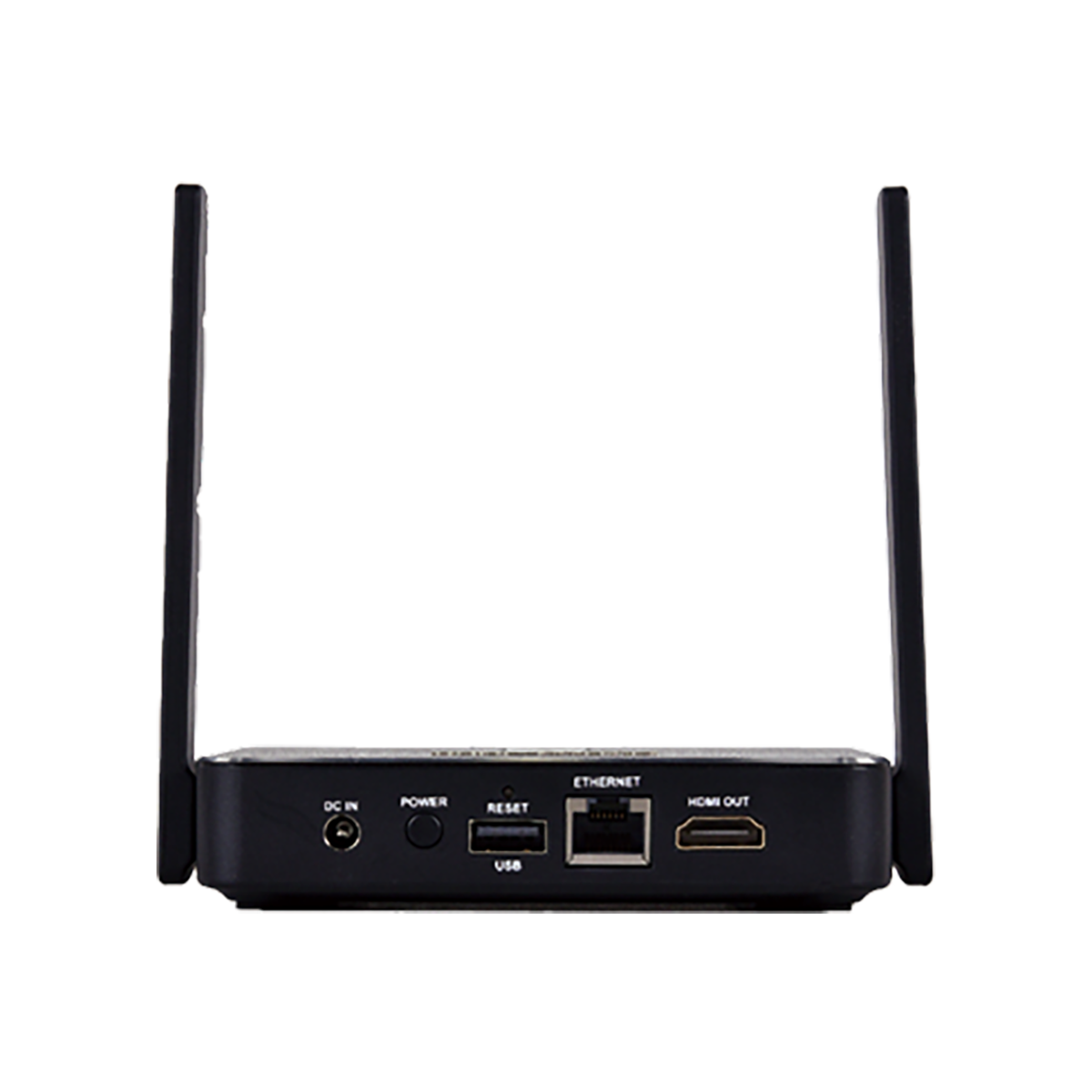

Interfaces WPS-QPM01R (Receiver)
Output Port	1 HDMI
Bi-directional Port	1 LAN (RJ-45), PoE
Control I/O	1 USB (Type-A)

Video
HDMI Compliance	HDMI 1.4
HDCP Compliance	YES
Input Signal Types	802.11ac 5GHz
Output Signal Type	3840x2160p@30Hz
		Resolutions
Maximum Input	HDMI	3840x2160p@30Hz
HDMI	LPCM (2 Channel)

Power
Power Supply	DC-in 5V 2A
Power Consumption	10W max.

Enclosure
Chassis Material	Plastic
Chassis Color	Black
Dimensions (W×H×D)	135 x 127 x 80.2mm with antenna
Weight	159g

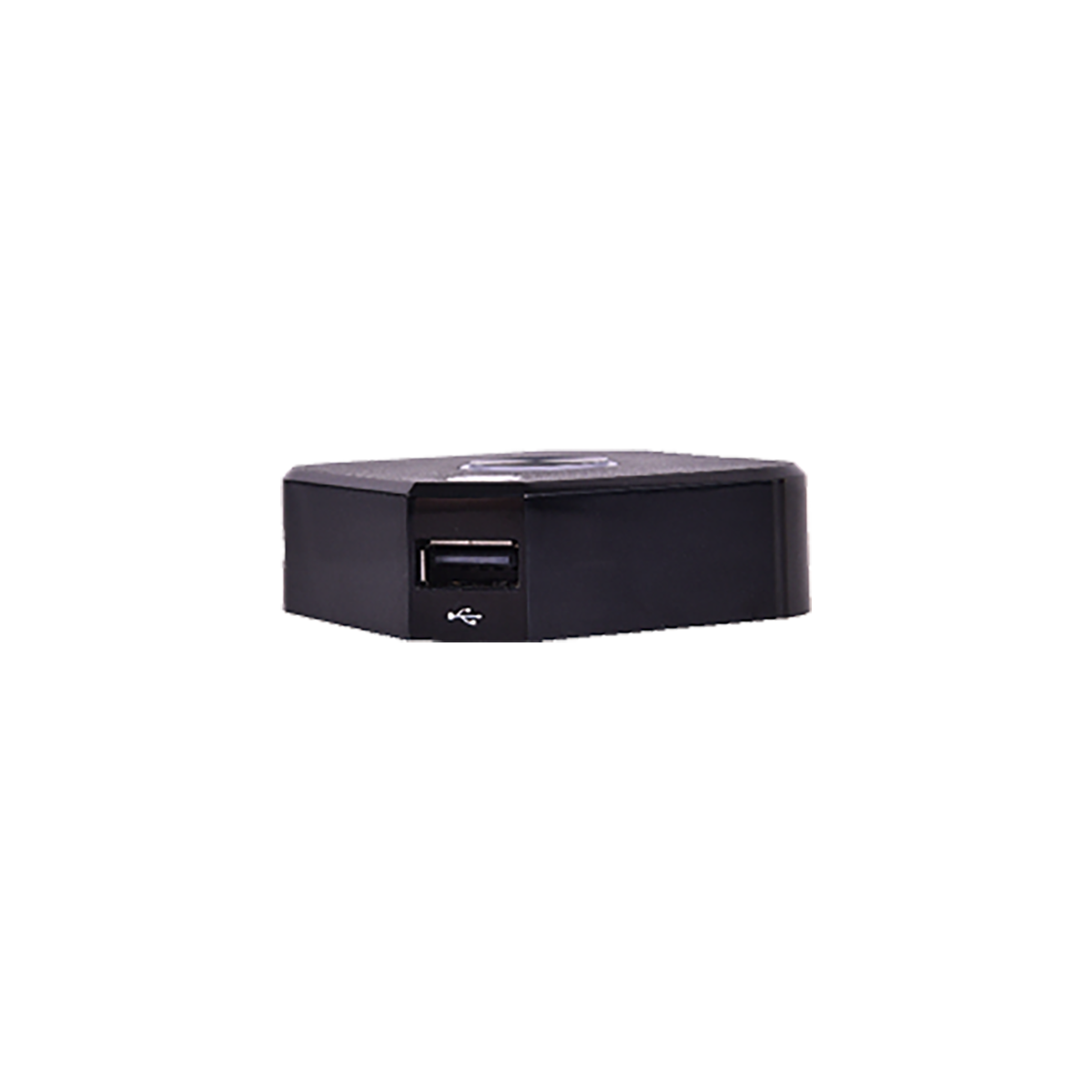

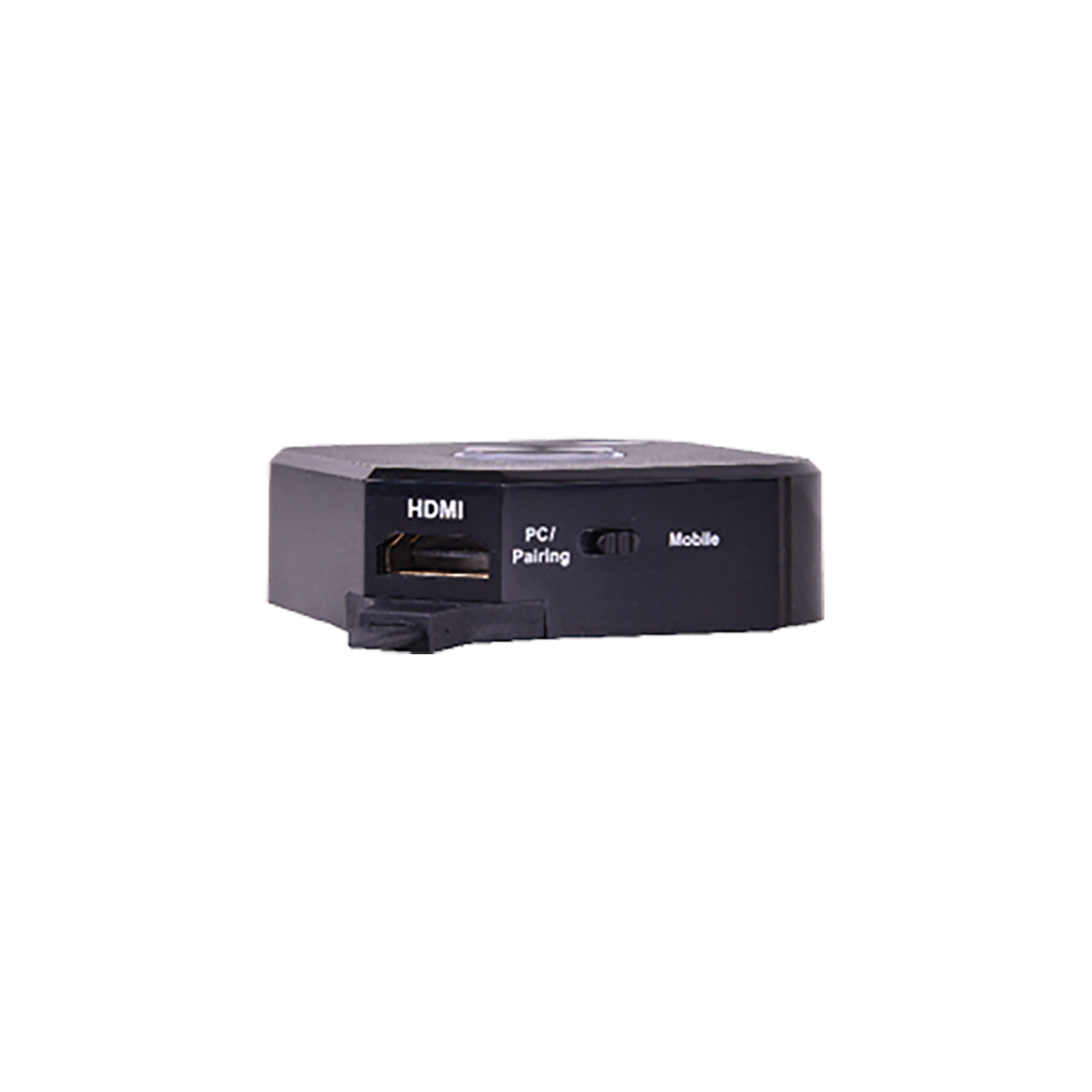

Interfaces WPS-QPM01T (Transmitter)
Input Port	1 HDMI
Control I/O	1 USB (Type-A) (for power and paring)

Video
HDMI Compliance	HDMI 1.4 (DVI 1.0)
HDCP Compliance	YES
Input Signal Types	1920x1080p@60Hz
		Resolutions
Maximum Input	HDMI	1920x1080p@60Hz
HDMI	LPCM (2 Channel)

Power
Power Supply	DC-in 5V 1A
Power Consumption	4.5W

Enclosure
Chassis Material	Plastic
Chassis Color	Black
Dimensions (W×H×D)	61 x 21.8 x 61mm
Weight	62g

ORDERING INFORMATION
Model No.	Product Description
WPS-QPM01	Hyshare Wireless Presentation System (Package includes 1 Receiver and 2 Transmitter)
WPS-QPM01T	The transmitter of Hyshare Wireless Presentation System
WPS-QPM01R	The receiver of Hyshare Wireless Presentation System

Product Support
Upload Date	File Name	Version	OS	Description	Download
2023/08/23	WPS-QPM01_Manual	-	-	WPS-QPM01_Manual
2022/12/29	WPS-QPM01_Quick Start Guide	1	all	WPS-QPM01_Quick Start Guide

PRODUCTS FEATURED

WPS-QPL01

Wireless Presentation System, Entry Level Model (Lite)

WPS-QPL01 (LT01/LR01) is an entry level modle of CYP WPS (Wireless Presentation System) product family. It is a powerful but low cost WiFi Presentation System product. It contains one transmitter(LT01) and one receiver (LR01). The plug & mirror capability makes it easier to use without learning curve. LT01 comes with high speed 802.11ac WiFi module and external antenna to bring you the great connection and smooth streaming. Through our advanced Receiver LR01, you can even use your mobile phone to cast without efforts, this will be the great entry-level product for WPS application.

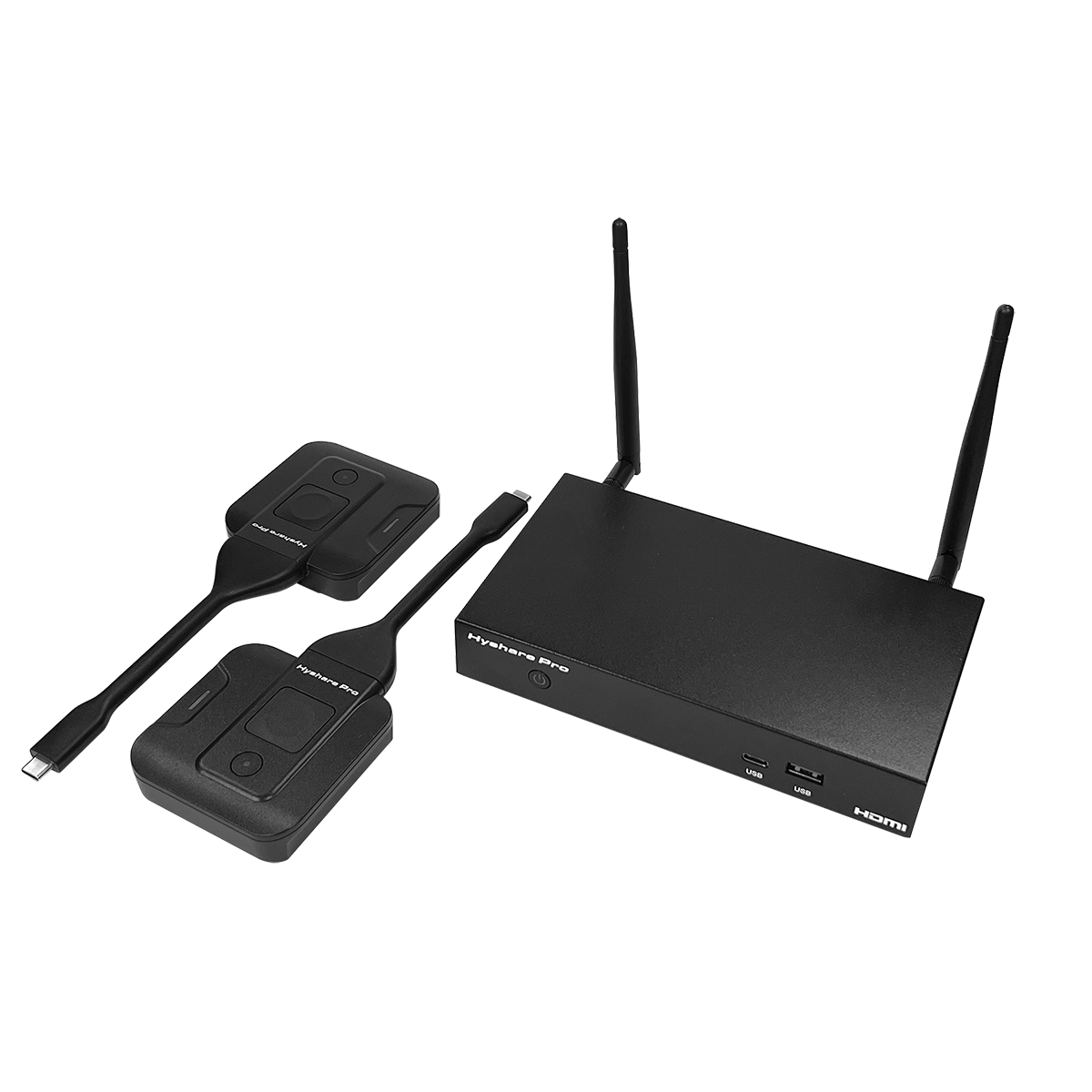

WPS-HP201KIT
