Project Highlights

In this project, HyLinx AV over IP solution was deployed, with its multi-window processing capability specifically requested by the client to be projected on an LED Video Wall. Even when multiple windows are displayed simultaneously, the system retains full high-definition quality for every single window, ensuring clear and vibrant visuals across all screens.

Project Requirements

  • Flexible Multi-Source Management:The system must support multiple input sources (PCs, PTZ camera, wireless presentation, etc.) and allow switching/routing to different displays without signal loss.

  • Unified Collaboration Experience:Users must be able to easily share content (wired or wireless) in meetings and demonstrations, with minimal setup time.

  • Scalability & Future-Proofing:The AV distribution must be IP-based, allowing easy system expansion (adding more transmitters/receivers) without major rewiring.

  • Centralized & Simplified Control:The solution must integrate into a single control flow (WebGUI or control system) so operators can switch sources/displays quickly during live sessions.

CYP’s Solution Advantage

  • HyLinx AV over IP Flexibility:With AVIP-P5104T/R-B1C, SENICT can easily route any source to any display, delivering 4K60 video with low latency across the IP network.

  • Wireless + Wired Collaboration:The system integrates both PTZ and wireless presentation devices, enabling hybrid meeting scenarios (in-room + remote) with no extra converters.

  • Multi-Display Compatibility:CYP’s solution supports simultaneous output to LED processor, projector, recorder, VC PC, and IFPD, ensuring consistent high-quality display across different technologies.

  • Scalable, Future-Proof Design:Built on an IP backbone, the system allows SENICT to expand transmitters/receivers or reconfigure routing easily, protecting long-term investment.

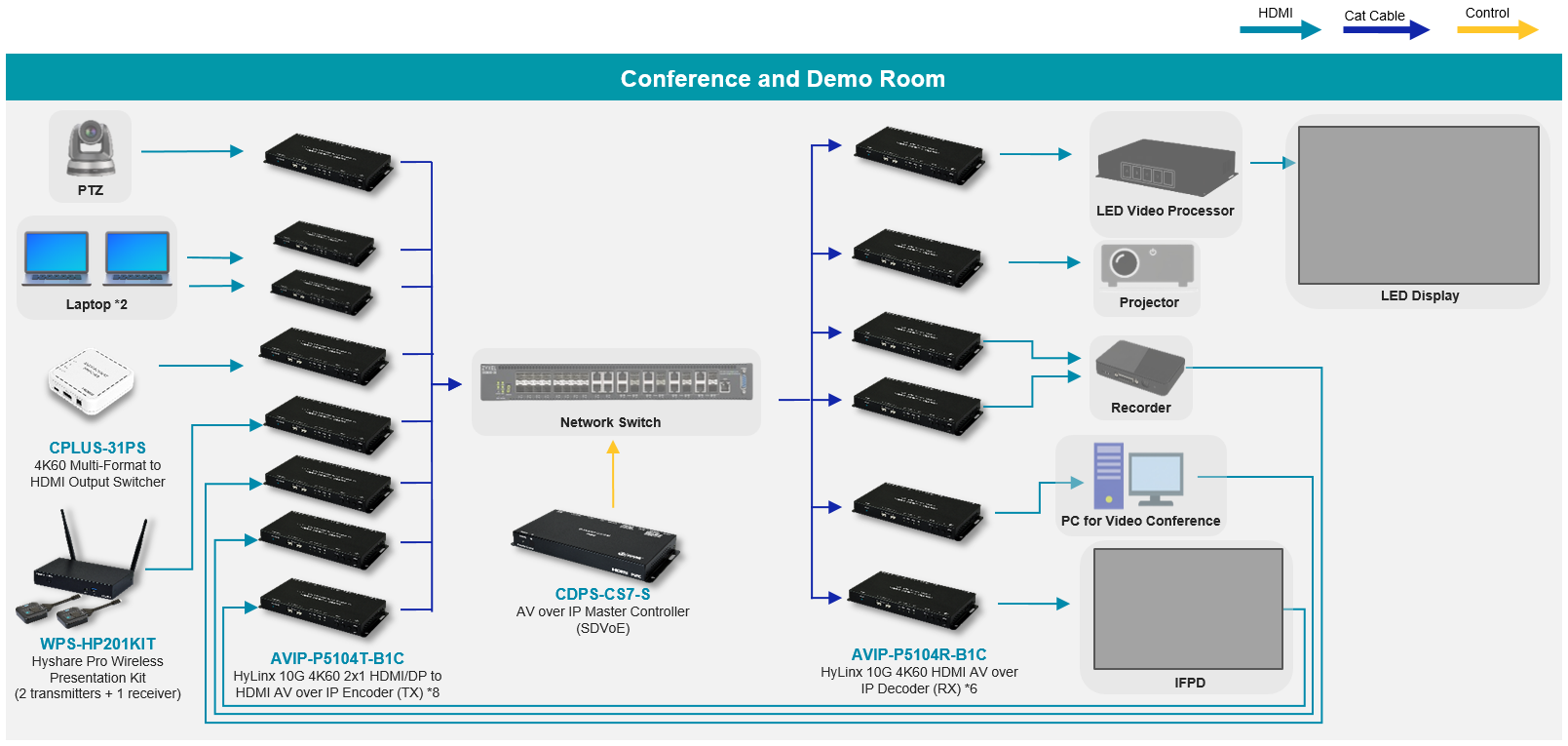

Connection Diagram

PRODUCTS FEATURED
AVIP-P5104T-B1C

UHD+ 2x1 HDMI/DP to HDMI AV over IP Transmitter

This Transmitter is designed for high-quality, IP routable, AV extension with minimum latency. By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K audio/video streams and data. When combined with the optional IP Master Controller or control software, the functionality of the Transmitter expands exponentially. Multiple Transmitters and Receivers may be combined with one or more 10-Gigabit Ethernet switches and the units can be used together to form a distributed video matrix, a multiviewer system, or a video wall system adding to their flexibility in large event installations. The very own exclusive development technology of preview function has remedy the lack of this AV over IP solution and provide the way to fulfill the needs of long distance transmission.

AVIP-P5104R-B1C

UHD+ HDMI AV over IP Receiver

This Receiver is designed for high-quality, IP routable, AV extension with minimum latency. By using a sophisticated ultra-light compression scheme (lossless for most content) it’s a great solution for extending 4K audio/video streams and data. The use of high quality 10 Gigabit Ethernet ports and Cat.6A or better cable allows for point-to-point transmission of the video signal up to 100m. Multiple control and data signals may also be transmitted along with the audio and video, including IR, RS-232, USB 2.0, and Ethernet. When combined with the optional IP Master Controller or control software, the functionality of the Receiver expands exponentially. Multiple Transmitters and Receivers may be combined with one or more 10-Gigabit Ethernet switches and the units can be used together to form a distributed video matrix, a multiviewer system, or a video wall system adding to their flexibility in large event installations.

CDPS-CS7-S

AV over IP Master Controller

This controller is a powerful and flexible solution for controlling multiple VoIP (Video over IP) extenders within same network. The user only needs to install this unit into the same local network as the extenders (Transmitter and Receiver) to easily define and configure channel routing selections using the WebGUI. It is also possible to define and switch routes using customized groups or presets allowing for easy control over multiple video zones. Without the use of this controller, each individual Transmitter and Receiver pair could only be configured in a basic point-to-point operational mode.

WPS-HP201KIT

Hyshare Pro Wireless Presentation Kit (2 transmitters + 1 receivers)

This is a product bundle that includes two Hyshare Pro Pod wireless transmitters and one Hyshare Pro wireless presentation system. Hyshare Pro Pod is an USB-C transmitter to Hyshare Pro station. It can transmit video and audio data over wireless up to 10 meters at 1080p. It can also use to do video conference in Teams, Zoom and Google Meet. Enables users to join a meeting instantly. Plug in a Pod and everyone can share content wirelessly without installing any App.

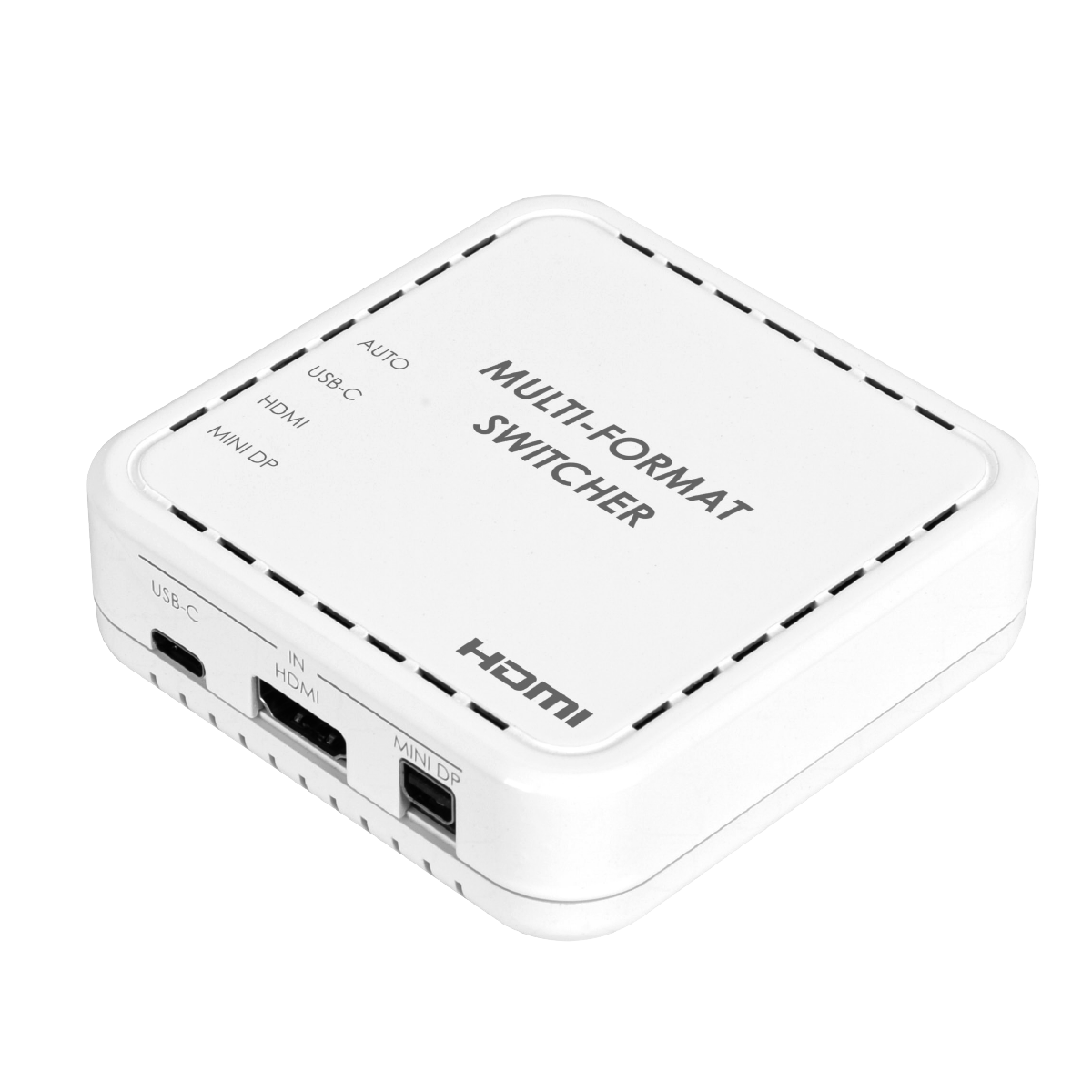

CPLUS-31PS

UHD+ Multi-Format to HDMI Output Switcher

This 3x1 Multi-Format to HDMI Switch is a 4K@60Hz (4:4:4) switcher featuring USB Type-C, HDMI and Mini DisplayPort inputs which are automatically converted to a standard HDMI format for use with projectors or displays. This unit provides easy switching functionality with both a manual input selection button and an optional auto-sensing “last memory” feature which can automatically switch to a newly connected source or revert to the previous source, if the current one becomes disconnected, with no user intervention necessary. This switcher is an ideal addition to any conference room, lecture hall or home entertainment setup with its portable and easy to install design. This unit is controllable via a single front panel button.

CSR-G6400

6U Rack Chassis

This flexible rack-mounting system offers the ability to efficiently house up to 15 professional AV products and is available as a 6U rack chassis. This storage unit is suitable for customers who require the efficient integration and mounting of multiple units into a relatively small rack space along with optional cooling fans and intelligent power control. Each rack chassis is a standard 19 inches wide. The system allows for the optional inclusion of up to 2 power supply units, multiple cooling fan units, cable management frames, and a network switch tray.
