Installation Sites

Large Conference Room (up to 100 attendee) in taiwan

Customer Requirement

  • Source: Laptop and IPC with PTZ camera & image processing
  • Sink Device: 3 of Sony 4K display (model no: Pro BRAVIA)、1 of Projector
  • Pro AV Device:1 of matrix (model no:CPLUS-442CVEA)、1 of transmitter (model no:CH-2527TXPL x 1) 、5 of receiver (model no:CH-1527RXPL x 4 &1 of CH-2527RXPL) 、1 of Audio over IP receiver (model no: AIP-D1401)

  • Integrate up to 4 sink device and enabling free routing and extending ultra HD video up to 100m

  • Support audio extract and further integrate with mixer

  • To

    Project Highlights

    In this project, HyLinx AV over IP solution was deployed, with its multi-window processing capability specifically requested by the client to be projected on an LED Video Wall. Even when multiple windows are displayed simultaneously, the system retains full high-definition quality for every single window, ensuring clear and vibrant visuals across all screens.

    Project Requirements

    • Flexible Multi-Source Management:The system must support multiple input sources (PCs, PTZ camera, wireless presentation, etc.) and allow switching/routing to different displays without signal loss.

    • Unified Collaboration Experience:Users must be able to easily share content (wired or wireless) in meetings and demonstrations, with minimal setup time.

    • Scalability & Future-Proofing:The AV distribution must be IP-based, allowing easy system expansion (adding more transmitters/receivers) without major rewiring.

    • Centralized & Simplified Control:The solution must integrate into a single control flow (WebGUI or control system) so operators can switch sources/displays quickly during live sessions.

    CYP’s Solution Advantage

    • HyLinx AV over IP Flexibility:With AVIP-P5104T/R-B1C, SENICT can easily route any source to any display, delivering 4K60 video with low latency across the IP network.

    • Wireless + Wired Collaboration:The system integrates both PTZ and wireless presentation devices, enabling hybrid meeting scenarios (in-room + remote) with no extra converters.

    • Multi-Display Compatibility:CYP’s solution supports simultaneous output to LED processor, projector, recorder, VC PC, and IFPD, ensuring consistent high-quality display across different technologies.

    • Scalable, Future-Proof Design:Built on an IP backbone, the system allows SENICT to expand transmitters/receivers or reconfigure routing easily, protecting long-term investment.

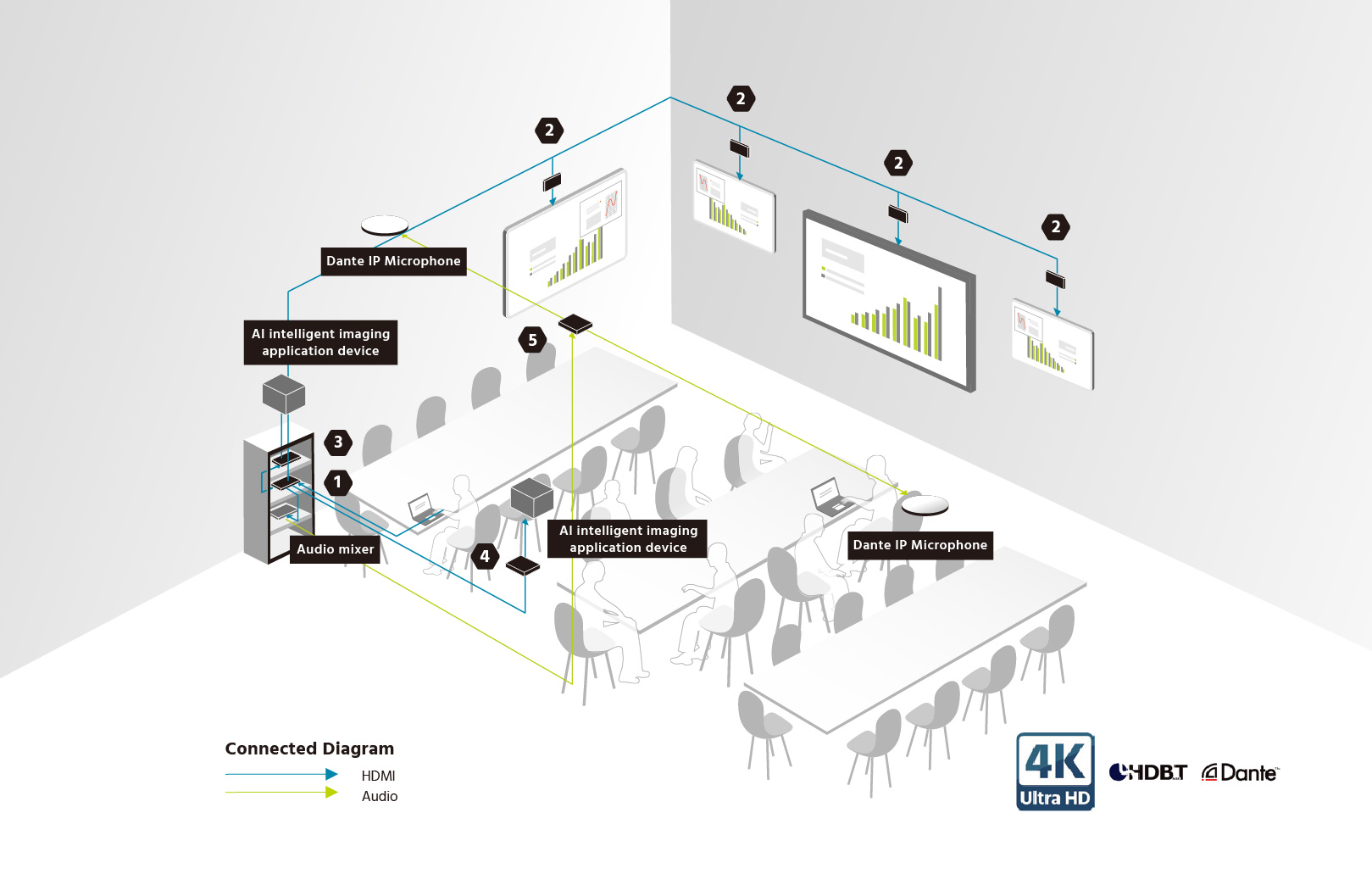

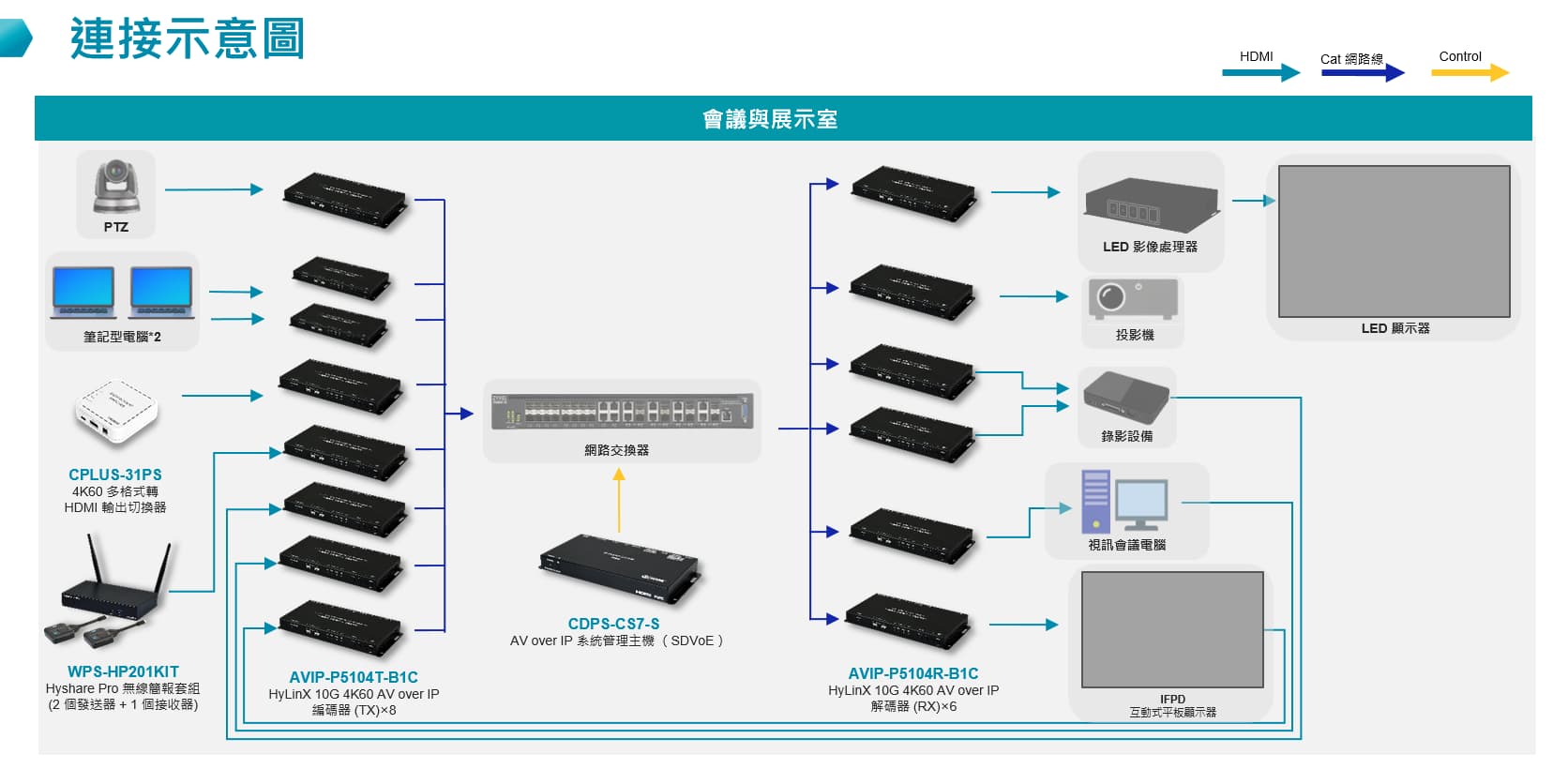

    Connection Diagram

PRODUCTS FEATURED

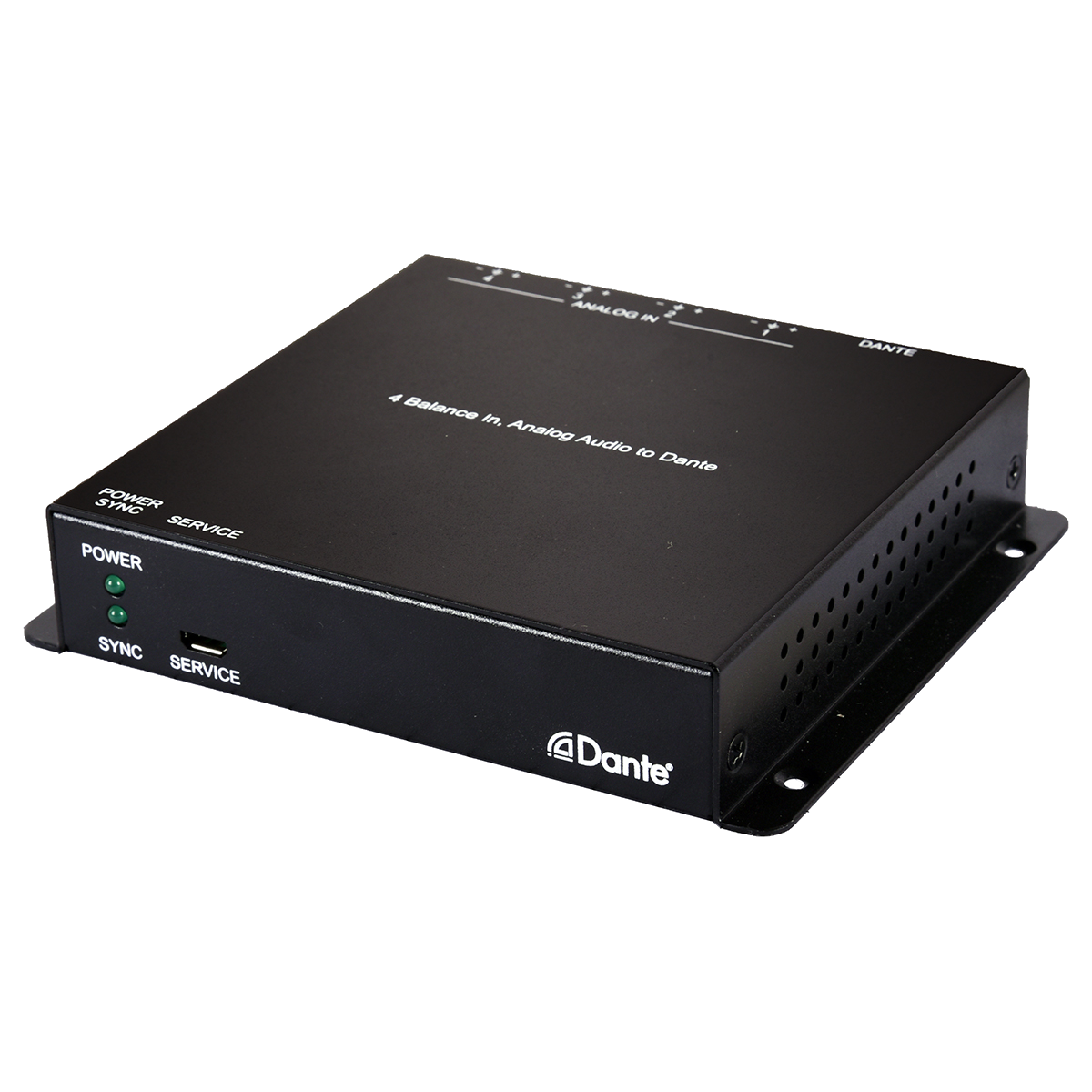

AIP-D4101 & AIP-D1401

AIP-D4101- 4 Balanced In, Analog Audio to Dante; AIP-D1401- 4 Balanced Out, Dante to Analog Audio

This transmitter and receiver pair are with Dante Technology and supports AES67. Because with Dante technology, it is obviously easier and more flexible than physically wiring. Dante does away with bundles of heavy expensive analog or multi-cores cables, replacing it with low cost easy available Cat. 5e or Cat. 6 cables. High quality audio is another benefit of Dante. Because it is a digital transmission method, you do not need to worry about interference and crosstalk, and worry about signal attenuation caused by constant distance transmission. These units provide flexibility for installation. Equipped with four audio inputs/outputs and one Dante port, they could transfer audio and route them easily with 3rd party units via the Dante network. On the ADC, adjustable phantom power (5v or 48v) for each port supports for microphones, and auxiliaries.

CH-1527RXPL

UHD HDMI over HDBaseT Receiver with PoH (4K@60 420 up to 35M)

The HDMI over single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 60 meter. It has the added benefit of control through the builtin RS-232 and IR ports. The Receiver (PD) can be powered by the PoE 48V function of the Transmitter (PSE), allowing for greater flexibility in installations.

CH-2527TXPL

UHD HDMI over HDBaseT Transmitter with PoH (4K@60 420 up to 35M)

This transmitter and receiver set is a great solution for extending uncompressed HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 70 meters. Multiple data and control interfaces are provided, including IR and RS-232 connections. This extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. The Transmitter (PD) is powered by 48V PoH (Power over HDBaseT) provided by the Receiver (PSE), allowing for greater flexibility within different installation scenarios.

CH-2527RXPL

UHD HDMI over HDBaseT Receiver with PoH (4K@60 420 up to 35M)

This transmitter and receiver set is a great solution for extending uncompressed HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 70 meters. Multiple data and control interfaces are provided, including IR and RS-232 connections. This extender set complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. The Transmitter (PD) is powered by 48V PoH (Power over HDBaseT) provided by the Receiver (PSE), allowing for greater flexibility within different installation scenarios.
