Customer Background

A renowned cruise line operating primarily in the Asia-Pacific region. The cruise line offers a wide variety of dining, live performance, and entertainment options, complemented by attentive service to provide guests with a comfortable and memorable travel experience.

Project Requirements and Challenges

  • Integration and real-time distribution of multiple sources - Integrate audiovisual sources from different areas throughout the cruise ship and enable fast switching and distribution to displays at various venues based on event requirements.
  • Reliable AV transmission - Ensure stable audiovisual transmission to support the smooth operation of banquets, performances, and other onboard events.
  • Easy management and operation - Enable centralized management of AV equipment from the control room while providing operators with simple and intuitive device control and source switching.

Solution

To address the customer’s requirements, CYP provided a flexible AV over IP solution that integrates multiple source types, supports real-time AV switching, and offers the scalability needed for future system expansion.

Solution Advantages

  • Real-time source switching - Event staff can remotely switch audiovisual sources through the controller’s web interface, enabling a real time response to the display requirements of different events and venues.
  • Stable 1G AV over IP architecture - Transmits audiovisual and control signals over an IP-based architecture and supports 4K30 high-resolution AV distribution, ensuring reliable operation during long events in banquet halls and other venues.
  • Centralized and simplified management - A single controller manages all encoders and decoders, including source switching and device updates. All devices can be centrally installed in equipment racks for easier management and maintenance.
  • Flexible system scalability - Compared with a traditional matrix system, the AV over IP solution allows additional sources and displays to be added as requirements evolve, without replacing the entire system.

More Applications

  • Hotel Banquet Halls
  • Churches and Religious Venues
  • Event Venues

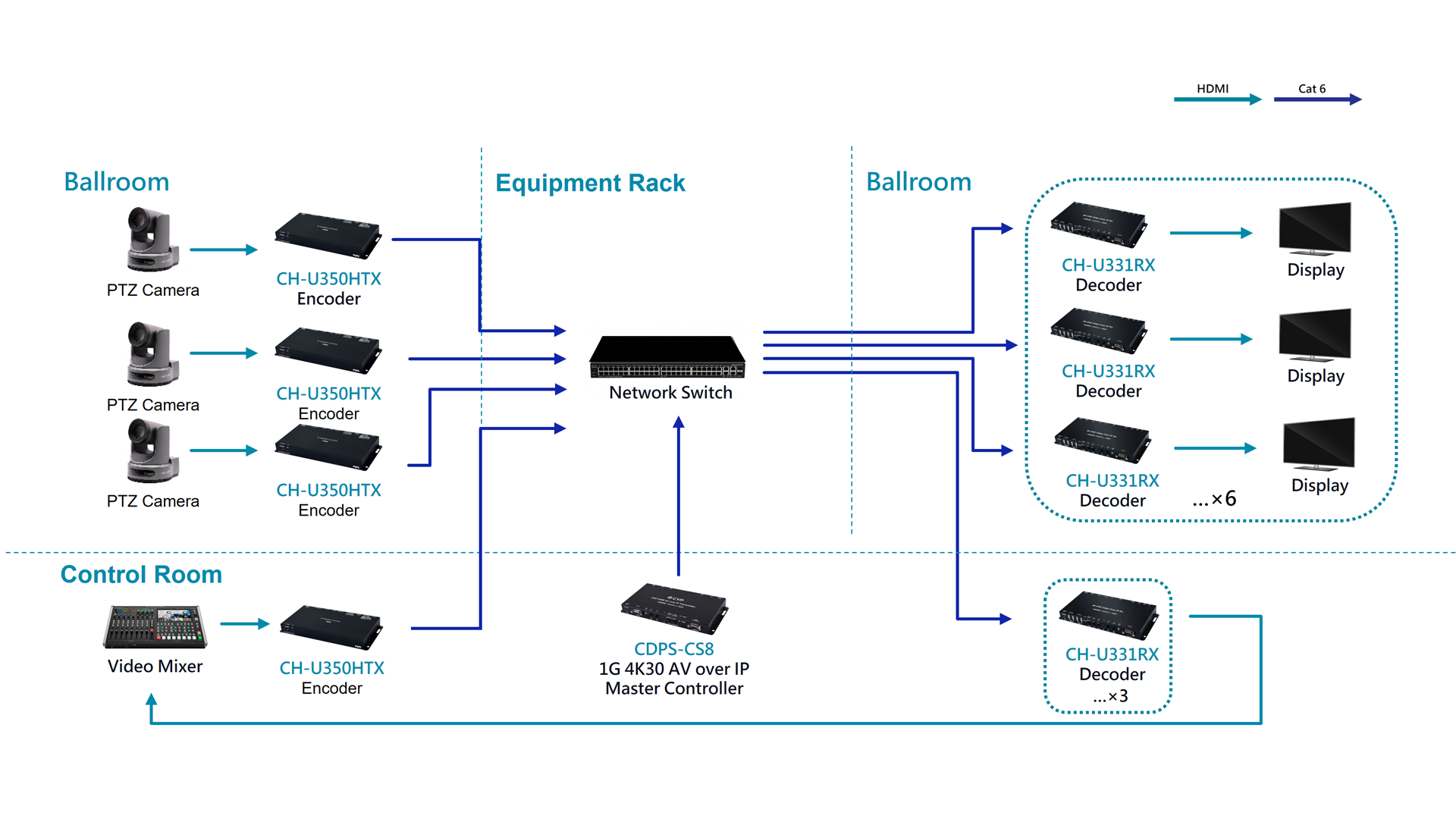

Connection Diagram
PRODUCTS FEATURED
CH-U350HTX

HDMI over IP Transmitter with USB/KVM Extension

This unit is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI signal along with KVM using the TCP/ IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Definition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, It is also possible to have the extension system’s Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network. It is useful for user to create large multi-display video walls with amazing simplicity

CDPS-CS8

4K30 over 1G IP Master Control

This controller is a powerful and flexible solution for controlling multiple Video over IP (VoIP) extenders within same network. The user only needs to install this unit into the same local network as the extenders (Transmitter and Receiver) to easily define and configure channel routing selections, for both unicast and multicast scenarios, using the WebGUI. It is also possible to define and switch routes using customized groups or presets allowing for easy control over multiple video zones. Without the use of this centralized unit, each individual Transmitter and Receiver in the system would need to be controlled and configured directly through their own individual WebGUIs. Additionally, this unit supports controlling the matrix and video wall modes of connected VoIP units. The settings of all connected Transmitter/Receiver units, including IP address, netmask and extender status are clearly displayed within the WebGUI. The WebGUI is easily accessed via a web browser over a normal network connection or by directly connecting an HDMI display and USB keyboard & mouse to the unit. A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a podium or within a table in a conference room or classroom. This interface can allow the user to activate stored presets with the simple press of a button. Standard control is available via WebGUI (remote or local), RS-232, Telnet, IR Remote and triggers.

CH-U331RX

UHD HDMI/VGA over IP Receiver with KVM Extension

The CH-U331RX, one part of a 4K UHD Multi-Function Extension system, is able to extend HDMI or VGA signals along with KVM through Cat.5e/6/7 network cable and transmit UHD video signals, audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay.
