Installation Sites

National Sports Training Center

Customer Requirement

  • Source: 10 of PC、2 of set top box 、4 of camera and 8 units touch panel(75”) , total 24 units
    •
  • Sink Device: 3x3 video wall (each display is 55”) 、8 of touch panel (each one is 75”)
    •
  • Pro AV Device:

                         AV over IP transmitter（model: AVIP-P5101TR-B1C) x 35 set

                         Switcher x 4 units

  • Displaying PC、camera and set top box video on video wall and touch panel in real time
  • Support seamless switching video of 3840x2160@60
  • Integrated high quality audio of LPCM 7.1
  • Intuitive UI and support tablet for ease operation and integration

CYP Solution

Using a 10G AV over IP system to transmit high-resolution audio and video with zero latency to the command center, allowing seamless switching between different signal sources. Multiple signal sources can be combined to create a video wall. Integration of touch display screens allows users to make notes or annotations on the screen, making the overall usage intuitive and improving efficiency.

Product Advantage

  • Seamless switching video of 3840*2160@60 and zero latency transmission
  • AV over IP configuration which is expandable for additional source and sink device in the future
  • To centralize management and preview by controller and quick set up
  • Support video wall with flexibility layout
  • To achieve LPCM 7.1 audio integration
  • Support touch panel for user intuitive operation by tablet
  • Compatible with third party control system to empower intelligence for venue

More Application

Smart Situation Room, Large Information Center

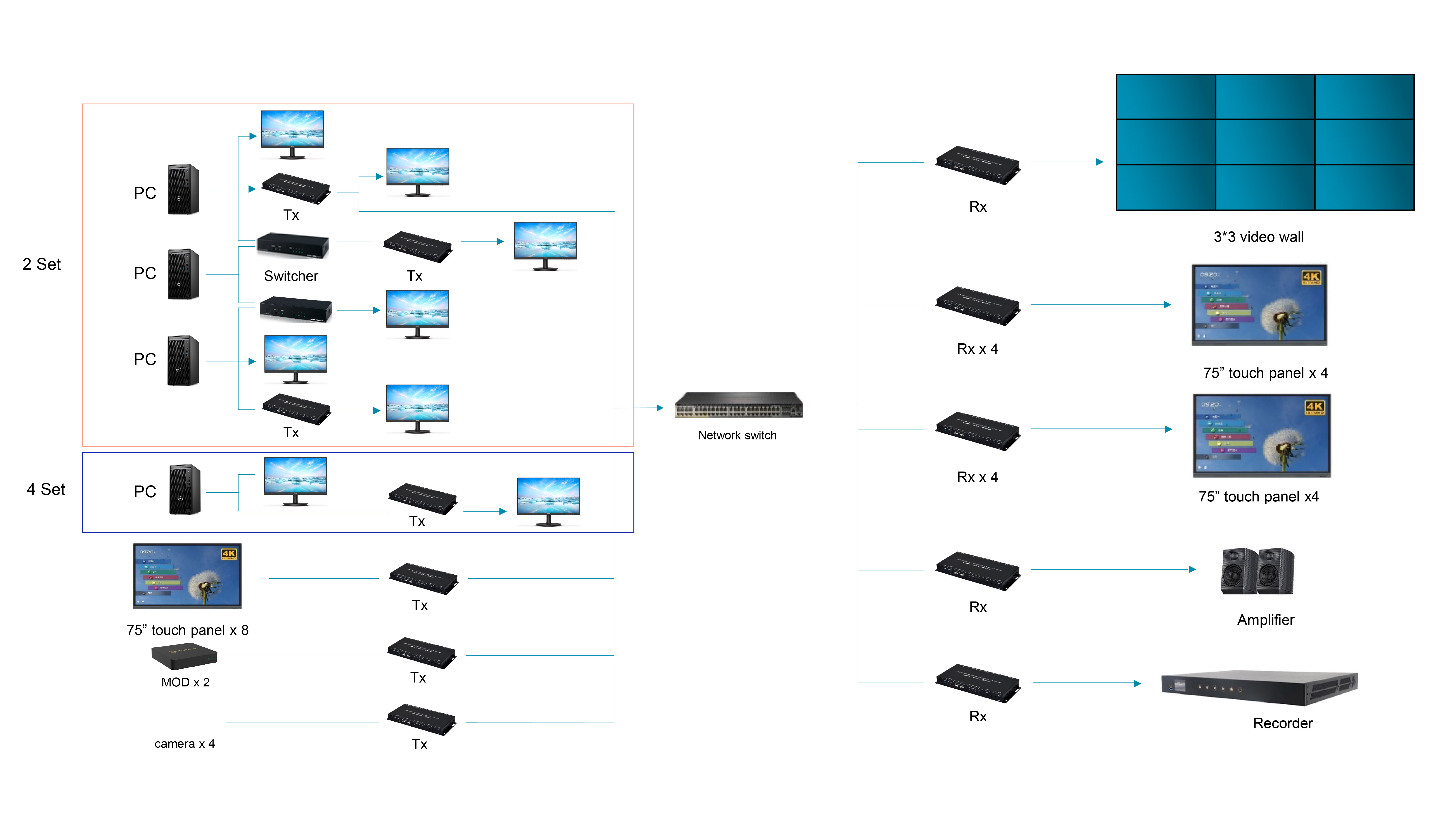

Connection Diagram
PRODUCTS FEATURED

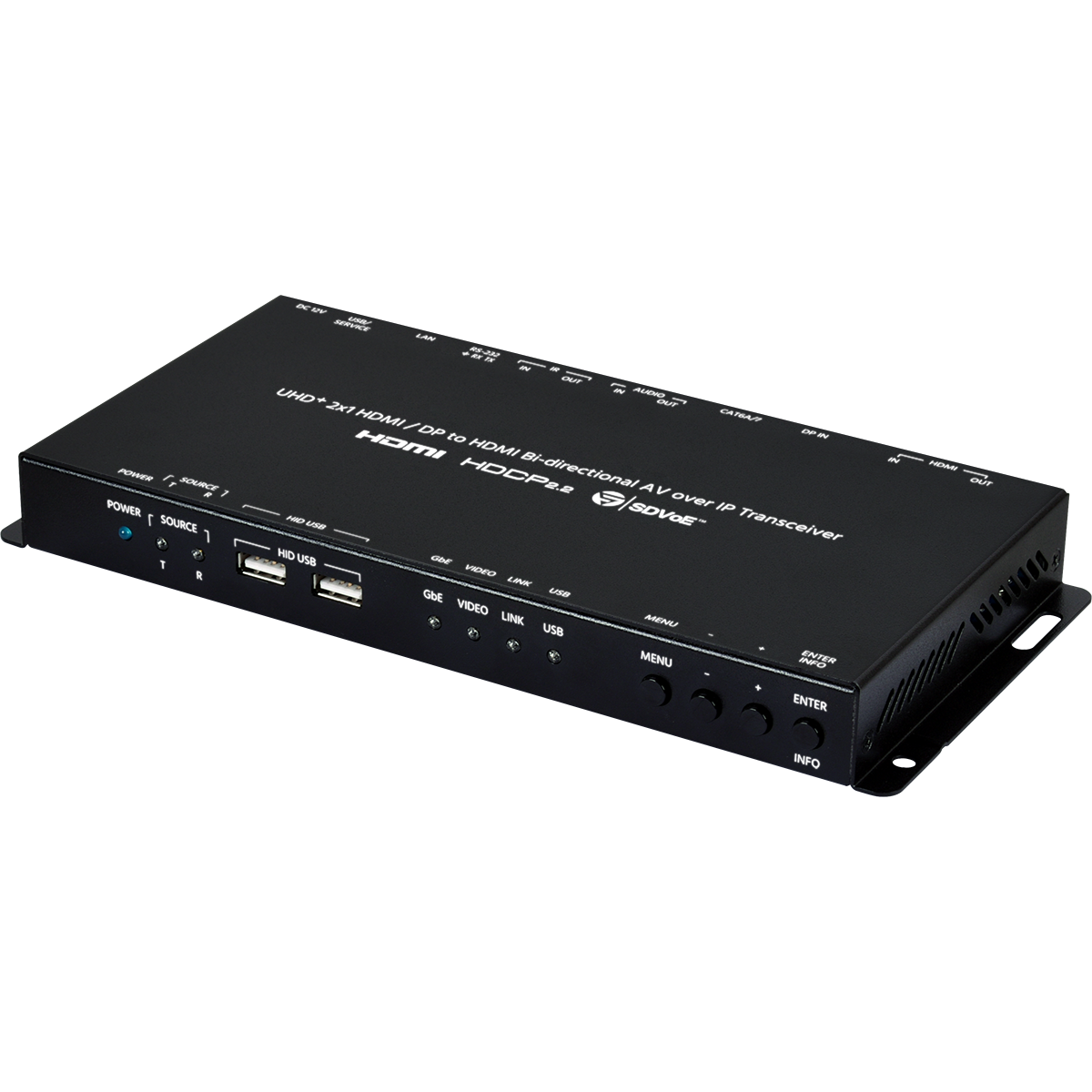

AVIP-P5101TR-B1C

UHD+ 2x1 HDMI/DP to HDMI Bi-directional AV over IP Transceiver W/HID USB

This Transceiver is a brand new meaning of transceiver, which able to transmit and receive signal at the same time, there’s no need to confi gure transmitter/ receiver anymore. The unit is designed for high-quality, AV extension with minimum latency through IP transmit. With ultra-light compression scheme (lossless for most content) to extending, 4K audio/video streams (HDMI or DisplayPort) with simultaneous transmitter and receiver Video, and data under 0.1 milliseconds of matrix switch-like end to end transit. Full suite of peripherals supported, including 1G Ethernet, RS232, IR and HID USB. Supporting all HDMI 2.0 formats including multichannel PCM, Dolby True HD and DTS HD master audio.

CDPS-CS7-S

AV over IP Master Controller

This controller is a powerful and flexible solution for controlling multiple VoIP (Video over IP) extenders within same network. The user only needs to install this unit into the same local network as the extenders (Transmitter and Receiver) to easily define and configure channel routing selections using the WebGUI. It is also possible to define and switch routes using customized groups or presets allowing for easy control over multiple video zones. Without the use of this controller, each individual Transmitter and Receiver pair could only be configured in a basic point-to-point operational mode.
