Installation Sites

Situation room at a government agency in Taiwan

Customer Requirement

  • Source: 6 of video wall display workstation、2 of public sentiment information、3 of surveillance system、20 of PC、6 of presentation host、3 of PTZ camera
  • Sink devices: 2x12 video wall (each display is a 55” TV)、4 of 2x2 video wall 、5 of projector
  • Pro AV Device:

                    AV over IP Transceiver (model no. CH-U331TX) x 63

                    AV over IP Receiver (model no. CH-U331RX) x 46

                    AV over IP Controller (model no. CDPS- CS7) x 1

  •  Synchronize public sentiment information, access control, broadcast, and monitoring system to the displays in the emergency response center, personal staff room, and duty room.
  • Transmit instant images of PC, PTZ camera, and presentation host to displays.

CYP Solution

The audio-video matrix switcher solution can integrate four HDMI signal sources, four HDMI outputs, and two HDBaseT outputs to extend UHD (4K@60) audio-video signals up to 100 meters. Diversified audio functions include volume control, high-frequency, low-frequency lip synchronization, and integration of IP microphones into the mixer for audio broadcasting. The size of the audio-video matrix switcher is rack-mounted 1U, suitable for storage in server rooms or equipment racks for management."

Product Advantage

Ultra-low latency image transition, HDMI input resolution up to 4K@60 4:2:0

Flexible arrangement by AV over IP, and can be easily expanded.

Intuitive image management and preview function.

Transmit signals through a single Cat cable. Avoid cumbersome cables and lower the installation cost.

Support multicast transmission, content from a single source can be transmitted to any endpoints on the network.

Customize multiple signals into any video wall layout.

More Application

 Presentation Room,   Large Lecture Hall

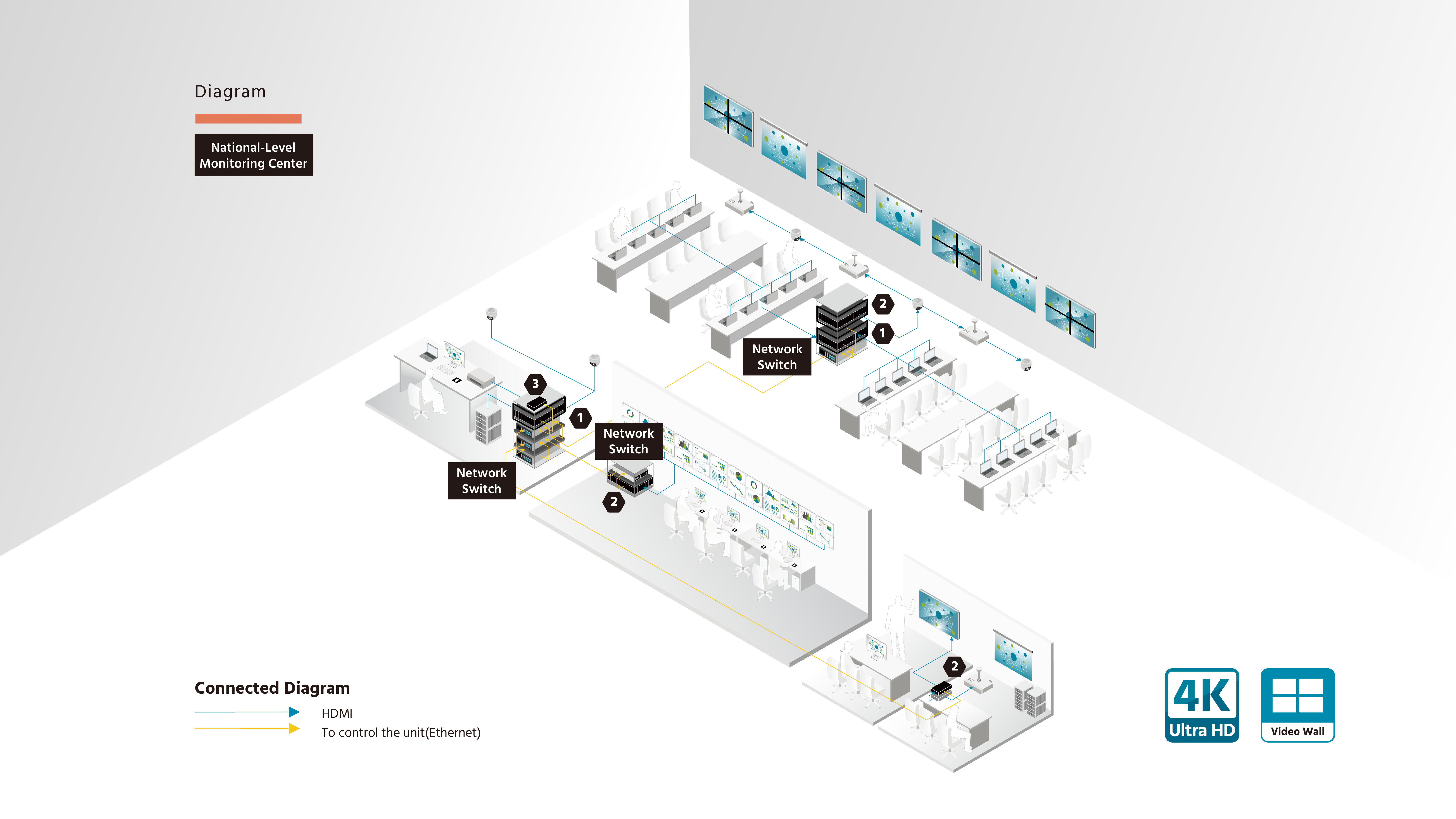

Connection Diagram
PRODUCTS FEATURED
CH-U350HTX

HDMI over IP Transmitter with USB/KVM Extension

This unit is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI signal along with KVM using the TCP/ IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Definition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, It is also possible to have the extension system’s Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network. It is useful for user to create large multi-display video walls with amazing simplicity

CH-U331RX

UHD HDMI/VGA over IP Receiver with KVM Extension

The CH-U331RX, one part of a 4K UHD Multi-Function Extension system, is able to extend HDMI or VGA signals along with KVM through Cat.5e/6/7 network cable and transmit UHD video signals, audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay.

CDPS-CS7

AV over IP Master Controller

This controller is a powerful and flexible solution for controlling multiple Video over IP (VoIP) extenders within same network. The user only needs to install this unit into the same local network as the extenders (Transmitter and Receiver) to easily define and configure channel routing selections, for both unicast and multicast scenarios, using the WebGUI. It is also possible to define and switch routes using customized groups or presets allowing for easy control over multiple video zones. Without the use of this centralized unit, each individual Transmitter and Receiver in the system would need to be controlled and configured directly through their own individual WebGUIs. Additionally, this unit supports controlling the matrix and video wall modes of connected VoIP units. The settings of all connected Transmitter/Receiver units, including IP address, netmask and extender status are clearly displayed within the WebGUI. The WebGUI is easily accessed via a web browser over a normal network connection or by directly connecting an HDMI display and USB keyboard & mouse to the unit. A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a podium or within a table in a conference room or classroom. This interface can allow the user to activate stored presets with the simple press of a button. Standard control is available via WebGUI (remote or local), RS-232, Telnet, IR Remote and triggers.
