Installation Sites

Transportation Hub Hallway in Taiwan

Solution Highlights

Advertisement, information publish and travel instruction on large LED wall or display is popular on shopping mall, transportation hub and public area. This solution features central management from remote server room and transmits audio and video to all displays. Source switching can be done from server room by signal press on keypad controller.

The public AV broadcasting solution supports displaying video and audio on multiple screens simultaneously. Additionally, the system can be expanded with new sources and displays as needed.

Customer Requirement

  • Source:  Digital signage、PC
  • Sink Device: Commercial display *22
  • Pro AV Device: HDMI/VGA over IP Transmitter with USB/KVM Extension (CH-U350TX)*2、UHD HDMI/VGA over IP Receiver with KVM Extension (CH-U331RX)*22、4K30 over 1G IP Master Control (CDPS-CS8)
  • Display same video content on multiple displays simultaneously.
  • Support high-definition audio and video transmission.
  • Remote control and management simplify operation.

Purpose of Use

Display information on multiple screens in public areas such as shopping malls and transportation hubs. It is essential to show the same information on all displays and remote control for system management from the server room is required. Use CYP's control keypad to enable users to power the system on/o¬ and switch display sources with a single press.

CYP Solution

Manage one content be displayed on multiple displays simultaneously by keypad control. To perform the system management at remote server room is essential plus flexible source switch and stable audio / video transmission to ensue every single displays show high quality content.

The public AV broadcasting solution offers exceptional flexibility and scalability which allows to customize the system by adding or removing devices for future expansion. Additionally, its high reliability minimizes maintenance costs, making it a cost-effective solution for long-term operation.

Product Advantage

  • Support remote control which offering users to operate from the server room.
  • Keypad panel simplifies device control.
  • Flexible system architecture allows future expansion with sources and displays.

More Application

Public Advertisement / Information display at public area

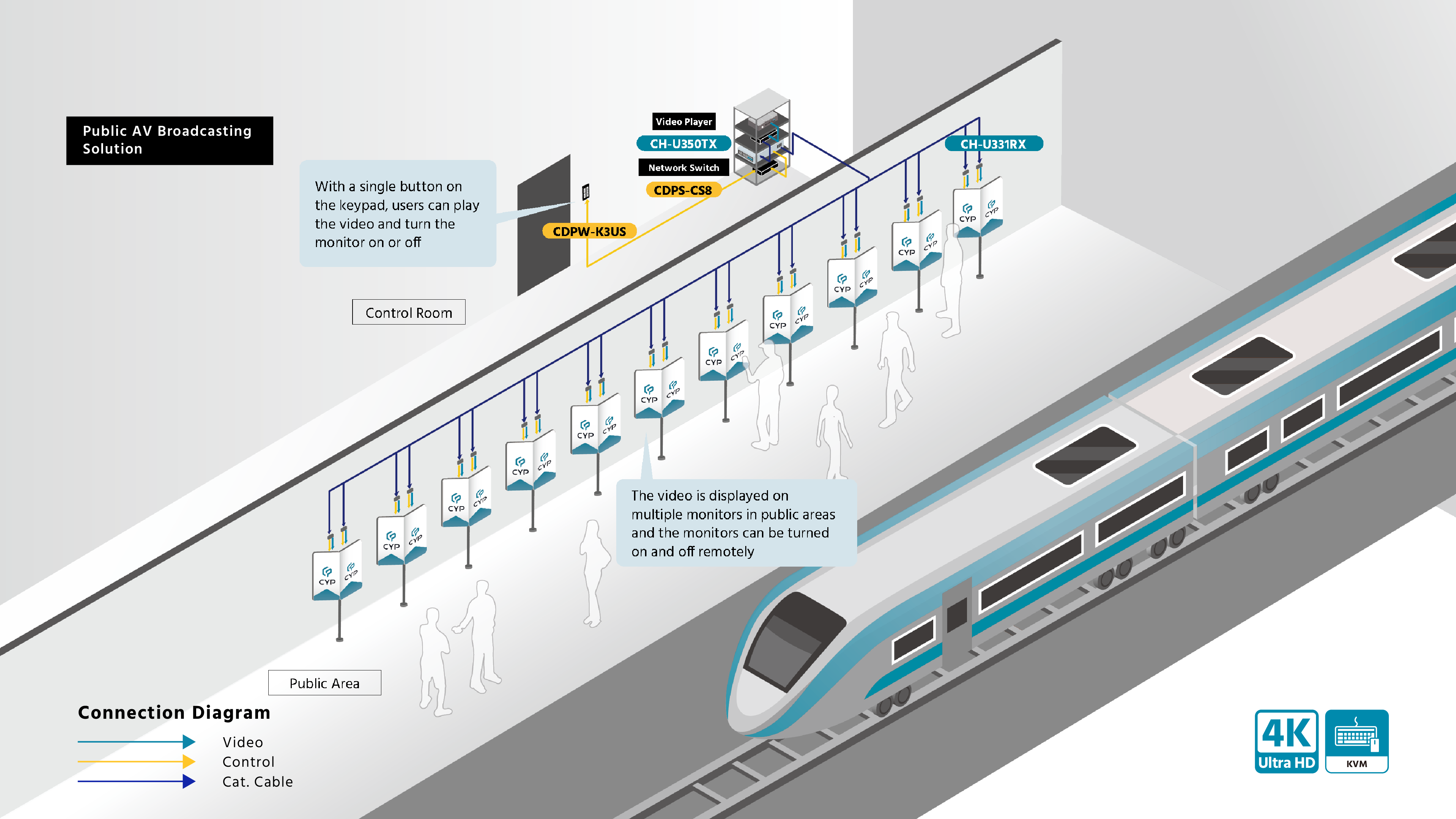

Connection Diagram
PRODUCTS FEATURED
CH-U350TX

HDMI/VGA over IP Transmitter with USB/KVM Extension

This unit is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI or VGA signals along with KVM using the TCP/ IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Defi nition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. It is also possible to have the extension system’s Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network. It is useful for user to create large multi-display video walls with amazing simplicity

CH-U331RX

UHD HDMI/VGA over IP Receiver with KVM Extension

The CH-U331RX, one part of a 4K UHD Multi-Function Extension system, is able to extend HDMI or VGA signals along with KVM through Cat.5e/6/7 network cable and transmit UHD video signals, audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay.

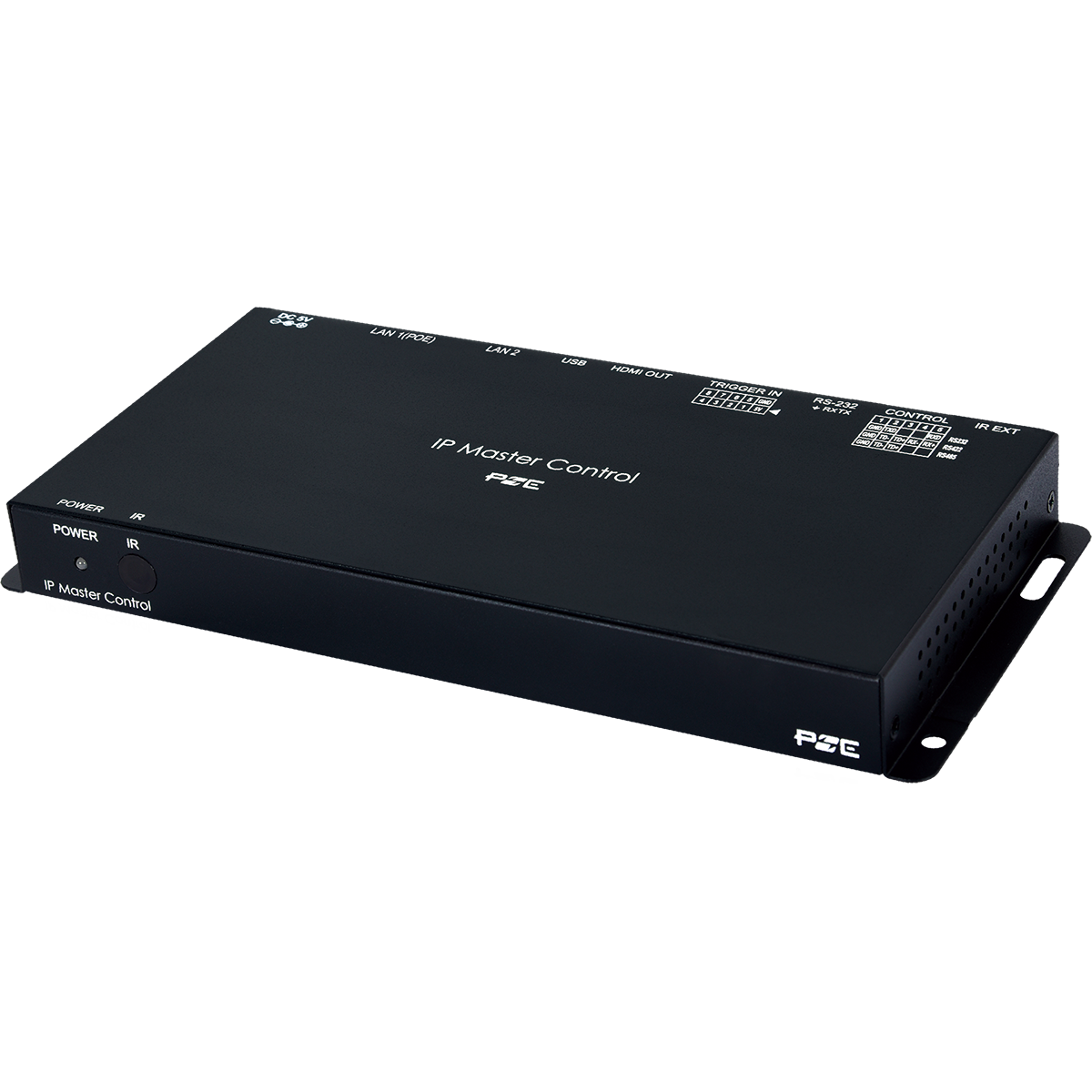

CDPS-CS8

4K30 over 1G IP Master Control

This controller is a powerful and flexible solution for controlling multiple Video over IP (VoIP) extenders within same network. The user only needs to install this unit into the same local network as the extenders (Transmitter and Receiver) to easily define and configure channel routing selections, for both unicast and multicast scenarios, using the WebGUI. It is also possible to define and switch routes using customized groups or presets allowing for easy control over multiple video zones. Without the use of this centralized unit, each individual Transmitter and Receiver in the system would need to be controlled and configured directly through their own individual WebGUIs. Additionally, this unit supports controlling the matrix and video wall modes of connected VoIP units. The settings of all connected Transmitter/Receiver units, including IP address, netmask and extender status are clearly displayed within the WebGUI. The WebGUI is easily accessed via a web browser over a normal network connection or by directly connecting an HDMI display and USB keyboard & mouse to the unit. A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a podium or within a table in a conference room or classroom. This interface can allow the user to activate stored presets with the simple press of a button. Standard control is available via WebGUI (remote or local), RS-232, Telnet, IR Remote and triggers.

4K Premium High Speed HDMI Cable (CBL-H100 & CBL-H300)

Premium HDMI cables deliver higher performance and value than standard HDMI cables. Only certified Premium HDMI Cables are tested and verified by HDMI authorized test centers to ensure they support high bandwidth HDMI 4K features.
