Installation Sites

Veterans General Hospital

Customer Requirement

  • Source: 4 dashboard data monitors, 10 PCs.
  • Sink: 2x7 video walls (each with 55-inch screens), 1 75-inch LCD display, 1 24-inch monitor.
  • Pro AV Device:

                          AV over IP transmitters (model: CH-U350TX) x 14 units.

                          AV over IP receivers (model: CH-U331RX) x 16 units.

                          AV over IP controller (model: CDPS-CS7) x 1 unit.


    • The dashboard data and images on PC are able to be transmitted simultaneously to video wall for monitoring.
    • No lossless and zero latency of images transmission.
    • Convenient and quick adjustment and control of the video wall layout.


    CYP Solution

    Through the AV over IP solution, various branches and emergency stations can connect with a remote center, achieving collaborative efforts. Utilizing wired transmission, image signals can be transmitted to the remote center in real-time and losslessly, enabling prompt medical consultations and delivering precise healthcare without distance constraints.


    Product Advantage

    • Ultra-low latency, real-time image transmission which supports 4K@60Hz 4:2:0 HDMI input to meet medical imaging needs.

    • The AV over IP controller offers intuitive image management and preview. Signal transmission occurs through a single category cable, reducing costs and avoiding clutter.

    • Multiple sources seamlessly integrate into a video wall, facilitating centralized information management and real-time switching via a dedicated controller.

    • Transmitters and receivers compatible with PACS, CT, and other medical imaging systems. The AV over IP configuration provides flexible layouts and easy system expansion in the future.


    More Application

    Long-term Care Center,  Nursing Home

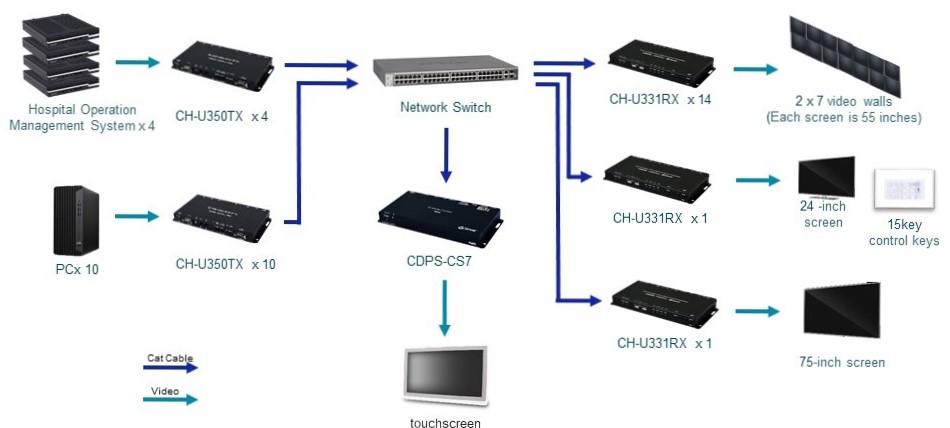

    Connection Diagram


    PRODUCTS FEATURED

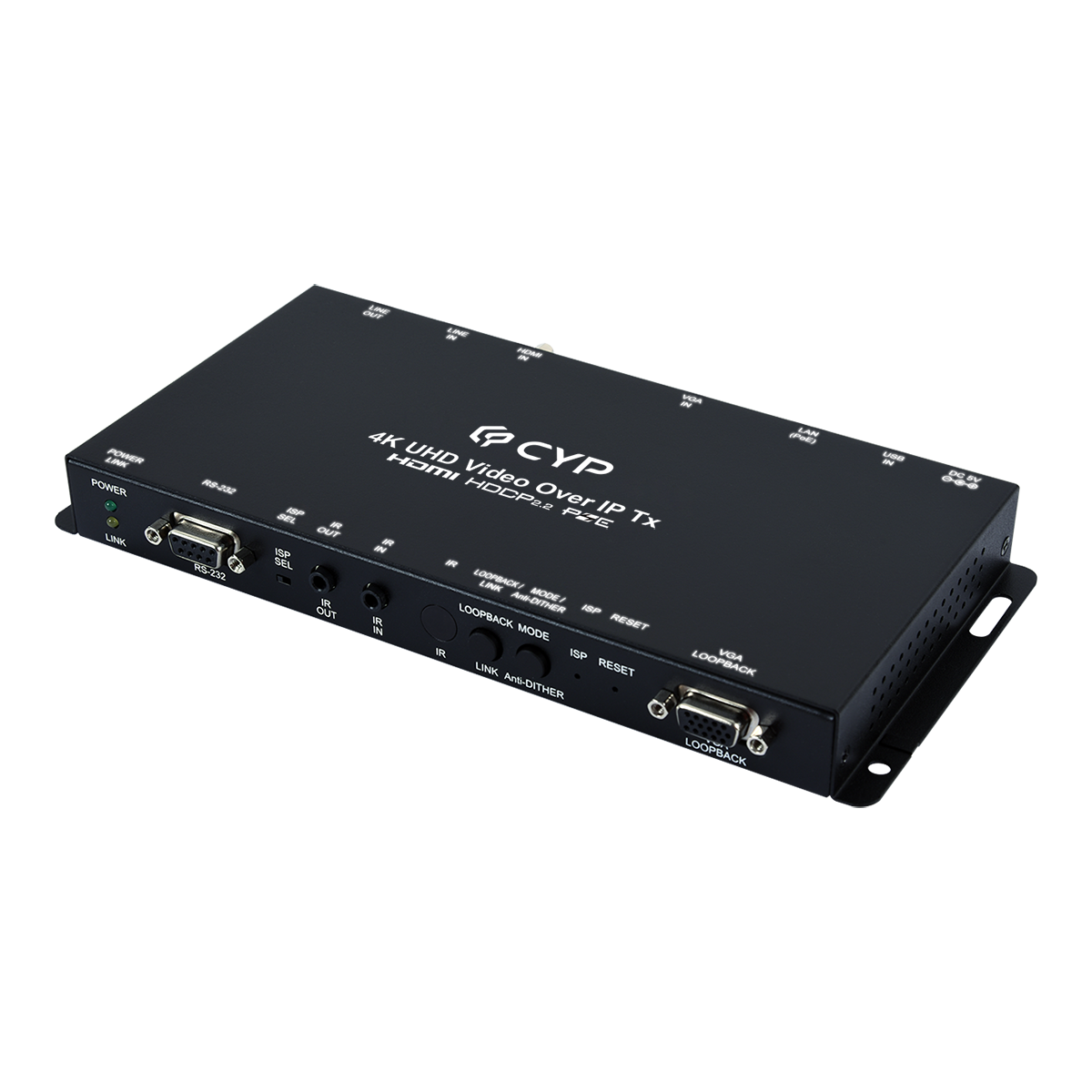

    CH-U350TX

    HDMI/VGA over IP Transmitter with USB/KVM Extension

    This unit is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI or VGA signals along with KVM using the TCP/ IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Defi nition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. It is also possible to have the extension system’s Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network. It is useful for user to create large multi-display video walls with amazing simplicity

    CH-U331RX

    UHD HDMI/VGA over IP Receiver with KVM Extension

    The CH-U331RX, one part of a 4K UHD Multi-Function Extension system, is able to extend HDMI or VGA signals along with KVM through Cat.5e/6/7 network cable and transmit UHD video signals, audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay.

    CDPS-CS7

    AV over IP Master Controller

    This controller is a powerful and flexible solution for controlling multiple Video over IP (VoIP) extenders within same network. The user only needs to install this unit into the same local network as the extenders (Transmitter and Receiver) to easily define and configure channel routing selections, for both unicast and multicast scenarios, using the WebGUI. It is also possible to define and switch routes using customized groups or presets allowing for easy control over multiple video zones. Without the use of this centralized unit, each individual Transmitter and Receiver in the system would need to be controlled and configured directly through their own individual WebGUIs. Additionally, this unit supports controlling the matrix and video wall modes of connected VoIP units. The settings of all connected Transmitter/Receiver units, including IP address, netmask and extender status are clearly displayed within the WebGUI. The WebGUI is easily accessed via a web browser over a normal network connection or by directly connecting an HDMI display and USB keyboard & mouse to the unit. A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a podium or within a table in a conference room or classroom. This interface can allow the user to activate stored presets with the simple press of a button. Standard control is available via WebGUI (remote or local), RS-232, Telnet, IR Remote and triggers.
