Customer Background

Brain Navi Biotechnology, a pioneering surgical robotics company from Taiwan, is dedicated to advancing the precision and efficiency of neurosurgery. Its flagship product NaoTrac is powered by SMART Technology (Surface Mapping Auto-Registration), which integrates machine vision, 3D facial mapping, and AI. This breakthrough enables fast and accurate alignment with CT or MRI images, streamlining surgical workflows, reducing the learning curve for surgeons, and improving patient outcomes. NaoTrac has received FDA clearance in the U.S., CE marking, and Taiwan TFDA approval, and is now widely adopted across Europe, Latin America, and Asia—empowering hospitals worldwide to deliver safer and more effective surgeries.


Project Challenge

To enhance the efficiency of surgical robot training, Brain Navi required:

  • High-resolution imaging with real-time transmission.
  • Direct integration of surgical robot feeds, surgical field cameras, and training presentations into a video wall with multi-view display flexibility.
  • Real-time transmission of the operating room video wall to a conference room.

CYP Solution

  • Seamless integration of surgical robot visuals, multiple surgical field cameras, and training materials into quad-view or multi-view with flexible arrangement displayed on large screens.
  • Real-time transmission of operating room content to conference rooms, enabling remote participants to join discussions instantly.

Key Advantages

  • Scalable and Flexible – Future expansion with additional input sources or displays requires only transmitters and receivers, without replacing the core system.
  • Versatile Video Display – Supports quad-view, PiP, PoP, and multi-view layouts to meet diverse training and presentation needs.

More Applications

  • Medical care centers
  • Hybrid operating rooms
  • Medical conferences

Customer Feedback

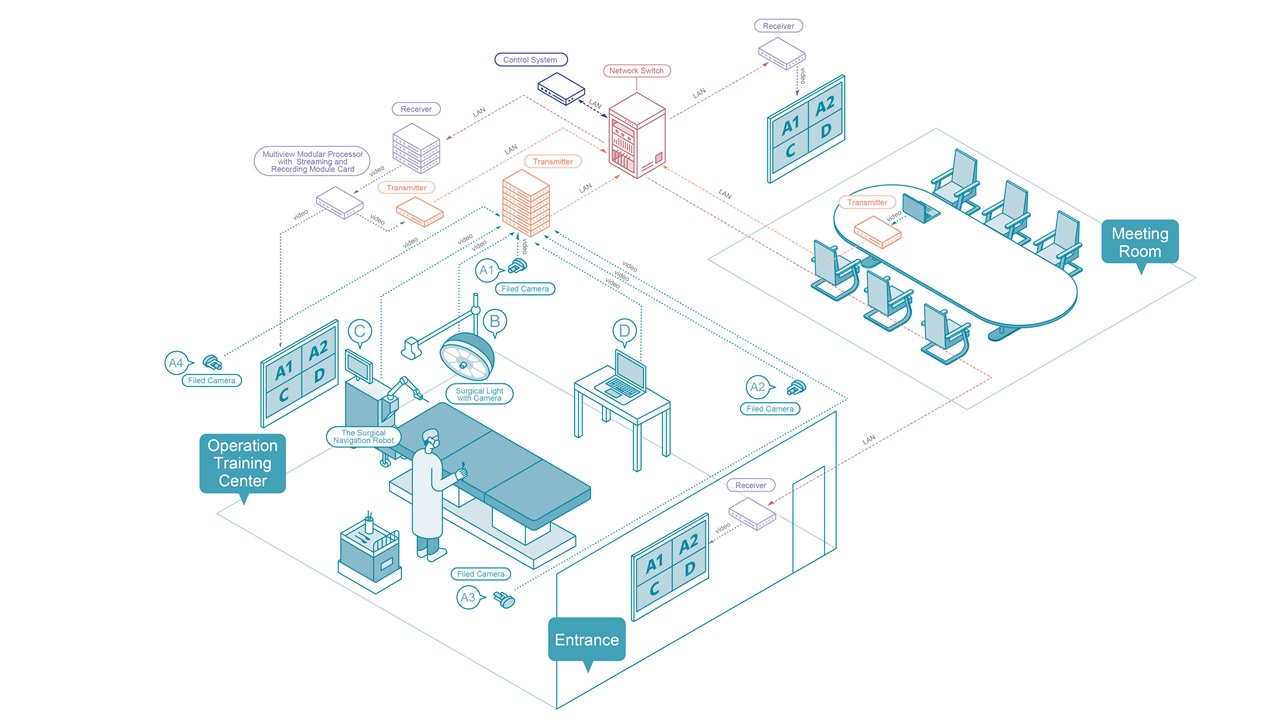

Connection Diagram
PRODUCTS FEATURED
CSC-VPR-3421

Multiview Modular Processor

CSC-VPR-3421 is a wonderful solution for streaming, because it offers more than streaming and recording functionality but also offers rich video processing functions. It makes online broadcasting of live video an easy and simple process. Video content up to 4K UHD+ is supported and is automatically scaled to a resolution that is more appropriate for efficient streaming. Both HDMI and VGA inputs are supported. An HDMI output is provided for local monitoring. An audio mixer function is included, allowing an external audio source to be mixed with the embedded audio of your HDMI source (LPCM 2.0 only) for your video stream. Comprehensive EDID management, intuitive WebGUI, and adjustable Audio functions make this unit a terrific tool for video streaming and recording. Besides high performance HDMI switch with integrated scaling, multi-windowing technology, multi-view and streaming are also supported. Any of 4 different HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of multi-window modes including quad mode PiP, and PoP mode, which becomes splendid source for streaming.

CDPS-CS7

AV over IP Master Controller

This controller is a powerful and flexible solution for controlling multiple Video over IP (VoIP) extenders within same network. The user only needs to install this unit into the same local network as the extenders (Transmitter and Receiver) to easily define and configure channel routing selections, for both unicast and multicast scenarios, using the WebGUI. It is also possible to define and switch routes using customized groups or presets allowing for easy control over multiple video zones. Without the use of this centralized unit, each individual Transmitter and Receiver in the system would need to be controlled and configured directly through their own individual WebGUIs. Additionally, this unit supports controlling the matrix and video wall modes of connected VoIP units. The settings of all connected Transmitter/Receiver units, including IP address, netmask and extender status are clearly displayed within the WebGUI. The WebGUI is easily accessed via a web browser over a normal network connection or by directly connecting an HDMI display and USB keyboard & mouse to the unit. A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a podium or within a table in a conference room or classroom. This interface can allow the user to activate stored presets with the simple press of a button. Standard control is available via WebGUI (remote or local), RS-232, Telnet, IR Remote and triggers.

CH-331H-TX

HDMI over IP Transmitter

This unit is an HDMI over IP Transmitter that allows you to extend HDMI signals using the TCP/IP protocol over regular Cat.5e network cable. This extender supports the transmission of High-Definition signals (up to 1080p@60Hz) with audio up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using Gigabit Ethernet network switches, allowing the user to cascade the system without signal loss or introducing delay. This Transmitter also features bi-directional IR and RS-232 pass-through.

CH-331H-RX

HDMI over IP Receiver

This unit is an HDMI over IP Receiver that allows you to receive extended HDMI signals using the TCP/IP protocol over regular Cat.5e network cable. This extender supports the reception of High-Definition signals (up to 1080p@60Hz) with audio up to 100m over a single cable. The distance can be further extended (up to 100m per segment) by using Gigabit Ethernet network switches, allowing the user to cascade the system without signal loss or introducing delay. This Receiver also features bi-directional IR and RS-232 pass-through.

CH-U350TX

HDMI/VGA over IP Transmitter with USB/KVM Extension

This unit is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI or VGA signals along with KVM using the TCP/ IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Defi nition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. It is also possible to have the extension system’s Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network. It is useful for user to create large multi-display video walls with amazing simplicity

CH-U331RX

UHD HDMI/VGA over IP Receiver with KVM Extension

The CH-U331RX, one part of a 4K UHD Multi-Function Extension system, is able to extend HDMI or VGA signals along with KVM through Cat.5e/6/7 network cable and transmit UHD video signals, audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay.
