Installation Sites

The Leading Hospital in North Taiwan

Customer Requirement

  • Source: 5 units of surgical lamp with camera, 1 of PC and 1 of VR
  • Sink devices:19 units of display allocated around anatomy room
  • Pro AV Device:

    7 units AV over IP transmitter (model no:CH-331H-TX), 19 units AV over IP receiver (model no:CH-331H-RX) , 1 unit AV over IP Controller (model no:CDPS-CS7) and 1 unit streamer (model: CDPS-P311R)

  • To transmit anatomy surgical from surgical lamp with camera includes information on PC and virtual image on VR to displays around anatomy room.

  • The anatomy surgical is able to be transmitted to classroom for education purpose in real time.

CYP Solution

Transmitting anatomy surgery from anatomy classroom to other classrooms allows students to watch real-time images, providing diversified way of education

Product Advantage

  • Ultra low latency to transmit video in real time

  • AV over IP configuration with flexible layout and easily expand entire system easily in the future

  • High resolution video supported up to 1920 x 1080p

  • Intuitive image management with image preview through AV over IP controller

  • Integrate with steamer to stream video of anatomy surgical in remote site e.g. classroom for education purpose

More Application

Demonstration Teaching Conferences, Live Event Venues

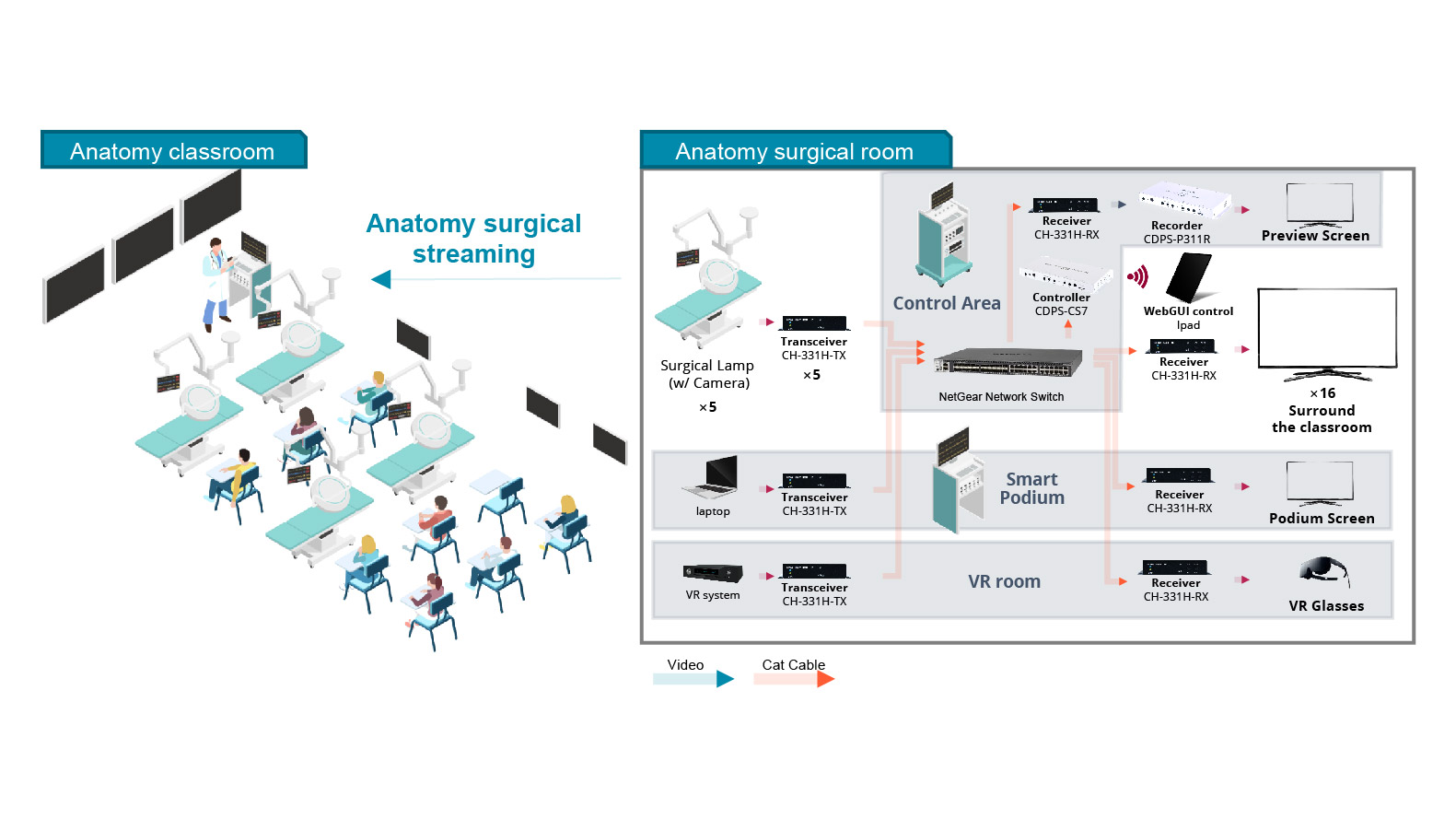

Connection Diagram


PRODUCTS FEATURED

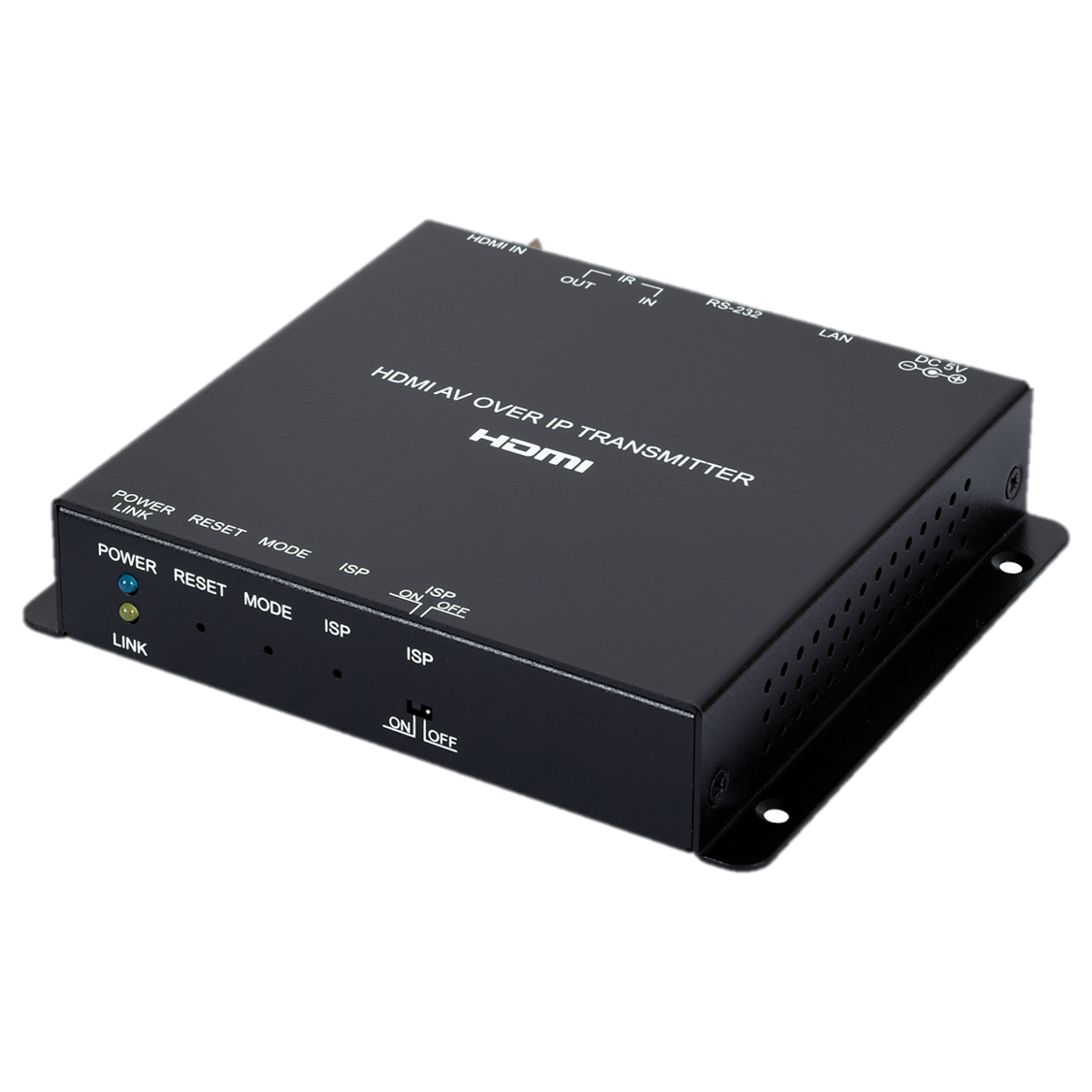

CH-331H-TX

HDMI over IP Transmitter

This unit is an HDMI over IP Transmitter that allows you to extend HDMI signals using the TCP/IP protocol over regular Cat.5e network cable. This extender supports the transmission of High-Definition signals (up to 1080p@60Hz) with audio up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using Gigabit Ethernet network switches, allowing the user to cascade the system without signal loss or introducing delay. This Transmitter also features bi-directional IR and RS-232 pass-through.

CH-331H-RX

HDMI over IP Receiver

This unit is an HDMI over IP Receiver that allows you to receive extended HDMI signals using the TCP/IP protocol over regular Cat.5e network cable. This extender supports the reception of High-Definition signals (up to 1080p@60Hz) with audio up to 100m over a single cable. The distance can be further extended (up to 100m per segment) by using Gigabit Ethernet network switches, allowing the user to cascade the system without signal loss or introducing delay. This Receiver also features bi-directional IR and RS-232 pass-through.

WPS-QPL01

Wireless Presentation System, Entry Level Model (Lite)

WPS-QPL01 (LT01/LR01) is an entry level modle of CYP WPS (Wireless Presentation System) product family. It is a powerful but low cost WiFi Presentation System product. It contains one transmitter(LT01) and one receiver (LR01). The plug & mirror capability makes it easier to use without learning curve. LT01 comes with high speed 802.11ac WiFi module and external antenna to bring you the great connection and smooth streaming. Through our advanced Receiver LR01, you can even use your mobile phone to cast without efforts, this will be the great entry-level product for WPS application.

CDPS-CS7

AV over IP Master Controller

This controller is a powerful and flexible solution for controlling multiple Video over IP (VoIP) extenders within same network. The user only needs to install this unit into the same local network as the extenders (Transmitter and Receiver) to easily define and configure channel routing selections, for both unicast and multicast scenarios, using the WebGUI. It is also possible to define and switch routes using customized groups or presets allowing for easy control over multiple video zones. Without the use of this centralized unit, each individual Transmitter and Receiver in the system would need to be controlled and configured directly through their own individual WebGUIs. Additionally, this unit supports controlling the matrix and video wall modes of connected VoIP units. The settings of all connected Transmitter/Receiver units, including IP address, netmask and extender status are clearly displayed within the WebGUI. The WebGUI is easily accessed via a web browser over a normal network connection or by directly connecting an HDMI display and USB keyboard & mouse to the unit. A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a podium or within a table in a conference room or classroom. This interface can allow the user to activate stored presets with the simple press of a button. Standard control is available via WebGUI (remote or local), RS-232, Telnet, IR Remote and triggers.

CDPS-P311R

HDMI/VGA to HDMI Live Video Streamer with Recording Function

CDPS-P311R makes online broadcasting of live video, with a locally stored archive, an easy and simple process. Video content up to 4K UHD+ is supported and is automatically scaled to a resolution that is more appropriate for efficient streaming. An HDMI output is provided for local monitoring of the selected input source. The video may also be recorded locally (via SD card) or to a local network drive. An audio mixer function is included, allowing an external audio source to be mixed with the embedded audio of your HDMI source (LPCM 2.0 only) for your video stream.Comprehensive EDID management, intuitive WebGUI, and adjustable Audio functions make this unit a wonderful tool for video streaming and recording.
