Due to COVID-19 pandemic, it has raised public awareness in timely isolation of patients with highly contagious airborne diseases, in order to preserve hospital capacity and maintain stability of healthcare systems. Minimizing direct contact with isolated patients, while still providing high-quality care for them, is a daunting challenge.

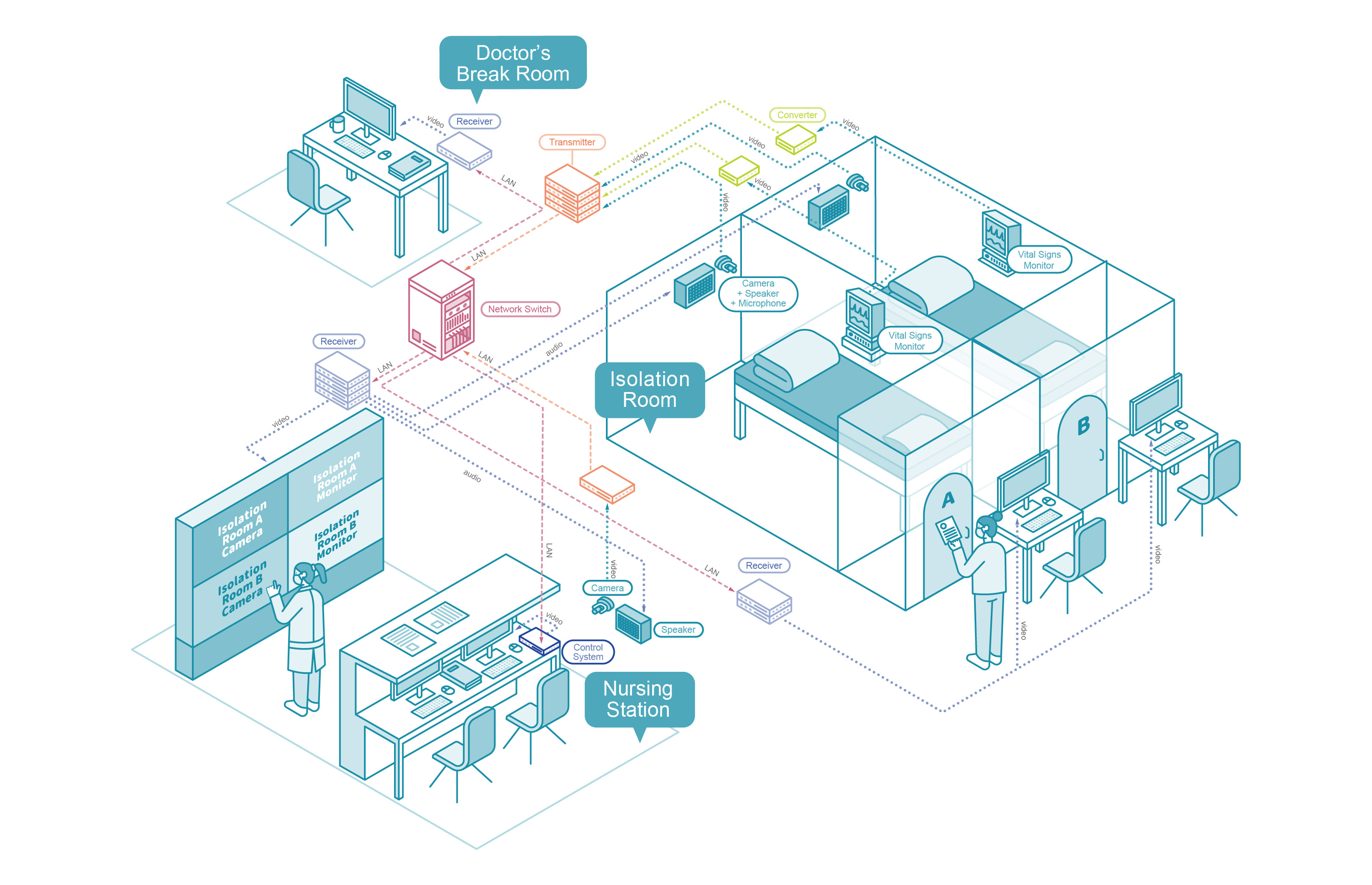

With the power of medical image technology, healthcare providers are able to provide prompt two-way. communication for multiple isolated patients simultaneously, maximizing the quality of care and patient satisfaction.
Control system
- Manages multiple input and output interfaces across multiple remote locations, allowing doctors and nurses to easily switch between, and monitor, patients within different wards and communicate with them in real time.
Transmitter
- Uses unified IP streaming technology to allow efficient communication between a patient and a remote healthcare provider.
CDPS-CS7
AV over IP Master Controller
This controller is a powerful and flexible solution for controlling multiple Video over IP (VoIP) extenders within same network. The user only needs to install this unit into the same local network as the extenders (Transmitter and Receiver) to easily define and configure channel routing selections, for both unicast and multicast scenarios, using the WebGUI. It is also possible to define and switch routes using customized groups or presets allowing for easy control over multiple video zones. Without the use of this centralized unit, each individual Transmitter and Receiver in the system would need to be controlled and configured directly through their own individual WebGUIs. Additionally, this unit supports controlling the matrix and video wall modes of connected VoIP units. The settings of all connected Transmitter/Receiver units, including IP address, netmask and extender status are clearly displayed within the WebGUI. The WebGUI is easily accessed via a web browser over a normal network connection or by directly connecting an HDMI display and USB keyboard & mouse to the unit. A trigger input interface is also provided to allow the easy addition of a remote control keypad, or other trigger-supporting products, which can be installed within a podium or within a table in a conference room or classroom. This interface can allow the user to activate stored presets with the simple press of a button. Standard control is available via WebGUI (remote or local), RS-232, Telnet, IR Remote and triggers.
CH-U350HTX
HDMI over IP Transmitter with USB/KVM Extension
This unit is part of a 4K UHD Multi-Function Extension system that allows you to extend HDMI signal along with KVM using the TCP/ IP protocol over regular Cat.5e/6/7 network cable. This extender supports the transmission of Ultra High-Definition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) with audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, It is also possible to have the extension system’s Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network. It is useful for user to create large multi-display video walls with amazing simplicity
CH-U331RX
UHD HDMI/VGA over IP Receiver with KVM Extension
The CH-U331RX, one part of a 4K UHD Multi-Function Extension system, is able to extend HDMI or VGA signals along with KVM through Cat.5e/6/7 network cable and transmit UHD video signals, audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay.

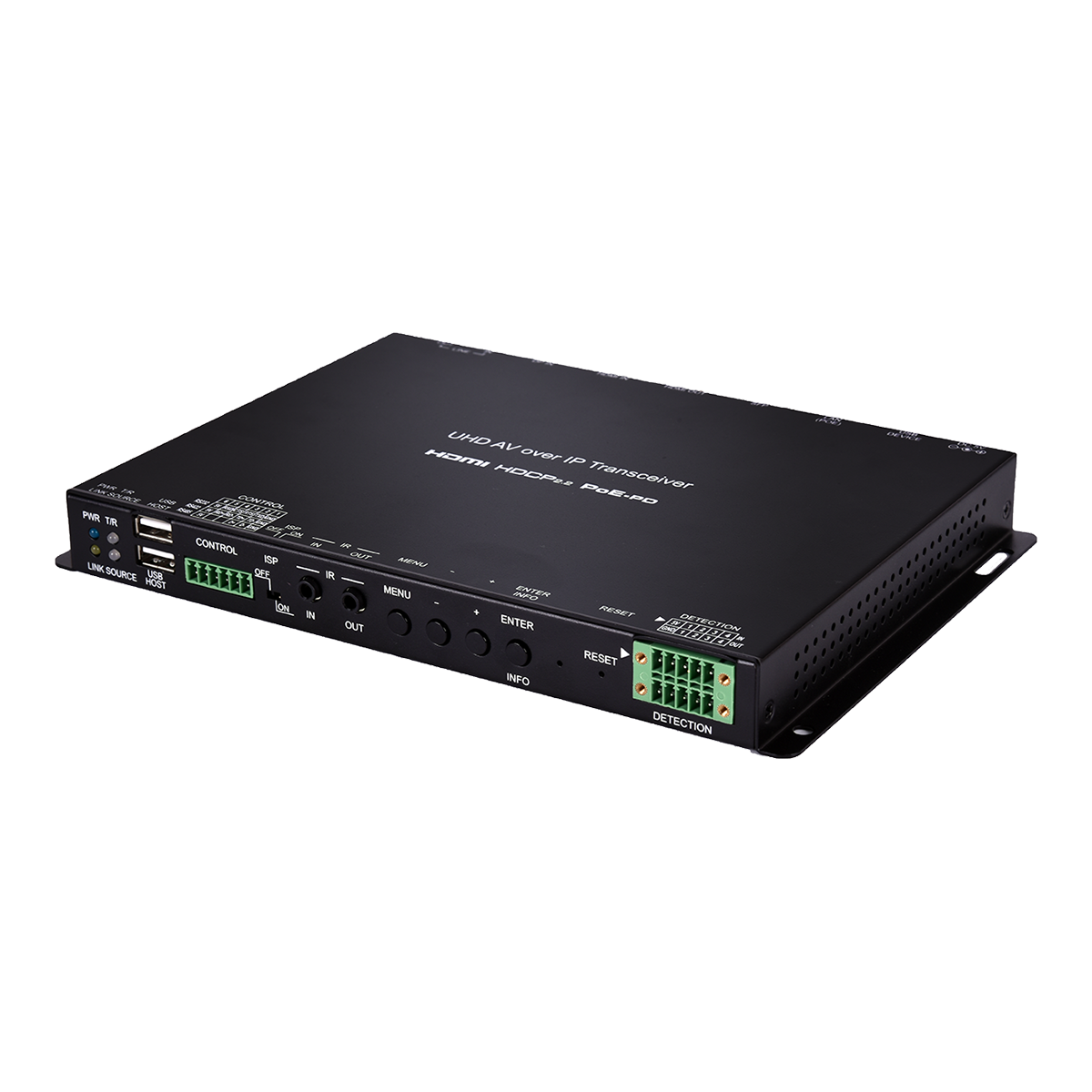

CH-U331TR
UHD AV over IP Transceiver
The Dual-Format 4K UHD AV over IP Transceiver are innovation design of integrate Transmitter and Receiver into one unit; user could able to switch unit into Transmitter or receiver by the needs. The Transceiver supports the transmission of Ultra High-Definition signals (up to 4K@30Hz, 4:4:4 or 4K@60Hz, 4:2:0) with audio and USB up to 100 meters on a single cable. The transmission distance can be further extended (up to 100 meters per segment) by using gigabit network switches, or using SFP fi ber cable to extend (up to 550m~2km, depends on the Fiber module that been used), allowing the user to cascade the system without signal loss or introducing delay. It is also possible to have the Transmitter operate in multicast mode, allowing you to send a single AV signal to a large number of Receivers within the same local network.
