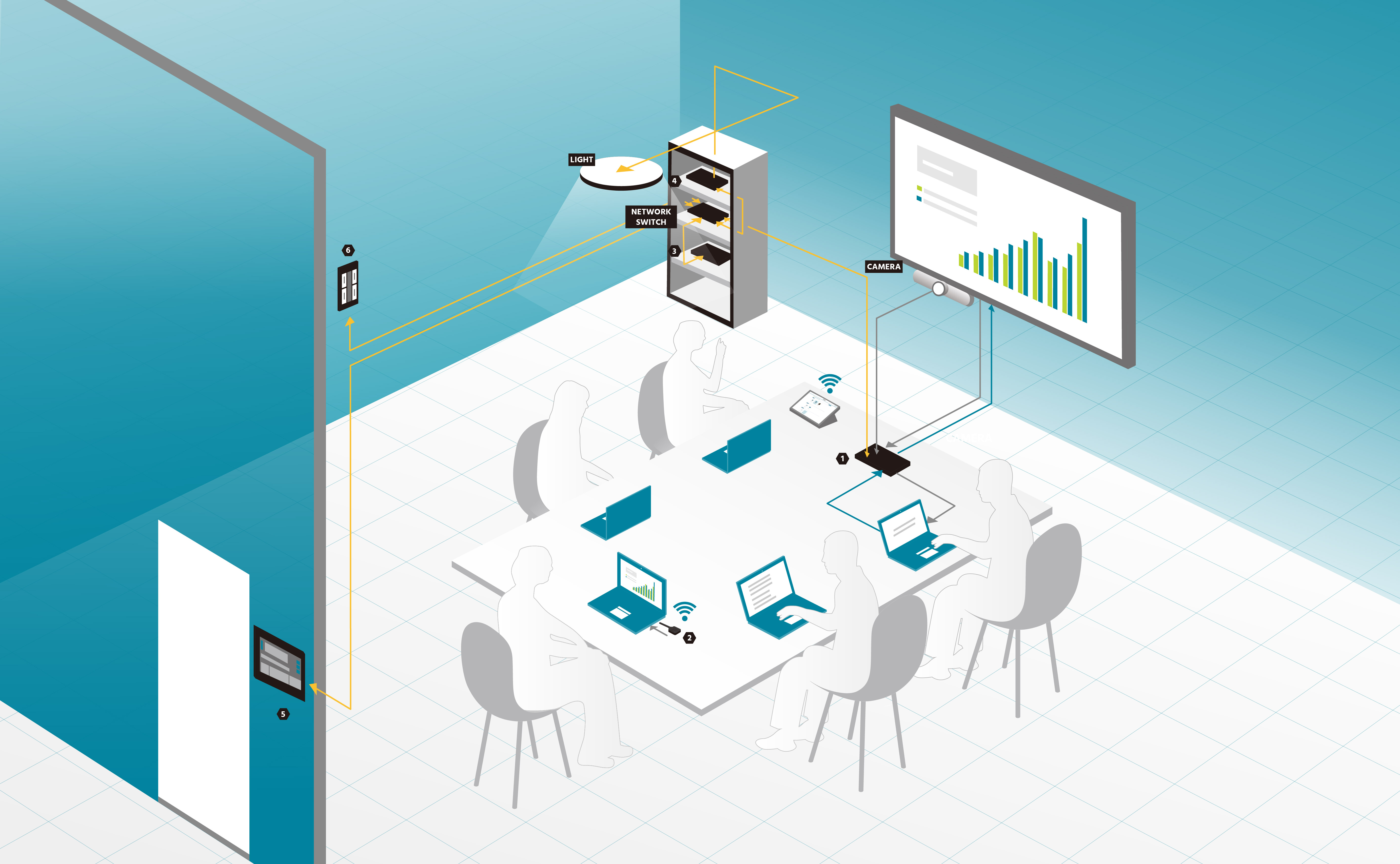

Nowadays, video conference and face-to-face meetings have become major communication methods in workplace. CYP's conference room solution integrates tablets, cameras, interactive whiteboards, laptops, and mobile phones to facilitate both local and remote collaboration.
The modular design allows users to select necessary modules, streamlining the setup with an environmental control panel. The scenario can be managed with a single click, allowing meeting participants to focus the meeting. The solution includes conference management system simplifies room reservations and centralizes overall management.
Solution Benefits
- All-in-one modular design
- Streamlines meeting room reservations
- Centralizes management of all meeting rooms
- One-click activation for meeting scenarios
CPLUS-V32SDM
UHD+ Multi-format Matrix Switcher with USB Ethernet Hub
CPLUS-V32SDM is a 3x2 matrix switch for use in a wide range of multi-format signals and can be equipped with SDM module cards to widen usages. With the commonly used HDMI outputs, this unit can switch video signals between HDMI and USB-C. This product has a module card slot to let users equip additional function cards and fulfill different scenarios. This matrix switcher supports HDCP2.2, resolutions up to 4k@60Hz (4:4:4, 8-bit), and can be controlled via WebGUI, Telnet and RS-232. It also includes USB3.0 hub with two host-ports and two device-ports for flexible KVM configuration. With the USB extension, this product is ideal for conference, remote meeting, and education scenarios.
SDM-W201R
Hyshare Pro Wireless Receiver Module
The Hyshare Pro is a high-performance Wireless Receiver Module, which provides a smooth wireless screen-casting experience. Users are free from messy cables and complicated interfaces. It supports cross-platform collaboration and communication, including Windows, macOS, Android, and iOS systems. This wireless receiver Mobile can be easily slotted into CYP SDM input platform, such as CPLUS-V32SDM. Users can instantly share their screens on a host computer, smart phone or tablet in meetings or classes through the Hyshare Pro App or the optional Hyshare Pro Pod.
WPS-HP201T
Hyshare Pro Pod Wireless Transmitter
Hyshare Pro Pod is an USB-C transmitter to Hyshare Pro station. It can transmit video and audio data over wireless up to 10 meters at 1080p. It can also use to do video conference in Teams, Zoom and Google Meet. Enables users to join a meeting instantly. Plug in a Pod and everyone can share content wirelessly without installing any App.

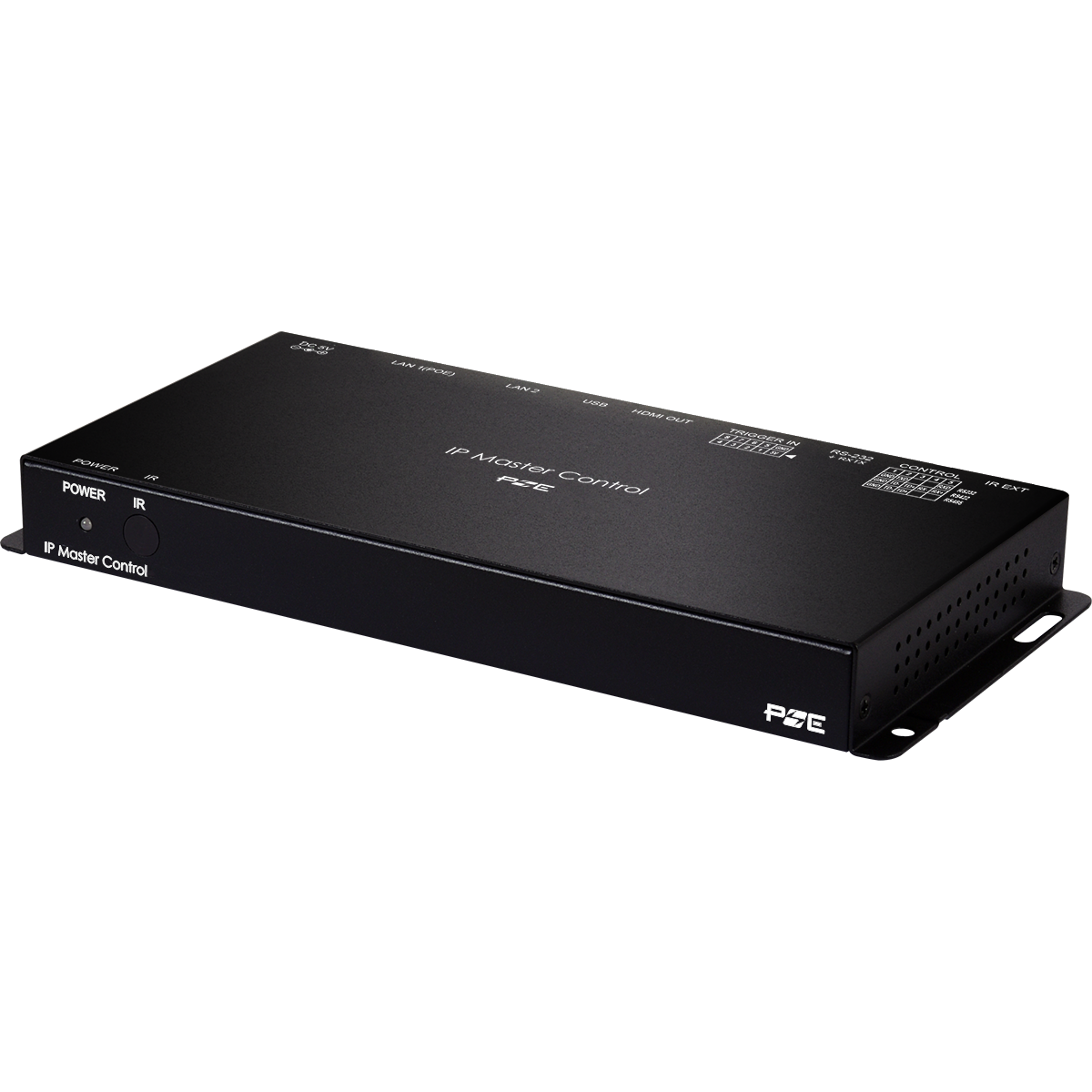

CDPS-CS9
Universal Device Controller
This controller is a powerful and flexible solution for controlling all active units within same network. The user only needs to install this unit into the same local network to easily define and configure channel routing selections using the WebGUI. Not only could about to check all the units status that under controller’s control, it also able to define and switch routes, allowing for easy control over multiple video zones.

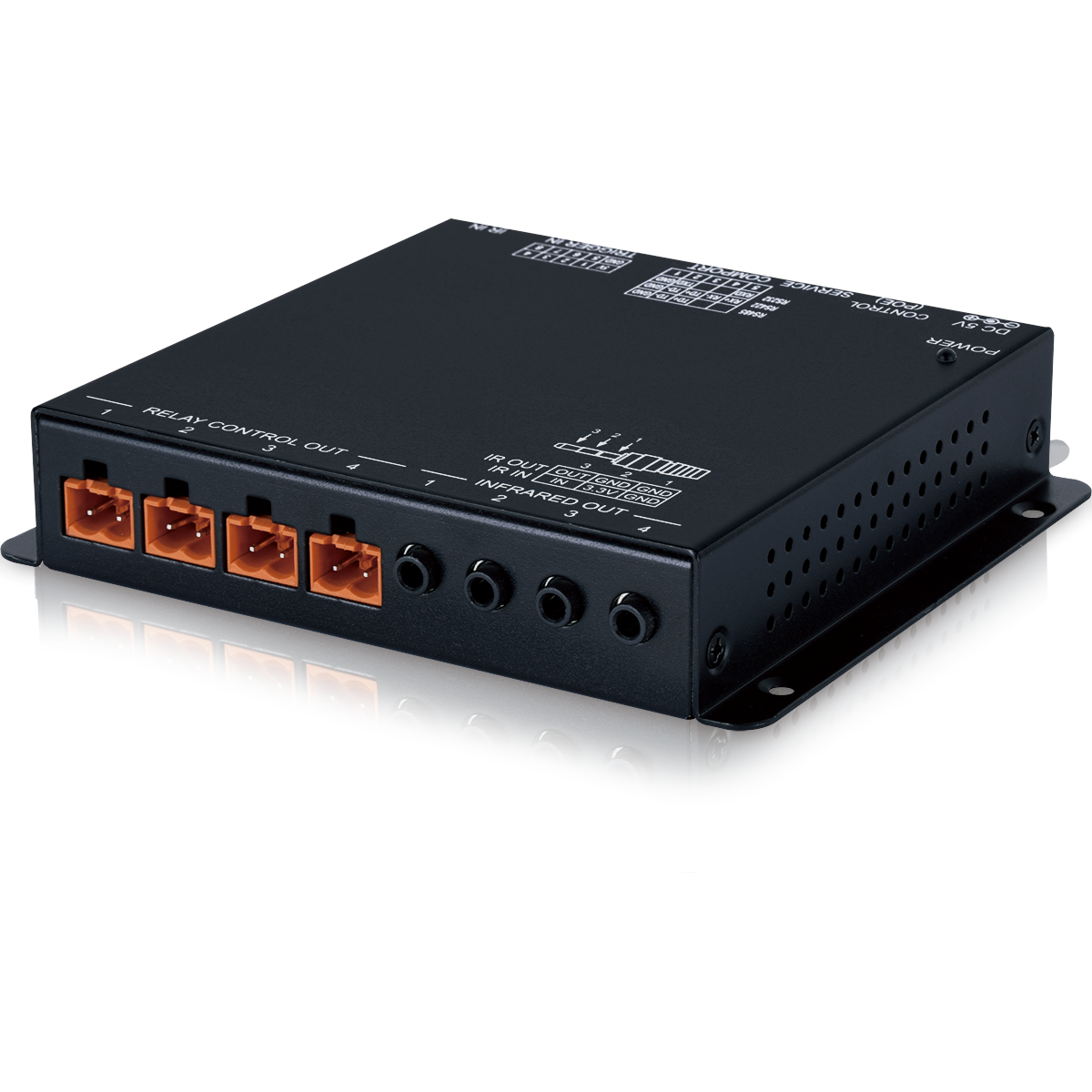

CDPS-CS6
Control System Center
This Control System Center is ideal for a user who has a wide variety of devices that need to be controlled. It comes with eight external trigger connections which directly activate 8 (of 16 total) user defined macro events stored within the unit. All 16 macros are available to be activated via the WebGUI, or by Telnet. Those user defined macros can send commands to remote devices via Ethernet, IR (×4), relay trigger (×4), or RS-232/422/485 (×1) allowing for the control of a large array of devices at the push of a button. An integrated IR code learning function is also available, allowing the user to store and re-transmit the IR codes sent by nearly any standard IR remote. Comprehensive user control interfaces are available including WebGUI, Telnet and console (RS-232 in). Last but not least, this unit supports Power over Ethernet (PoE) allowing it to be powered directly from a standard PoE network switch, without the need for an external power adapter, allowing for incredible installation flexibility.

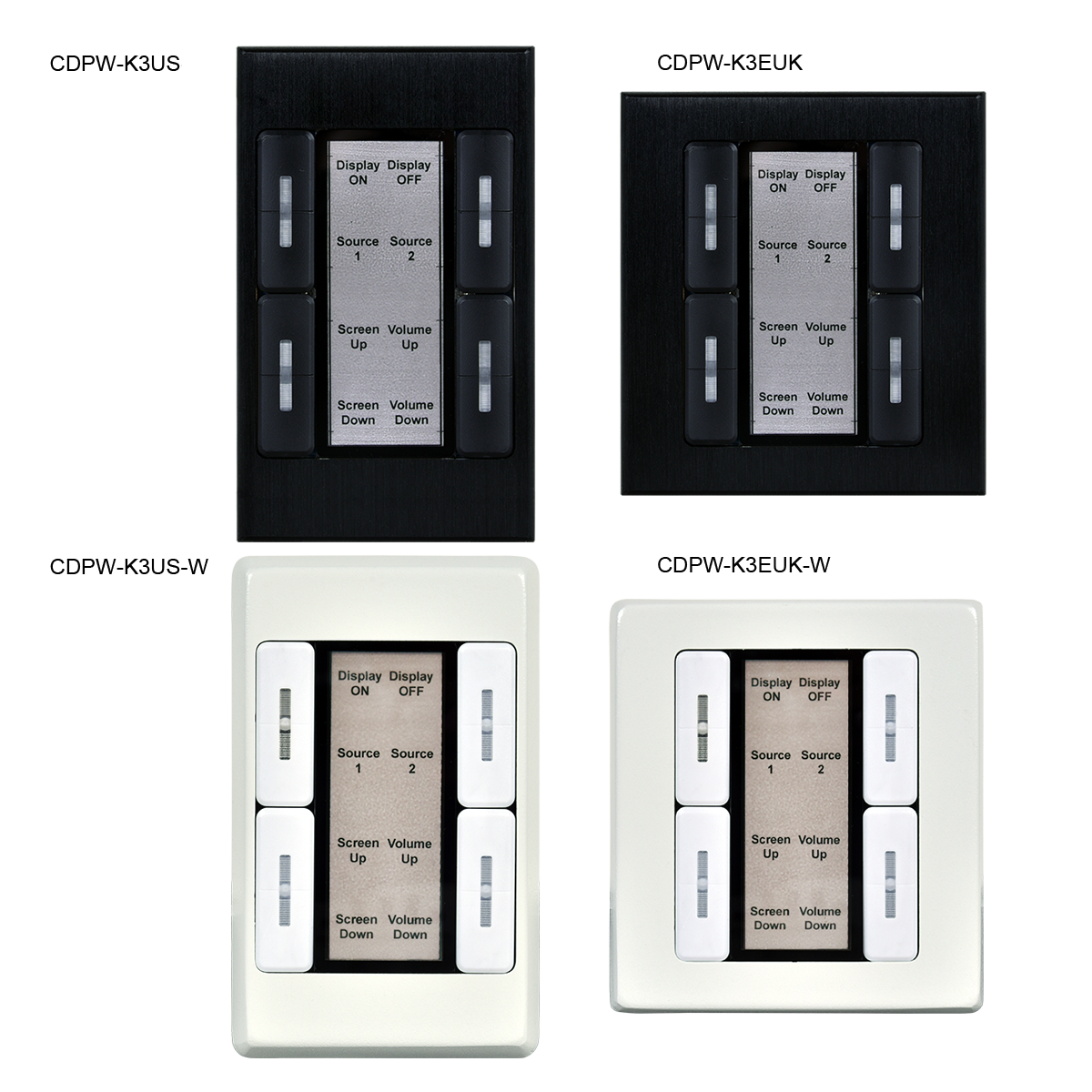

CDPW-K3 Series
8-Button Control Keypad
These keypads are versatile and useful products for both system integrators and smart home users alike. These keypads can send commands to any Ethernet controlled or relay controllable device in your system. The buttons are suitable for all environments and PoE (Power over Ethernet) support allows for creative placement of the keypad within your space without needing to be concerned about keeping it near a live power source. Additionally, the integrated clock and calendar based scheduling feature allows you to trigger macros to control devices within your installation at a specific time, or on a recurring schedule. The sophisticated appearance makes this keypad an elegant and decorative addition to your living or working space.
