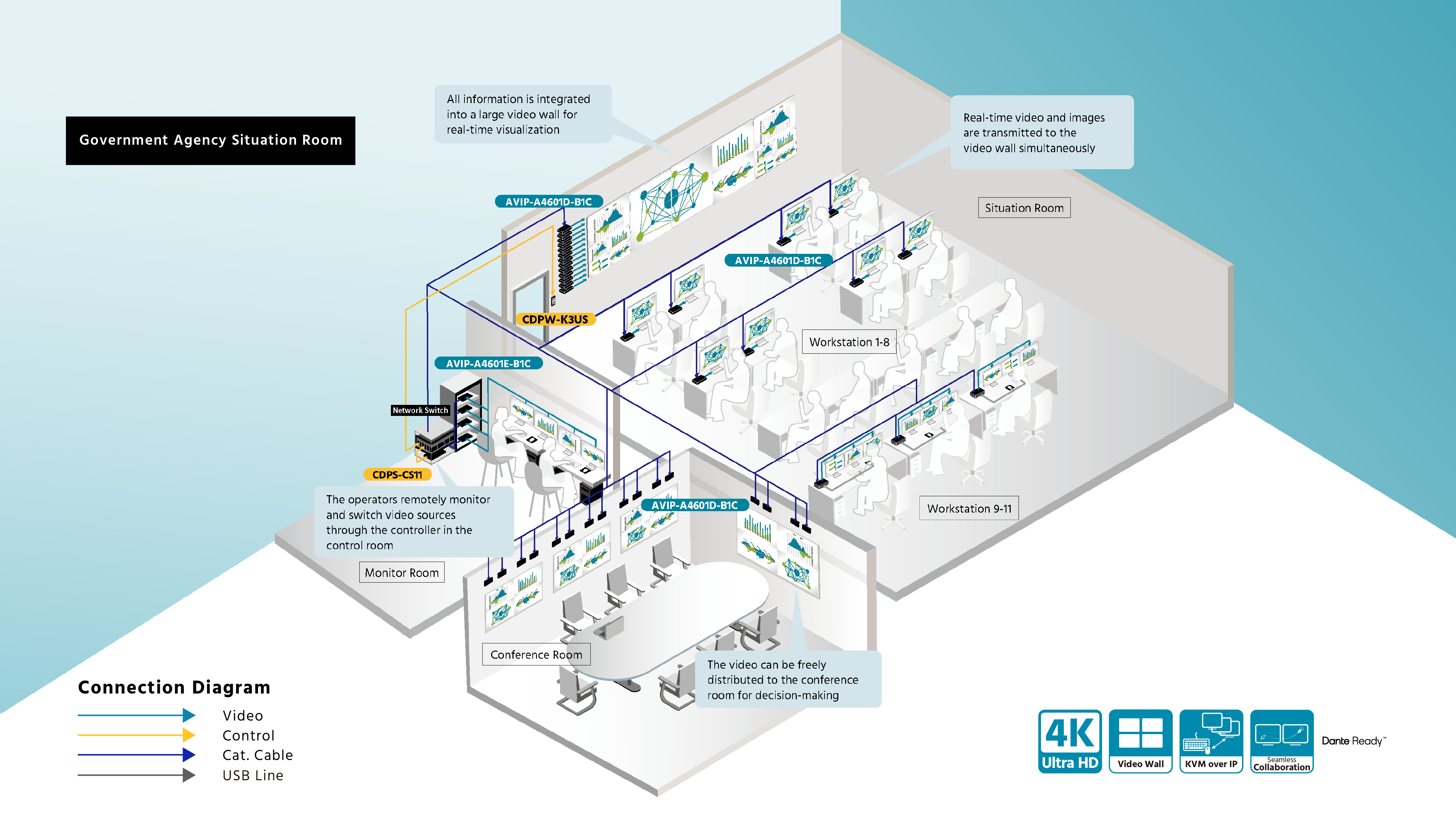

The smart situation room often requires real-time monitoring of on-site situations which involves synchronizing the transmission of information and audiovisual content to multiple locations and various displays. First responders can receive critical updates through the integration of audio, video and various information.

The 4K@60 AV over IP solution enables real-time transmission of high-quality AV signals ensuring information delivery in an efficient and seamless way. CYP's AV over IP solution provides comprehensive KVM over IP functionality to allow flexible image management and coordination between local and remote sites in order to achieve high efficiency and seamless collaboration..

The professional AV integration for smart situation rooms helps consolidate multiple data sources and customize screen layouts for display on monitors including video walls. Operators and managers can collaborate seamlessly through the comprehensive KVM over IP function enabling timely decision-making..

Purpose of Use

The smart situation room is useful for both emergency situations and production line monitoring. All information, including graphics, images and video displayed on video wall for centralized management allowing for easy switching between di-fferent sources. The on-site operators and remote sites can collaborate by managing images and video to any display for quick decision-making.

Product Advantage

To integrate and transmit high quality audio and video signal and synchronized them in real time.
Creating video wall and manage contents flexibly to fulfill the requirements of various scenarios.
Provides comprehensive KVM over IP functionality including connection, push, and retrieval, enabling flexible content management and creating a seamless collaborative digital environment.

PRODUCTS FEATURED

AVIP-A4601E-B1C

4K@60 HDMI over IP Transmitter

This unit supports both Unicast and Multicast modes, enabling video wall and seamless collaboration across multiple windows in Multicast mode. It supports the transmission of Ultra High-Definition signals (up to 4K@60Hz RGB) with audio and USB 2.0 up to 100m on a single cable which allows connection of USB flash drives, keyboard, and mouse. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. Moreover, it supports IP to IR and IP to RS-232, converting the IP signal into IR and RS-232 commands for device control. When the extension system's units are in multicast mode, a single transmitter's AV signal can be sent to a large number of receivers within the same local network without the additional receivers causing the bandwidth requirements to increase. Additionally, that same multicast signal can be used to create large multi-display video walls with amazing simplicity. When combined with the optional IP Master Controller the functionality of the system expands exponentially. Its centralized web-based interface greatly simplifies control and management of large distributed video matrix or video wall systems adding to their flexibility in large home or commercial installations. This system also features bi-directional IR and RS-232 pass-through, analog line level in/out, and a microphone input (on the receiver), providing the user with a variety of audio options. The USB functionality allows the system to act like a remote USB hub which, when combined with the HDMI input/output feature, provides a comprehensive USB over IP functionality platform. Configuration information is provided via On Screen Display (OSD) and control is by WebGUI, IP Master Controller, and Telnet. The unit is with Dante Ready which can transmit digital audio channels upon activation and is compatible with any standard Dante audio transmitters/ receivers that the audio might be routed to. Dante Ready provides a flexible way to enable and expand the connectivity and interoperability of the world's de-facto AV-over-IP solution, even after the initial purchase. Upgrade your system with Dante and connect to over 4,000 products from 500 manufacturers. Dante Ready is built within the widely used Dante Controller application for Dante audio and video subscription management. Transactions are simple and secure, and device upgrades are seamlessly actioned without the need to enter complex license keys of copy license files. This unit supports both Unicast and Multicast modes, enabling video wall and seamless collaboration across multiple windows in Multicast mode. It supports the transmission of Ultra High-Definition signals (up to 4K@60Hz RGB) with audio and USB 2.0 up to 100m on a single cable which allows connection of USB flash drives, keyboard, and mouse. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. Moreover, it supports IP to IR and IP to RS-232, converting the IP signal into IR and RS-232 commands for device control.

AVIP-A4601D-B1C

4K@60 HDMI over IP Receiver with USB 2.0

CDPS-CS11

4K60 over 1G IP Master Control

This controller is a powerful and flexible solution for controlling multiple Video over IP (VoIP) extenders within same network. The user only needs to install this unit into the same local network as the extenders (Transmitter and Receiver) to easily define and configure channel routing selections, for both unicast and multicast scenarios, using the WebGUI. It is also possible to define and switch routes using customized groups or presets allowing for easy control over multiple video zones. Without the use of this centralized unit, each individual Transmitter and Receiver in the system would need to be controlled and configured directly through their own individual WebGUIs.

4K Premium High Speed HDMI Cable (CBL-H100 & CBL-H300)
