4K60 6X2 Multi-Format to HDMI/HDBaseT Seamless Switch Matrix
This 6 by 2 Matrix is a multi-format switcher with integrated scaling featuring HDMI, DisplayPort, USB Type-C, and HDBaseT. The selected source (video & audio) can be transmitted over Cat.6A cable up to 100 meters along with bi-directional Ethernet, RS-232, USB, and IR as well as providing 48V PoH power to compatible HDBaseT transmitter and receiver. The HDMI, DisplayPort and USB-C ports support resolutions up to 4K@60 (4:4:4, 8-bit) while the HDBaseT output supports automatic down-conversion of 4K60(4:4:4) sources to 4K60(4:2:0).

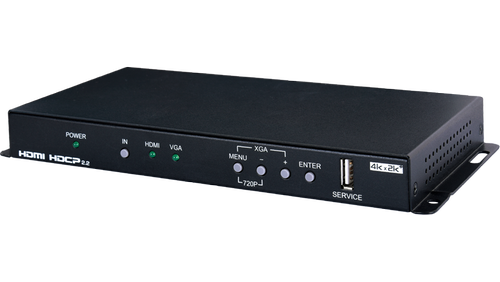

4K60 (4:4:4) 2×1 HDMI/VGA to HDMI Scaler with Audio Insertion
This scaler is designed to scale and convert HDMI, PC or Component video sources to an HDMI output with optional analog audio insertion. Scaled output resolutions from VGA (640×480@60Hz) all the way up to 4K@60Hz (4:4:4, 8-bit) are available. HD component video (YUV) is supported with the use of a 3-RCA to 15-pin adapter via the VGA input. If desired, external audio can be inserted into the HDMI output from the analog stereo 3.5mm input associated with each input. This unit has a comprehensive OSD menu which allows the user to select from a variety of output resolutions as well as to adjust the video settings to provide the best picture quality.
4K UHD+ HDBaseT to HDMI Scaler
This Receiver is designed to scale and convert HDBaseT video and audio for local HDMI output. The HDBaseT input supports resolutions up to 4K@60Hz (4:2:0, 8-bit). The scaled HDMI output supports resolutions from 640×480@60Hz up to 4K@60Hz and provides the ability to adjust the image with a number of fine tuning options including: contrast, brightness, hue, saturation, sharpness, noise reduction, and RGB levels. Furthermore, this unit supports passing 7.1 channel LPCM digital audio as well as advanced Bitstream and HD Bitstream audio formats. Analog stereo audio breakout is also available (LPCM 2.0 sources only). Shortcut keys are provided to quickly change the output resolution to 1080p60 or XGA when needed for quick connection to a display or for troubleshooting purposes. Additionally, the unit may be powered locally or via 48V PoH (Power over HDBaseT) from a compatible HDBaseT Transmitter, which allows for greater flexibility in installations. The unit can be controlled via front panel buttons with a comprehensive OSD.
