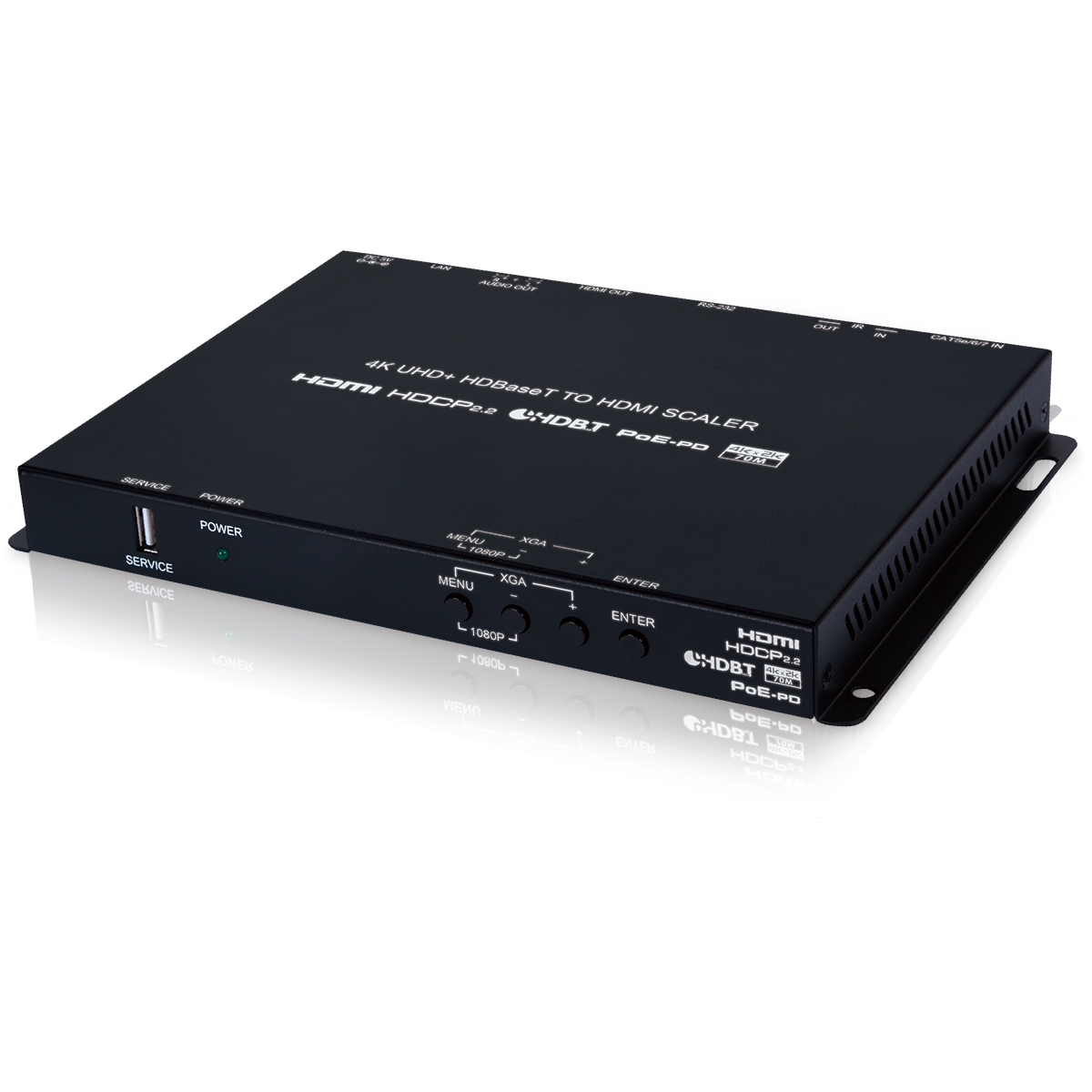

4K UHD+ HDBaseT to HDMI Scaler
This Receiver is designed to scale and convert HDBaseT video and audio for local HDMI output. The HDBaseT input supports resolutions up to 4K@60Hz (4:2:0, 8-bit). The scaled HDMI output supports resolutions from 640×480@60Hz up to 4K@60Hz and provides the ability to adjust the image with a number of fine tuning options including: contrast, brightness, hue, saturation, sharpness, noise reduction, and RGB levels. Furthermore, this unit supports passing 7.1 channel LPCM digital audio as well as advanced Bitstream and HD Bitstream audio formats. Analog stereo audio breakout is also available (LPCM 2.0 sources only). Shortcut keys are provided to quickly change the output resolution to 1080p60 or XGA when needed for quick connection to a display or for troubleshooting purposes. Additionally, the unit may be powered locally or via 48V PoH (Power over HDBaseT) from a compatible HDBaseT Transmitter, which allows for greater flexibility in installations. The unit can be controlled via front panel buttons with a comprehensive OSD.

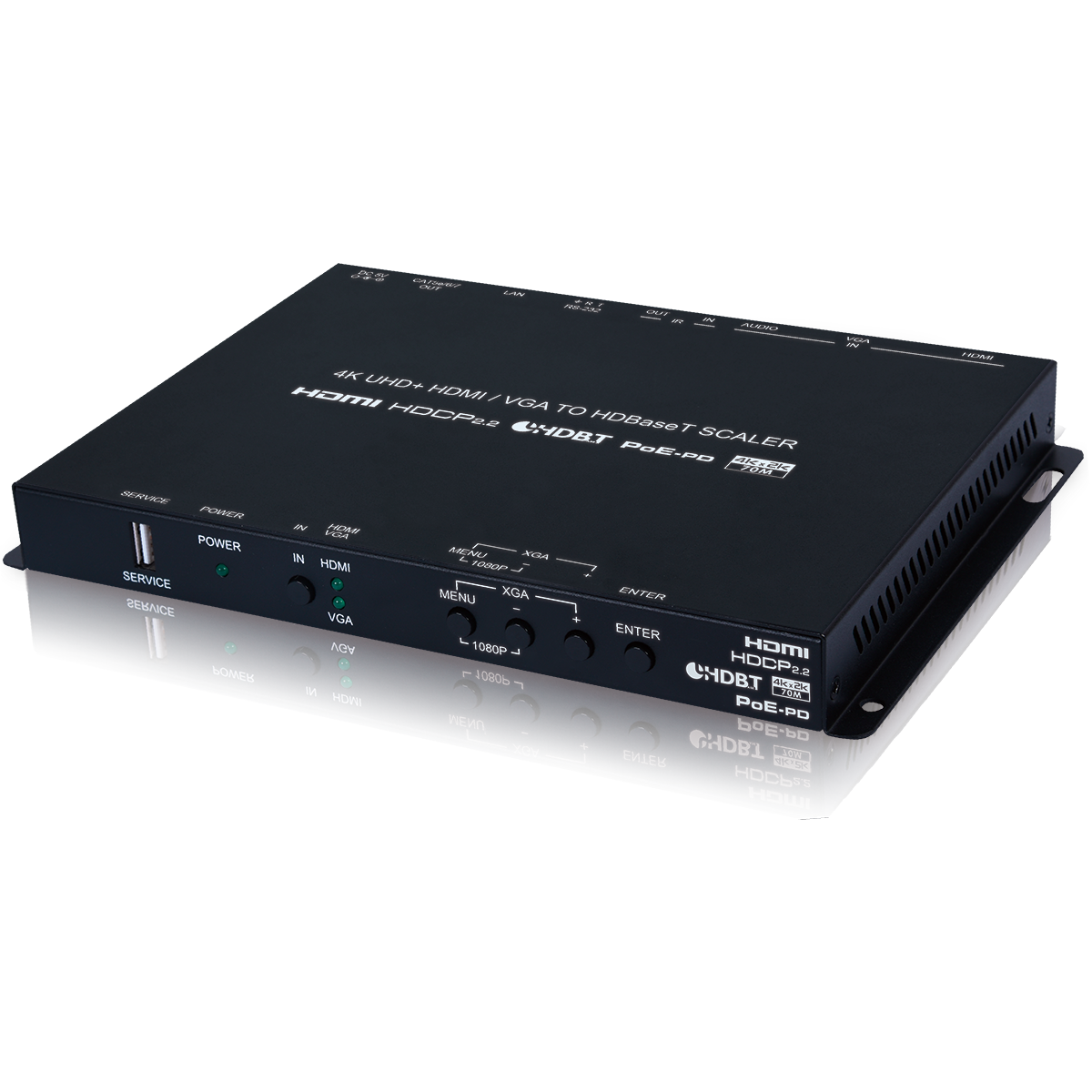

4K UHD+ HDMI/VGA to HDBaseT Scaler
This Transmitter is designed to scale and convert HDMI and PC video,with optional analog audio embedding, for extension over long distances to standard HDBaseT Receivers. The HDMI input supports resolutions up to 4K@60Hz and the VGA input supports resolutions up to 1080p60/ WUXGA (RB). The scaled HDBaseT output supports resolutions from 640×480@60Hz up to 4K@60Hz (4:2:0, 8-bit) and provides the ability to adjust the image with a number of fine tuning options including: contrast, brightness, hue, saturation, sharpness, noise reduction, and RGB levels. Furthermore, this unit supports passing 7.1 channel LPCM digital audio as well as advanced Bitstream and HD Bitstream audio formats via the HDMI input, or analog stereo audio may be embedded from the provided stereo mini-jack connection. Shortcut keys are provided to quickly change the output resolution to 1080p60 or XGA when needed for quick connection to a display or for troubleshooting purposes. Additionally, the unit may be powered locally or via 48V PoH (Power over HDBaseT) from a compatible HDBaseT Receiver, which allows for greater flexibility in installations. The unit can be controlled via front panel buttons with a comprehensive OSD.
4K60 (4:4:4) 1×1 HDMI Scaler with Test Patterns
This Scaler is designed to convert sources between 4K and 1080p to enable greater compatibility with the native resolutions of available displays. 4K sources may be scaled to 1080p, or bypassed, and 1080p sources may be scaled to 4K, or bypassed, all while maintaining the original frame rates. Additionally, a variety of output color space options are available, including RGB, YUV (4:4:4, 8-bit) and YUV (4:2:0, 8-bit).
