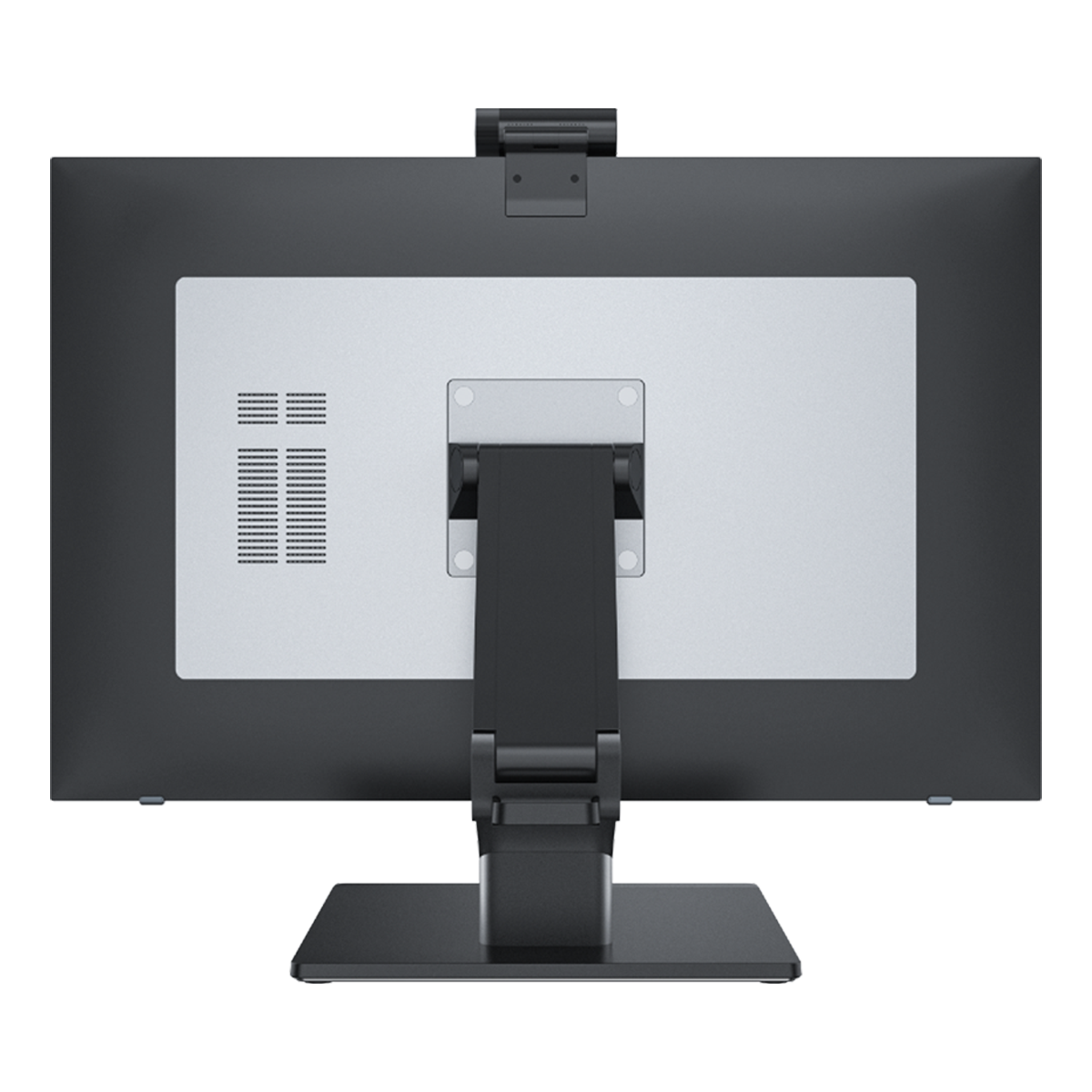

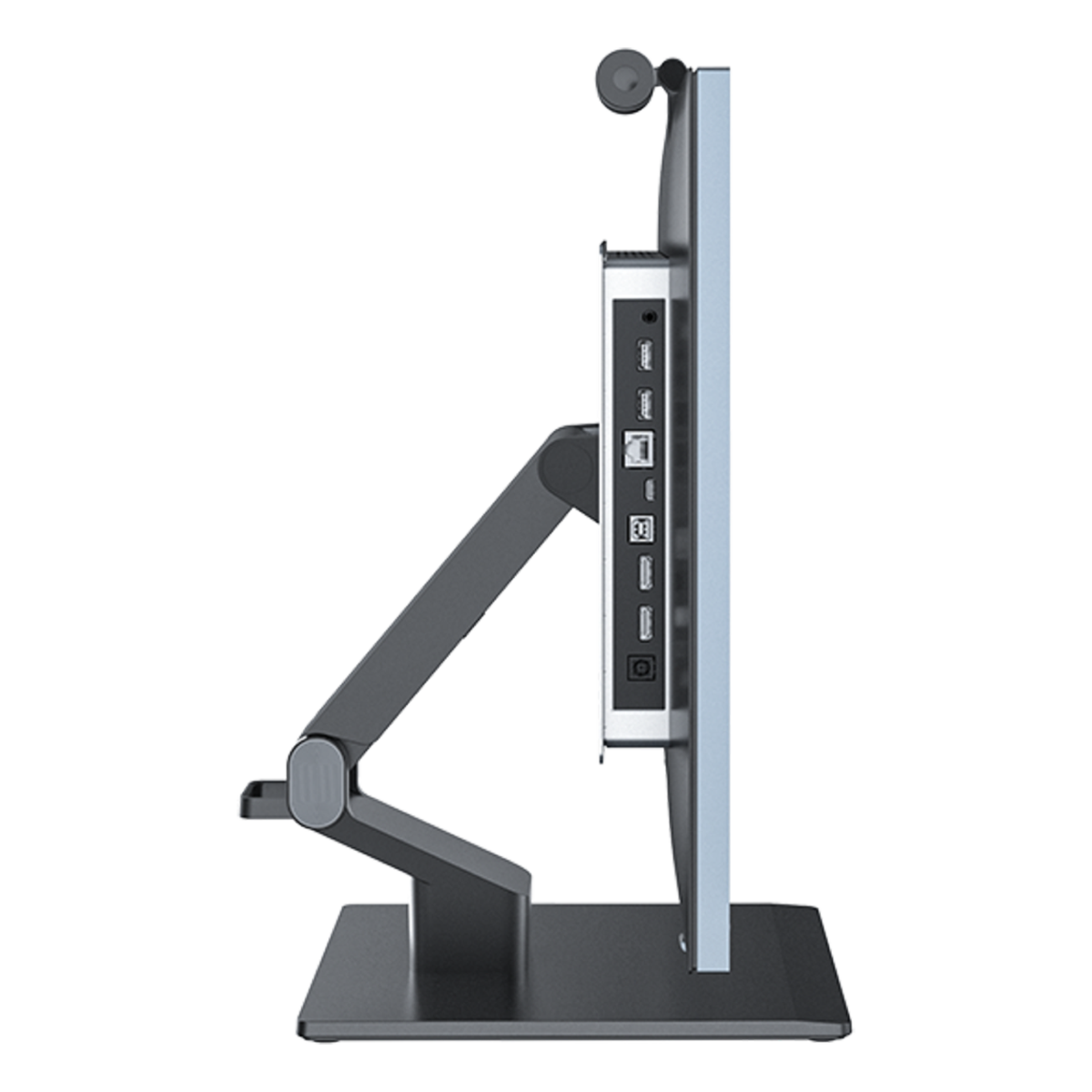

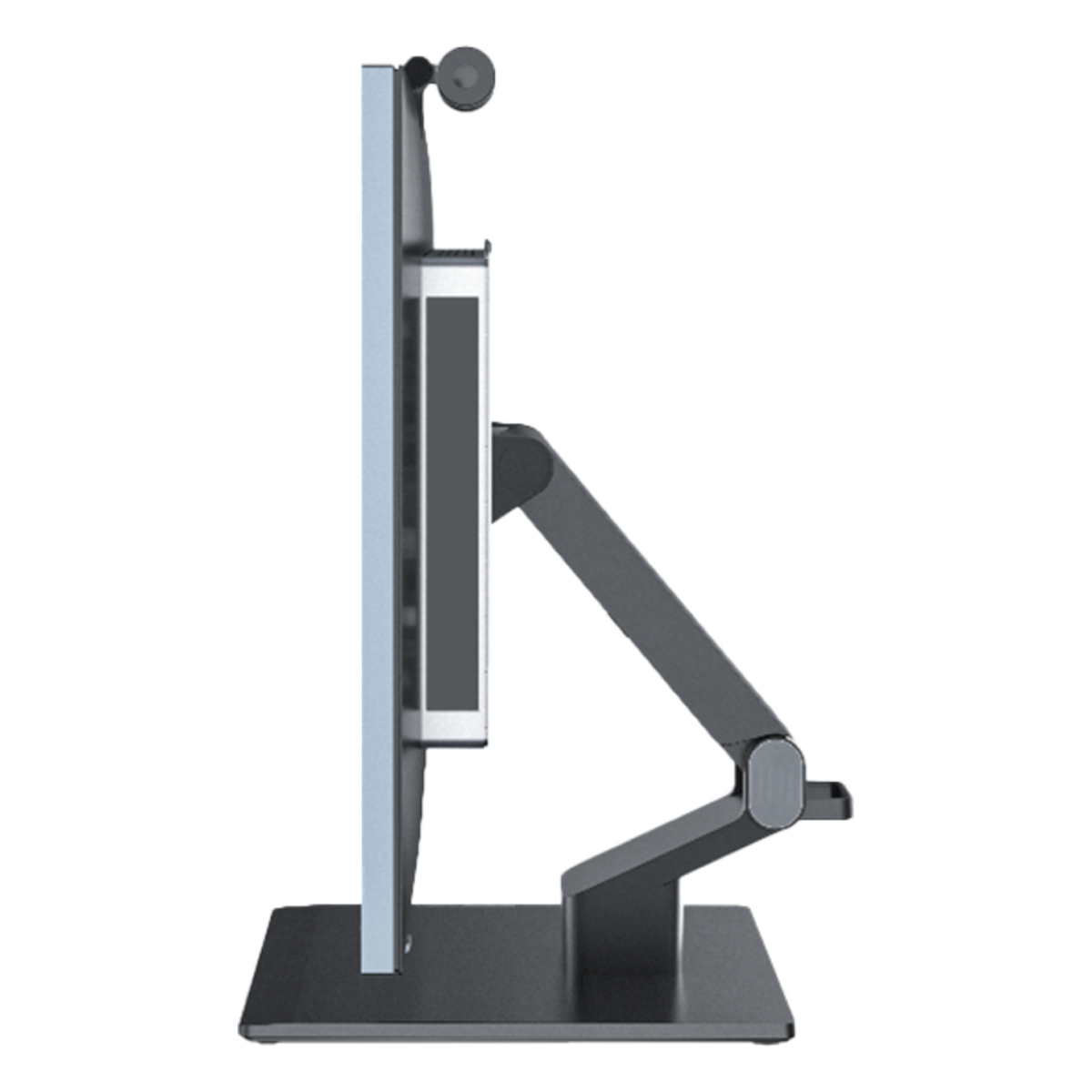

MED-PPS-2700

27” Panel PC with Dual System and Audiovisual Module Cards Expansion

27” screen with 4K resolution
Dual OS
Multi-Touch & Writing
Assistance with DICOM diagnosis
Module card expansion

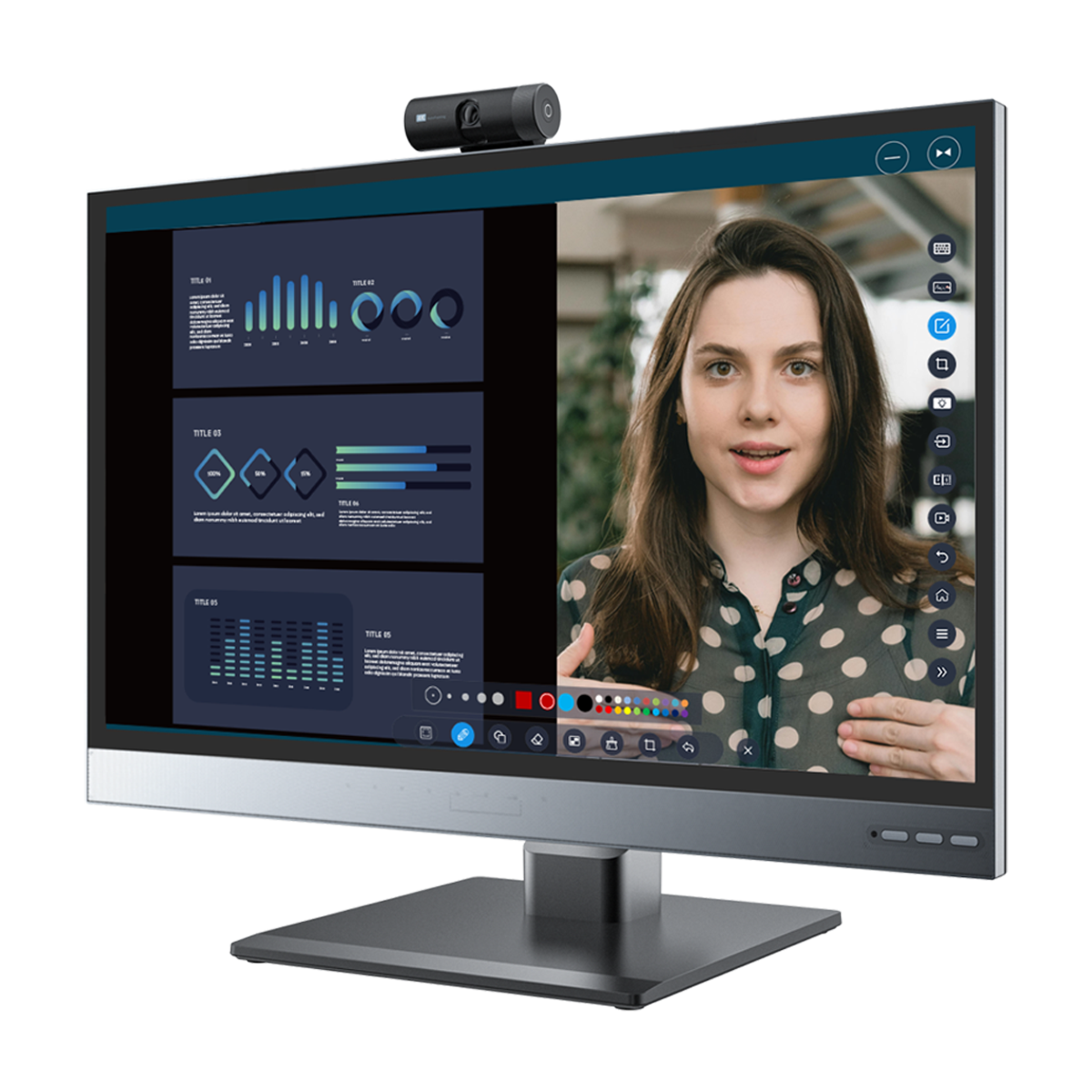

The MED-PPS-2700 is a high-performance multifunctional display designed for users who demand flexibility and seamless system integration. Featuring a 27-inch UHD screen with 4K60 resolution, it ensures exceptional clarity for applications such as medical diagnostics, industrial automation, and other content creation.

With dual-system, dual-network capabilities, this PC allows users to operate two independent systems simultaneously, enhancing security and efficiency. Its multi-touch and handwriting support provide an intuitive interface, making it ideal for precise user input. Additionally, DICOM-assisted diagnostics optimize the display for medical imaging, helping healthcare professionals achieve greater diagnostic accuracy.

The module card slot enables real-time, high-resolution content capture using CYP SDM module cards, supporting seamless integration with HDBT, SDVoE as well as SDI/HDMI conversion upon image functionalities. All module cards support hot-swappable replacement. The embedded barcode scanner further enhances workflow efficiency by streamlining data retrieval. Designed for adaptability, its foldable hinge allows ergonomic adjustments for various usage scenarios, ensuring a comfortable and efficient workspace.

With powerful performance and a versatile design, the MED-PPS-2700 is the ideal solution for users seeking innovation and efficiency in an all-in-one system.

System
CPU	ARM Cortex A78 x 4 + A55 X 4
GPU	ARM Mali G57 MC5
Operation System	Android 11
Memory	6GB
Storage	32GB

Expansion
Expansion	CYP Audio-Visual features card or Intel Core i5 SDM card

Audio
MIC	8 MIC Array
Speaker Output	2 X 5W

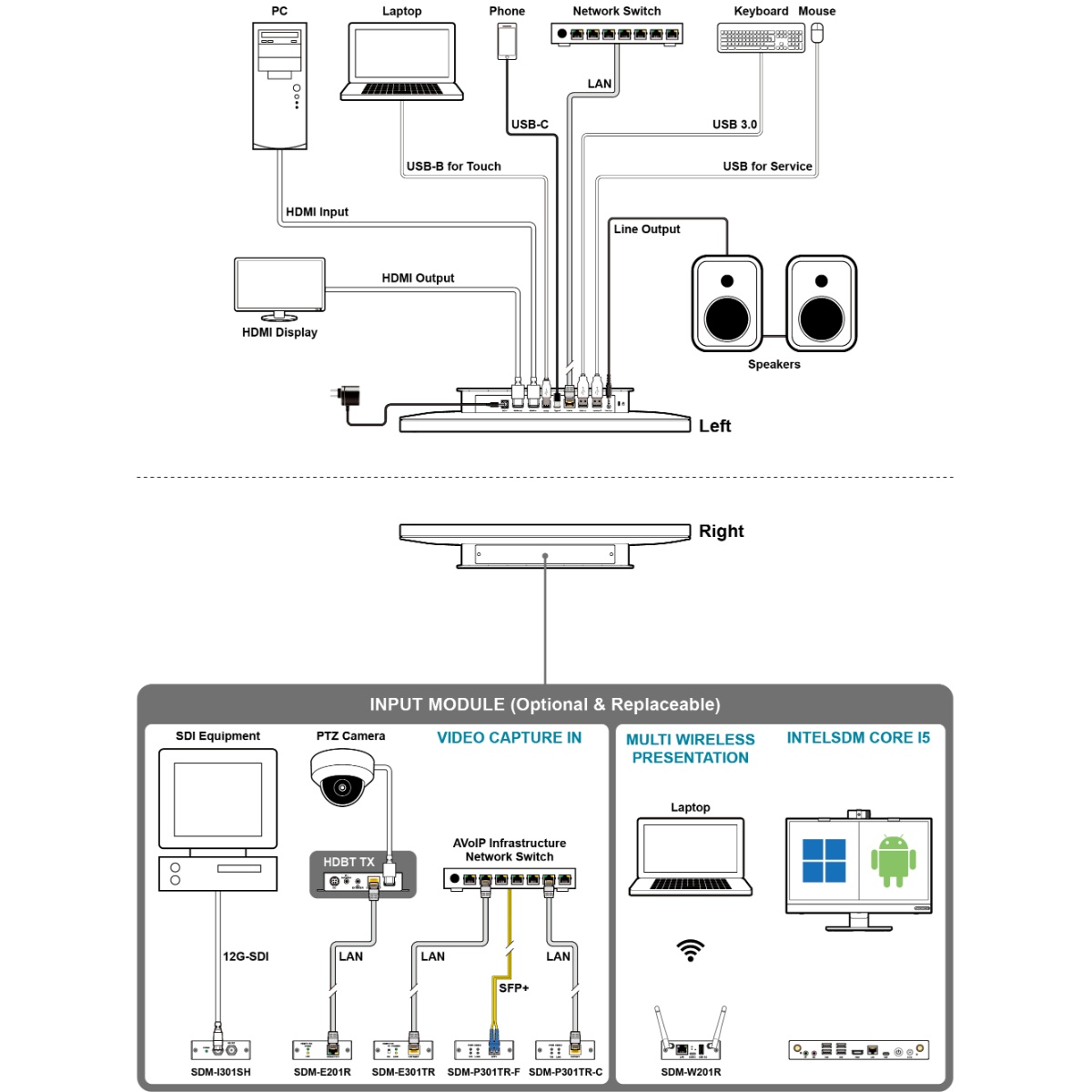

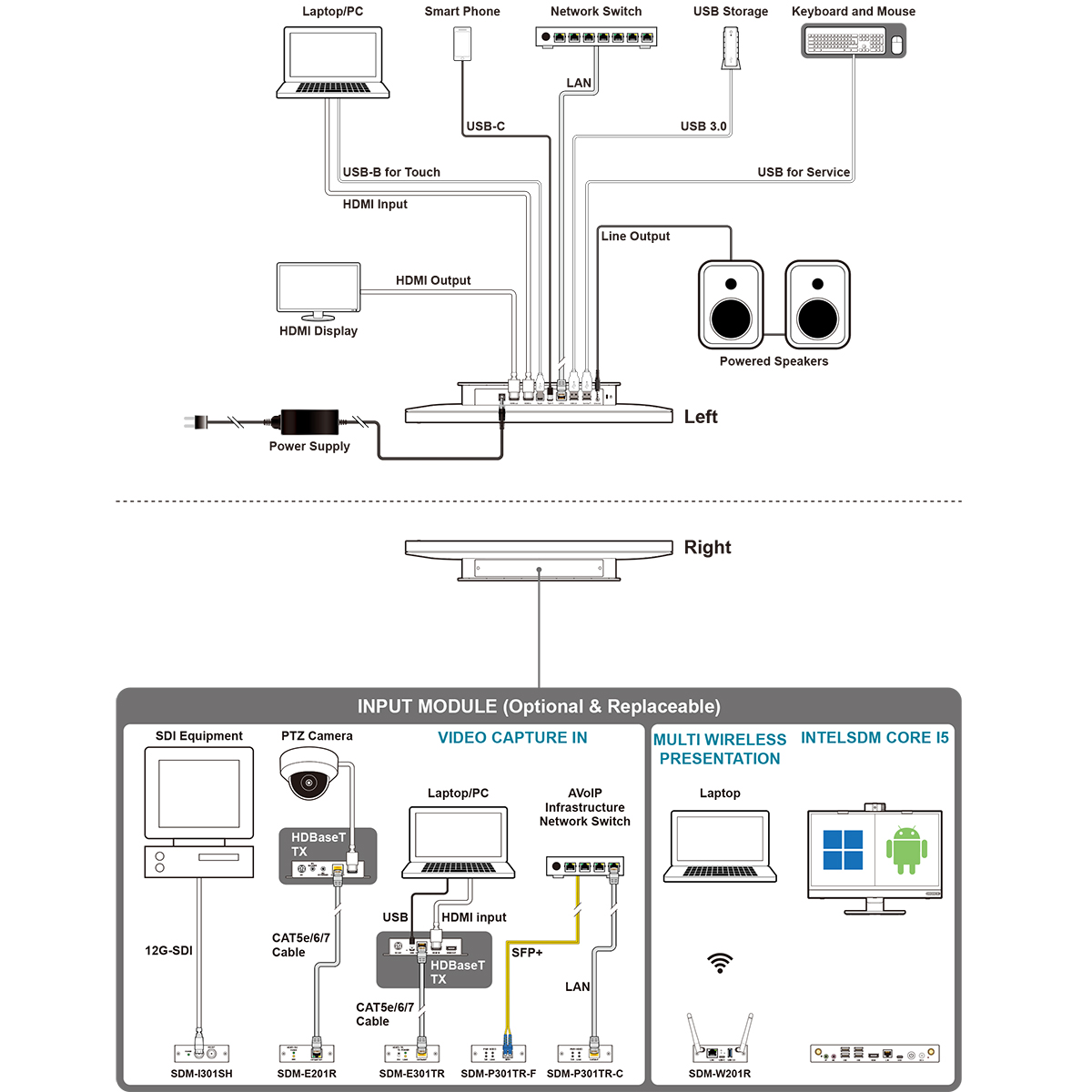

Interface
Input Port	1 X HDMI 2.0 1 X 3.5mm Mini Lack(Aux)
Output Port	1 X HDMI 2.0 1 X 3.5mm Mini Lack(Head phone)
USB	1 X USB 3.0 Type A 1 X USB 2.0 Type A (service) 1 X USB 2.0 Type B (Touch) 1 X USB Type C (with 65W PD)
LAN Port	RJ45(10/100/1000)M X 1
Wireless Communication	Wi-Fi / Bluetooth

Panel
Pixel Pitch	0.1554(H) X 0.1554(V)mm
Viewing Angle	178°(H)/178°(V)
Touch Type	10 Point(Finger + Stylus Pen +Palm Rejection)
LCD Size	27”
Resolution	UHD 3840 X 2160
Color performance	99% sRGB
Gamma	Gamma 2.2(fit DICOM curve)
Frame Rate	60Hz

Mechanical & Environmental
Dimension(w/o stand)	323.2 X 405.2 X 58.7 mm
Weight(w/o SDM)	8.5kg
Storage Temp.	-20 ~ 70 °C(Sea level)/-4 ~ 158°F
Storage Humidity	10 ~ 90%(non-condensing)
Operating Temp.	0 ~ 40 °C(up to 10,000 ft)/32 ~ 104°F
Operating Humidity	10 ~ 80%(non-condensing)

Multimedia
Camera	8M camera, FOV(D)>90°
Microphone	8 Array, 1M Far-field, Beamforming, AGC, Echo Canceling, Noise Suppression
Speaker	5W X 2, FR: 80-20KHz(Front Firing)

Power
Power Supply	Power Adapter(AC 100-240V)
Power Consumption (in Operation)	73W(w/o SDM), 92W(w/SDM)
Power Consumption (in Standby)	<2W

Optional Module Cards for Expansion

	Model Name	Main Function	Max. Resolution	USB	Features
Input (Rx) Modules	SDM-E301TR	HDBaseT 3.0 TR	4K60 (4:4:4)	–	- P2P Extension
	SDM-P301TR-C	SDVoE over copper	4K60 (4:4:4)	–	- AVoIP - Multi-view - Video wall - KVM - F/W update
	SDM-P301TR-F	SDVoE over fiber	4K60 (4:4:4)	–	- AVoIP - Multi-view - Video wall - KVM - F/W update
	SDM-E201R	HDBaseT 1.0 Rx	4K60 (4:2:0)	–	- P2P extension
	SDM-I301SH	SDI Input	4K60 (4:2:2)	–	- SDI in conversion
	SDM-W201R	Wireless Rx	4K30	USB 3.0	- Wireless Rx - Remote view - Up to 4 multi-view
Input (Intel) Modules	SDM-I5	Intel + Win11	–	–	- Core I5 16G, 256GB SSD

Audio/Visual expansion


Model Name	SDM-E301TR	SDM-P301TR-C	SDM-P301TR-F
Main Function	HDBaseT 3.0 TR	SDVoE over copper	SDVoE over fiber


Model Name	SDM-E201R	SDM-I301SH	SDM-W201R
Main Function	HDBaseT 1.0 Rx	SDI Input	Wireless Rx

Dual system expansion

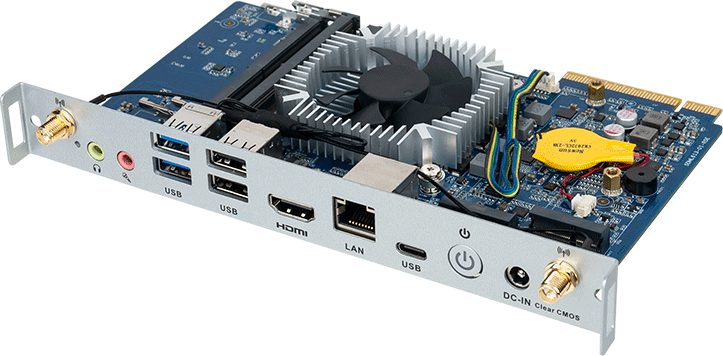

Model Name	Intel SDM-I5
Main Function	Intel + Win 11

PRODUCTS FEATURED

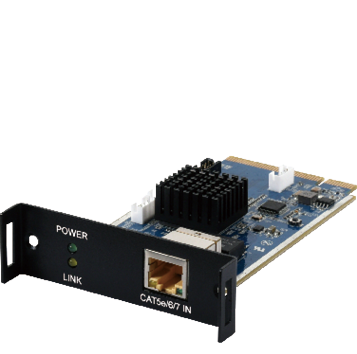

SDM-E201R

HDBaseT Receiver Module (4K@60 420 up to 40M)

The HDBT Module Card is able to receive signals from compatible transmitter via Category cable, with resolutions up to 4K@60. The module card is compatible with CYP module slot, CPLUS-V32SDM. It can be combined with transmitters that have category interface. This module card offers flexible options to customers.

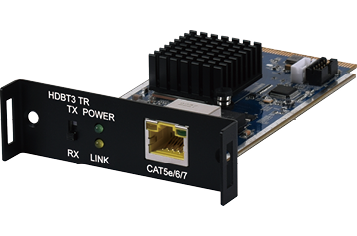

SDM-E301TR

HDBaseT Transceiver Module (4K@60 444 up to 40M)

This HDBaseT Transceiver Module uses HDBaseT 3.0, the newest generation of HDBaseT technology, and is the perfect solution for extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video with HD audio via a single run of Cat. 5e/6/7 cable over distances of up to 40 meters. Every Transceiver can be configured to function as either a transmitter or a receiver, enhancing the flexibility of any installation. This extender complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. The module's design is compatible with a variety of products that have a standard CYP Module Slot for input or outputting signals, offering increased workability to customers.

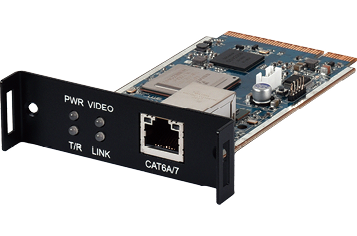

SDM-P301TR-C

4K60 AV over IP Transceiver Module

This AV over IP Transceiver Module is designed for high-quality, IP routable, AV extension up to 4K@60 4:4:4 with minimum latency. The use of 10-Gigabit Ethernet ports, and Cat.6A cable allows transmission of the video signal up to 100m. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode. When combined with the optional IP Master Controller or control software, the functionality of the transceiver expands exponentially. Multiple transmitters and receivers may be combined with one or more 10-Gigabit Ethernet switches and the units can be used together to form a distributed video matrix, a multiviewer system, or a video wall system adding to their flexibility in large event installations. Advanced control such as firmware update can also be performed conveniently through the optional IP Master Controller or control software. The module’s design is compatible with a variety of products that have a standard CYP Module Slot, offering increased flexibility to customers.

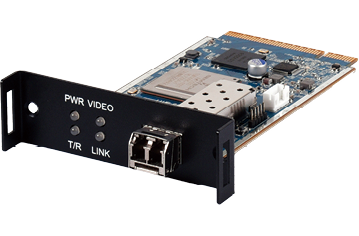

SDM-P301TR-F

4K60 AV over IP Transceiver Module

This AV over IP Transceiver Module is designed for high-quality, IP routable, AV extension up to 4K@60 4:4:4 with minimum latency. Every Transceiver is capable of simultaneous bi-directional AV extension, enhancing the flexibility of any installation. The use of interchangeable, field replaceable, SFP+ modules allows for transmission distances of up to 120km (Maximum transmission distance depends on the SFP+ modules used).

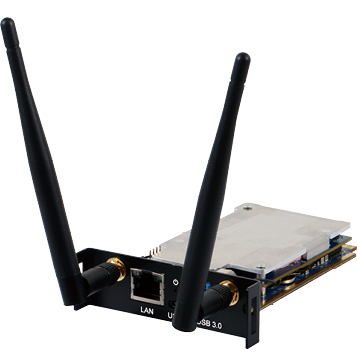

SDM-W201R

Hyshare Pro Wireless Receiver Module

The Hyshare Pro is a high-performance Wireless Receiver Module, which provides a smooth wireless screen-casting experience. Users are free from messy cables and complicated interfaces. It supports cross-platform collaboration and communication, including Windows, macOS, Android, and iOS systems. This wireless receiver Mobile can be easily slotted into CYP SDM input platform, such as CPLUS-V32SDM. Users can instantly share their screens on a host computer, smart phone or tablet in meetings or classes through the Hyshare Pro App or the optional Hyshare Pro Pod.

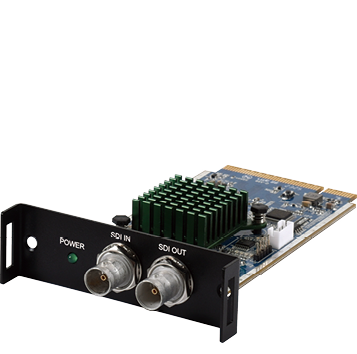

SDM-I301SH

4K60 12G-SDI to HDMI Receiver Module

This 4K60 12G-SDI to HDMI Receiver Module allows SDI signals up to 4K60 to be converted for display on standard HDMI video displays. This makes it easier for professionals to monitor or output professional SDI video production sources on standard, relatively low-cost, HDMI displays while allowing the original SDI signal to continue to be looped on to other SDI equipment in their production environment. The module's design is compatible with a variety of products that have a standard CYP Module Slot, offering increased flexibility to customers.
