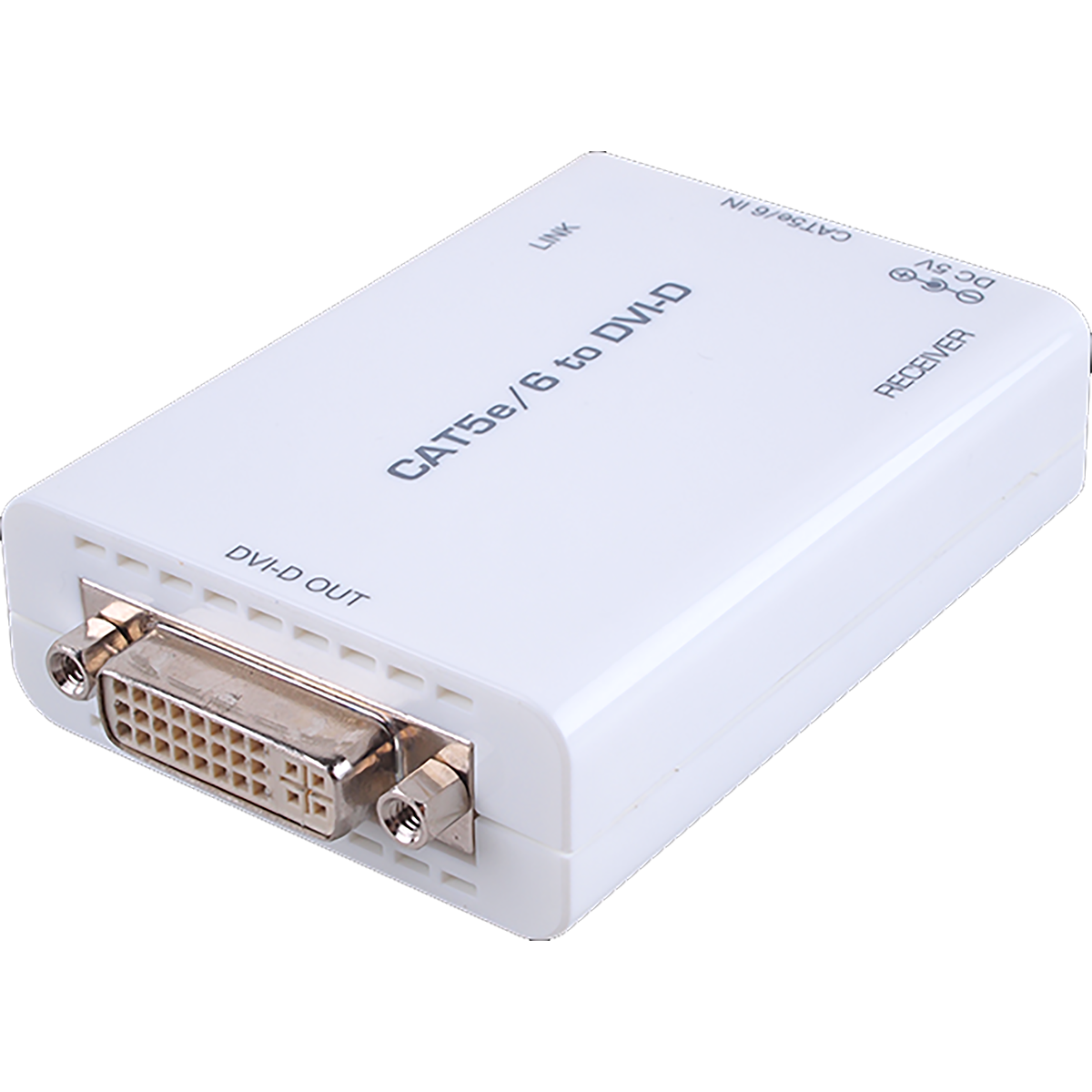

CDVI-513RXL

DVI over CAT5e/6 Receiver (1920 × 1080 (RB) up to 60M)

Complies with the HDBaseT-Lite class
CAT5e/6/7HDMI (including HDCP with HDMI to DVI adaptor) over a single CAT5e/6/7 up to 60m
Full HD resolution support (1080p@60Hz/36-bit) and PC resolution support (VGA to WUXGA) over CAT5e/6 cable
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI

The DVI Extender over single CAT5e/6/7 allows for a more efficient system setup and is easy to install.

Uncompressed video and audio can be transmitted to distances of up to 60 meters at 1080p and 3D with High-Definition Audio up to 7.1CH (with HDMI to DVI adaptor).

Designed with HDBaseT technology for greater flexibility in custom installations with full DVI signal transfer over a single CAT5e/6/7 cable.

Interfaces

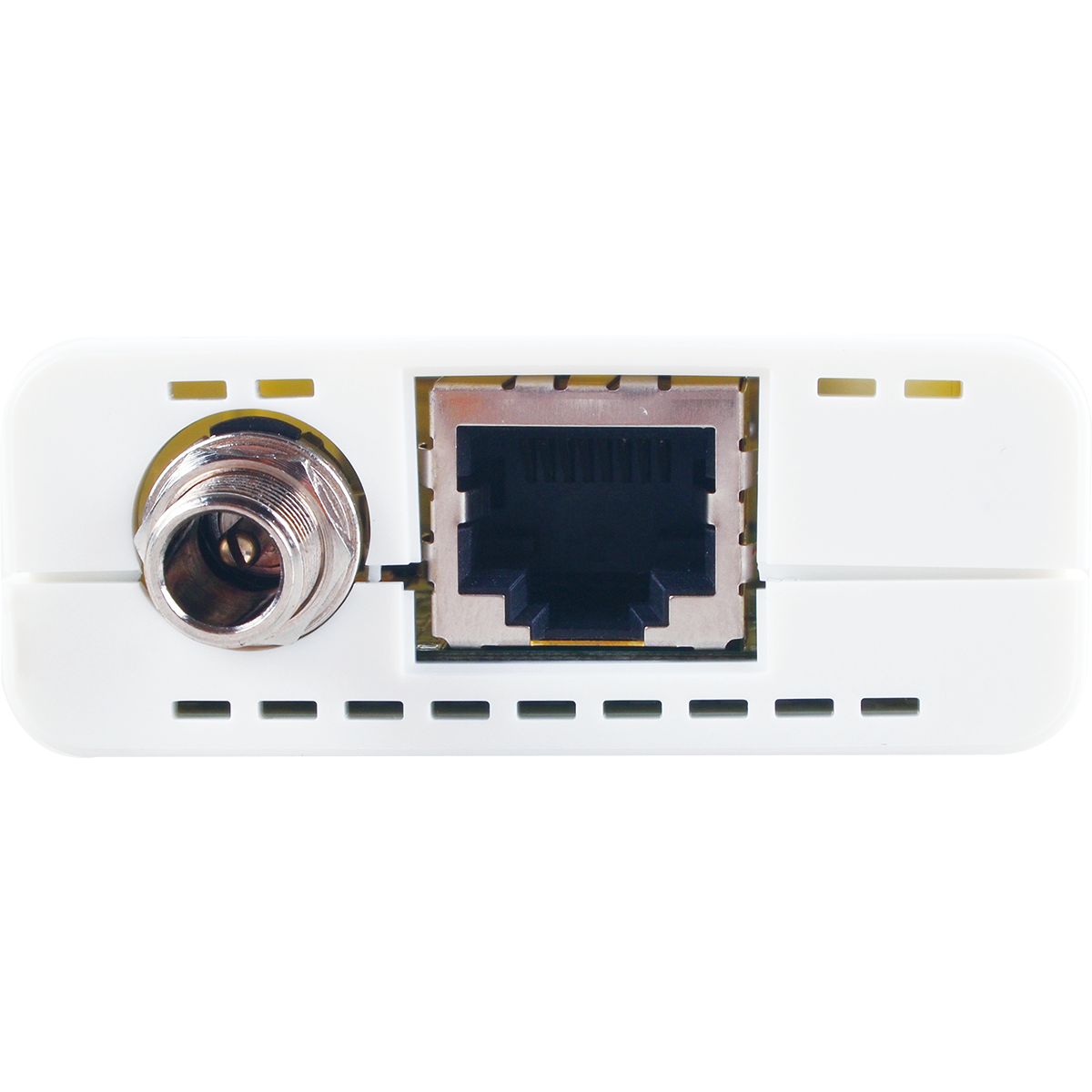

Input Port	1×HDBaseT (RJ-45)

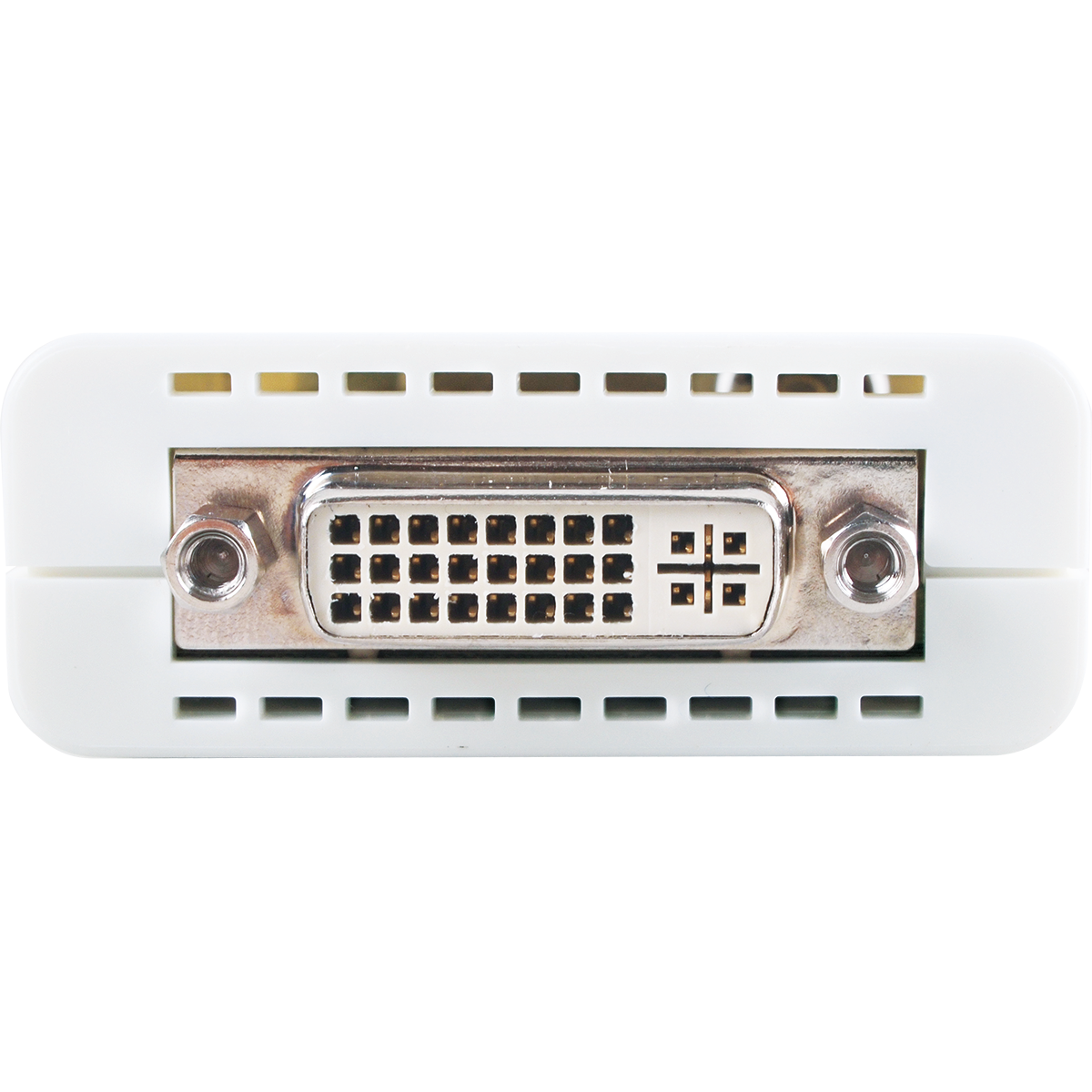

Output Port	DVI(DVI-I)

Video
HDMI Compliance	HDCP2.x
Input Signal Types	1080p60 12-bit
Output Signal Type	1080p60 12-bit

Resolutions
Maximum Input	HDBaseT6	1920×1080p@60 1920×1200p@60RB
Maximum Output	DVI	1920×1080p@60 1920×1200p@60RB

Power
Power Supply	2×5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	5.5 W

Enclosure
Chassis Material	Plastic
Chassis Color	White
Dimensions (W×H×D)	55 mm × 22.5 mm × 82 mm
Weight	64g

Ordering Information
Model No.	Product Description
CDVI-513RXL	DVI over CAT5e/6/7 Receiver

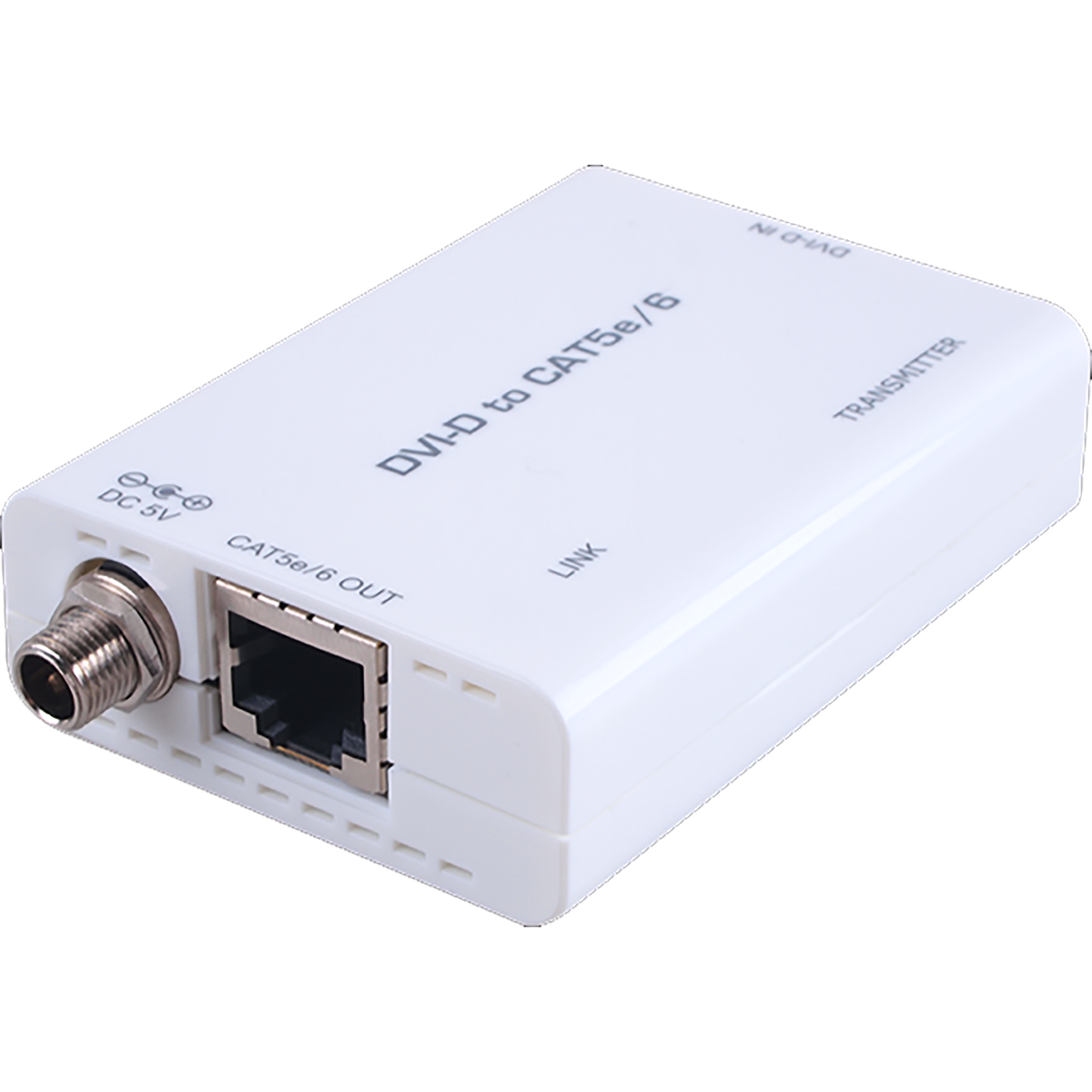

CDVI-513TXL	DVI over CAT5e/6/7 Transmitter

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/02/19	CDVI-513TXLRXL Manual	1	all	CDVI-513TXLRXL Manual
