CDVI-513TXL

DVI over CAT5e/6 Transmitter (1920 × 1200 (RB) up to 60M)

Complies with the HDBaseT-Lite class
Supports HDMI (including HDCP with HDMI to DVI adaptor) over a singleCAT5e/6/7 up to 60m
Full HD resolution support (1080p@60Hz/36-bit) and PC resolution support (VGA to WUXGA) over CAT5e/6/7 cable

The DVI Extender over single CAT5e/6/7 allows for a more efficient system setup and is easy to install.

Uncompressed video and audio can be transmitted to distances of up to 60 meters at 1080p and 3D with High-Definition Audio up to 7.1CH (with HDMI to DVI adaptor).

Designed with HDBaseT technology for greater flexibility in custom installations with full DVI signal transfer over a single CAT5e/6/7 cable.

Interfaces

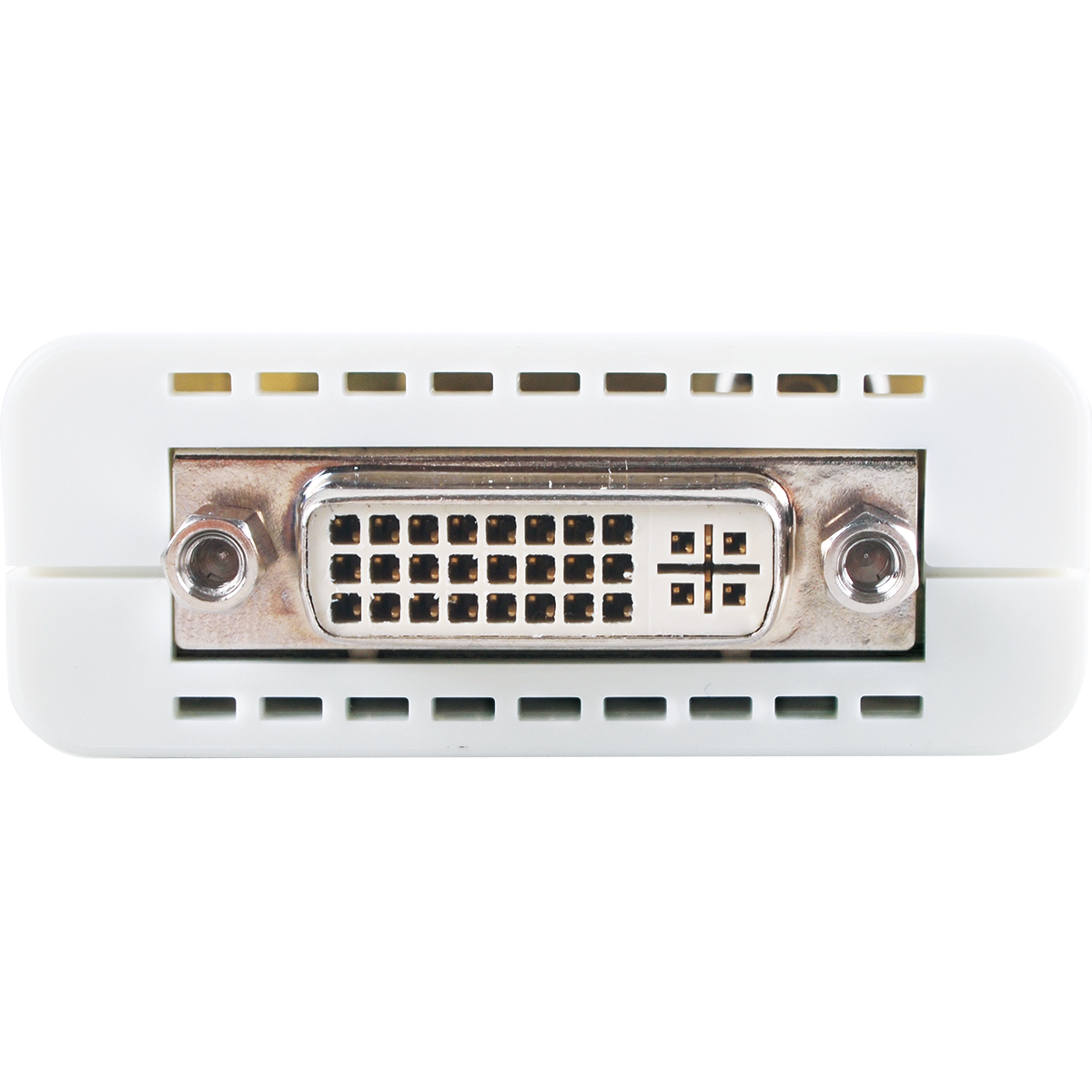

Input Port	DVI(DVI-I)
Output Port	1×HDBaseT (RJ-45)

Video
HDMI Compliance	HDCP2.x
HDCP Compliance	HDCP 1.4
Input Signal Types	1080p60 12-bit
Output Signal Type	1080p60 12-bit

Resolutions
Maximum Input	DVI	1920×1080p@60 1920×1200p@60RB
Maximum Output	HDBaseT	1920×1080p@60 1920×1200p@60RB

Power
Power Supply	2×5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption	3.5W

Enclosure
Chassis Material	Plastic
Chassis Color	White
Dimensions (W×H×D)	55 mm × 22.5 mm × 82 mm
Weight	56g

Ordering Information
Model No.	Product Description
CDVI-513TXL	DVI over CAT5e/6/7 Transmitter
CDVI-513RXL	DVI over CAT5e/6/7 Receiver

Product Support
Upload Date	File Name	Version	OS	Description	Download
2021/02/19	CDVI-513TXLRXL Manual	1	all	CDVI-513TXLRXL Manual

PRODUCTS FEATURED

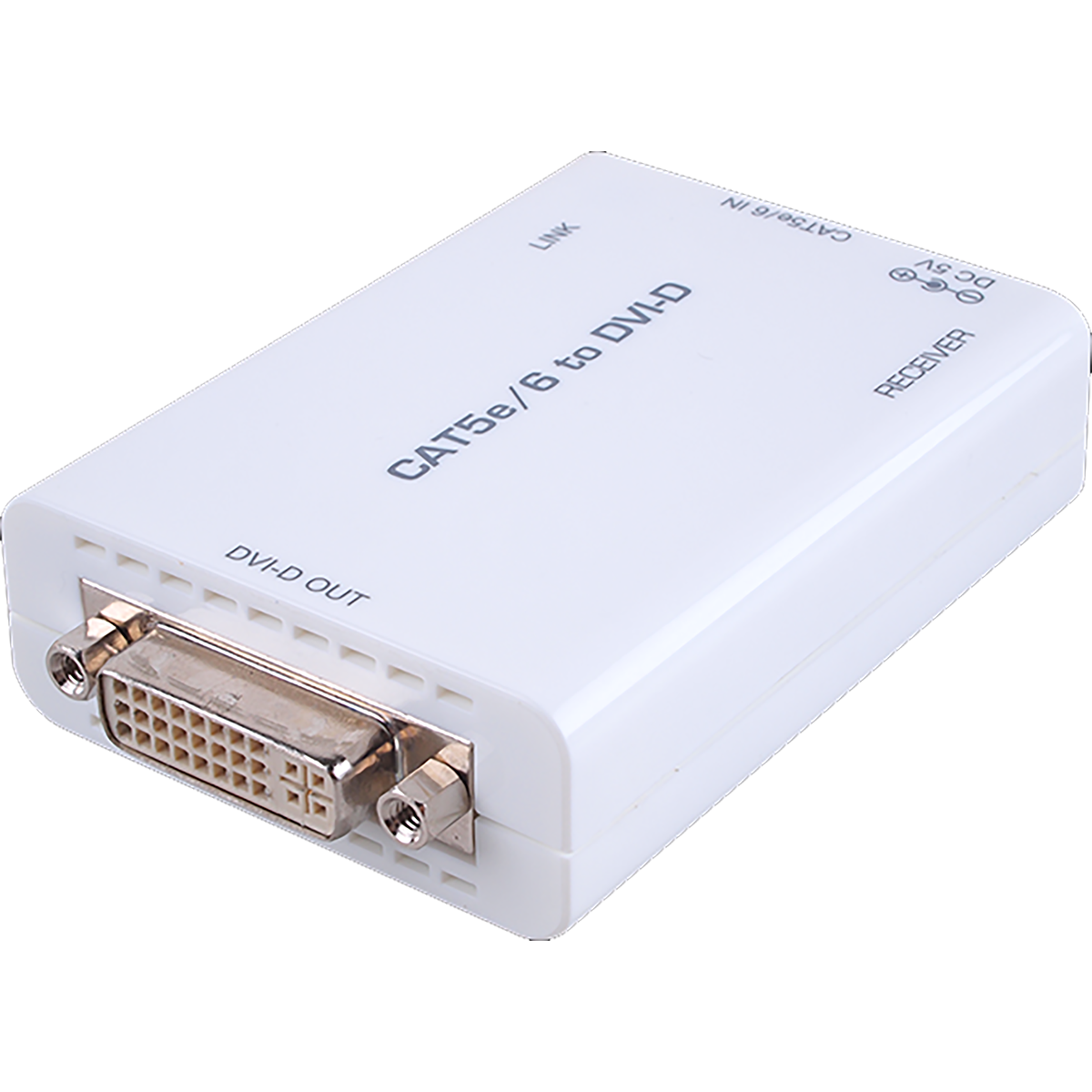

CDVI-513RXL
