Extenders

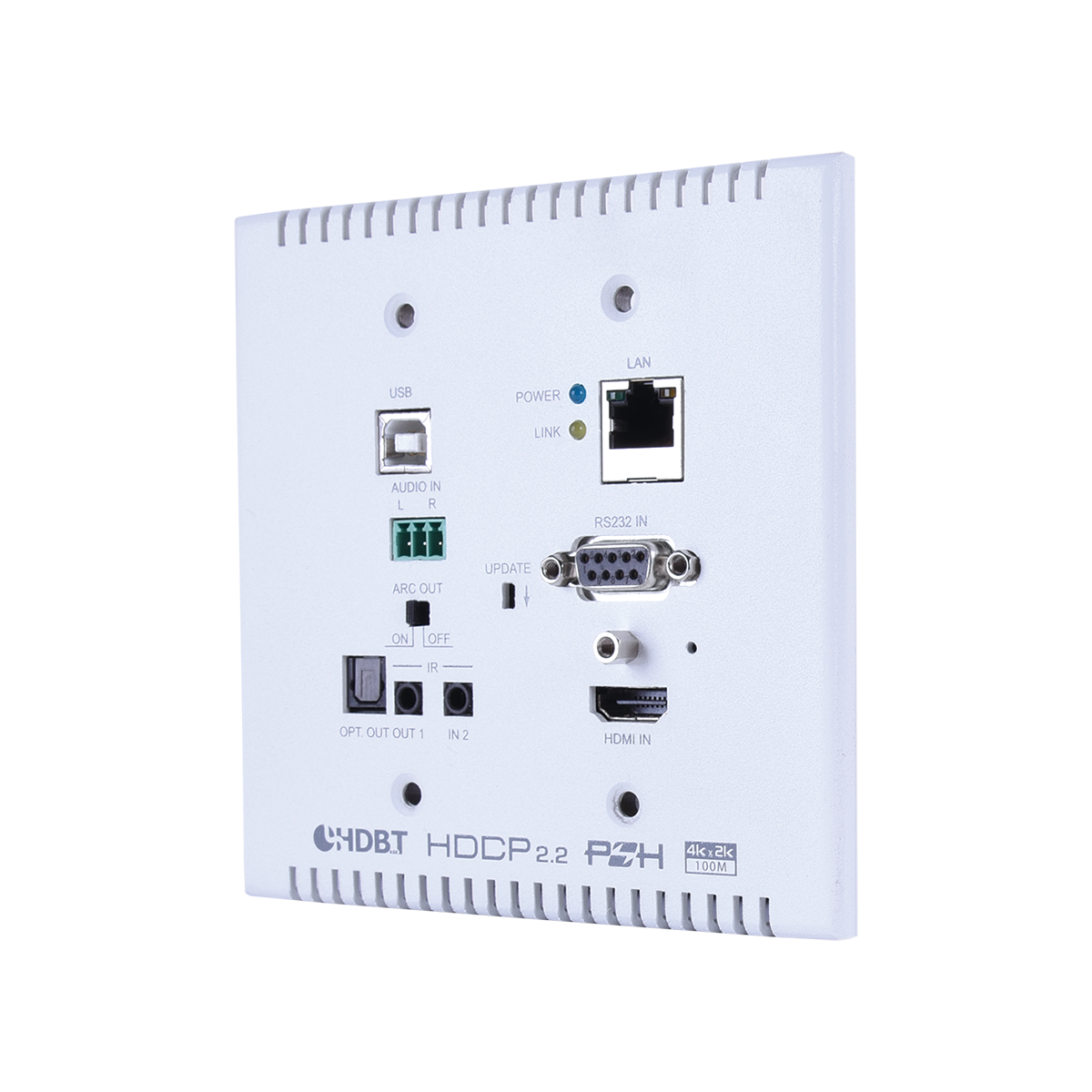

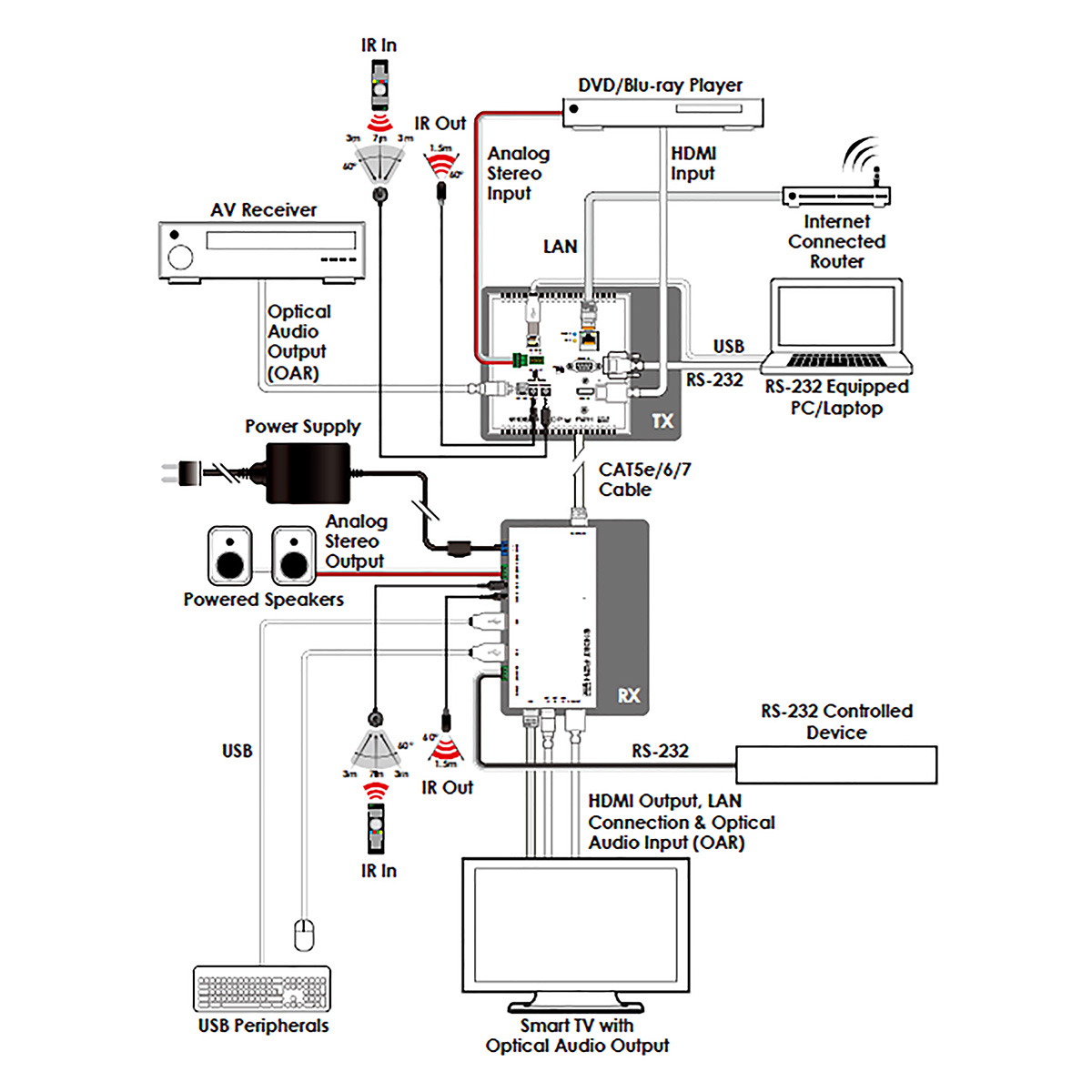

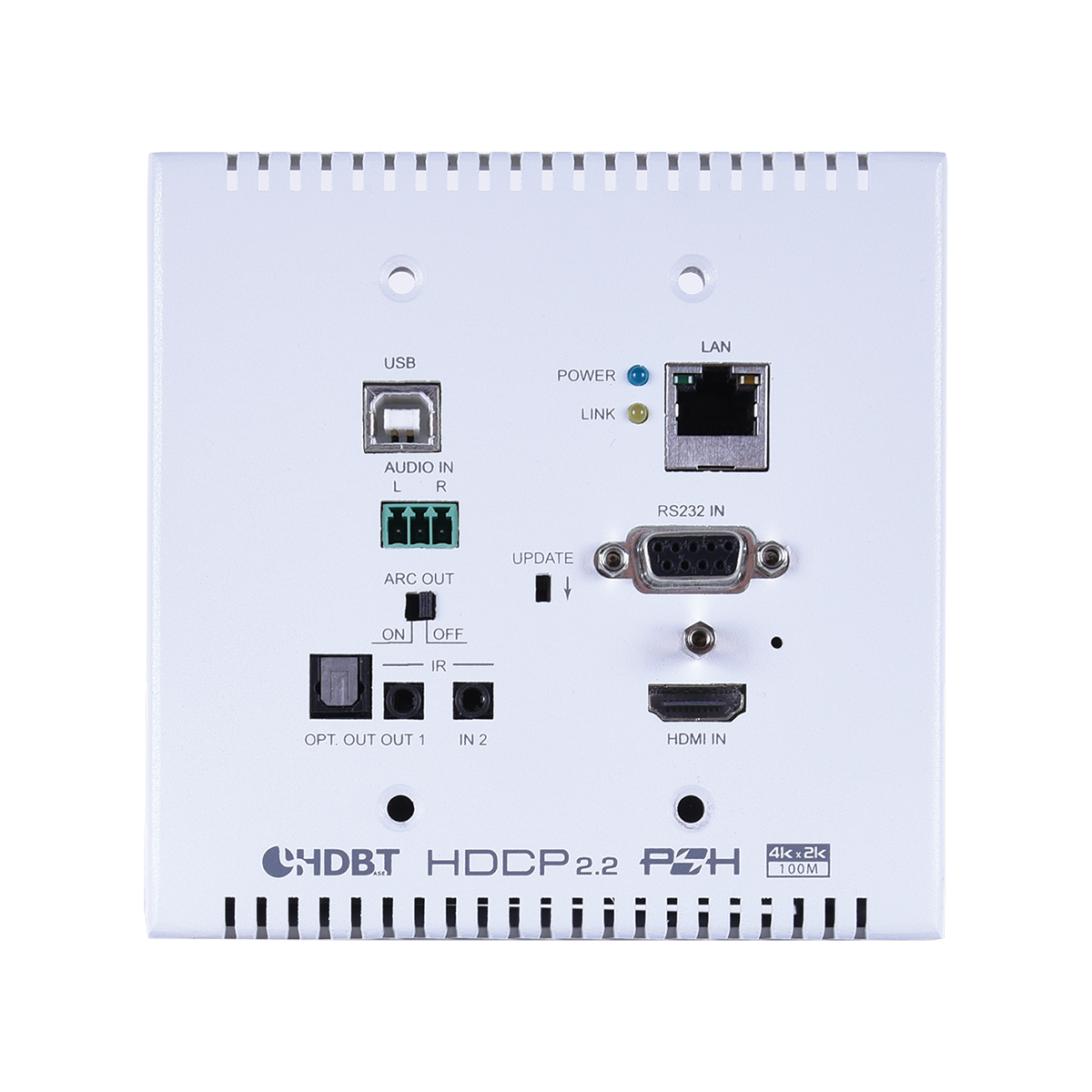

This HDBaseT 2.0 Transmitter can send uncompressed UHD video and audio to a compatible Receiver over a single Cat.5e/6/7 cable up to 100m. It has the added benefit of extending control and communication signals through the built-in Ethernet, USB, RS-232 and IR ports. Independent external digital and analog audio transmission capability gives users the extra convenience of additional audio connections.

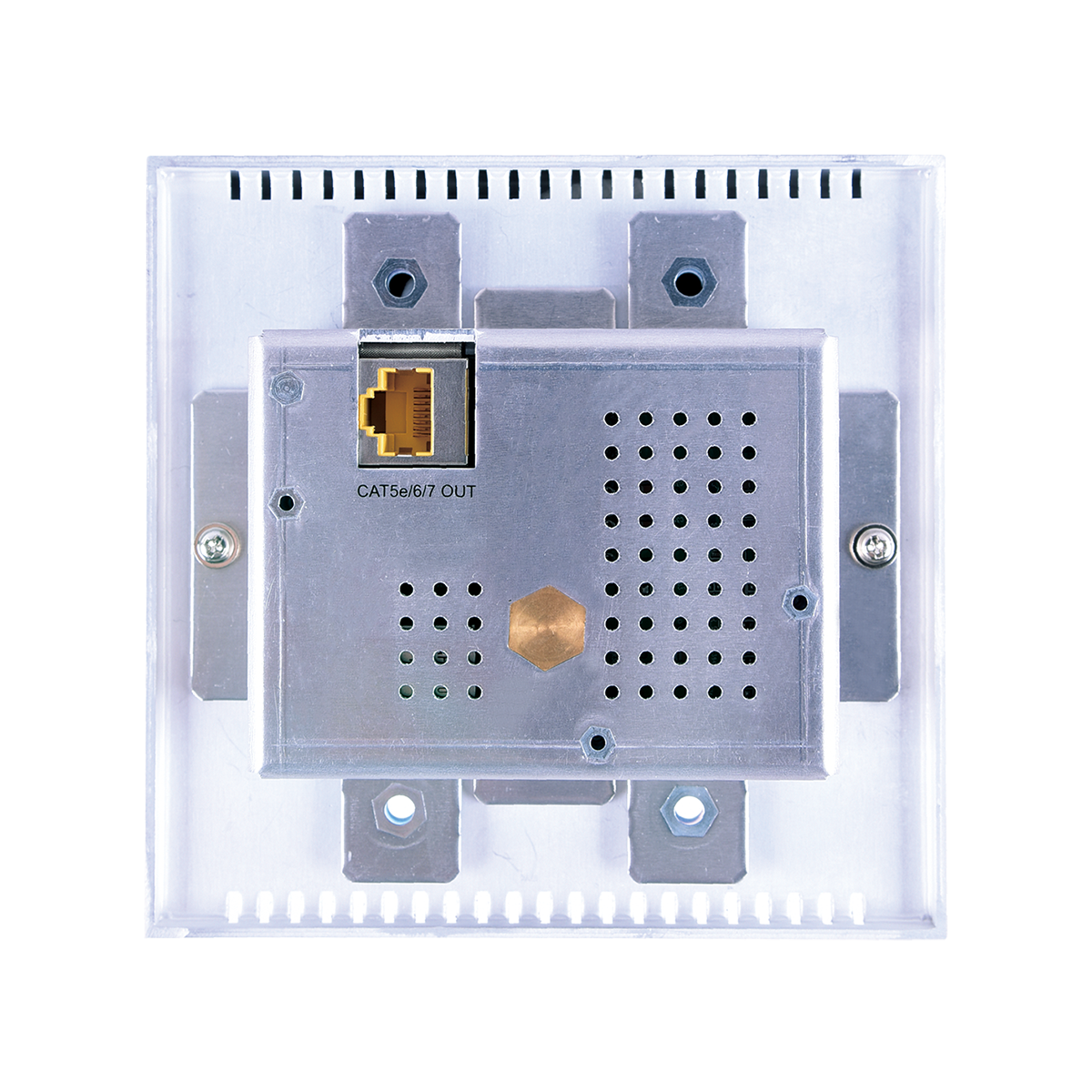

This unit’s system supports connecting any standard USB 2.0 host to the Transmitter, enabling the extension of the USB connection to up to 2 USB ports located on the Receiver, allowing it to act like a USB hub. The integrated 48V PoH (Power over HDBaseT) support provides power to the Transmitter (PD) from the Receiver (PSE), eliminating the need for a separate power supply for the Receiver. The 2 gang US wallplate mechanical design allows for flexibility in mounting locations, saving space and making your presentation space orderly and tidy.
