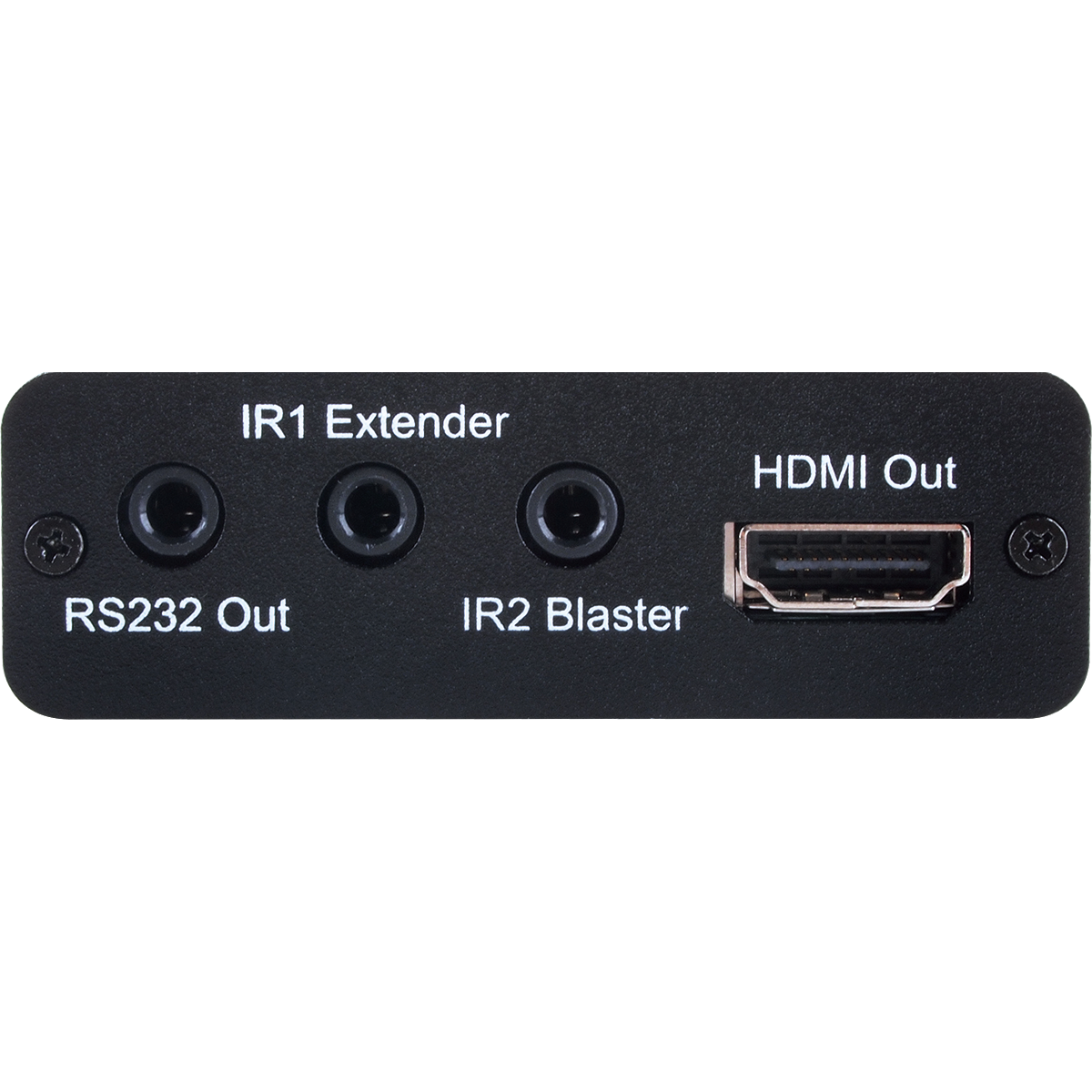

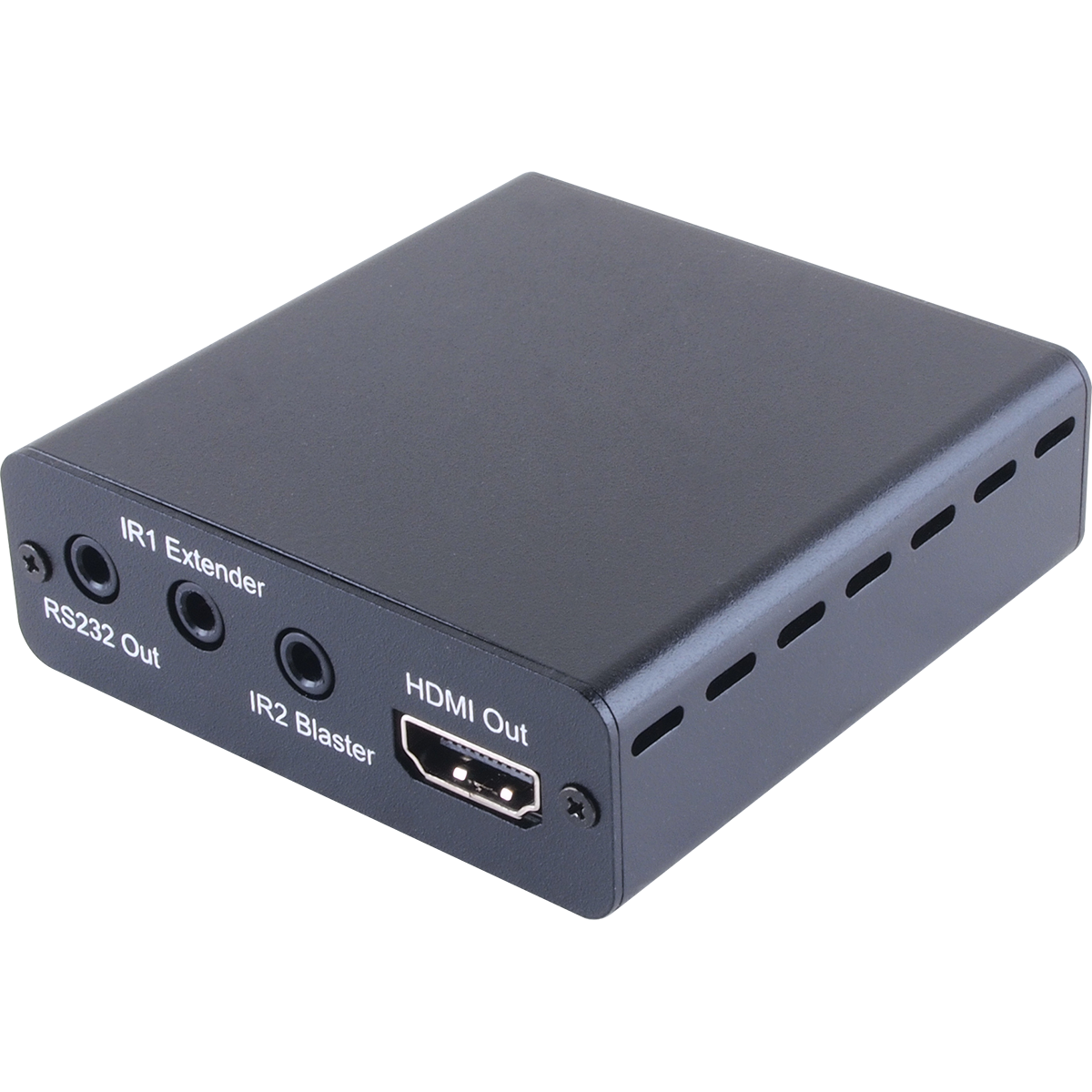

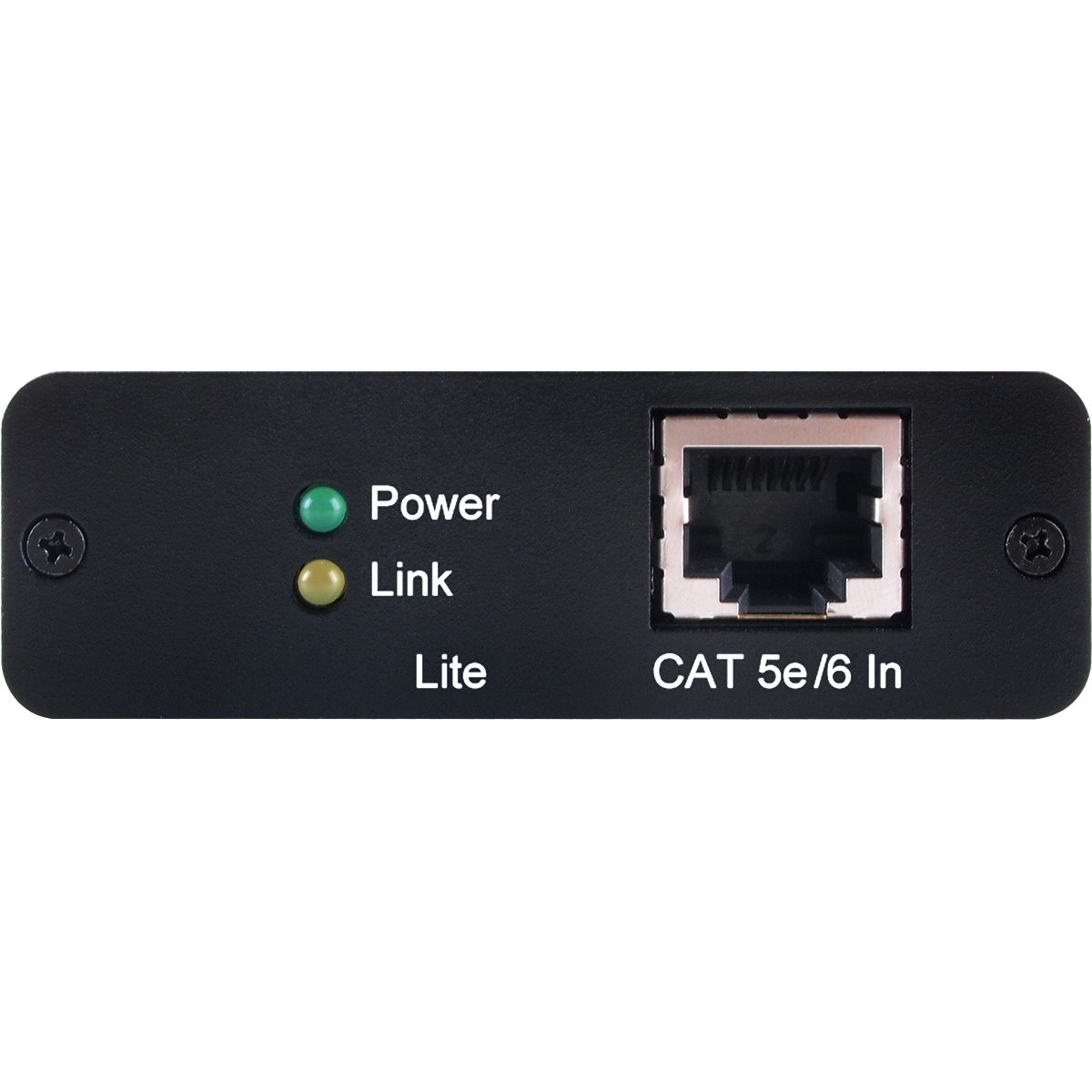

CH-506RXPL
HDMI to CAT5e/6 Receiver (4K@60 420 up to 35M)
- Supports HDMI 3D and 4K x 2K features
- Supports HDBaseT-Lite Technology
- Supports HD resolutions up to 1080p@60Hz/12-bit
- Supports distance up to 60 meters through CAT5e/6/7 cable
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
- Supports RS-232 bypass with baud rate up to 115200/sec
- Supports wide range of IR frequency from 30~50kHz
- Supports HDCP repeater and CEC bypass
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream
PRODUCTS FEATURED
CH-506TXPL
HDMI to CAT5e/6 Transmitter (4K@60 420 up to 35M)

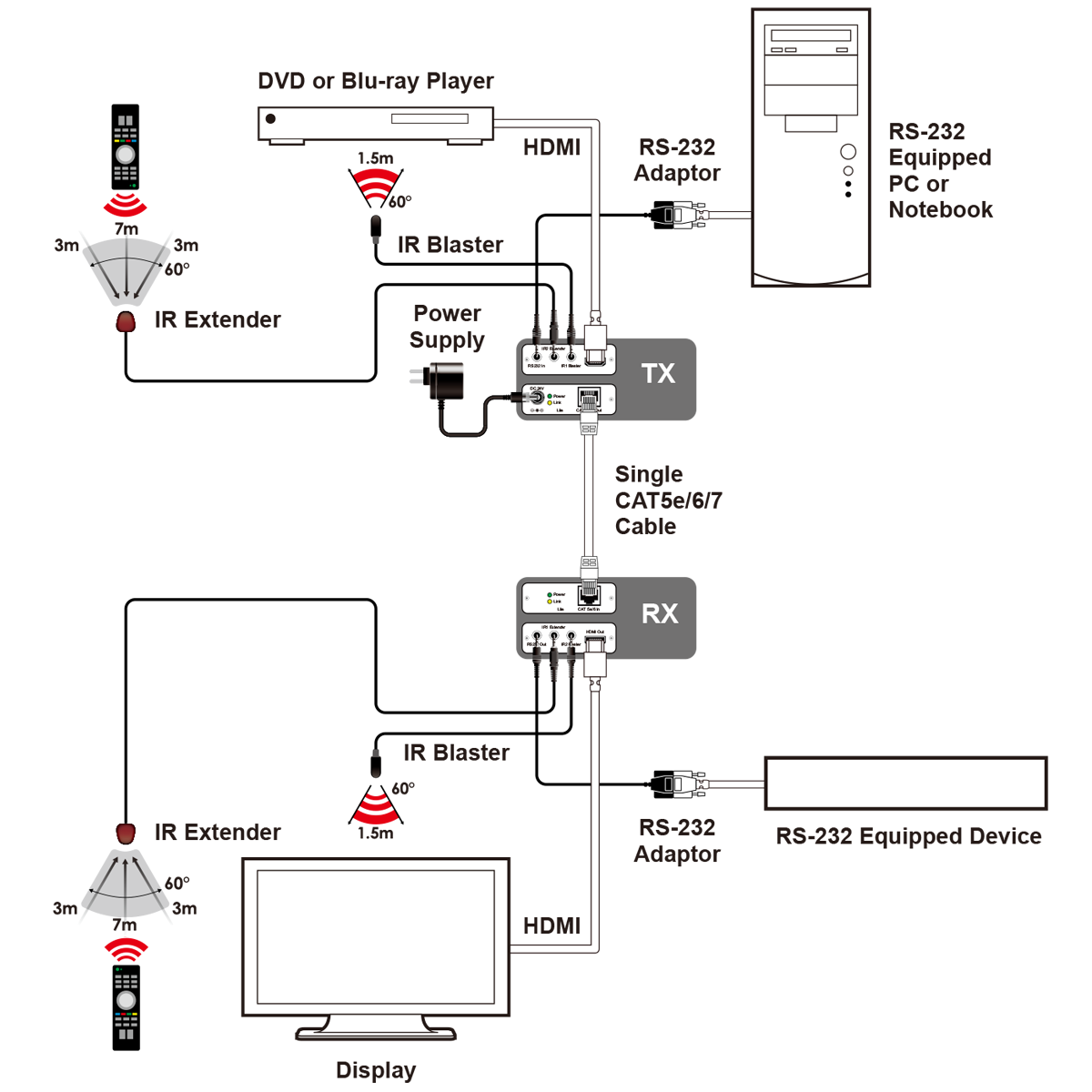

The HDBaseTTM HDMI over single CAT5e/6 with bidirectional IR, RS-232 & PoE Transmitter and Receiver set can make your home or offi ce setup more effi cient and easy to use. Uncompressed video and audio can be transmitted up to 60 meters with the PoE function and added benefi t of controls through the built-in RS-232 and IR ports. This family design of HDBaseT™ technology allows a full usage of HDMI and controls over CAT5e/6 cable.
