CH-506TXPL
HDMI to CAT5e/6 Transmitter (4K@60 420 up to 35M)
- Compatible with HDCP and DVI
- Supports HDMI 3D and 4K x 2K features
- Supports HDBaseT-Lite Technology
- Supports HD resolutions up to 1080p@60Hz/36-bit
- Supports distance up to 60 meters through CAT5e/6/7 cable
- HDMI input/output up to 15 meters with 8bits resolution or 10 meters with 12bits resolution
- RS-232 with baud rate up to 115200/sec
- Supports wide range of IR frequency from 30~50kHz
- Supports HDCP repeater and CEC bypass
- Audio supports LPCM 7.1CH, Dolby TrueHD, Dolby digital Plus and DTSHD Mater Audio transmission
PRODUCTS FEATURED
CH-506RXPL
HDMI to CAT5e/6 Receiver (4K@60 420 up to 35M)

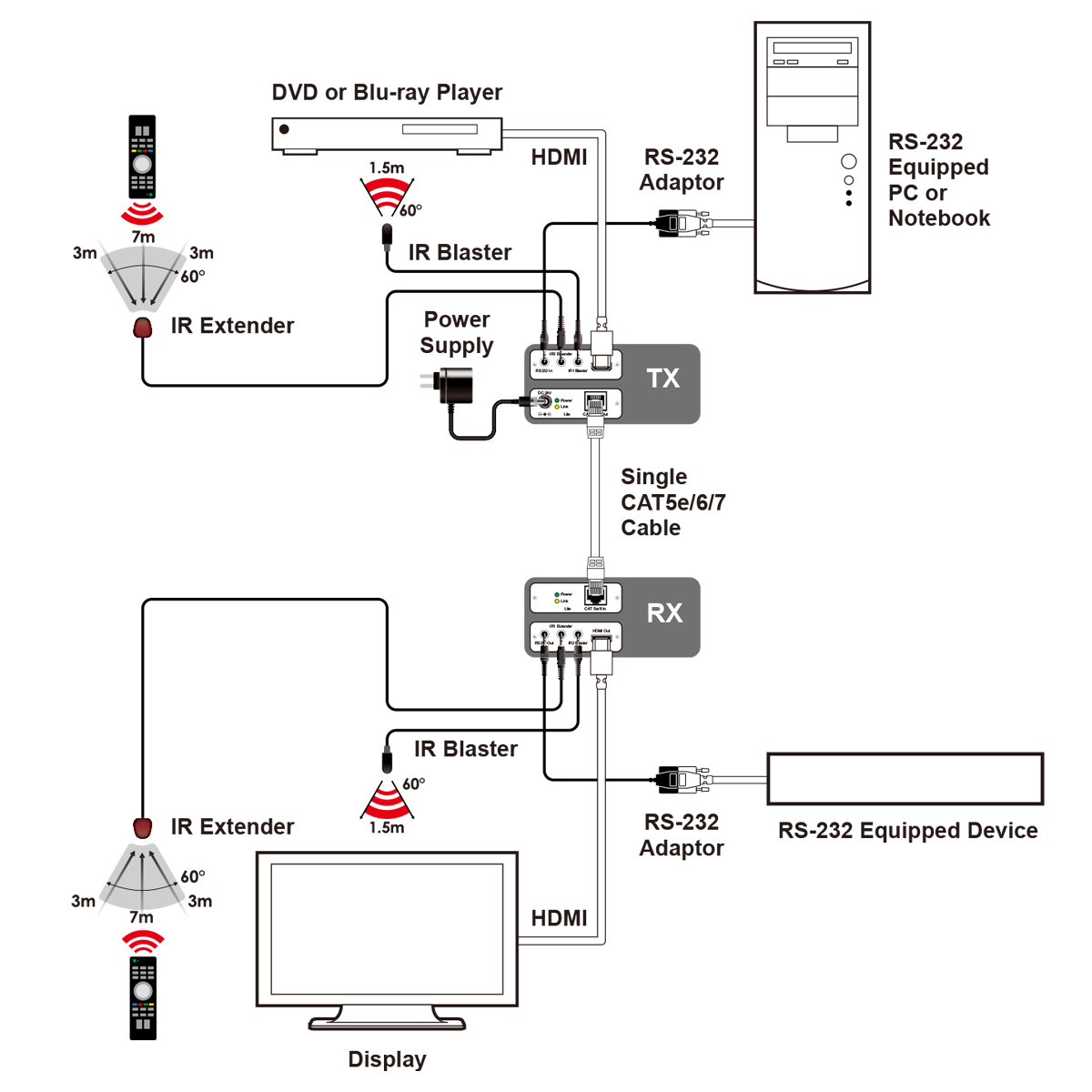

This HDMI over HDBaseTTM with bidirectional IR, RS-232 & PoC Transmitter and Receiver set can make your home or office setup more efficient and easy to use. Uncompressed video and audio can be transmitted up to 60 meters with the PoC function and added benefit of controls through the built-in RS-232 and IR ports. This family design of HDBaseT™ technology allows a full usage of HDMI and controls over CAT5e/6/7 cable.
