CMLUX-44E EOL
Replacement Model >CPLUS-V4H4H

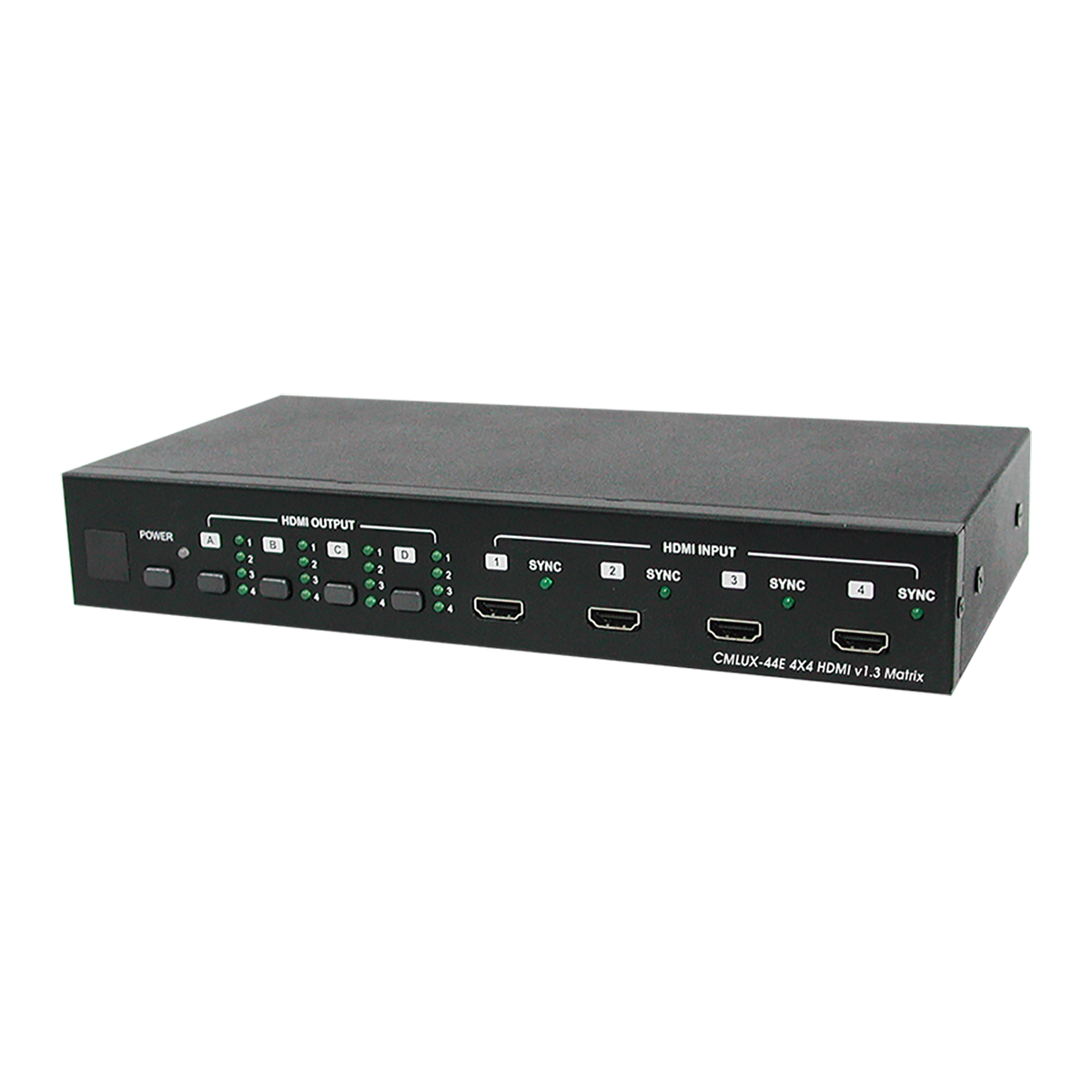

4 by 4 HDMI V1.3 Matrix
- HDMI 1.3, HDCP 1.1 and DVI 1.0 compliant.
- Supports digital video formats in Deep Color Mode at up to 36 bits (12bits/ color) and a new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio and LPCM7.1.
- Has LED input source indicators for each output option.
- Compatible with all HDMI sources and displays.
- Supports a wide range of PC and HDTV resolutions from VGA to UXGA and 480i to 1080p.
- Has RS-232 control.
- IR remote controller and IR extender.
- Dolby Digital, DTS digital audio transmission (32-192 kHz Fs sample rate).
- HDMI cable distance test showed that with 1080p/8-bit & 12-bit resolution, the input/ output source(s) can be up to 15/15 meters away.
- High perfomance Matrix with four inputs and four outputs.
- When the HDMI signal passes through the system it is Re-timed and level compensated to preserve signal.
- Switchable EDID function for choosing EDID to display.
