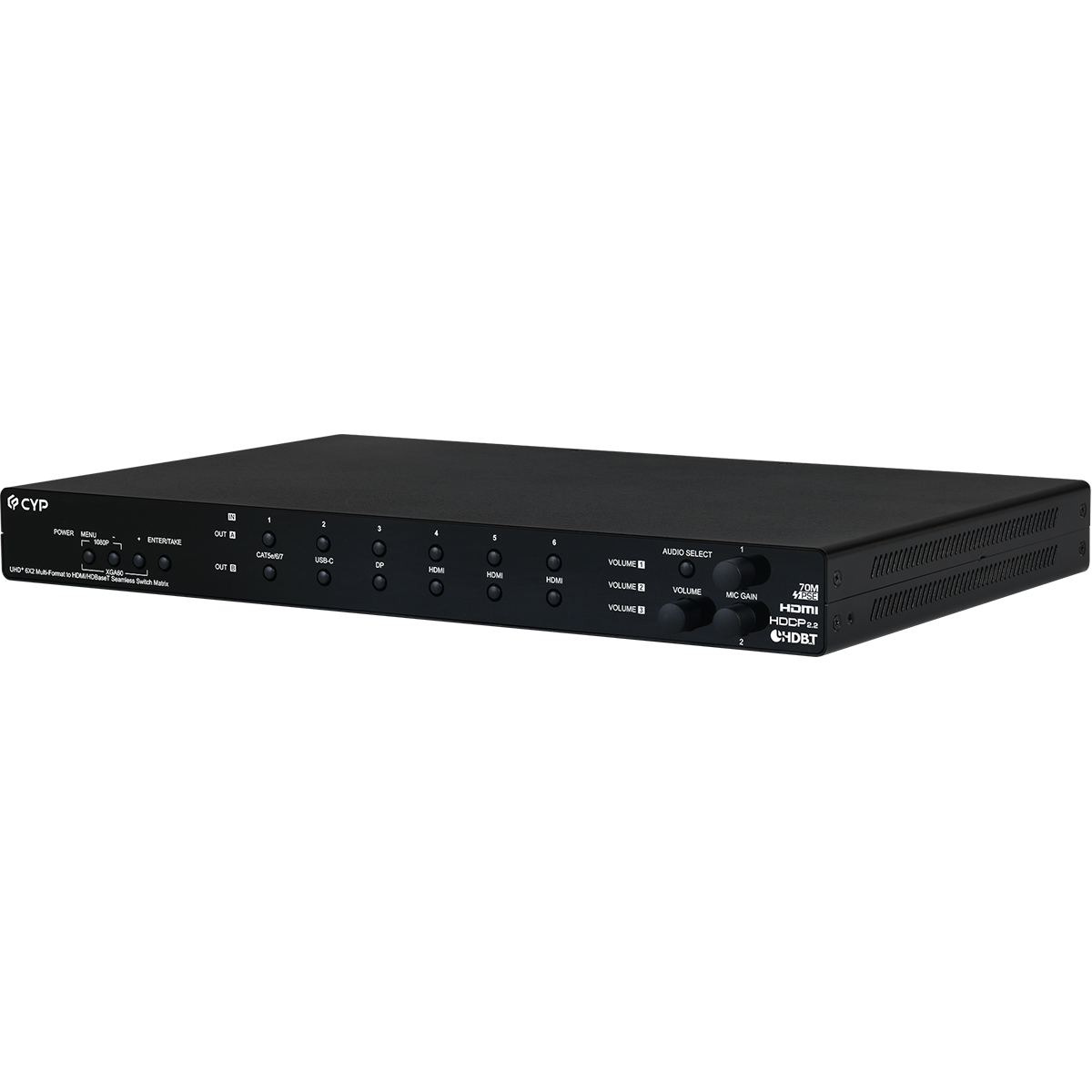

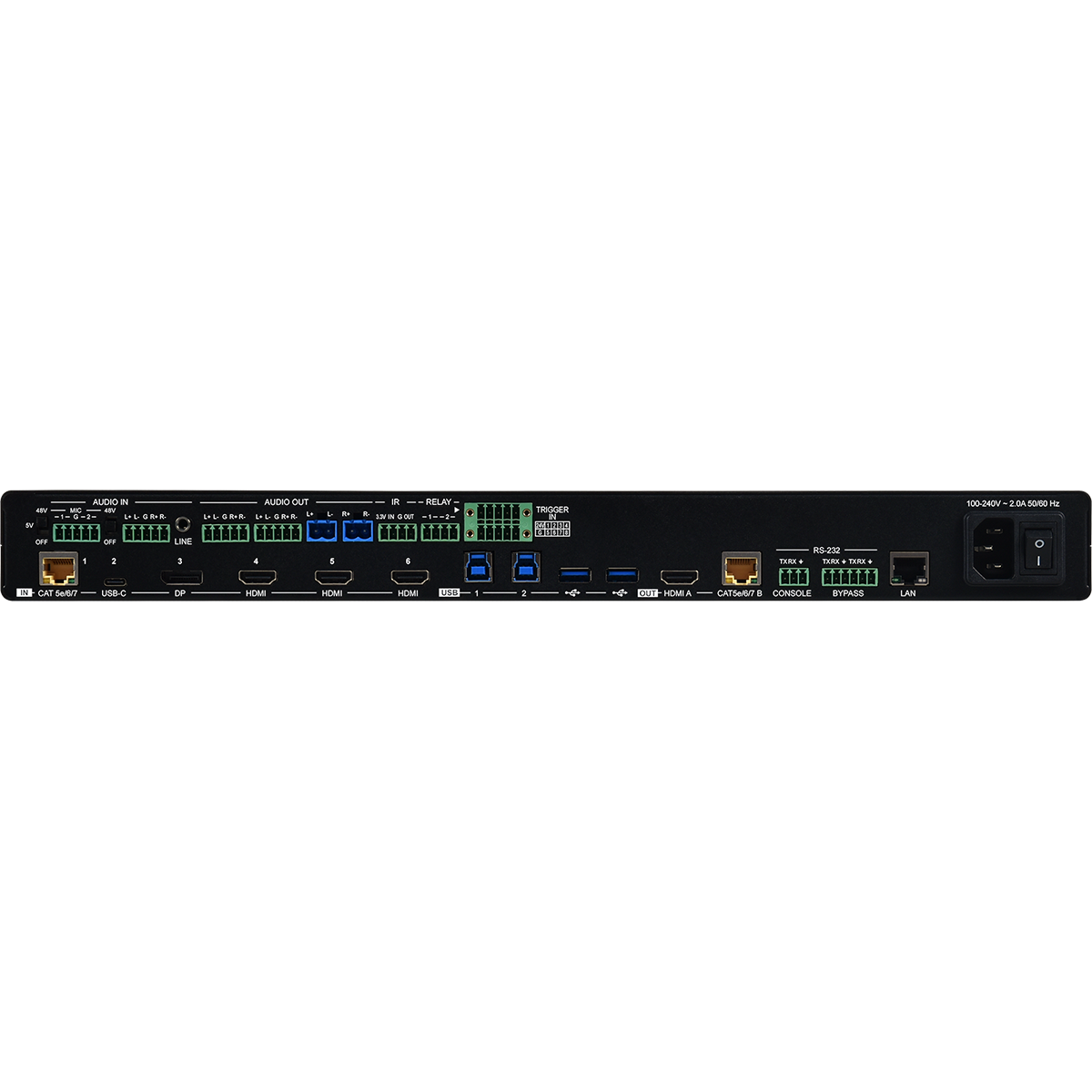

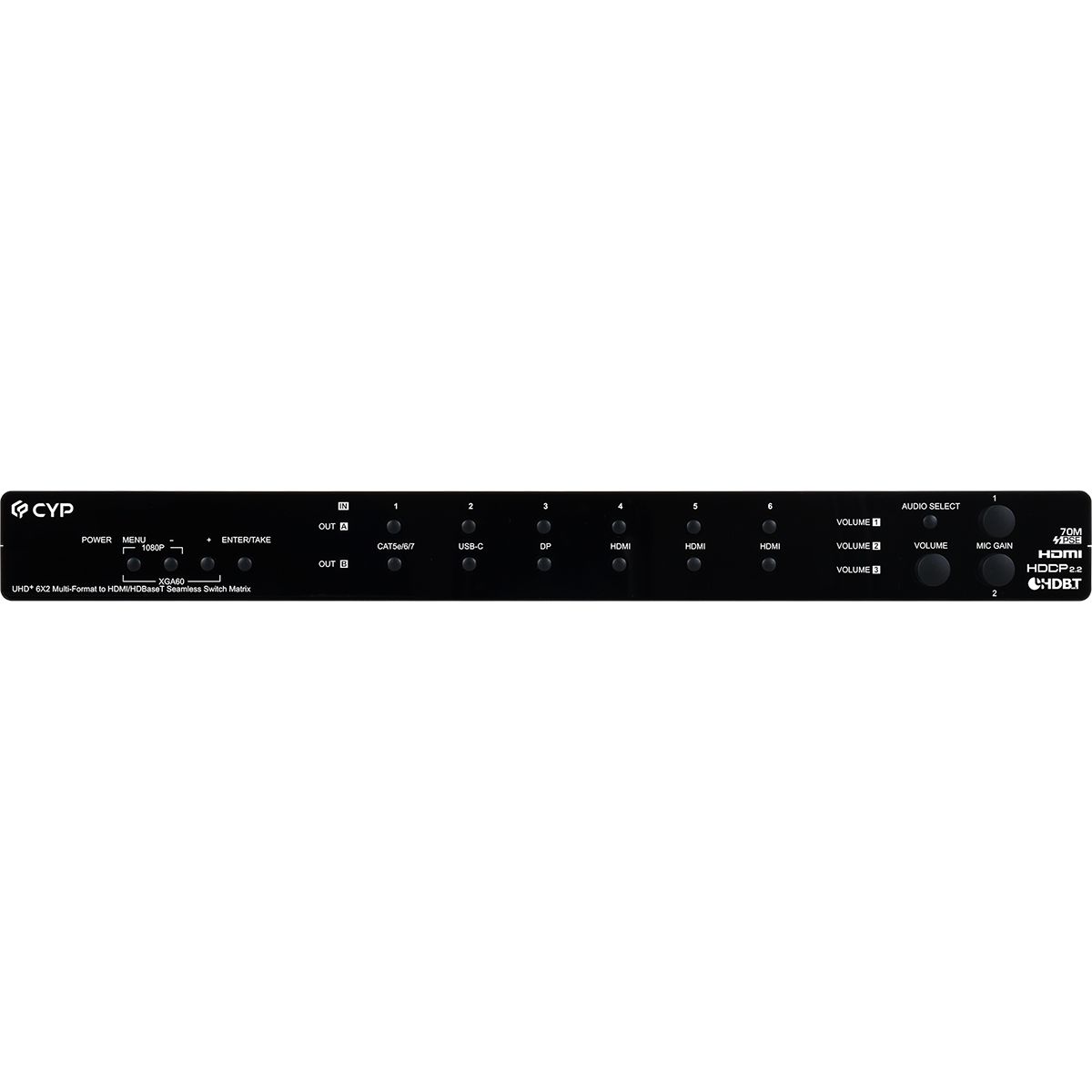

CSC-8000
4K60 6X2 Multi-Format to HDMI/HDBaseT Seamless Switch Matrix
- Supports standard PoH (PSE) from both HDBaseT input and output to the connected HDBaseT (PD) transmitter and receiver (compatible transmitter/receiver only)
- HDBaseT output transmits video and audio over a single Cat.5e cable of 1080p up to 90m/295ft for input and 70m/230ft for output,Cat.6a cable 100m/328ft at 4K@30
- Supports HDBaseT feature set: HD Video & Audio, 100BaseT Ethernet, 48V PoH, and Control(Bidirection IR/RS-232/USB pass through)
- Controllable via front panel controls with OSD, RS-232, Telnet, WebGUI, and triggers
- USB Type-C port provides up to 60W of power to connected device
- High performance and efficient Class-D amplifier (20W per channel)
- Microphone input supports optional 48V or 5V phantom power
- 6 video inputs (1×USB-C, 1×HDBaseT, 3×HDMI, 1×DisplayPort) and 2 video outputs(HDMI & HDBaseT)
- 15 audio sources(10 audio inputs and 5 mixers) can be routed independently to any of the 5 audio outputs
- Audio mixer function allows the mixing of audio from any 4 LPCM 2.0 audio sources, including the microphone inputs with auto-gain functionality
- Adjustable gain control for individual audio sources and volume control for any outputs
- Multiple USB hosts may be connected at once (up to 4 total, between the unit and compatible Tx/Rx) with a single selected host active at a time
- Supports manual input selection or automatic input selection for video and usb, with hot plug detection and “Last Memory” feature
- Seamless switching (no loss of sync to display)
- Comprehensive EDID and HDCP management
- Trigger Control Keypad support for easy, single-button and function activation (Optional)
- HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) or 4K@30Hz (4:4:4, 8-bit). 4K@50/60Hz (4:4:4, 8-bit) or 4K@any (10/12-bit) sources will be automatically color space converted to fit within the available bandwidth
- Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) digital video input (HDMI, USB-C, DP) and output (HDMI)
- HDBaseT 2.0 compatible
- HDMI 2.0, DisplayPort 1.4 compliant
- HDCP 1.x and 2.2 compliant

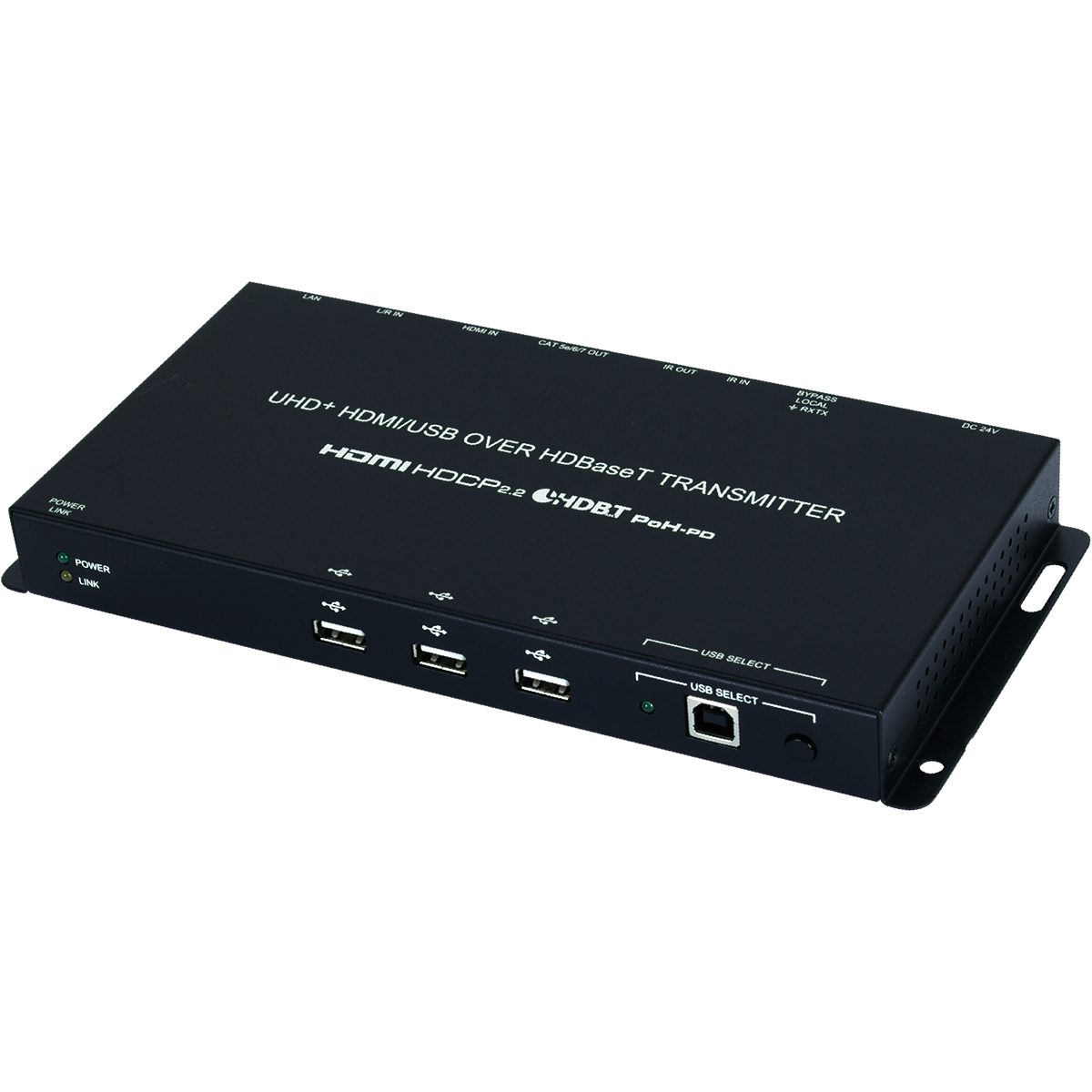

CH-2606TX
UHD+ HDMI to HDBaseT Transmitter with USB (4K@60 444 up to 100M)
CH-2606TX adopts HDBaseT 2.0 technology for extending uncompressed 4K and HD video, audio, Ethernet, control and power along a single Cate. 5e/6/7 cable up to 100 meters. When paired with this unit’s standard Receiver, 2 switchable USB 2.0 host (Type B) connections are available (1 on the Transmitter, 1 on the Receiver) which can connect to devices on up to 6 USB 2.0 (Type A) ports (3 on the Transmitter, 3 on the Receiver) forming a highly flexible KVM extension configuration (Note: Only 1 USB host may be active at a time). This Transmitter (PD) may be powered locally using a standard power supply, or it can be powered by PoH (Power over HDBaseT) provided by a compatible Receiver (PSE), This unit is controllable via front panel button and RS-232.

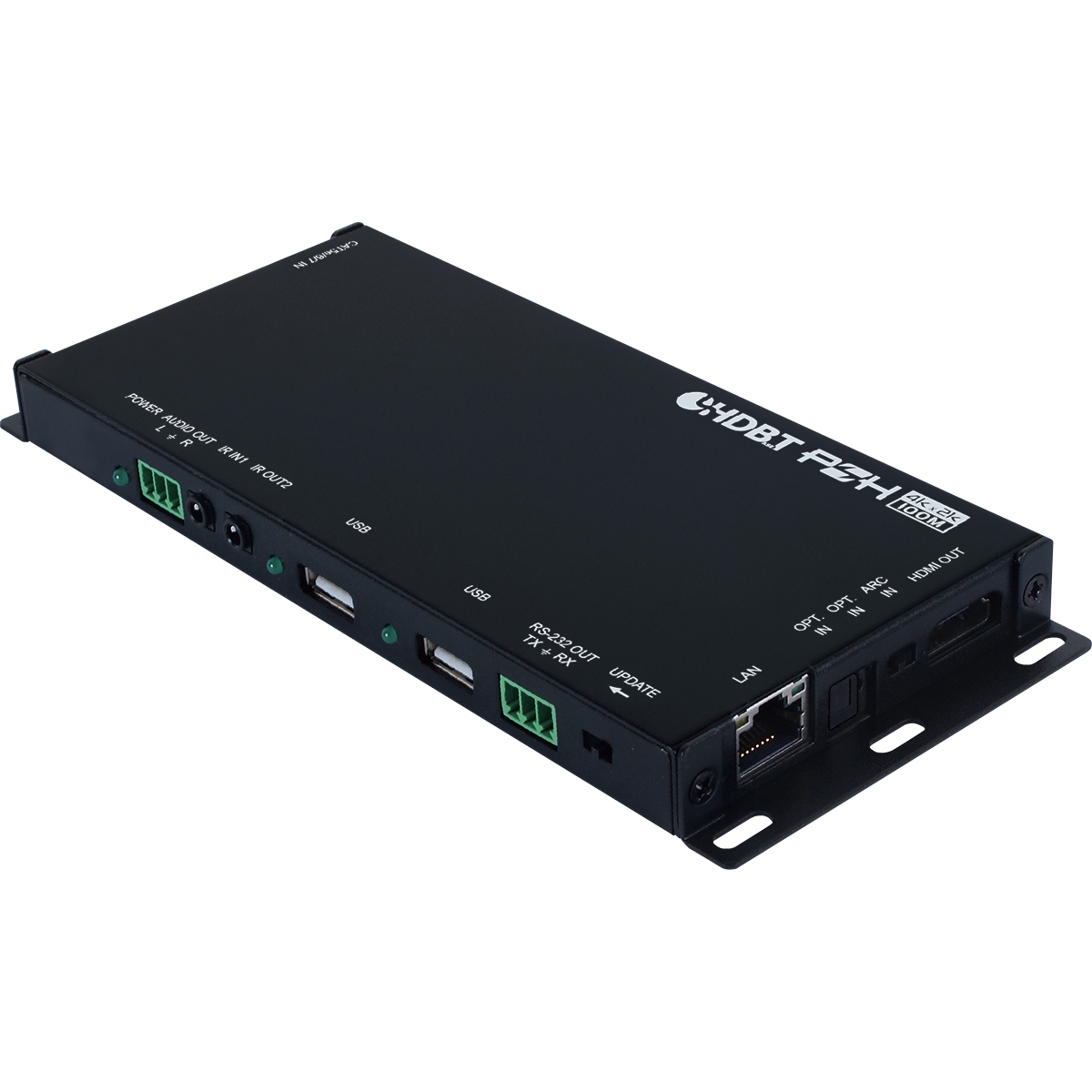

CH-1602RX
HDMI over HDBaseT Receiver with Optical Audio Return (OAR)
This HDBaseT 2.0 Transmitter and Receiver set can send uncompressed UHD video and audio over a single Cat.5e/6/7 cable up to 100m. It has the added benefit of extending control and communication signals through the built-in Ethernet, USB, RS-232 and IR ports. Independent external digital and analog audio transmission capability gives users the extra convenience of additional audio connections. This system supports connecting any standard USB 2.0 host to the Transmitter, enabling the extension of the USB connection to up to 2 USB ports located on the Receiver, allowing it to act like a USB hub. The integrated 48V PoH (Power over HDBaseT) support provides power to the Receiver (PD) from the Transmitter (PSE), eliminating the need for a separate power supply for the Receiver. The ultra-thin mechanical design allows for flexibility in mounting locations, saving space and making your presentation space orderly and tidy.
