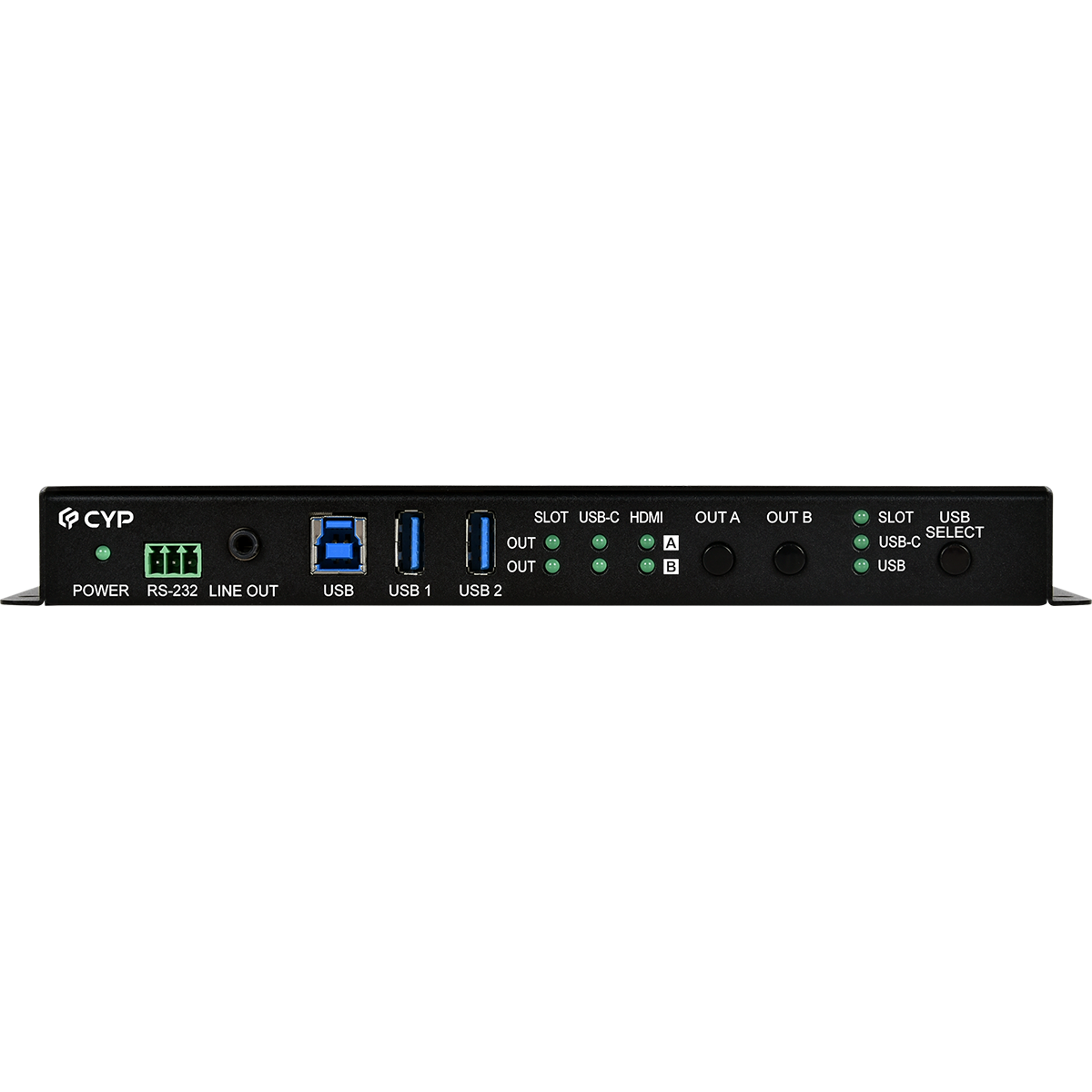

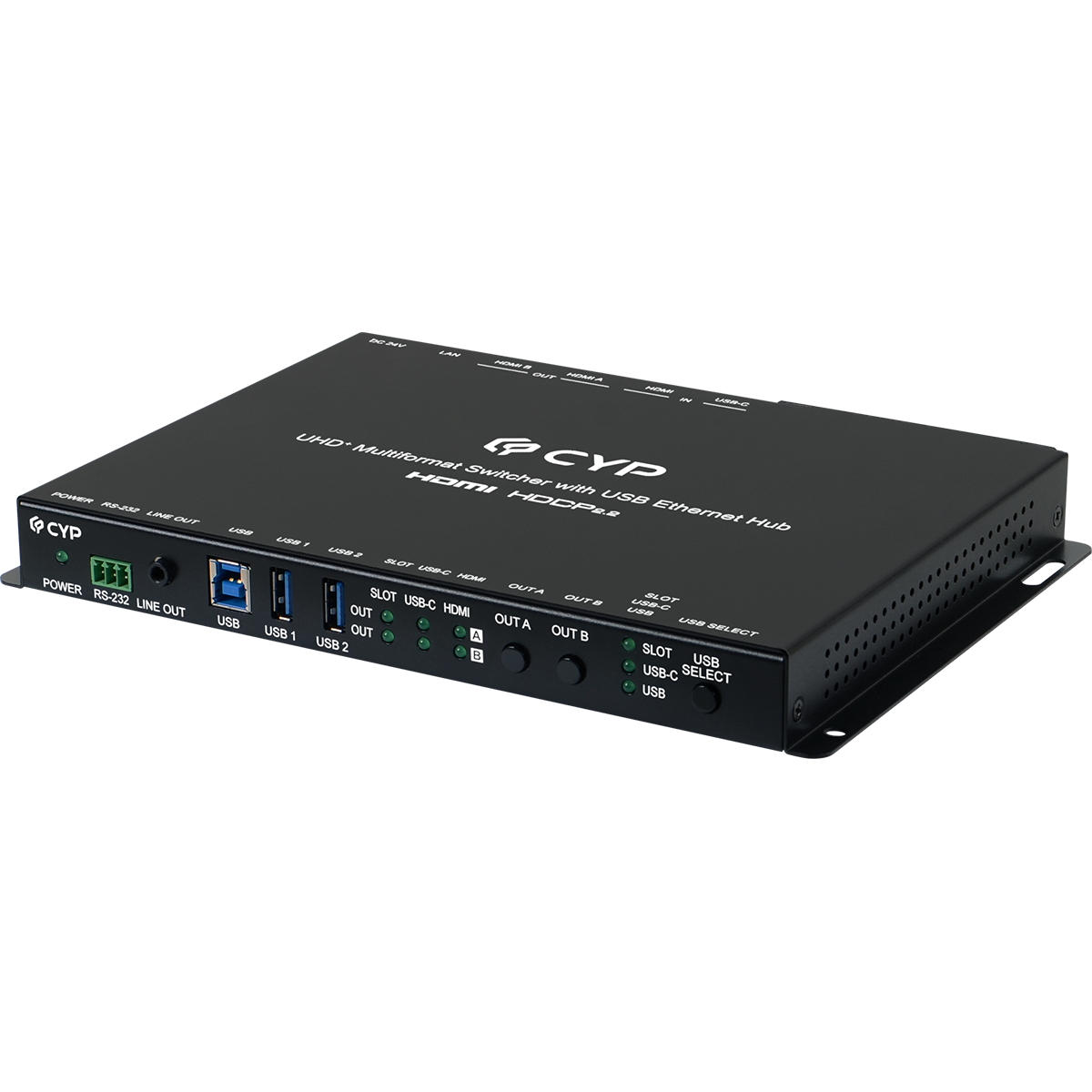

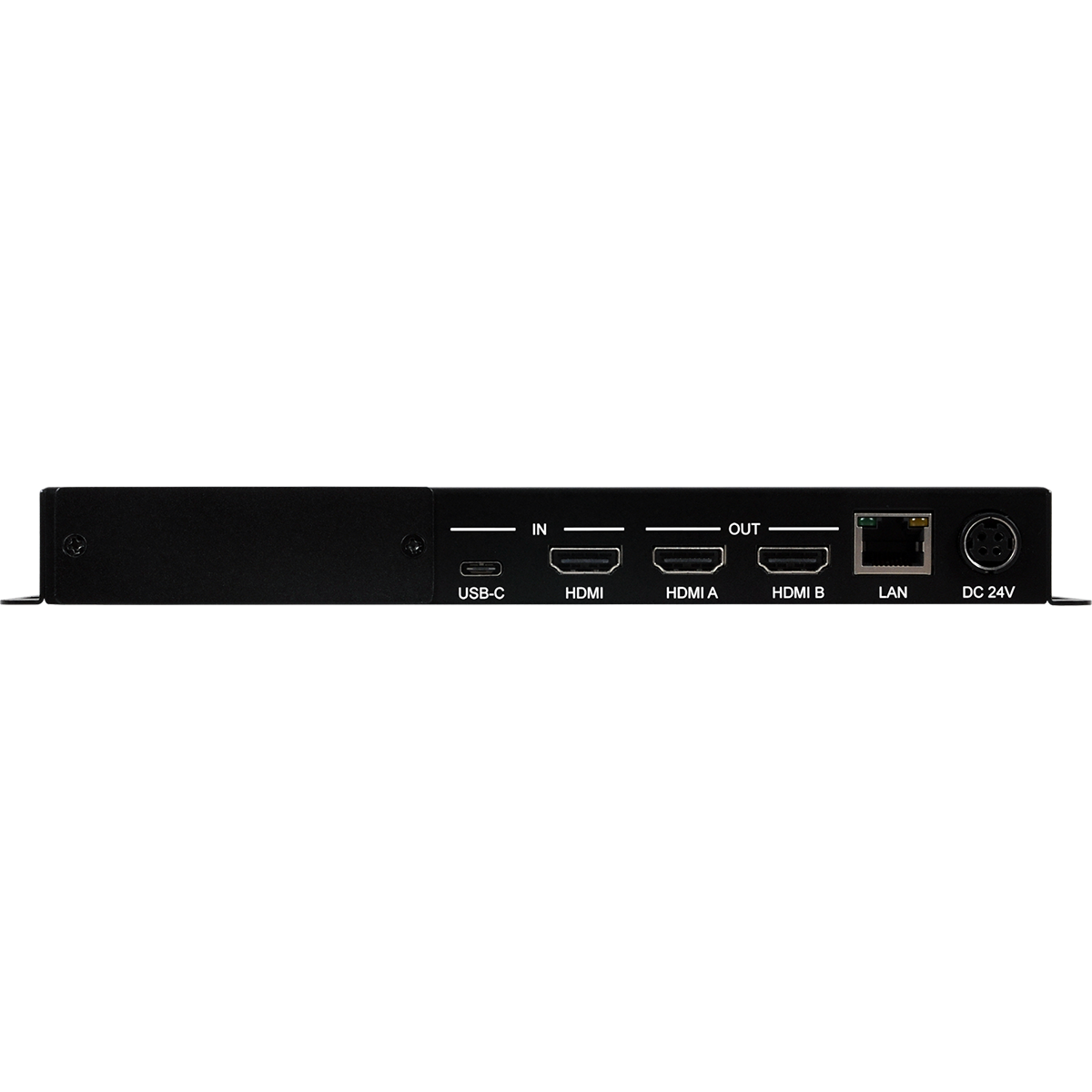

CPLUS-V32SDM
UHD+ Multi-format Matrix Switcher with USB Ethernet Hub
- Supports USB 3.0 with one USB-B port, one USB-C port for connecting to a host PC, and two USB-A ports for peripheral devices and storage extension.
- Supports gigabit Ethernet.
- Supports pass-through of 8 channel LPCM, bitstream & HD bitstream audio formats.
- Supports 4K HDR formats by HDR10, HLG and Dolby Vision.
- Supports basic signal event automation (via RS-232, IP or CEC).
- One module card slot for CYP SDM series module cards.

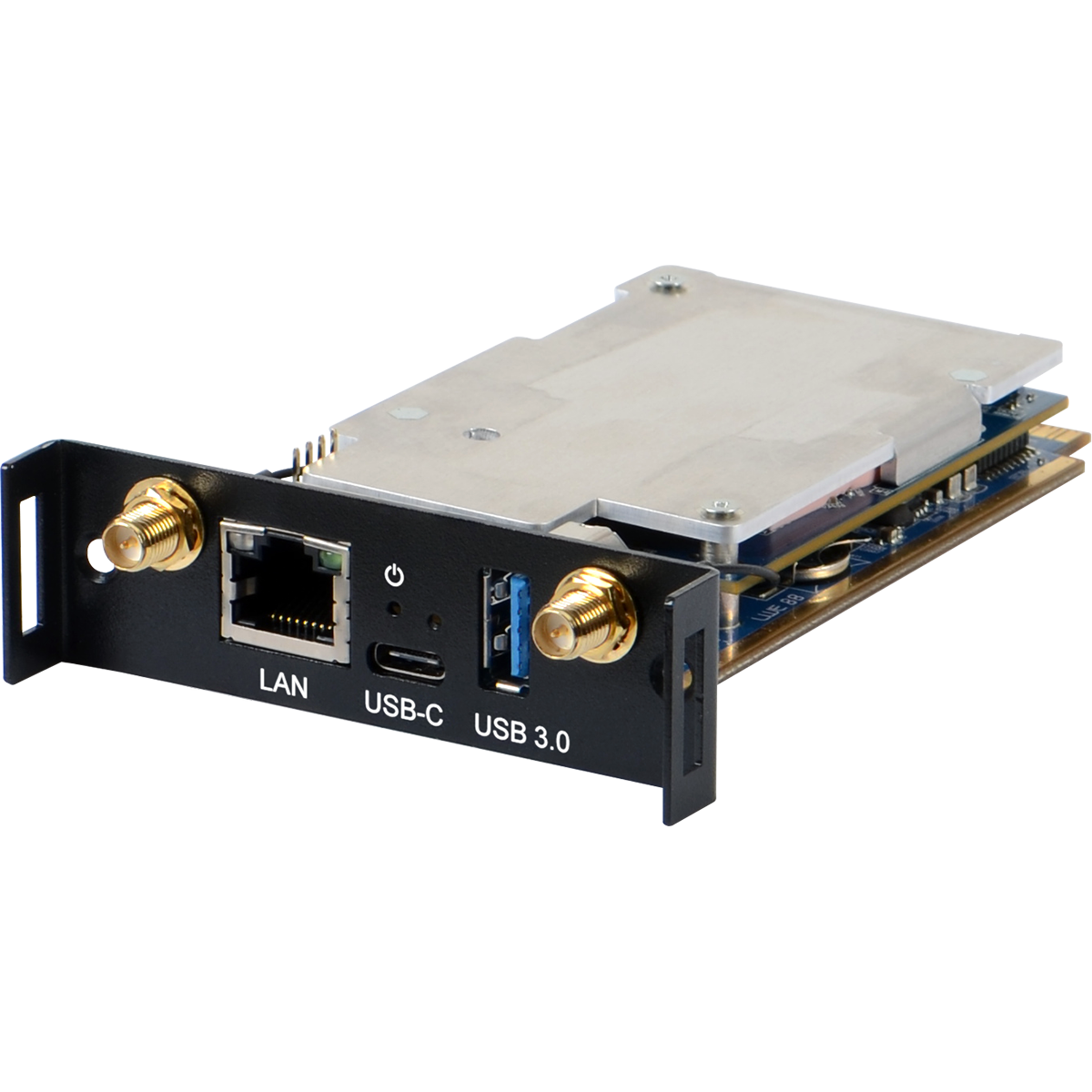

SDM-W201R
Hyshare Pro Wireless Receiver Module
The Hyshare Pro is a high-performance Wireless Receiver Module, which provides a smooth wireless screen-casting experience. Users are free from messy cables and complicated interfaces. It supports cross-platform collaboration and communication, including Windows, macOS, Android, and iOS systems. This wireless receiver Mobile can be easily slotted into CYP SDM input platform, such as CPLUS-V32SDM. Users can instantly share their screens on a host computer, smart phone or tablet in meetings or classes through the Hyshare Pro App or the optional Hyshare Pro Pod.

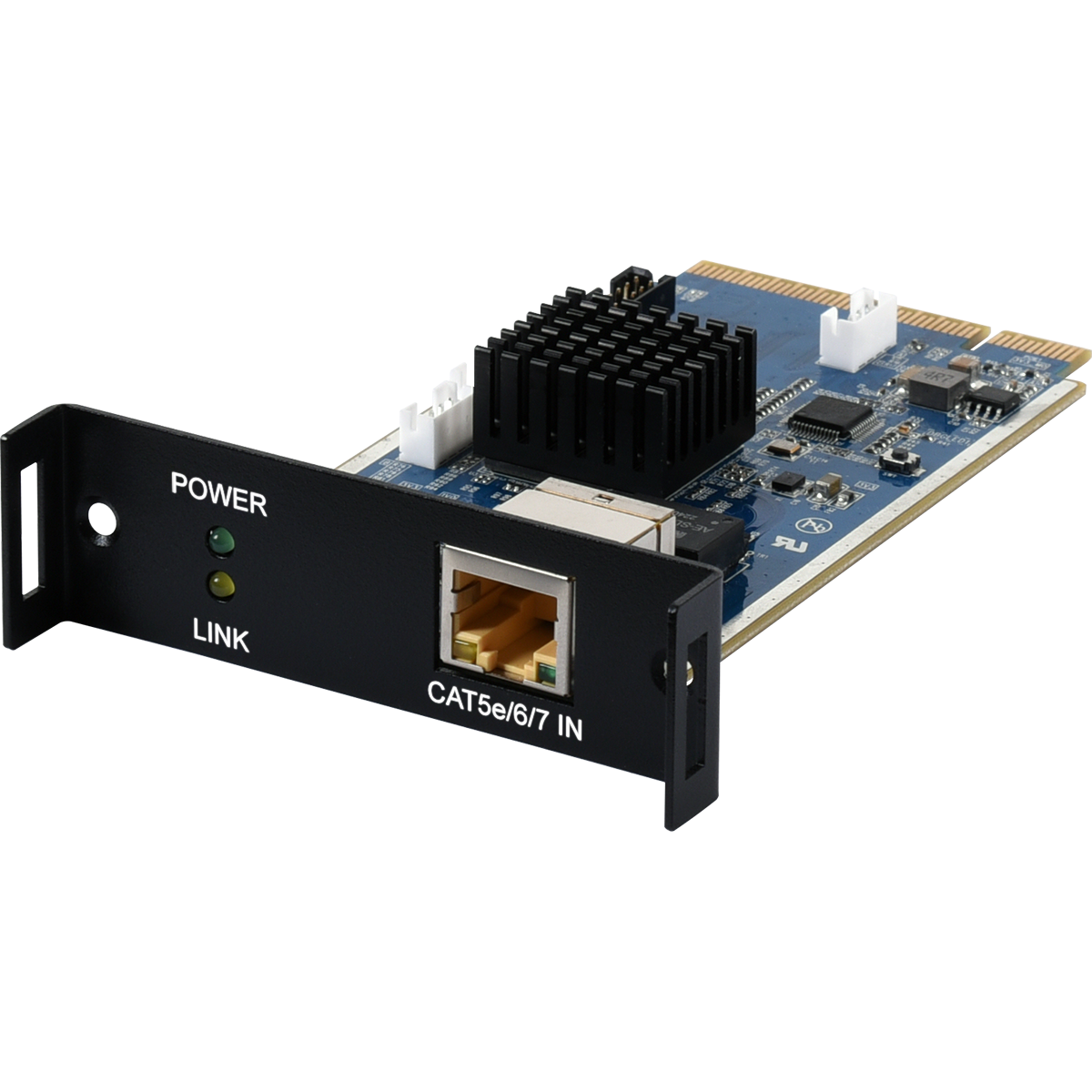

SDM-E201R
HDBaseT Receiver Module (4K@60 420 up to 40M)
The HDBT Module Card is able to receive signals from compatible transmitter via Category cable, with resolutions up to 4K@60. The module card is compatible with CYP module slot, CPLUS-V32SDM. It can be combined with transmitters that have category interface. This module card offers flexible options to customers.

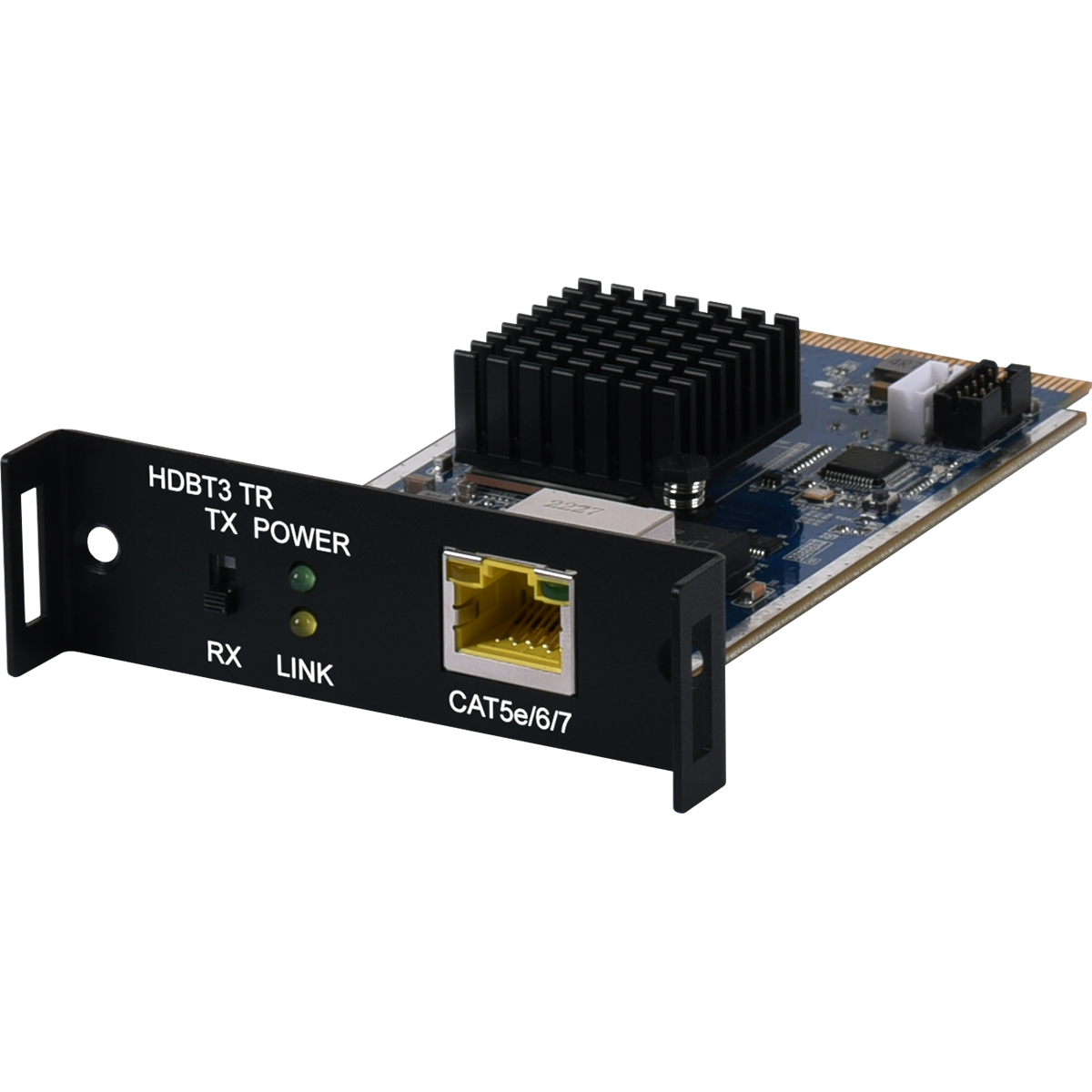

SDM-E301TR
HDBaseT Transceiver Module (4K@60 444 up to 40M)
This HDBaseT Transceiver Module uses HDBaseT 3.0, the newest generation of HDBaseT technology, and is the perfect solution for extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video with HD audio via a single run of Cat. 5e/6/7 cable over distances of up to 40 meters. Every Transceiver can be configured to function as either a transmitter or a receiver, enhancing the flexibility of any installation. This extender complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. The module's design is compatible with a variety of products that have a standard CYP Module Slot for input or outputting signals, offering increased workability to customers.

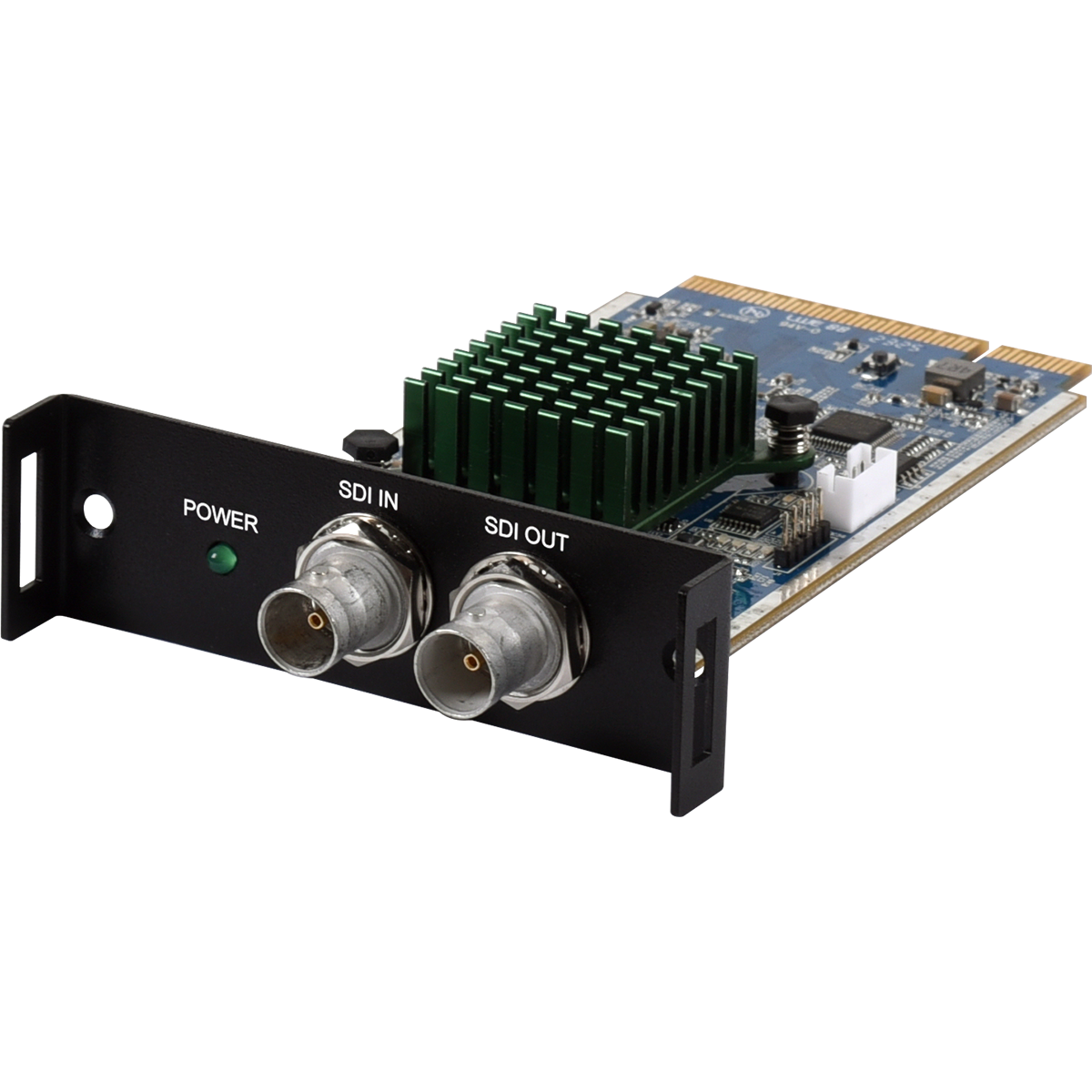

SDM-I301SH
4K60 12G-SDI to HDMI Receiver Module
This 4K60 12G-SDI to HDMI Receiver Module allows SDI signals up to 4K60 to be converted for display on standard HDMI video displays. This makes it easier for professionals to monitor or output professional SDI video production sources on standard, relatively low-cost, HDMI displays while allowing the original SDI signal to continue to be looped on to other SDI equipment in their production environment. The module's design is compatible with a variety of products that have a standard CYP Module Slot, offering increased flexibility to customers.

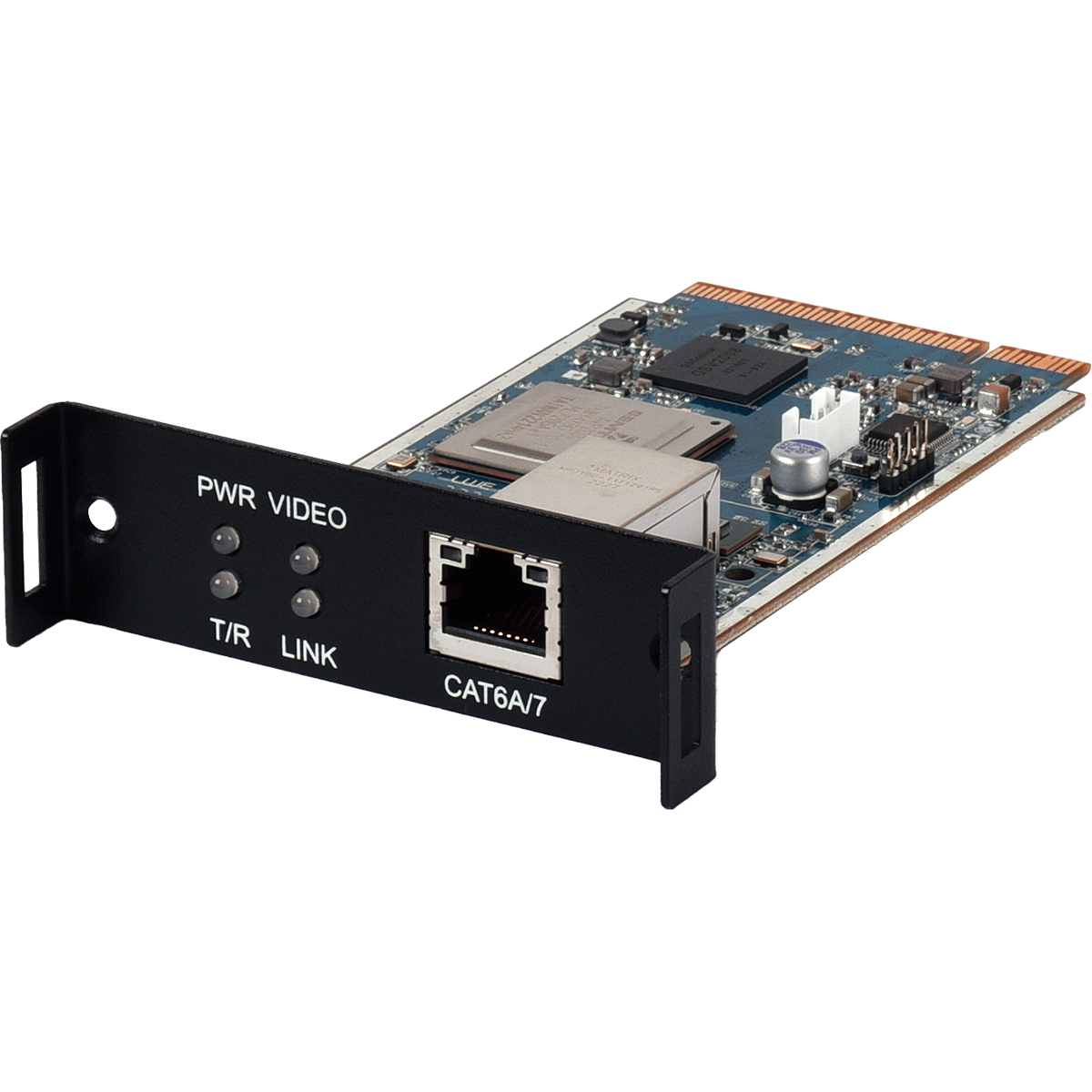

SDM-P301TR-C
4K60 AV over IP Transceiver Module
This AV over IP Transceiver Module is designed for high-quality, IP routable, AV extension up to 4K@60 4:4:4 with minimum latency. The use of 10-Gigabit Ethernet ports, and Cat.6A cable allows transmission of the video signal up to 100m. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode. When combined with the optional IP Master Controller or control software, the functionality of the transceiver expands exponentially. Multiple transmitters and receivers may be combined with one or more 10-Gigabit Ethernet switches and the units can be used together to form a distributed video matrix, a multiviewer system, or a video wall system adding to their flexibility in large event installations. Advanced control such as firmware update can also be performed conveniently through the optional IP Master Controller or control software. The module’s design is compatible with a variety of products that have a standard CYP Module Slot, offering increased flexibility to customers.

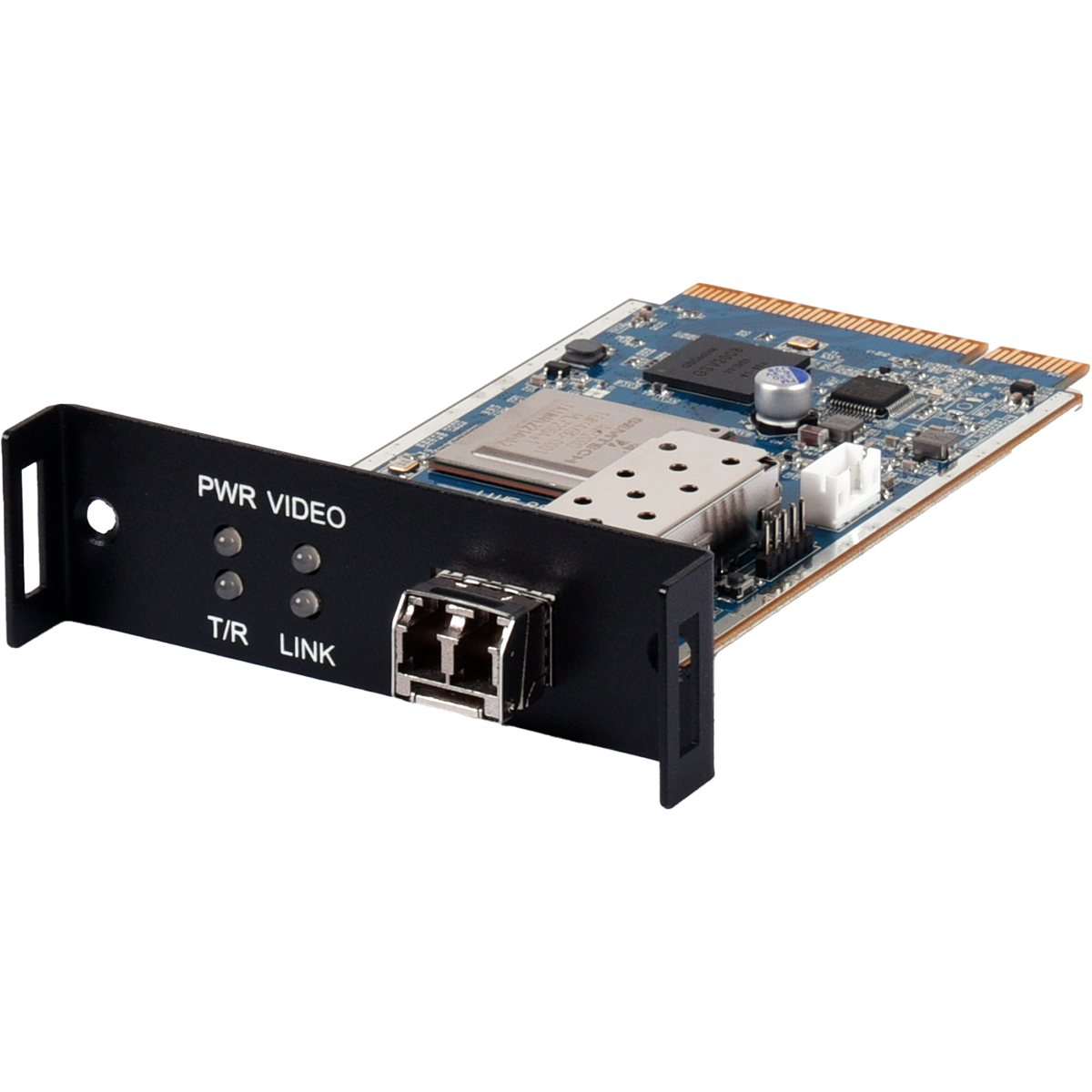

SDM-P301TR-F
4K60 AV over IP Transceiver Module
This AV over IP Transceiver Module is designed for high-quality, IP routable, AV extension up to 4K@60 4:4:4 with minimum latency. Every Transceiver is capable of simultaneous bi-directional AV extension, enhancing the flexibility of any installation. The use of interchangeable, field replaceable, SFP+ modules allows for transmission distances of up to 120km (Maximum transmission distance depends on the SFP+ modules used).
