SDM-P301R-C
4K60 AV over IP Receiver Module
- Signal transmission interfaces with 10-Gigabit Ethernet switches
- 4K@60 signal extension up to 100 m (with Cat.6A/7 cable)
- Supports the use of an external control center (IP Master Controller) or control software to provide expanded functionality (Contact your authorized dealer for more information)
- IP routable with minimum latency (requires optional IP Master Controller or control software)
- Supports independent breakaway A/V matrix switching with minimum latency, video wall generation, and multi-view compositing (requires optional IP Master Controller/control software)
- Supports pass-through of 10/12-bit HDR and Dolby Vision sources (Point-to-Point and Bypass modes only)
- Supports pass-through of audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream
- Ultra-light compression, lossless for most content

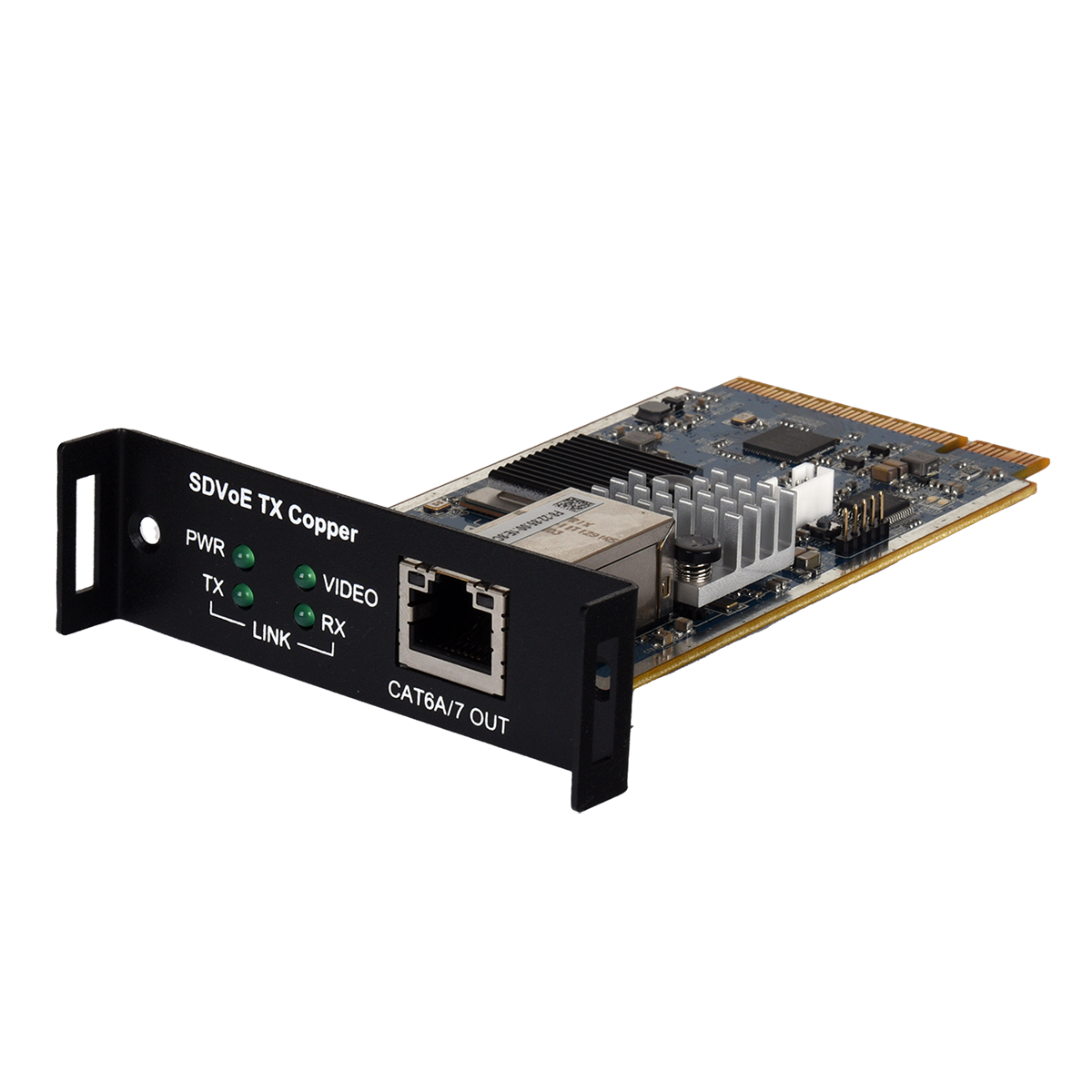

SDM-P301T-C
4K60 AV over IP Transmitter Module
This AV over IP Transmitter Module is designed for high-quality, IP routable, AV extension up to 4K@60 4:4:4 with minimum latency. The use of 10-Gigabit Ethernet ports and Cat.6A or better cable allows for point-to-point transmission of the video signal up to 100m. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode.

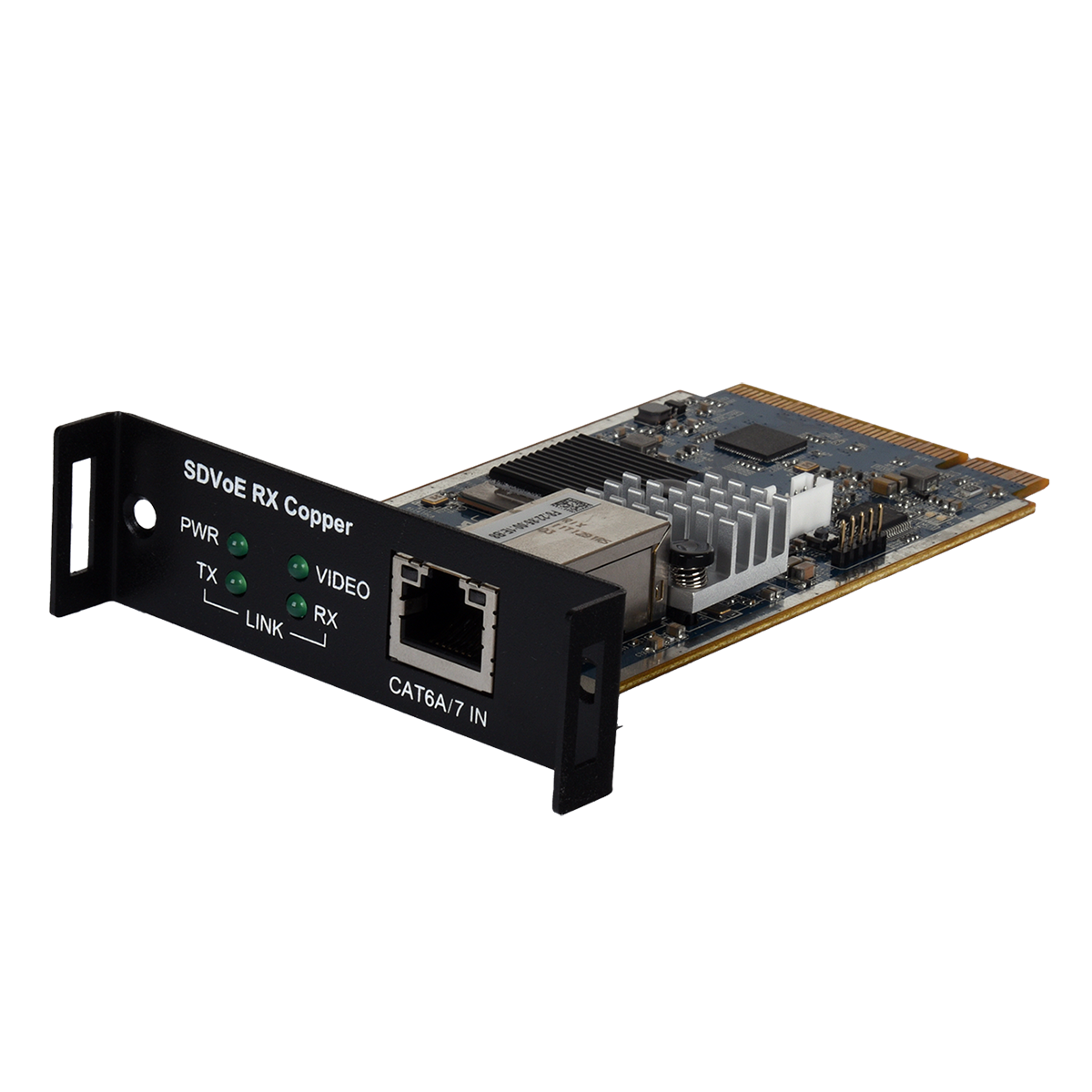

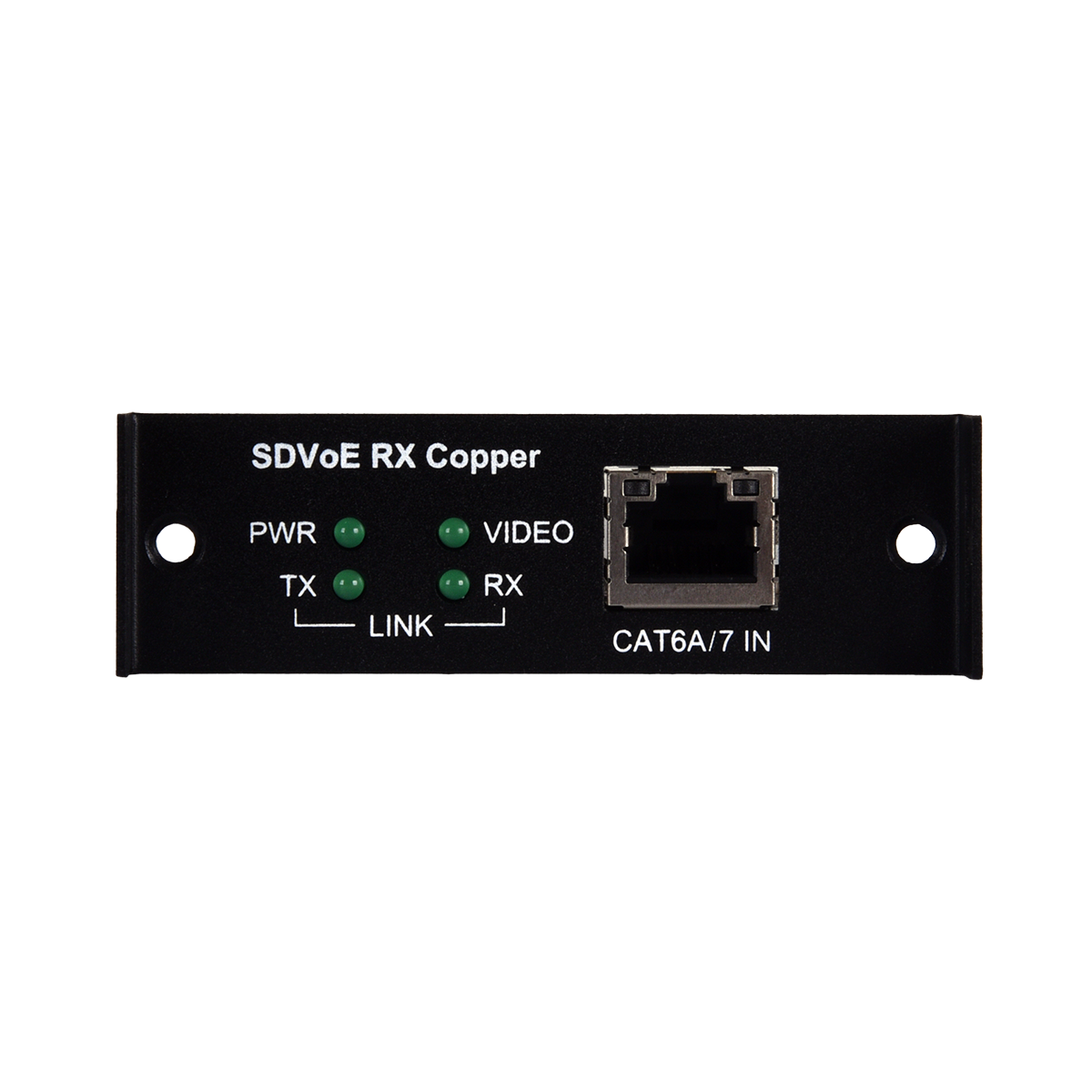

SDM-P301R-C
4K60 AV over IP Receiver Module

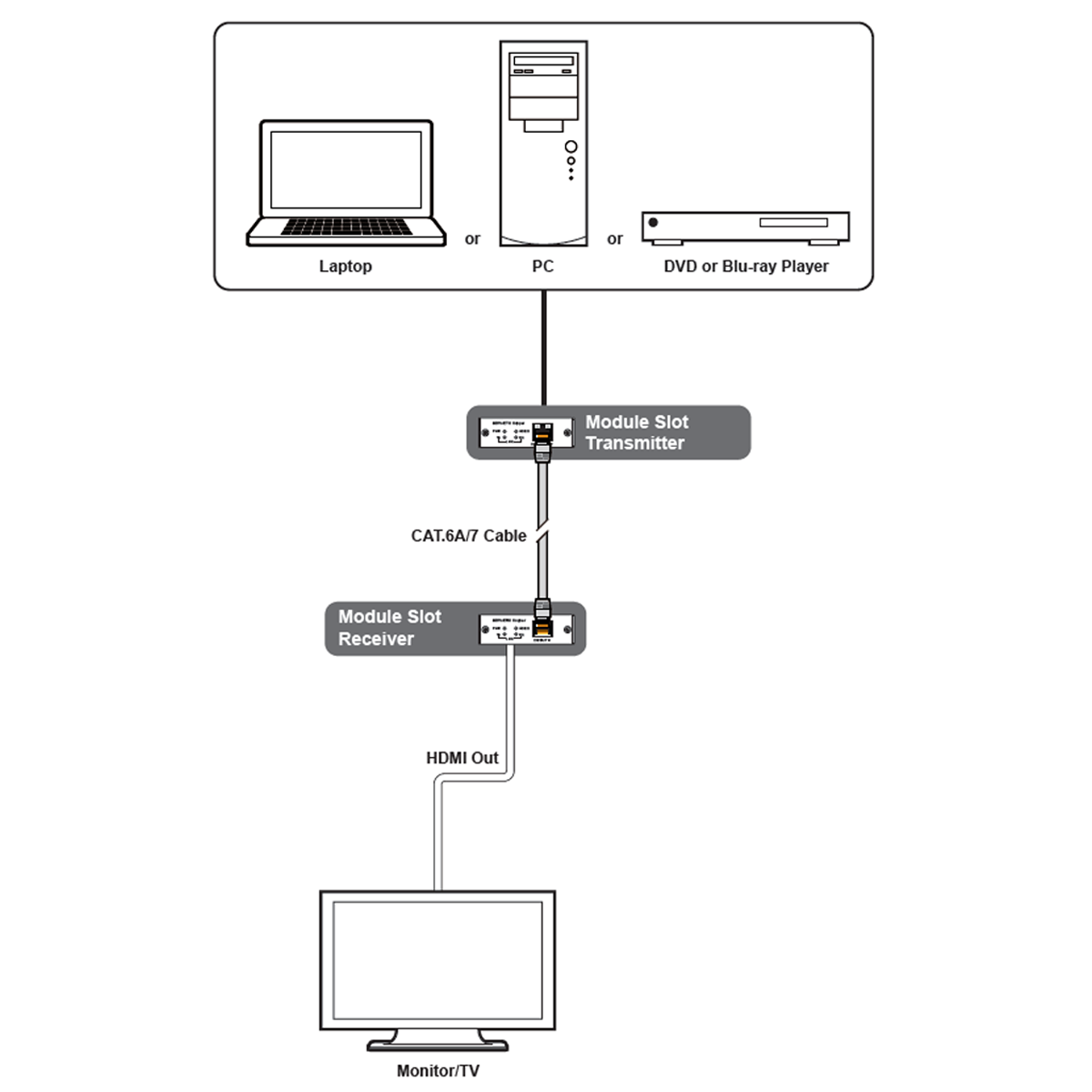

This AV over IP Receiver Module is designed for high-quality, IP routable, AV extension up to 4K@60 4:4:4 with minimum latency. The use of 10-Gigabit Ethernet ports and Cat.6A or better cable allows for point-to-point transmission of the video signal up to 100m. Advanced HDMI content such as HDR (High Dynamic Range), 10-bit color and multi-channel HD Bitstream audio can be transmitted in pass-through mode.
CDPS-CS8-S
AV over IP Master Controller
This 4K60 over 10G IP Master Control is a powerful and flexible solution for controlling multiple SDVoE (Software Defined Video over Ethernet) based extenders within same network. The user only needs to install this unit into the same local network as the extenders (transmitters and receivers) to easily define and configure channel routing selections (including video, audio, and a variety of control interface types) using the WebGUI. Without the use of this centralized control unit, each transmitter and receiver pair would only be able to function in a point-to-point capacity.
CSC-VPR-3421
Multiview Modular Processor
CSC-VPR-3421 is a wonderful solution for streaming, because it offers more than streaming and recording functionality but also offers rich video processing functions. It makes online broadcasting of live video an easy and simple process. Video content up to 4K UHD+ is supported and is automatically scaled to a resolution that is more appropriate for efficient streaming. Both HDMI and VGA inputs are supported. An HDMI output is provided for local monitoring. An audio mixer function is included, allowing an external audio source to be mixed with the embedded audio of your HDMI source (LPCM 2.0 only) for your video stream. Comprehensive EDID management, intuitive WebGUI, and adjustable Audio functions make this unit a terrific tool for video streaming and recording. Besides high performance HDMI switch with integrated scaling, multi-windowing technology, multi-view and streaming are also supported. Any of 4 different HDMI sources may be displayed individually, full screen, or they can be displayed using a variety of multi-window modes including quad mode PiP, and PoP mode, which becomes splendid source for streaming.
CPLUS-V32SDM
UHD+ Multi-format Matrix Switcher with USB Ethernet Hub
CPLUS-V32SDM is a 3x2 matrix switch for use in a wide range of multi-format signals and can be equipped with SDM module cards to widen usages. With the commonly used HDMI outputs, this unit can switch video signals between HDMI and USB-C. This product has a module card slot to let users equip additional function cards and fulfill different scenarios. This matrix switcher supports HDCP2.2, resolutions up to 4k@60Hz (4:4:4, 8-bit), and can be controlled via WebGUI, Telnet and RS-232. It also includes USB3.0 hub with two host-ports and two device-ports for flexible KVM configuration. With the USB extension, this product is ideal for conference, remote meeting, and education scenarios.
